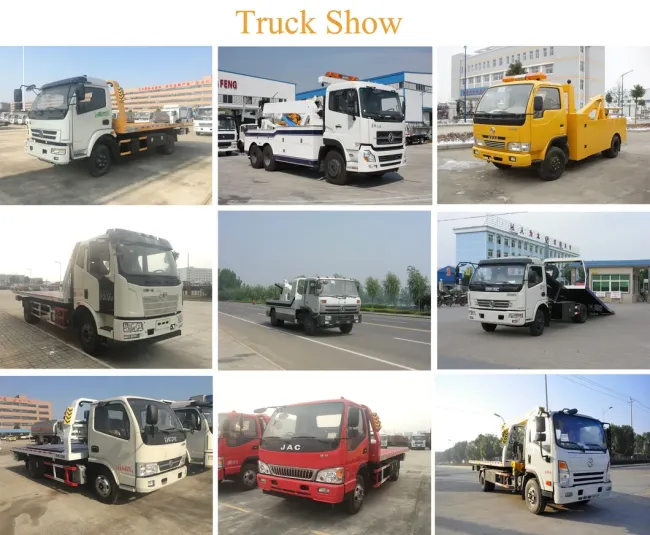

Dongfeng Recovery Towing Trucks Road Accident Rescue Truck with 40t Crane 360degree Rotation Wrecker Tow Truck
Price:
15000-35000 per unit
MOQ:
1
Delivery Time:
30 Days
Brand:
CLW
Product Description

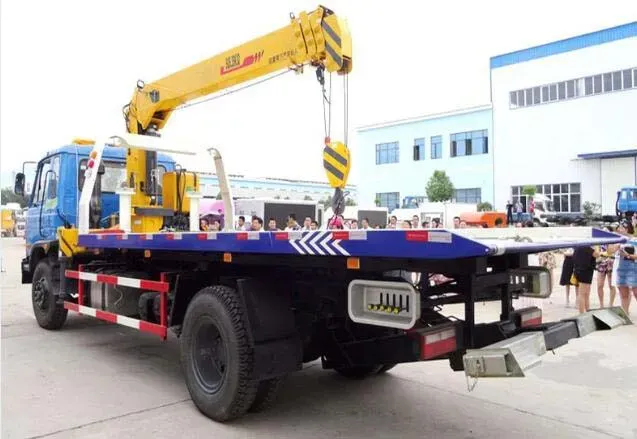

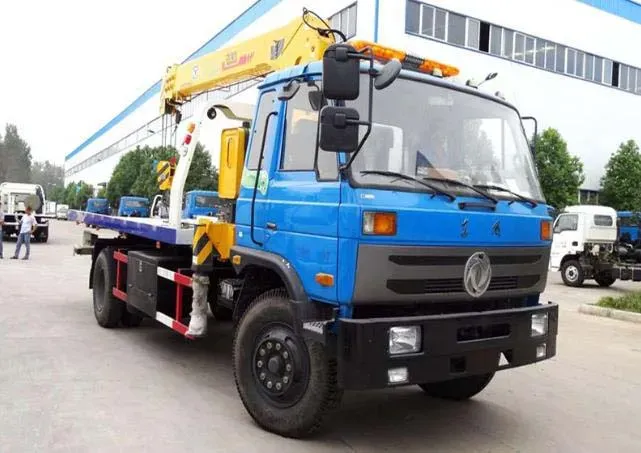

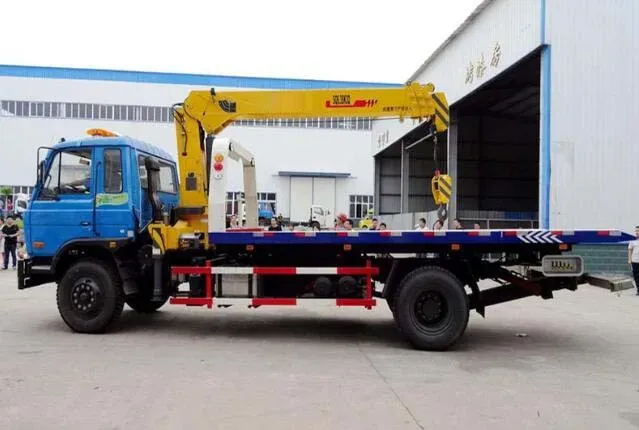

Dongfeng recovery towing trucks road accident rescue truck with 40T crane 360degree rotation wrecker tow truck
Product Description
5Tons Wrecker Truck for Towing Broken Cars or Equipments.
Dongfeng Brand Chassis for Euro 2 or Euro 3 Emission
Spare parts of 5tons wrecker tow truck:
- Italy brand multi-way valve and balance valve;
- Gernamy Roxroth technology hydraulic cylinder and joint;
- International Brand Sealing elements;
- Strengthed Checked platform.
Product Specification
| General Technical Specification | |||||
| Overall Dimension | 9200x2480x3500(mm) | ||||
| Gross Vehicle Weight | 159000 (Kg) | ||||
| Curb Weight | 9995 (Kg) | ||||

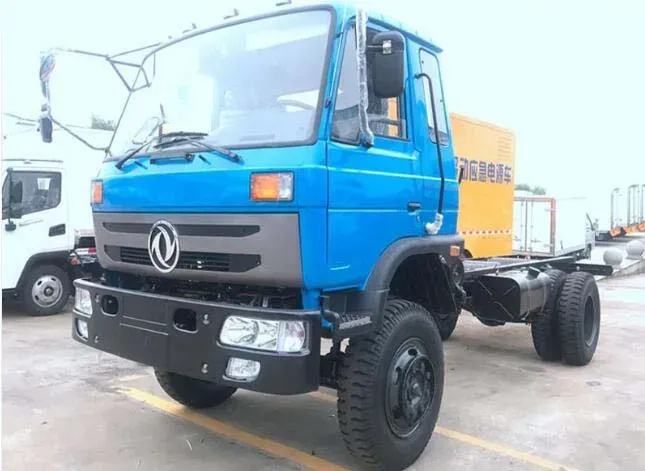

| Chassis Specification | |||||
| Chassis Brand | Dongfeng | ||||
| Drive model | 4*2 | ||||
| Cabin | Single, Left Hand Drive | ||||
|
Engine |
Model | 4-stroke direct injection, 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | |||
| Power | 140KW/190HP | ||||
| Emission standard | EURO2 or 3 | ||||
| Displacement | 5900(ml) | ||||
| Fuel type | Diesel | ||||
| Gearbox | 8 Forwards & 1 Reverse, Power steering, hydraulic steering with power assistance | ||||
| Brake System | Air break | ||||
| Wheel Base | 4700(mm) | ||||
| Front/Rear Axle Loading | 5000/9000(Kg) | ||||
| Approach/Departure Angle | 24/12(°) | ||||
| Tire | 10.00R20, 6pcs + 1 spare tire | ||||
| Max Driving Speed | 98(km/h) | ||||
| Superstructure Specification | |||||
|
Platform Organ |
Dimension | 6000*2400(mm) | |||
| Material | Q235 carbon steel | ||||
| Max Loading capacity | 6000(kg) | ||||
|
Winch |
Quantity | 1 | |||
| Winch rating towing capacity | 6000(kg) | ||||
| Length of steel rope | 25(m) | ||||
| Speed of winch | 3.23~8 (m/min) | ||||
| Crane | Max lifting capacity | 8000(kg) | |||

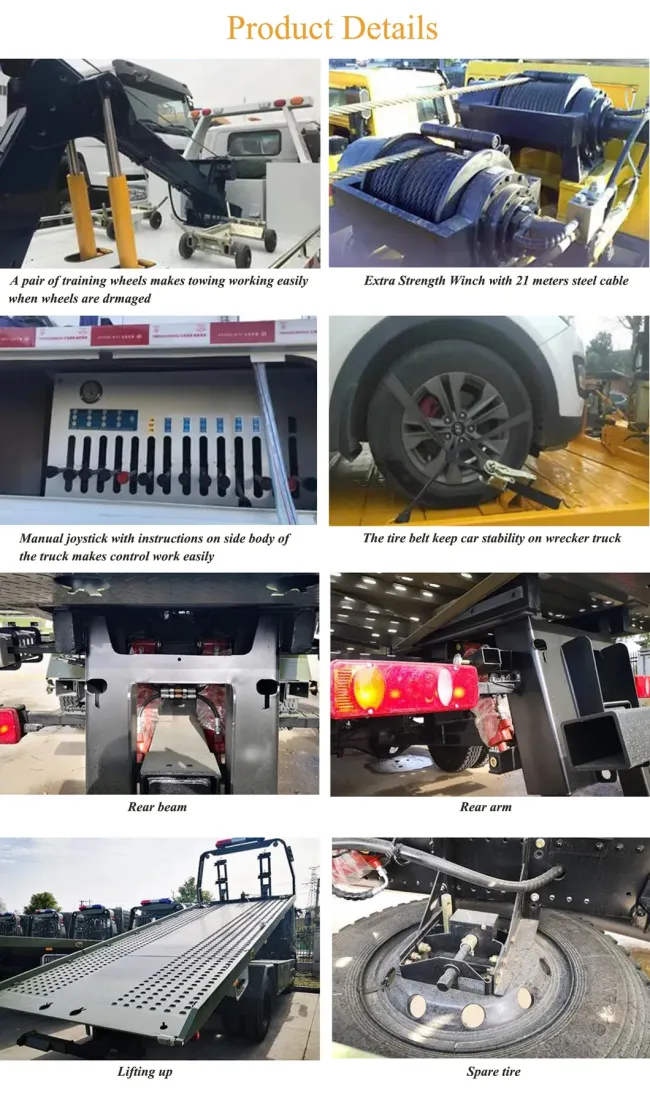

| Other parts | Auxiliary wheels, alarm light, hooks, 4 bundling belt, automatic sliding plate, etc. | ||||
| Options | Caution light, air condition,inlet valve. | ||||
