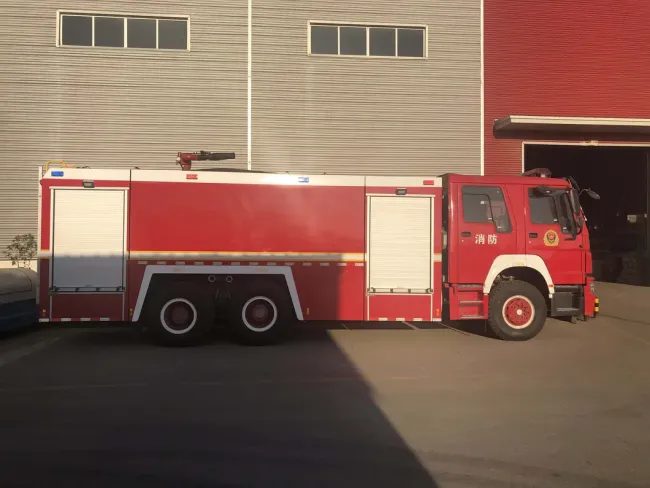

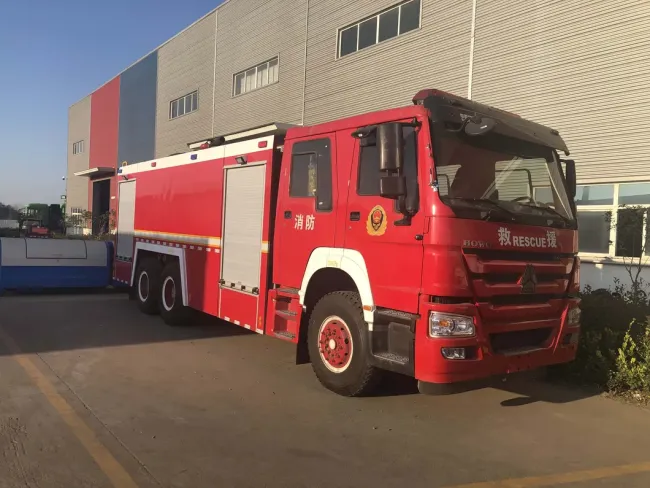

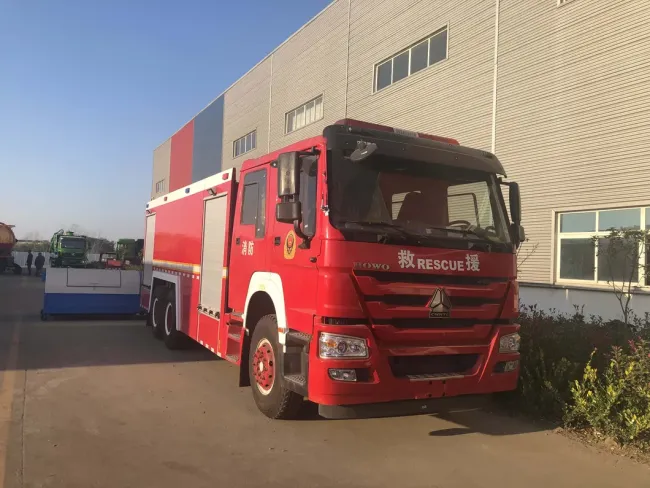

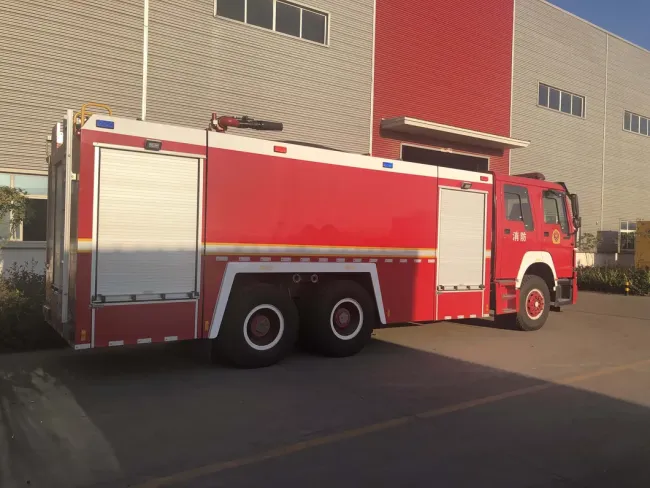

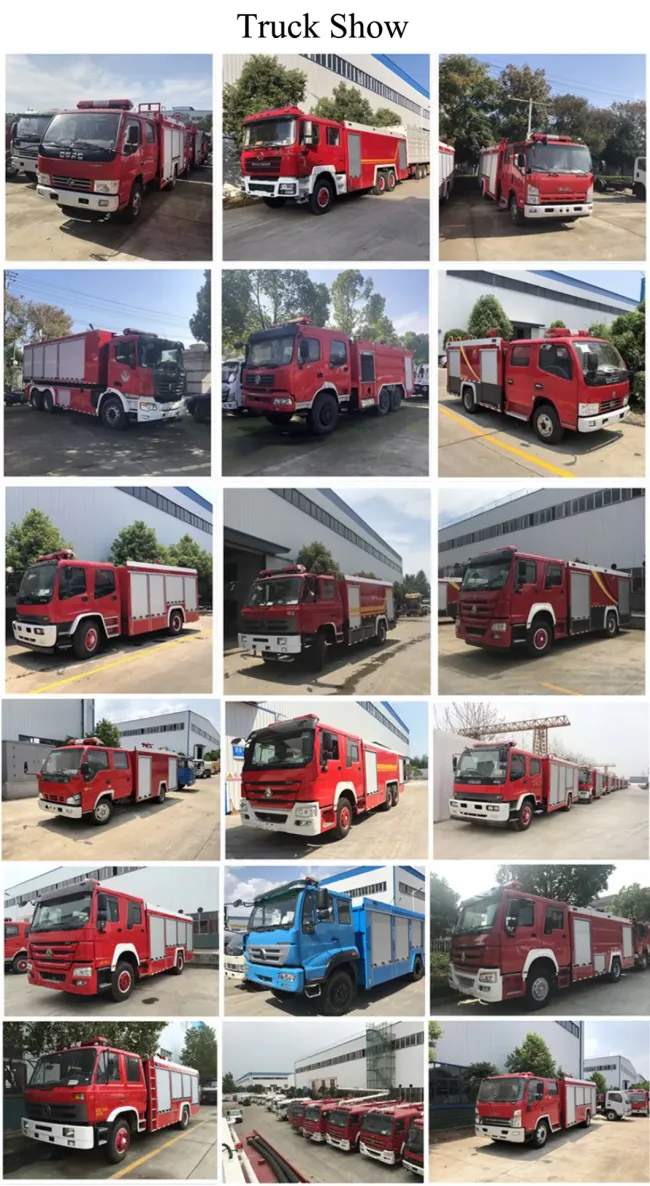

HOWO Emergency Rescue 10tons Water Dry Powder Foam Combination Fire Fighting Truck
Dry powder Fire Fighting Truck, which is also called water fire engine,water foam fire truck,fire fighting equipment, fire appliance truck, foam fire tanker, water foam pumper, light rescue apparatus, fire fighting vehicle, foam discharging truck, foam tanker fire truck is a special vehicle designed primarily for fire fighting operations and to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximumly.
dry powder fire fighting truck can be divided into several types:
- According to vehicle size, there are mini fire fighting truck,light fire fighting truck,medium fire fighting truck, heavy-duty fire fighting truck.
- According to chassis drive type, there are 4X2 or 6-wheel fire fighting truck, 6X4 or 10-wheel fire fighting truck, 8X4 12-wheel fire fighting truck and off-road type 4X4, 6X6 fire fighting truck for use.
- According to chassis brand, there are fire fighting truck, Dongfeng fire fighting truck, Foton fire fighting truck, FAW fight fighting truck, Shacman fire fighting truck, sinotruk fire fighting truck, Mercedes fire fighting truck, MAN fire fighting truck, fire fighting truck and so on.
- According to fire extinguishant,there are water tank fire fighting truck, dry powder fire fighting truck, water/foam fire fighting truck
- There are also fire rescue truck with special purpose as follows,
- Foam supply fire truck;
- Compressed air supply fire fighting truck;
- Water tower fire truck ;
- Earthquake rescue fire truck;
Features of howo 10ton dry powder fire truck :
- Optional for different siz,strong enough for all road conditions.
- powderful engin; reliable performance, no overhaul within 100,000 km.
- Nice shape, rational structure.
- High quality fire pump
- Massive, durable, long service life.
| Model | Parameters | others |
|---|---|---|
| Overall Dimension | 9965*2500*3750mm | |
| GVW | 26100kg | |
| Engine Model | WD615.47 | |
| Engine Power | 273kW | |
| Wheelbase | 4600+1350mm | |
| Driving Type | 6×4 | |
| Max.speed | 102km/h | |
| Emission Standard | 9726ml/kW | Euro4 |
| Fire pump rated flow | 60L/s@1.0Mpa, 30L/s@2.0Mpa | Vacuum pump |
| water monitor rated flow | 48-64L/s@1.0-1.2Mpa (ajustable) | Straight stream/spray/mist spray |
| Water monitor range | Water range≥65m,Foam≥60m | |
| Passengers | 2+4 | |
| Approach angle | ≥16° | |
| Departure angle | ≥19° |
| Item Parameters | Parameters | others | |||
|---|---|---|---|---|---|
|
1 |
Tank capacity |
water | ≥5000 | ||
| Foam | ≥3000 | ||||
| Dry powder | ≥2000kg | ||||
| 2 | Fire pump model | CB20.10/30.60 | Shanghai rongshen | ||
| 3 | Fire pump performance | Pressure 1:1.0Mpa flow:60L/S Pressure 2: 2.0Mpa flow:30L/S |
Use vacuum pump to priming water | ||
| 4 | the installation site of fire pump | rear | |||
| 5 | The quantity of fire pump water outlet | 6 | |||
| Dry powder tank pressure | 0.5Mpa~1.7Mpa | ||||
| 6 | Pressure gauge | 0-2.5 MPa | 2.6 level | ||
| 7 | Vacuum gauge | -0.1- -1 MPa | 2.6 level | ||
|
8 |
Water monitor |
Injection pressure |
water:≥65m Foam: ≥60m |
Zhangqiu | |
| 1.0~1.2Mpa | |||||
| Depression/Elevation angle | -15-+75° | ||||
| Turning angle 340° | |||||
| 9 | Foam proportioner | 3%-5% | |||
| 10 | PTO Model | YTQ800F type full power sandwich , pneumatic | Sinotruk | ||
