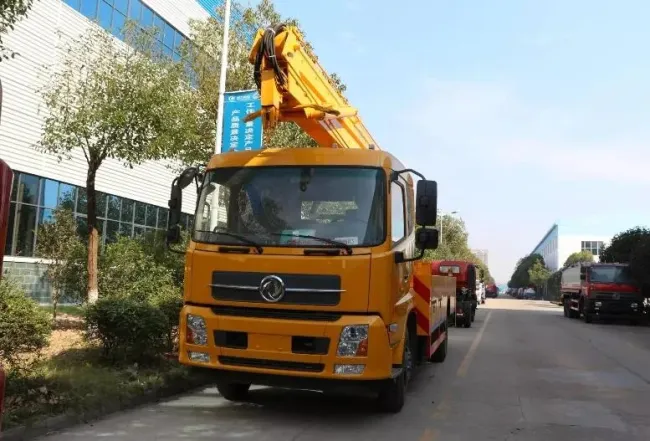

12m-18m Dongfeng Aerial Platform Truck High Altitude Working Platform Lift Truck
Price:
15000-35000 per unit
MOQ:
1
Delivery Time:
Negotiable
Brand:
CLW
Product Description

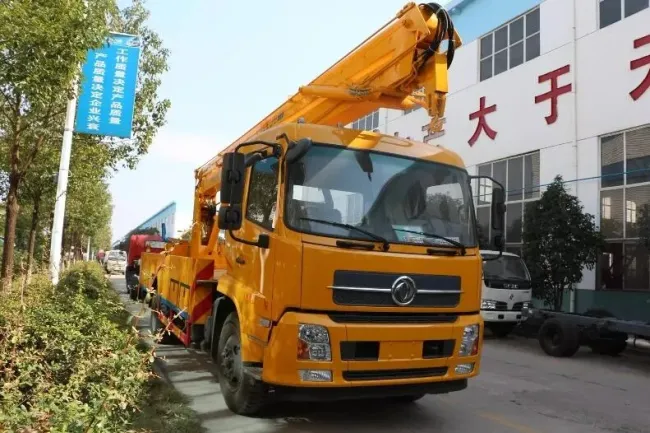

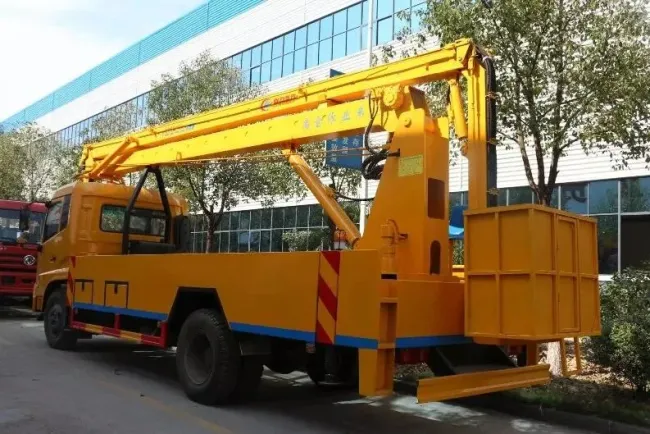

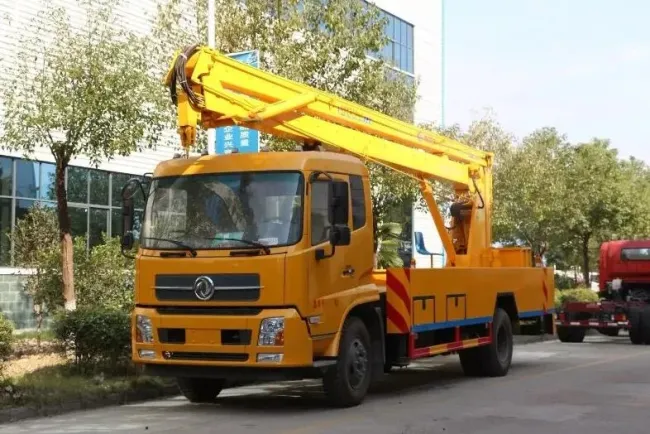

12-18m Dongfeng Aerial Platform High-Altitude Working High Platform Operation Truck
- Automatic Bucket Balance System, Bucket will be Stayed in Balance Level in All Working Time.
- The Stretching Angle Up to 80°, which will be Easier to Handle in All Time.
- Full Computer Control System with Danger Waring System.
- LCD Screen in Both the Bucket and Truck to Display the Working Status.
- Rectangular Shape Arms to Increase the Arm Strength.
- V Shape Leg, H Shape Leg can Adapted to Different Road Condition Increasing the Stability.
Product Specification
| Chassis | ||||||
| Chassis brand: | Dongfeng,EQ1101GLJ2 | |||||
| Drive type: | Manual, left hand drive,optional right hand drive | |||||
| Drive wheel: | 4*2 | |||||
| Tyre: | 9.00-20, 6+1pieces | |||||
| Control system: | Electrically hydraulic system | |||||
| Transmission: | Six speed levers, | |||||
| 6 speed forward with 1 reverse | ||||||
| Chassis dimension: | 7120*2462*2710mm | |||||
| Braking system: | Air braking | |||||
| Clutch: | dry clutch, hydraulic remote control | |||||
| Wheel base: | 3950mm | |||||
| Axis number: | 2 pieces | |||||
| Cab Passengers: | 5 passengers | |||||
| Engine | ||||||
| Engin: | ,EQB160-20 | |||||
| Horse power: | 185HP | |||||
| Exhaust: | 6700CC | |||||
| electric system: | 24V | |||||
| Emission standard: | Euro 3 | |||||
| Max speed: | 90km/h | |||||
| Fuel: | Diesel,optional gasoline | |||||
| Main parameters technical specifications | ||||||
| Overall size: | 9200*2470*3610mm | |||||
| Overall G.W.: | 9900kg | |||||
| Curb weight: | 6320kg | |||||
| Fact load: | 1000kg | |||||
| Srpings: | 8/11+8 | |||||
| Approach/departure angle: | 31/20. | |||||
| Overhang F/R: | 1250/2050mm | |||||
| Axis load: | 4500/6995 | |||||
| Warrenty: | 1 year | |||||
| Certification: | CCC, ISO... | |||||
| Tank Parameter | ||||||
| Max Working Height | 22m | |||||
| Max Platform Height | 20m | |||||
| Max Working Radius | 8300 mm | |||||
| Angle Of Rotation | 360 ° | |||||
| 1. Working platform rating loading=200kg, working platform | ||||||
| rating allowable passengers=2 | ||||||
| 2. Working platform dimension:1100*570*1000mm,360°turning(left or right), | ||||||
| 4 H-shape legs. | ||||||
| 3. Clients can choose hydraulic parts made in China or Italy,to be mentioned. | ||||||
| 4. Rotating speed 0-2 r/min | ||||||
