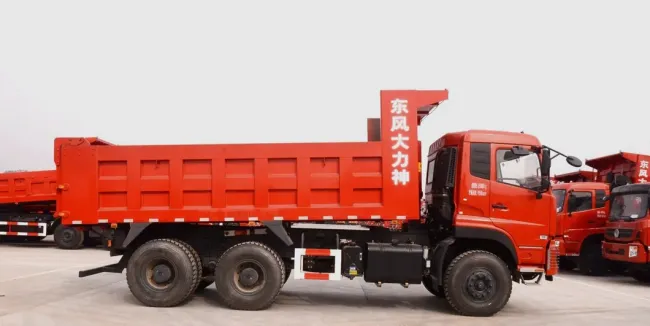

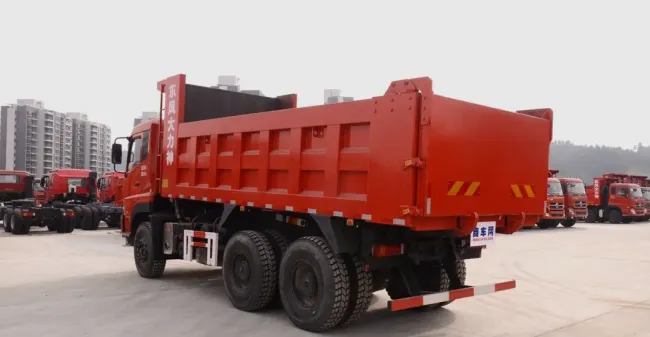

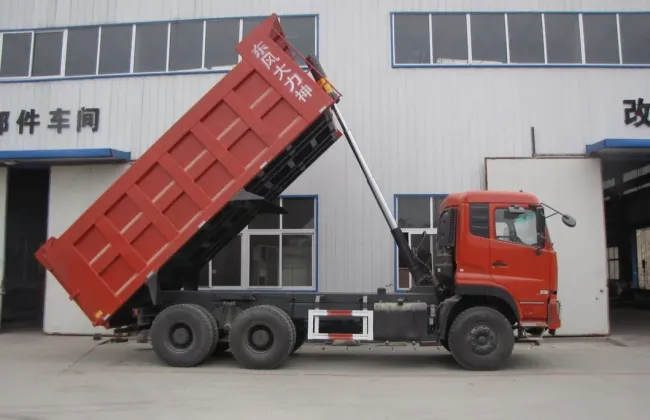

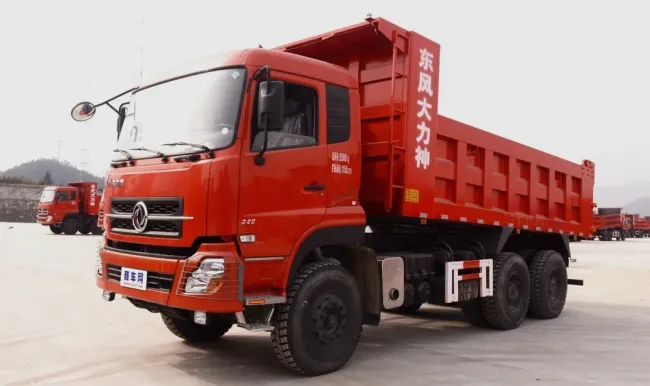

Dongfeng 6x4 Tipper Dump Truck 20-25 Tons 10 Wheels for Mining Construction
Price:
15000-35000 per unit
MOQ:
1
Delivery Time:
25~30 Days
Brand:
EHY
Product Description
6*4 20 tons 25 tons 10 wheelers Dongfeng tipper dump truck for minery construction
Product description:
- 1) Dump truck brand: SINOTRUK HOWO, CAMC, SHACMAN, JAC, NORTH-BENZ,FOTON, etc.
- 2) Tipping Model of dump truck: Front-tipping, Middle-tipping.
- 3) Hydraulic oil cylinder brand of dump truck: International brand HYVA or Chinese famous brand.
- 4) High tensile steel for dumper materia of dump truck: 4mm, 6mm, 8mm,10mm or as per customer's request.
- 5) Used in Construction or Mineral site for Transportation of mineral, stone, sand, garbage and so on.
Specification of dump truck:
| ITEM | PARAMETERS | |
| Brand | Dongfeng | |
| Product | Dump truck | |
| Cabin | Left hand drive, without air conditioning | |
| GVW(kg) | 25000 | |
| Curb weight(kg) | 11905 | |
| Wheelbase(mm) | 3800+1350 | |
| Overall dimensions(mm) | 8250×2490×3000 | |
| Wheelbase | 3950 | |
| F/R suspension(mm) | 1250/1850 | |
| F/R track base(mm) | 1940/1860/1860 | |
| Approach/departure angle(°) | 25/20 | |
| Max speed(km/h) | 90 | |
| Clutch | Reinforced diaphragm clutch | |
| Steering gear | Power steering, hydraulic steering with power assistance | |
| Tire quanity | 10 pcs with 1 spare tire | |
| Tire specification | 10.00-20 Nylon | |
| Transmission | 8 speed manual transmisson | |
| Cab | 3 person allowed in the cab; with air conditioning | |
| Traction system | 6×4 | |
| Number of axles | 3 | |
| Engine brand | KUMMINS | |
| 191kw/260hp | ||
| Emission standard | EURO 3 | |
| Fuel type | Diesel | |
| Cylinder number | 6 | |
| Electric system(V) | 24 | |
| Operation control sysytem | Electrically hydraulic control | |
| Allowance passengers in cab | 2 | |
| Size: 5000×2300×1000 Side thickness: 3mm, bottom thickness: 4mm. Double cylinder middle tipping; A complete set of Chinese famous brand hydraulic system 110mm oil cylinder diameter Color is optional for customer's request | |
