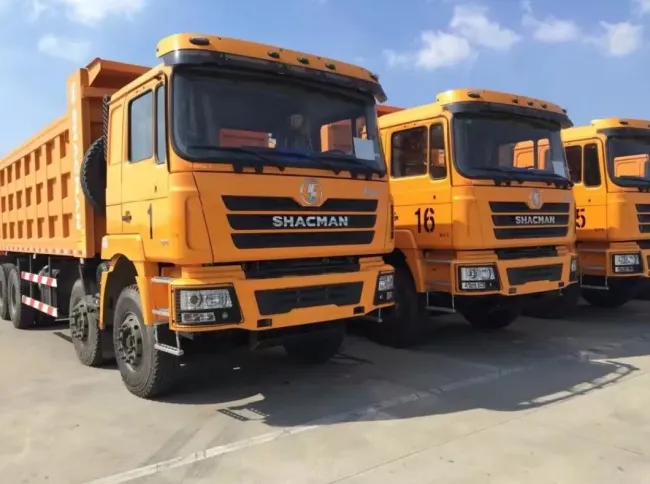

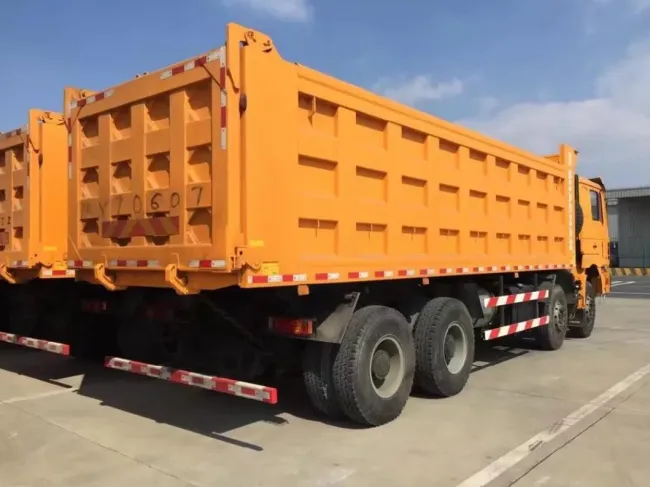

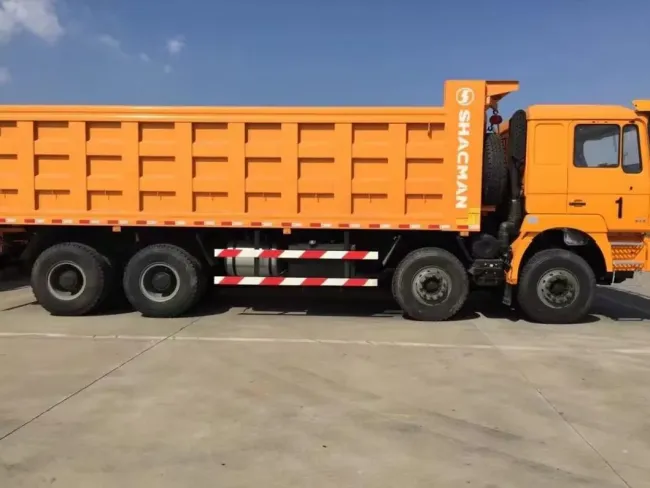

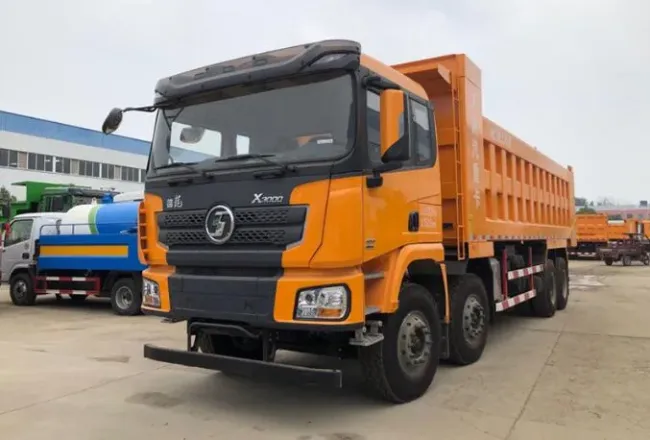

Shacman X3000 8x4 Tipper Truck 40t 50t Dump Truck with Hyva Oil Cylinder 6.5m Dumper Body
Price:
15000-35000 per unit
MOQ:
1
Delivery Time:
Negotiable
Brand:
EHY
Product Description
Factory Price Shacman Tipper Truck X3000 12-wheel HYVA oil cylinder 6.5meters Dumper Body 40t 50t Dump Truck
Product Description
1) Truck chassis brand of shacman dump truck : SINOTRUK HOWO, CAMC, SHACMAN, JAC, NORTH-BENZ, FOTON, etc.
2) Tipping Model of shacman dump truck : Front-tipping, Middle-tipping.
3) Hydraulic oil cylinder brand of shacman dump truck : International brand HYVA or Chinese famous brand.
4) High tensile steel for dumper materia of shacman dump truck : 4mm, 6mm, 8mm,10mm or as per customer's request.
5) Used in Construction or Mineral site for Transportation of mineral, stone, sand, garbage and etc.
Specification of shacman X3000 8X4 dump truck
| Max. running speed (km/h) | 85 | |
| Drive System | 8*4 | |
| Dimensions (L*W*H)(mm) |
Overall | 10329x2490x3450 |
| Dump body | 7400*2300*1500 | |
| Tipper thickness (mm) | Bottom 8, side 6 | |
| Hydraulic lifting system | HVYA front lifting | |
| Approach / departure angle (°) | 28 / 20 | |
| Kerb weight (kg) | 14600 | |
| Total mass (kg) | 31000 | |
| Wheel base (mm) | 1800+3575+1400 | |
| Overhang (mm) (front/rear) | 1525 / 2054 | |
| Track width (mm) (front/rear) | 1939/1850 | |
| Engine | WP12.430E201( Weichai engine, Euro 2) | |
| Horsepower | 385 hp | |
| Ma.torque ( N,m) | 2060 | |
| Displacement (L) | 11.596L | |
| Gearbox | 12JSD200T-B+QH50, FAST Gearbox | |
| Clutch | 430 Diaphragm type | |
| Steering | ZF technology | |
| Cab | X3000 mid-lengthened Cabin with A/C & single-sleeper | |
| Axle | Front axle | 9.5T MAN technology |
| Rear axle | 16Ton MAN casting axle, final ratio 4.769 | |
| Tyre (radial tyre) | 12.00R20 | |
| Oil tank | 400L(ALLOY) | |
