Sinotruk HOWO 40 Ton Tipper Dump Truck 371HP 6x4 Front Tipping Mining Construction
Price:
15000-35000 per unit
MOQ:
1
Delivery Time:
35 Days
Brand:
EHY
Product Description

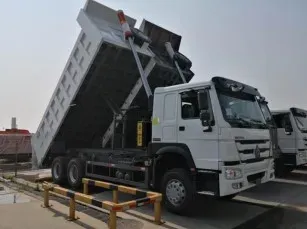

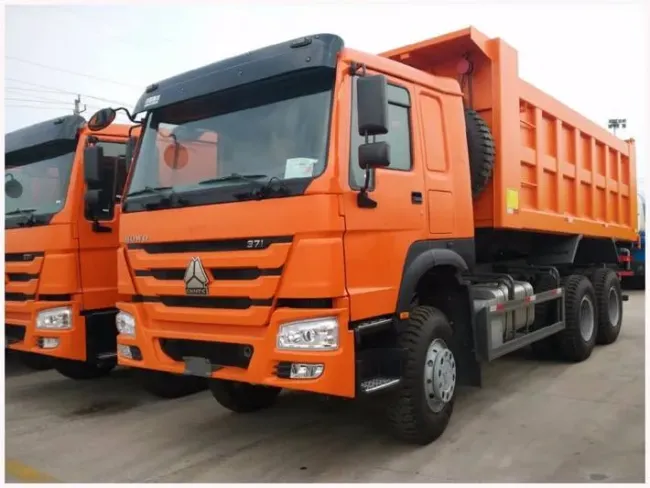

China Sinotruck HOWO 40t Front Tipping Mining Construction Transportation dumping tipper mining truck
Product description:
- Dump truck brand: SINOTRUK HOWO, CAMC, SHACMAN, JAC, NORTH-BENZ, FOTON, etc.
- Tipping Model: Front-tipping, Middle-tipping.
- Hydraulic oil cylinder brand: International brand HYVA or Chinese famous brand.
- High tensile steel for dumper materia: 4mm, 6mm, 8mm,10mm or as per customer's request.
- Used in Construction or Mineral site for Transportation of mineral, stone, sand, garbage and etc.
- Specification of dump truck:
|
|
HOWO 76 Standard Cab With one sleeper, 70° hydraulically tillable to the front as attached photo for ref. |
 |
|||||
|
|
(L x W x H) mm | 8860×2496×3450 | |||||
| Wheel base (mm) | 3825+1350 | ||||||
| Wheel track (front/rear) (mm) | 1500/1525 | ||||||
| Approach/Departure angle(°) | 19/24 | ||||||
|
|
Tare Weight | 12390kg | |||||
| Loading Capacity | 40000kg | ||||||
| Front axles loading capacity | HR9 1x9000kg | ||||||
| Rear axles loading capacity | HC16 2x16000kg | ||||||
| Max. driving speed(km/h) | 85 | ||||||
|
|
Brand | Sinotruk Howo | |||||
| Model | WD615.47 | ||||||
|
|
4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | ||||||
| Horse Power(HP) | 371HP | ||||||
| Emission standard | Euro 2 | ||||||
| Gearbox | HW19710, 10 forwards & 2 reverse | ||||||
| Clutch | Reinforced diaphragm clutch, diameter 430mm | ||||||
| Steering Gear | ZF 8118, power steering, hydraulic steering with power assistance | ||||||
| Fuel tank (L) | 300 | ||||||
| Tire | 12R22.5 tubeless tire,10 pieces with one spare | ||||||
|
|
Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake |
||||||
