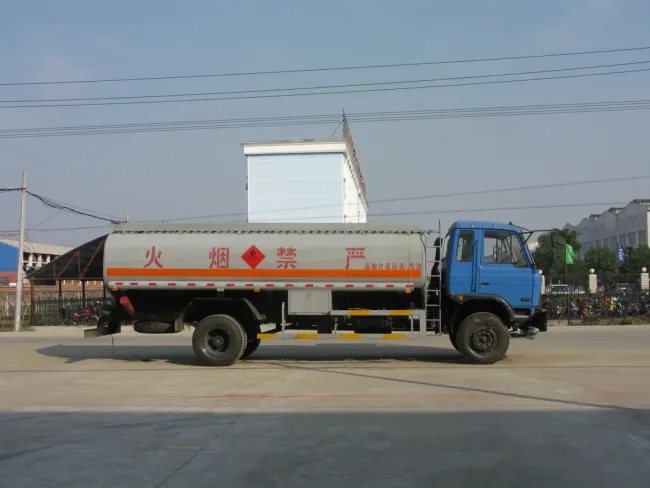

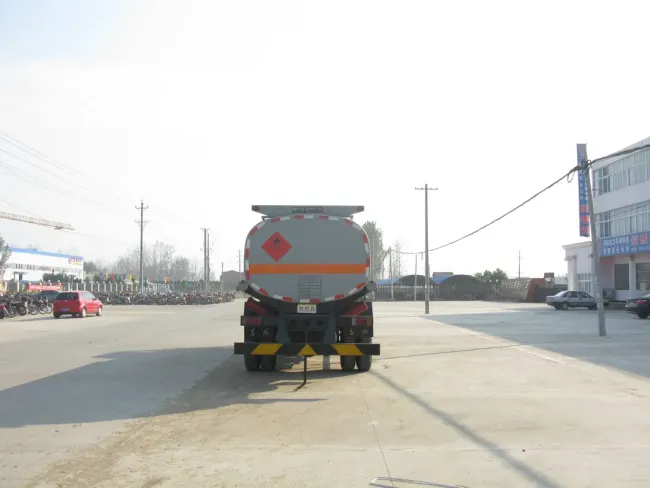

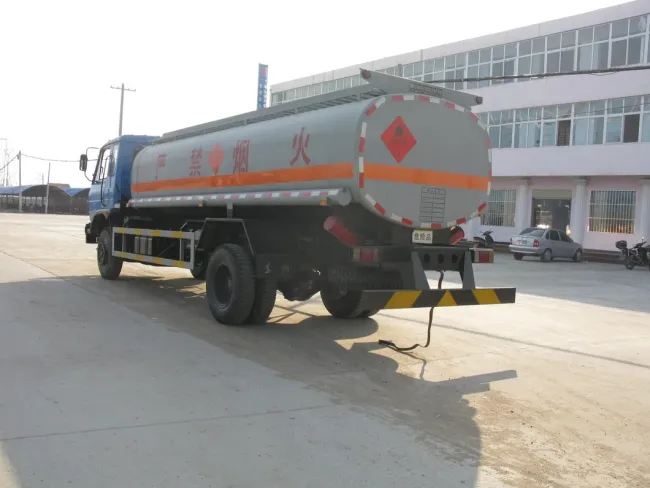

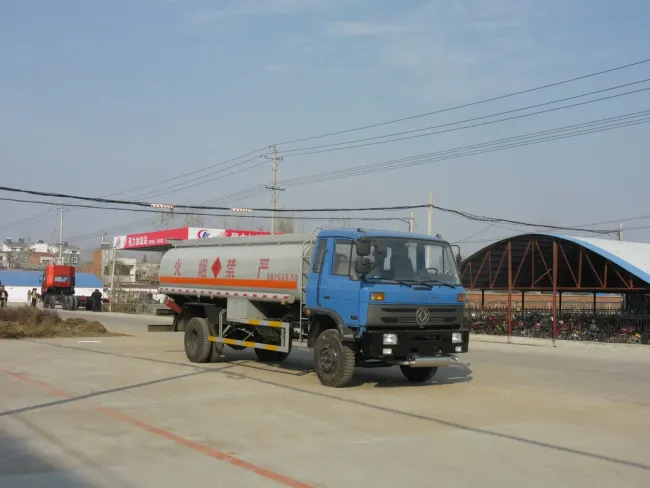

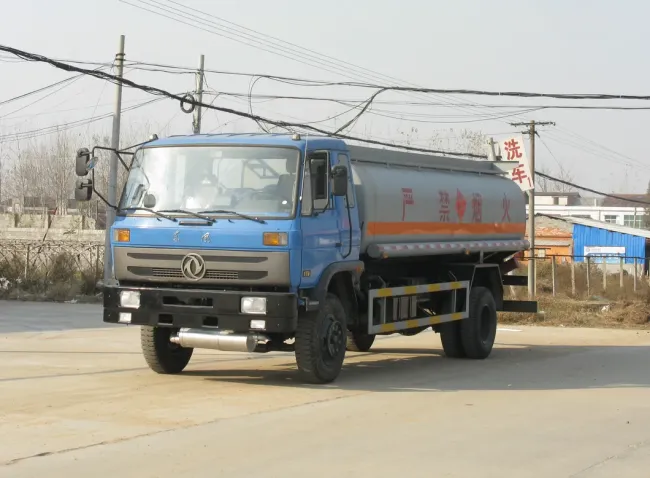

12000L Diesel Gasoline Oil Tank Truck 12m3 Fuel Refueling Truck with Dispenser 190HP
Price:
15000-35000 per unit
MOQ:
1
Delivery Time:
Negotiable
Brand:
EHY
Product Description
Diesel Gasoline Oil Tank 12000L Fuel Tank Truck 12m3 Oil Refueling Truck with Dispenser
Dongfeng Chassis with Engine of 190HP
- High Quality chassis good for many different kinds of road condition.
- Good Quality Tank with different capacity for choice: 10,000 liter to 30,000Liters

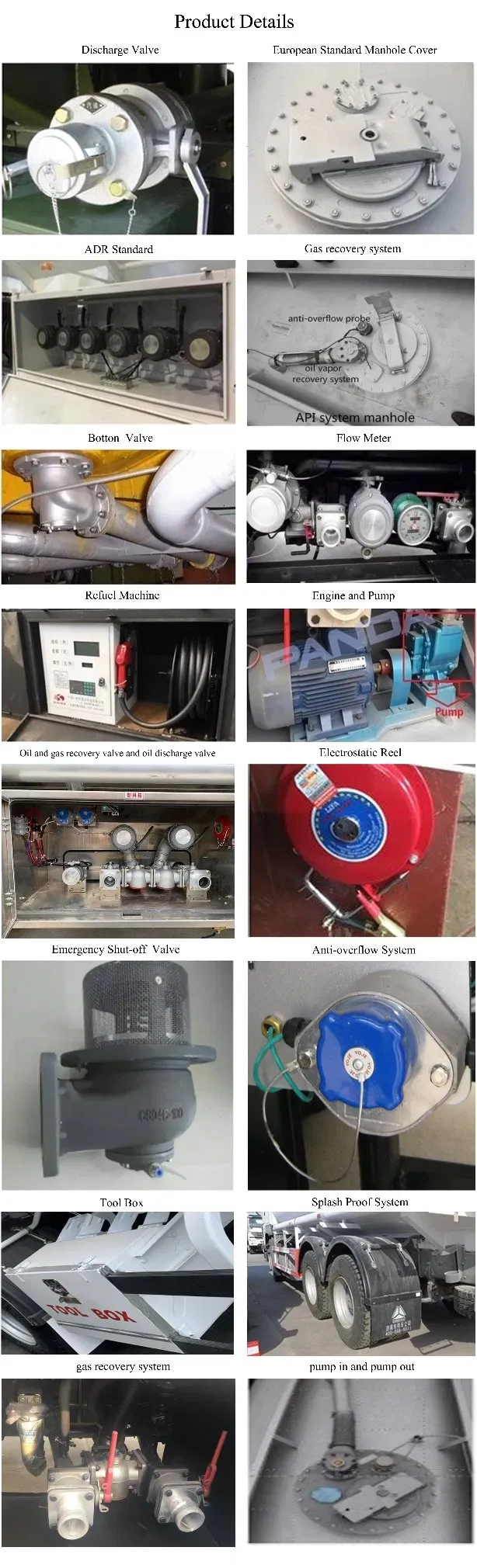

- API Manhole, Emergency cut-off Valve,
- Optional Bottom Discharge, Vapor Recovery system.
Specifications of 12000 liters Fuel Delivery Truck
| Vehicle Description | ||
| Overall dimensions | 8400*2500*3100mm | |
| GVW | 18000kg | |
| Curb weight | 7900 kg | |
| Chassis brand | Dongfeng | |
| Traction type | 4*2 | |
| Tanker Description | ||
| Tank capacity | 15-20cbm | |
| Tanker material | Carbon steel | |
| Thickness | Tanker body | 5mm |
| End cover | 5mm | |
| Tanker shape | Square | |
| Tanker compartment | 1 compartment (optional: several compartment) | |
|
Standard configuration |
1 set manhole . | |
| Equipped with double discharge valve and valve box. | ||
| Equipped with surge baffles, ladder, roof coaming, skid resistant walkway, and toolbox. | ||
| Electrostatic conducting tape and double fire extinguishers. | ||
|
Optional |
Tanker material: aluminum alloy; stainless steel | |
| Chinese standard configuration is available, or other world famous fuel configuration. | ||
| over flow probe system, vapor recovery system, bottom valve, API adaptors. | ||
| Emergency bottom valve and foldable aluminum handrail. | ||
| Others: fuel pump, refueling dispenser, flow meter,dipstick, etc. | ||
| Chassis Description | ||
| Cab | 3 Passenger , with air-conditioner. | |
| Wheelbase | 4700 mm | |
| Tire specification | 10.00R20 | |
| Tire quantity | 6+1 units | |
|
Engine |
Emission level | Euro 2 |
| Brand | ||
| Horse power | 190 HP | |
| Gear box | Number of gears | 6 forward gears& 1 reverse |
| Brake system | Oil brake | |
| Axle | Front | 5000kg |
| Rear | 10000 kg | |
| Suspension | Leaf springs | |
| Fuel tanker | Type | Steel tanker, with lockable cap |
| Capacity | 160L | |
