Dongfeng 6 Wheels 10m3 Carbon Steel Oil Tank Truck for Diesel Gasoline Transport
Price:
15000-35000 per unit
MOQ:
1
Delivery Time:
35 Days
Brand:
EHY
Product Description
Dongfeng 6 Wheels 8m3/10m3 Oil Refuel Tank Truck Carbon Steel Diesel/Gasoline Transport
Product Description:
- Tank material: we can provide carbon steel tanks, stainless steel tanks, manganese steel tanks, aluminum tanks, steel with plastic (or rubber) tanks and plastic tanks.
- Good welding: tank body is adopted an advanced automatic vertical welding techniques and head arc butt welding technology, as well as the whole- steel forming a composite.
- High safety: equip with active and passive emergency protection devices, to provide full closure remote manipulation of materials handing functions. Equip separators [Baffle] to prevent surging of liquid towards bulk head
- Function: The tank body is suit for loading light fuel oil, heavy oil, sulfuric acid, hydrochloric acid, nitric acid, caustic soda hydrogen peroxide, alcohol, benzene, cooking oil and so on.
- Oil punp: gear pump, self-absorption (centrifuge) pump, chemical pump, heavy, oil pump, stainless steel pump are optional.
- Tank shape: shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation.
- Refueling machine: the refueling machine we use are tax controled oiling machine with accurate figure of volume, sum of money,etc.
- Optional: reading meter for outlet and inlet,self-discharge valve at rail or side of tank body, compartment quantity according to the demand.
Main Parameters:
| General Technical Parameters | ||||
| Overall Dimension | 7200*2320*3120 mm | Gross Vehicle Weight | 15000 kg | |
| Curb Weight | 6170 kg | Loading Weight | 8635 kg | |
| Chassis Specification | ||||
|
Chassis parameters |
Chassis Brand | Dongfeng | ||
| Cabin | Single, Left Hand Driving | |||
|
Engine |
Power | 170HP | ||
| Emission standard | EURO III | |||
| Displacement | 3.7L | |||
| Fuel type | Diesel | |||
| Gearbox | 6 Forward & 1 Reverse Gear | |||
| Front and Rear Axle load | 3.5T rear axle | |||
| Wheel Base | 3950(mm) | |||
| Overhang( Front/Rear) | 1040/1647(mm) | |||
| Angle(Approach/departure) | 16/14(°) | |||
| Brake System | Pneumatic | |||
| Steering Gear | Power Assistant | |||
| Tire | 9.00R20, 6 Pieces | |||
| Maximum speed | 90(km/h) | |||
| Superstructure | ||||
|
Fuel Tanker |
Tank Volume | 10,000 Liters / 10m3 | ||
| Tank Material | Q235B Carbon Steel | |||
| Tank Shape | Square Round | |||
| Transport oil type | Diesel/Petrol | |||
|
Refueling system |
Oil Pump | 1pc, Chinese famous brand | ||
| Oil dispenser | 1pc, Chinese famous brand, Digital Screen Display with Keyboard, Oil Filling Display in Liter, Price & Amount | |||
| Hose Reel with Filling Gun | 6 Meter (Length can be longer as per request), Corrosion Resistant | |||
| Equipment | Lifting fence, ladder, Manhole 1 Unit, Emergency cut-off valve 1 Unit | |||
| Optional standard system | Anti-overflow probe Oil Vapor Recovery System |
|||

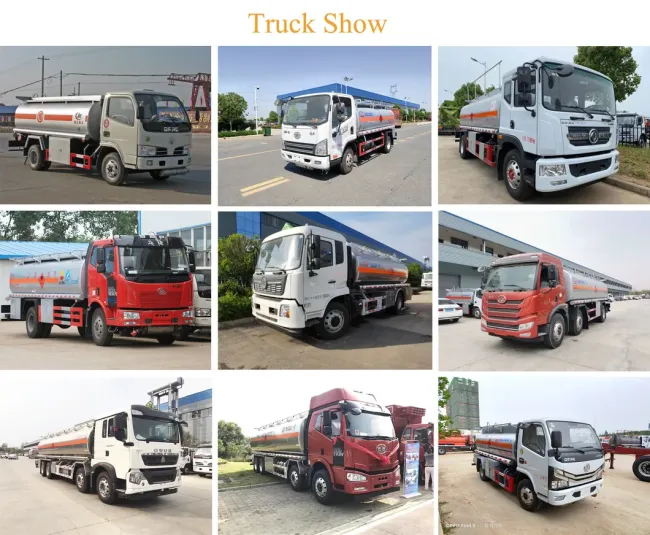

Detailed Photos:
