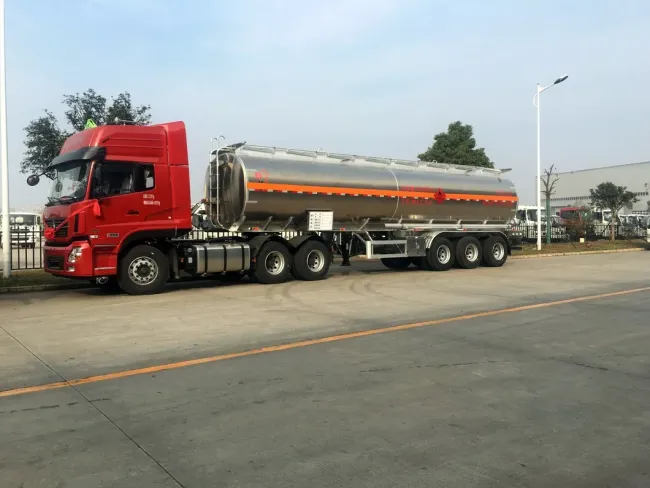

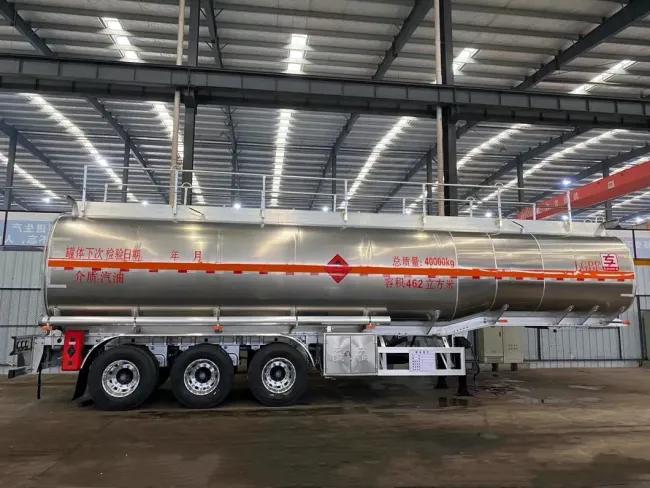

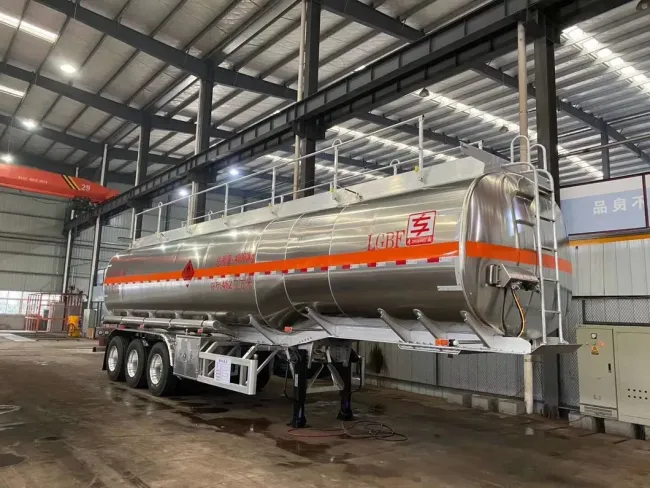

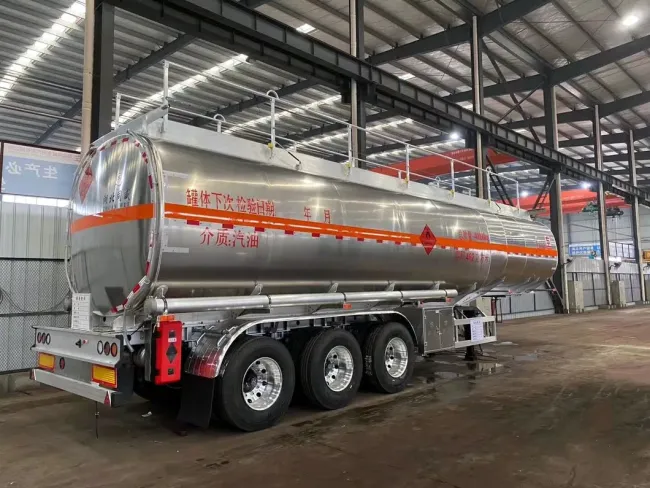

Aluminum Alloy Oil Tanker Truck 42000L 46000L Fuel Truck Trailer Semi Trailer
Price:
15000-35000 per unit
MOQ:
1
Delivery Time:
Negotiable
Brand:
CLW
Product Description

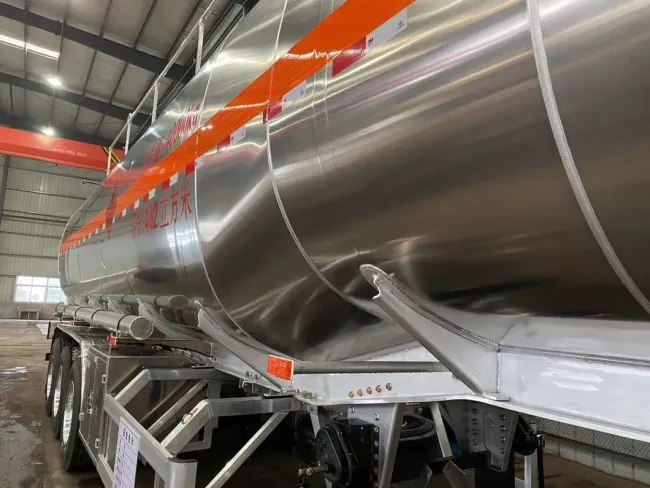

42000L 46000L Aluminum Alloy Tank Oil Fuel Truck Trailer Diesel Petrol Aviation Kerosene Transport Tanker Semi Trailer Oil Shipped Half Hanged
Product Description
- Oil Tanker Trailers ,also called oil tanker semitrailer,fuel tank semitrailer,oil tanker trailer, oil semitrailer,semi tanker trailer,stainless steel tanker trailer,carbon steel fuel trailer is used to deliver/transport/haulage oil,eatable oil,palm oil,maripa oil,gasoline,diesel,kerosene and so on.
- Oil Tanker Trailerscan be designed as customer's request according to special standard request of TOTAL,vietnam,Tanzania and Zambia.
- Oil Tanker Trailers is optional for air bag suspension,front axle lifting.
- Nice shape and rational structure.
- High class running system and tank material.
- high-intensity kingpin and landing legs.
- top gemany brand BPW axle or Chinese brand FUWA axles.
- Durable and long term service life.
Product Specification
| Overall Length | 10500mm | |
| Overall Width | 2500mm | |
| Overall Height | 3880mm | |
| Tare Weight | 10000KGS | |
| Loading Capacity | 42m3 | |
| Tank Body | ||
| Shape | Mono block Cylinder | |
| Total Volume(m3) | 42 CBM | |
| Tanker Body Material | 6mm carbon steel | |
| End plate | 7mm carbon steel | |
| Lifting Ladder | Including Top walkway and backside steel material | |

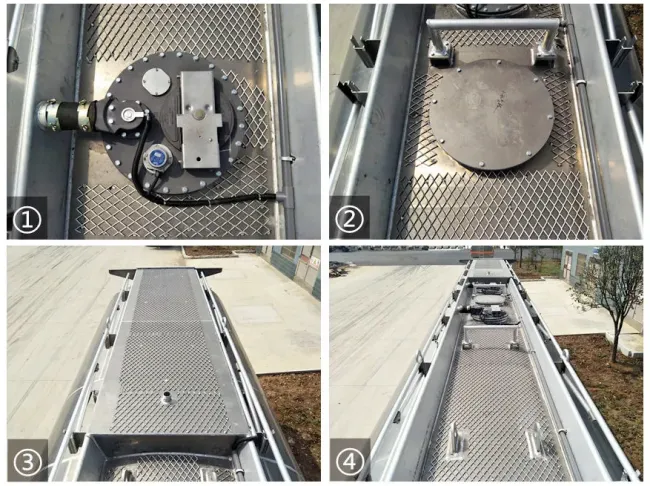

| Manhole cover | 6manhole cover, ∮500mm 6 sets with 6 breather valves | |

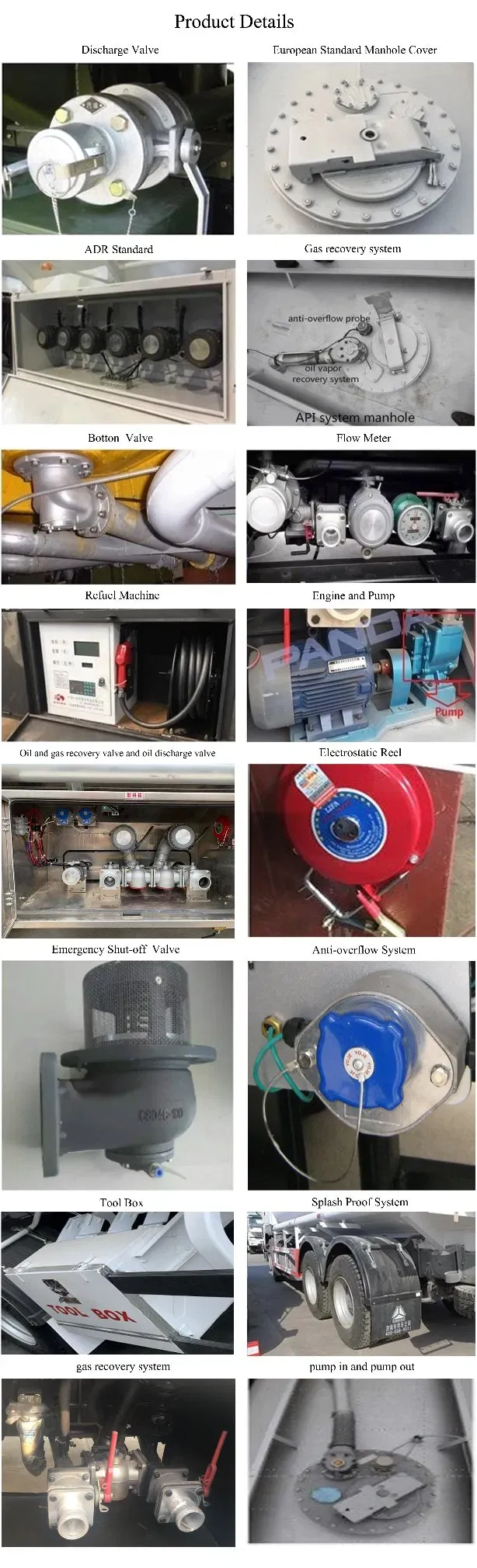

| Bottom Valve | 6 sets of API Pneumatic Bottom Valve | |
| Top Safety Rail | 1 Set | |
| Discharging valve | 6 set ∮100mm discharging valves | |
| No.of Compartment | 6(7000L+7000L+7000L+7000L+7000L+7000L) | |
| Discharging Pipe | 4"rubber hose, 2 pc, 6m long | |
| Chassis | ||
| Main Beams | Special design I beam, connected by bolts and nuts with tanker body, removable from tanker body for separate transportation; | |
| Axle | 3 axles | |
| BPW | ||
| Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear | |
| King Pin | JOST brand 2" bolt-in king pin | |
| Suspension | German design heavy duty mechanical suspension | |
| Pneumatic Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks. | |
| Wheel rim | 9.00-22.5 wheel rim, 13 pieces including one spare | |
| Tire | 12R22.5 tubeless tire with one spare tire, 13 pieces | |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint | |
| Accessories | One standard tool box, one back up tire rack |
|
