Shacman Sinotruk HOWO FAW Dongfeng JAC Jmc 10tons Road Washing and Sweeping Vacuum Dust Cleaner Street Cleaning Garbage Sweeper Suction Diesel Truck
Shacman Sinotruk Howo FAW Dongfeng JAC JMC 10tons Road Washing and Sweeping Vehicle Vacuum Dust Cleaner Vehicle Road Cleaning Sweeper Suction Diesel Truck
1. Street Cleaner Truck for sale adopts Dongfeng chassis,adding auxiliary engine, fan, high pressure water pump, clean water tank, garbage bin, left and right vertical sweeper brusher, wide nozzle with spray rod, low pressure flushing system , sweeping dust reduction system, hydraulic system, special equipment electronic control system and sub-frame and others.
2. The Street Cleaner Truck for sale has the functions of road cleaning, road sweeping,road edge and curb stone surface cleaning, low pressure washing, spray dust removal and so on. There are various operation modes such as "full wash", "left wash", "right wash", "full sweeping", "left sweeping" and "right sweeping". Select "Full Wash" mode to clean the square and pavement, the cleaning efficiency is high, and the washing rate is over 90%. Select the "Left Wash" or "Right Wash" mode to clean the pavement and curb and scrub the curbstone facade. The sweep mode can be selected when road cleaning or road cleaning is required. When spray dust removal is required, the spray device can be turned on for spray dust removal. Low-pressure flushing of the road surface like a sprinkler.
3. Street Cleaner Truck for sale is the best choice for road, factory, residential area sweeping & Cleaning.
4. All function contained in 1 control panel in cabin, Easily for 1 man contorl.
5. Stainless Water Tank & Garbage Tank for long time use.
6. Hydraulic Controlled Brush with automatic retreating system to avoid collosion.
7. Floating Suction Pan to adjust as per road height.
|
Cabin |
Driving type 4x2 RHD | ||||||
| single row, with two seat, with A/C | |||||||
|
Vehicle Main Dimensions |
Overall dimensions (L x W x H)mm | 8580×2490×3100 | |||||
| Wheel base (mm) | 5000 | ||||||
| Wheel track (front/rear) (mm) | 1880/1860 | ||||||
| Approach/Departure angle(°) | 20/13 | ||||||
|
Weight in KGS |
Tare Weight | 11350 | |||||
| payload | 4500 | ||||||
| Overall Weight | 15800 | ||||||
| Front axles loading capacity | 1x5800 | ||||||
| Rear axles loading capacity | 1x10000 | ||||||
|
Engine |
Brand | ||||||
| Model | B170 33 | ||||||
| Horse Power(HP) | 170HP | ||||||
| Emission standard | Euro III | ||||||
| Gearbox | Mechanical 5 forwards & 1 reverse with Synchronizer, manual Type | ||||||
| Steering | Right hand drive | ||||||
| Tire | 9R22.5, 6 tires with one spare | ||||||
| Driving Type | 4X2 Rear Axle Drive | ||||||
| Suspension Type | Steel Plate Spring | ||||||
| Steel Spring No. (F/R) | 8/10+7 | ||||||
| Brake Type | Double circuit pneumatic brake, drum type | ||||||
| Braking Length(Full Load 30km/h) | ≤10m | ||||||
| Max. driving speed(km/h) | 99 | ||||||
| Min. Radius of Turning Circle(m) | 8 | ||||||
| Max. Grade-ability | ≥30% | ||||||
| Fuel Consumption of Engine | Driving(L/100km) | Working(L/h) | Working(L/10000cbm) | ||||
| ≤12 | ≤6 | ≤3 | |||||
| Special Function Parts | |||||||
| Water tank | 9000 Liters,4mm Stainless Steel | ||||||
| Garbage Hopper | 7cbm,4mm Stainless Steel,with high pressure self-cleaning device for cleaning garbage hopper | ||||||
| Cleaning Width (mm) | 2800~3200 | ||||||
| Sweeping Speed(km/h) | 3~15 km/h | ||||||
| Washing speed(km/h) | 15~20km/h | ||||||
| Max. Cleaning Capacity | 48000m2/h | ||||||
|
Suction Capacity |
Density(g/cbm) | 2.0 | |||||
| Weight(kg) | 1.5 | ||||||
| Suction granularity(mm) | ≥100 | ||||||
| Dumping angle | ≥45° | ||||||
| Sweeping Efficiency | ≥96% | ||||||
| Working Noise(db) | <88 according with GB7258 regulation | ||||||

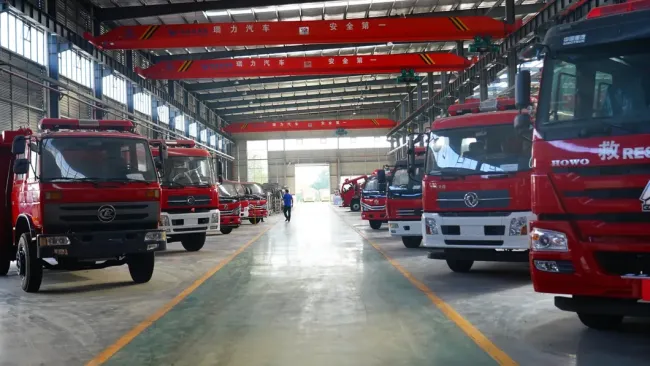

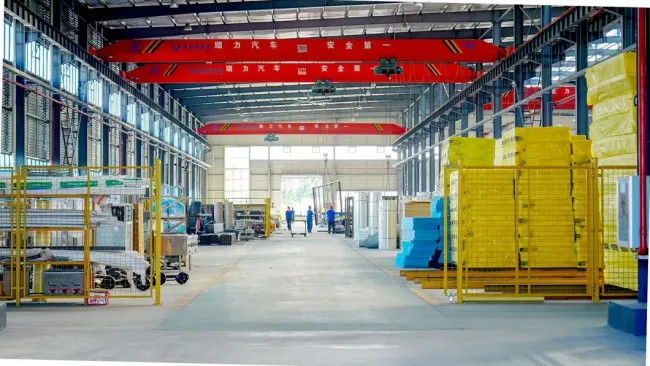

HUBEI CHENGLI AUTOMOBILE Co., Ltd is a large-scale factory with diverse product lines including dump trucks, sewage suction trucks, aerial work platforms, crane trucks, wreckers, refrigerated trucks, road sweepers, fire trucks, and garbage trucks. The company possesses fully functional and well-equipped manufacturing workshops, spraying and electrophoresis facilities, powder coating workshops, and testing centers. With advanced production equipment, mature manufacturing processes, and an excellent technical team, we are a diversified automotive company integrating automotive technology research and development, vehicle manufacturing and modification, parts production, and sales. CHENGLI has obtained 14 utility model patents, 1 design patent, and 2 invention patents. We have perfect order processing flow and after-sales service. We provide both online and offline technical guidance and training. We can customize bodywork and develop new products according to customer needs.
CHENGLI have more than 200 products, the main products are three series: The fire fighting truck, power van truck, wrecking truck, personnel carrier, flood control vehicle, repair vehicle, crane truck, aerial work vehicle, ladder vehicle, etc.; Refrigerated vehicle, mobile stage truck, mobile dining truck, medical waste transfer vehicle, medical testing vehicle ambulance car, explosion-proof vehicle, livestock and poultry truck; Water sprinkler truck, dust suppression truck, garbage truck, sewage suction truck, food kitchen garbage truck, road sweeper truck, mobile compression station and so on.

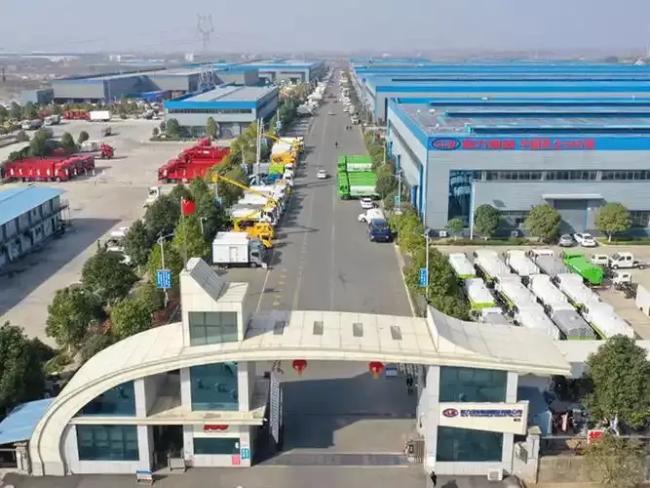

The first phase of the Emergency Industrial Park has a built floor area of more than 26, 000 square meters, of which the office area reaches more than 5, 000 square meters. Has more than 1000 employees, including more than 360 engineering and technical personnel, more than 200 sales team, with finished vehicle display area, fully functional supporting production workshop, E-coating workshop, testing center high-end production equipment, mature manufacturing process, excellent technical team, modern enterprise management system, which is a set of automotive technology research and development, automotive manufacturing modification parts production and sales in one of the diversified automobile company.
