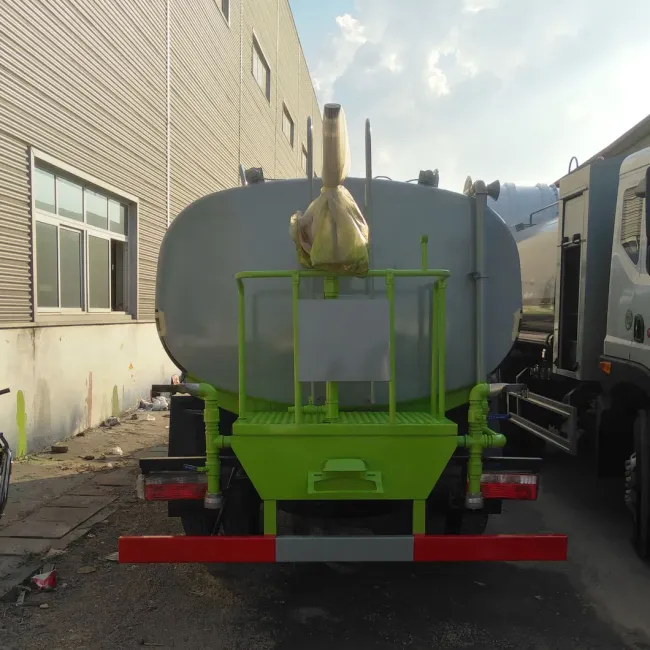

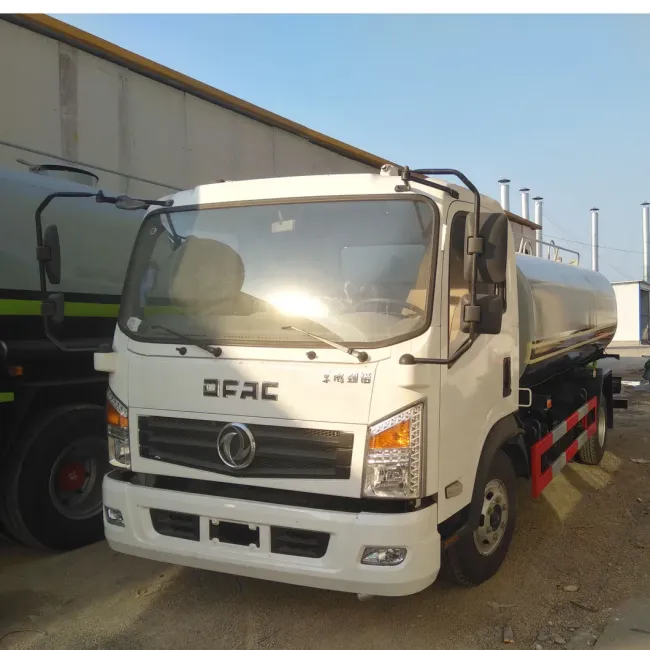

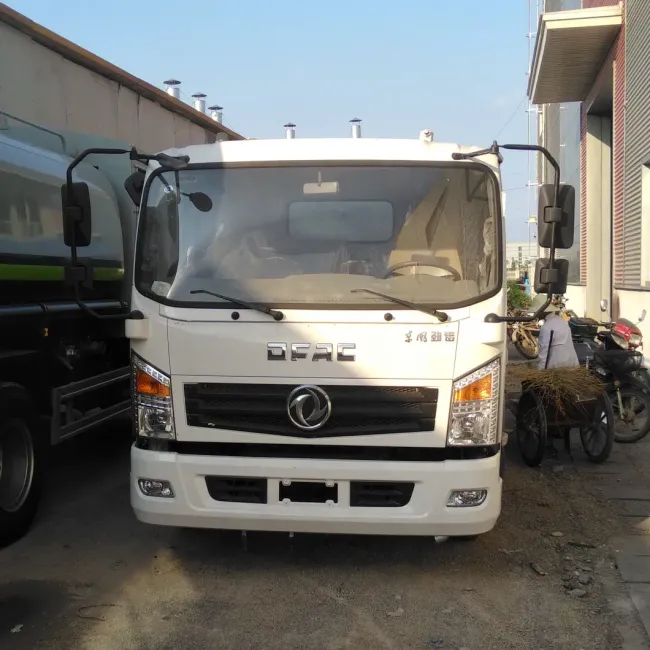

Dongfeng 4*2 11cbm 11000L Water Sprinkler Truck , Drinking Water Delivery Tanker Truck
Price:
15000-35000 per unit
MOQ:
1
Delivery Time:
Negotiable
Brand:
CLW
Product Description
Dongfeng 4*2 11CBM 11000L water sprinker tank bowser truck drinking water delivery tanker truck
- Optional chassis brand of portable water truck : Dongfeng, Sinotruk, FOTON/Forland, Faw, Shacaman
- Material of portable water truck :High Tension Steel Q235/Q345,stainless steel 304 for option.
- Sprinking Width of portable water truck :>14M
- Rear working platform with water cannon range of portable water truck :28M
- Reliable and high quality water pump
Specifications of 11CBM water tank truck:
| Condition | New/Left hand drive/4x2 | ||
|
Chassis |
Brand | Dongfeng | |
| Curb weight(kg) | 6840 kg | ||
| Loading weight(kg) | 8965 kg | ||
| Gross weight(kg) | 14500kg | ||
| Wheelbase(mm) | 3950 mm | ||
| Dimensions(mm) | 7000*2500*3200 mm | ||
| Front Loading Capacity (Ton) | 4.5 | ||
| Rear Loading Capacity (Ton) | 9 | ||
| Max. driving speed(km/h) | 90 km/h | ||
| Clutch | Reinforced diaphragm clutch | ||
|
Brakes |
Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels | ||
| Auxiliary brake: engine exhaust valve brake | |||
| Steering Gear | Power steering, hydraulic steering with power assistance | ||
| Tire | Quantity | 6 pcs with one spare tire | |
| Specifications | 9.00-20 Nylon | ||
| Transmission | Manual type,5 speed forwarder with 1 reverse | ||
| Cabin | Single row seat. 3 person allowed in the cab, with air condotioning. | ||
|
Engine |
Brand | Weichai | |
| Fuel type | Diesel | ||
| Power(kw) | 118 kw | ||
| Horsepower(HP) | 160 | ||
| Cylinder number | 4 | ||
| Emission standard | Euro 3 | ||
| Upper | |||
|
Water tank |
Capacity(cbm/tons) | 11/11 | |
| Tank Dimension(mm) | 3500*1700*1100 | ||
| Tank material | Q235 carbon steel | ||
| Thickness(mm) | 4 | ||
| Water pump | China local brand | ||
| Suction Height | 7M | ||
| Function | 1, Front Side Rear Sprinkling width≥14m | ||
| 2, Water cannon range≥28m | |||
|
Remarks |
1. AM/FM radio | ||
| 2. 2pcs water hose. | |||
| 3. Color is optional as customer's request | |||
