Hot Sale 10-12ton Dongfeng 4X2 Water Sprinkler Tank Truck China Wrecker Truck Auto Car
- Optional chassis brand of portable water truck : Dongfeng, Sinotruk, FOTON/Forland, Faw, Shacaman
- Material of portable water truck :High Tension Steel Q235/Q345,stainless steel 304 for option.
- Sprinking Width of portable water truck :>14M
- Rear working platform with water cannon range of portable water truck :28M
- Reliable and high quality water pump
- Optional for insulation layer which is suitable for warm water delivery.
| Condition | New/Left hand drive/4x2 | ||
|
Chassis |
Brand | Dongfeng | |
| Curb weight(kg) | 6800kg | ||
| Loading weight(kg) | 7000kg | ||
| Gross weight(kg) | 15800kg | ||
| Wheelbase(mm) | 4700 mm | ||
| Dimensions(mm) | 8300*2500*3000 mm | ||
| Front Loading Capacity (Ton) | 4.5 | ||
| Rear Loading Capacity (Ton) | 9 | ||
| Max. driving speed(km/h) | 90 km/h | ||
| Clutch | Reinforced diaphragm clutch | ||
| Steering Gear | Power assistant | ||
|
Tire |
Quantity | 6 pcs with one spare tire | |
| Specifications | 9.00R20 | ||
| Transmission | Manual type, 11 speed forwarder with 1 reverse | ||
| Cabin | Single row seat, left hand drive. | ||
|
Engine |
Model | ISB180, 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| Fuel type | Diesel | ||
| Power(kw) | 132 | ||
| Horsepower(HP) | 180 | ||
| Cylinder number | 4 | ||
| Emission standard | Euro 2 | ||
| Upper | |||
|
Water tank |
Capacity | 25000liters/25CBM | |
| Tank material | Q235 carbon steel | ||
| Tank dimensions | 5000*2100*1400(mm) | ||
| Thickness(mm) | 4 | ||
|
Water pump |
China local brand | ||
| Suction Height | 7M | ||
| Pump flow | 20m³/h | ||
| range of water pump | 90m | ||
|
Function |
Front Side Rear Sprinkling width≥15m Water cannon range≥28m Full tank suction time: <15 minutes |
||
|
Remarks |
1pc self-flow valve 2pcs water hose. AM/FM radio Color is optional as customer's request With high quality vacuum pump, power take off, ball valves, filter screen, water hoses, sprinkler device, manhole, fense&ladder, vice-beams, anti-wave clapboard, metering tube, etc |
||

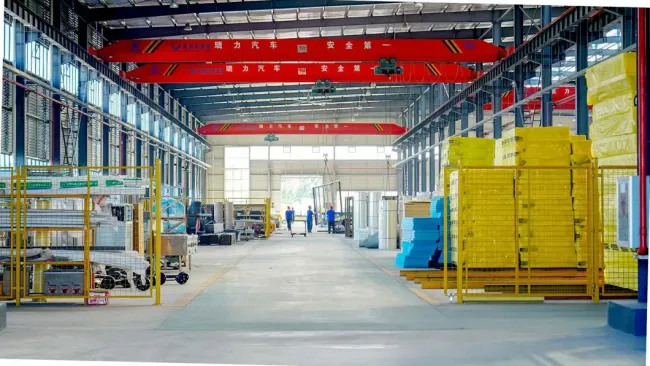

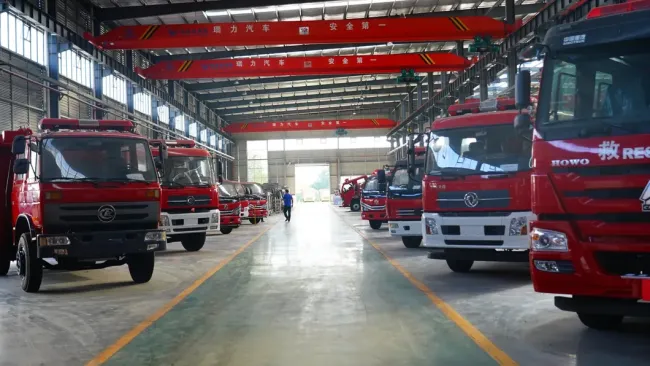

HUBEI CHENGLI AUTOMOBILE Co., Ltd is a large-scale factory with diverse product lines including dump trucks, sewage suction trucks, aerial work platforms, crane trucks, wreckers, refrigerated trucks, road sweepers, fire trucks, and garbage trucks. The company possesses fully functional and well-equipped manufacturing workshops, spraying and electrophoresis facilities, powder coating workshops, and testing centers. With advanced production equipment, mature manufacturing processes, and an excellent technical team, we are a diversified automotive company integrating automotive technology research and development, vehicle manufacturing and modification, parts production, and sales. CHENGLI has obtained 14 utility model patents, 1 design patent, and 2 invention patents. We have perfect order processing flow and after-sales service. We provide both online and offline technical guidance and training. We can customize bodywork and develop new products according to customer needs.
CHENGLI have more than 200 products, the main products are three series: The fire fighting truck, power van truck, wrecking truck, personnel carrier, flood control vehicle, repair vehicle, crane truck, aerial work vehicle, ladder vehicle, etc.; Refrigerated vehicle, mobile stage truck, mobile dining truck, medical waste transfer vehicle, medical testing vehicle ambulance car, explosion-proof vehicle, livestock and poultry truck; Water sprinkler truck, dust suppression truck, garbage truck, sewage suction truck, food kitchen garbage truck, road sweeper truck, mobile compression station and so on.

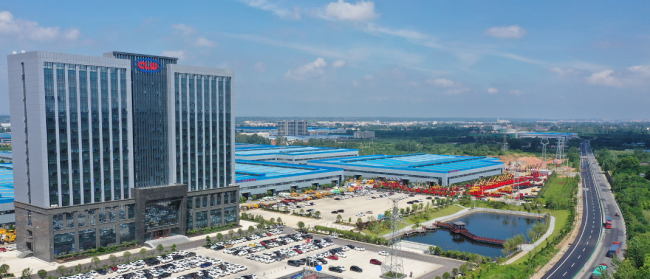

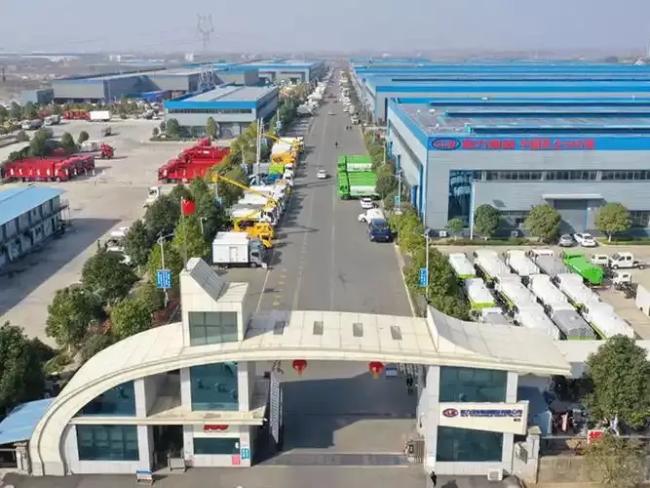

The first phase of the Emergency Industrial Park has a built floor area of more than 26, 000 square meters, of which the office area reaches more than 5, 000 square meters. Has more than 1000 employees, including more than 360 engineering and technical personnel, more than 200 sales team, with finished vehicle display area, fully functional supporting production workshop, E-coating workshop, testing center high-end production equipment, mature manufacturing process, excellent technical team, modern enterprise management system, which is a set of automotive technology research and development, automotive manufacturing modification parts production and sales in one of the diversified automobile company.
