Sinotruck HOWO 6X4 Concrete Mixer Truck for Construction Cement Mixing Machine Beton Machine Truck Concrete Mixer Pump Truck
Price:
15000-35000 per unit
MOQ:
1
Delivery Time:
30days
Brand:
CLW
Product Description
Sinotruck HOWO 6X4 Concrete Mixer Truck for Construction Cement Mixing Machine Beton Machine Truck Concrete Mixer Pump Truck
Product Description
- Chassis: Dongfeng, Sinotruk, FOTON/ Forland, Faw, Shacaman, etc.
- High Tension Steel Q345 Tank Material in 5mm.
- International Brand Motor, Pump, Reductor & Radiator.
- 400Liter Water Tank with Pressure Water Filling
- Water Filling System to Keep the cement moisture.
- Tank and hand Washing Device.
Specifications
| Condition | New condition/Left hand drive/6x4 | ||||||
|
Chassis |
Brand | SINOTRUCK | |||||
| Gross vehicle weight | 25000 kg | ||||||
| Curb weight(kg) | 15800 kg | ||||||
| Wheelbase(mm) | 4350+1300 mm | ||||||
| Dimensions(mm) | 9480×2490×3980 mm | ||||||
| Overhang (front/rear) (mm) | 1400/2290 mm | ||||||
| Axle Load(kg) | 7000/16000kg | ||||||
| Max. driving speed(km/h) | 90 km/h | ||||||
| Brake | Air brake | ||||||
| Tire | Number | 10pcs with one spare tire | |||||
| Specifications | 12.00R20 | ||||||
| Fuel tank(L) | 380 L | ||||||
| Transmission | 12 Forwards and 2 Reverse with PTO | ||||||
| Cabin | It can accommodate three people, With Air conditioner | ||||||
| Engine | |||||||
| Horsepower(HP) | 340 HP | ||||||
| Emission standard | Euro 4 | ||||||
| Upper | |||||||
| Mixer drum | Max. Capacity | 12 CBM | |||||
| Material | High strength steel Q345, 5mm thickness | ||||||
| Vane | Material | Alloy steel Q345, 4mm thickness | |||||
|
Specification |
Feeding Speed (m3/min) | ≥2.8 | |||||
| Discharging Speed (m3/min) | ≥1.2 | ||||||
| Discharging Residual rate(%) | ≤0.5 | ||||||
| Mixing Tank Rotating Speed (RPM) | 0-17 | ||||||
| Discharging range | 180° full range | ||||||
|
Driving system |
Option | Option 1 | Option 2 | Option 3 | |||
| Hydraulic Pump | US EATON 5423 | SAUER 75 | SUNNY 56 | ||||
| Hydraulic Motor | US EATON 5433 | SAUER | SUNNY 63 | ||||
| Reducer | Germany ZF4300 brand | Italy Bonfiglioli | China local brand | ||||
| Radiator | China local brand | ||||||
|
Water supply system |
Water Tank Capacity (liters) | 400 | |||||
| Water supply type | Pneumatic water supply | ||||||
| Control system | Control Way | Connecting Rod Controlling | |||||
|
Structure Features |
|
||||||
| Remarks | The color is optional | ||||||

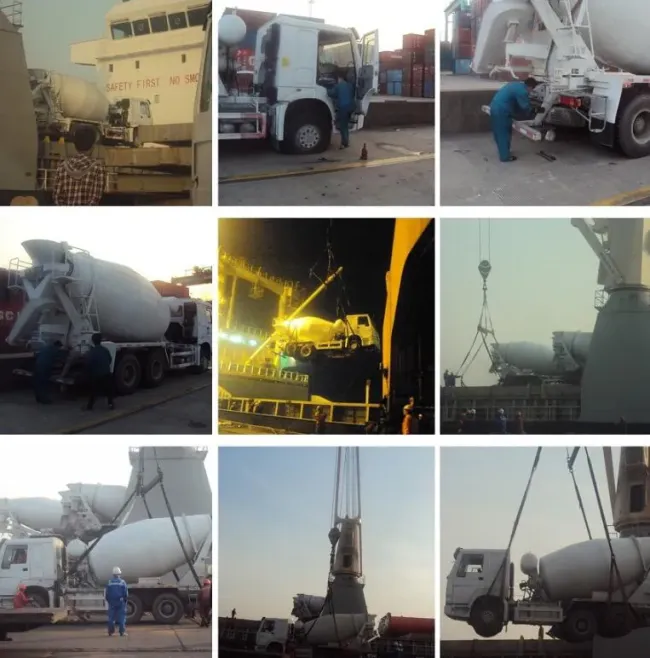

Detailed Photos
Hot Product
Main Products
Products Catalog:
- LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station
- Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
- Truck with crane / Truck mounted crane
- Dump Truck / Tipper Truck/Side Tipper/End Tipper
- Fire Fighting Truck / Fire Truck / Fire Vehicle
- Concrete Mixer Truck
- Van truck /Refrigerated truck
- Fecal suction truck / Sewage suction truck,
- Cement Powder Tank truck/ Bulk cement truck
- High-altitude operation truck,
- Self-loading garbage truck, garbage compactor truck, sealed garbage truck
- Tractor
- High Pressure Cleaning Truck
- Sweeper Truck
- Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )

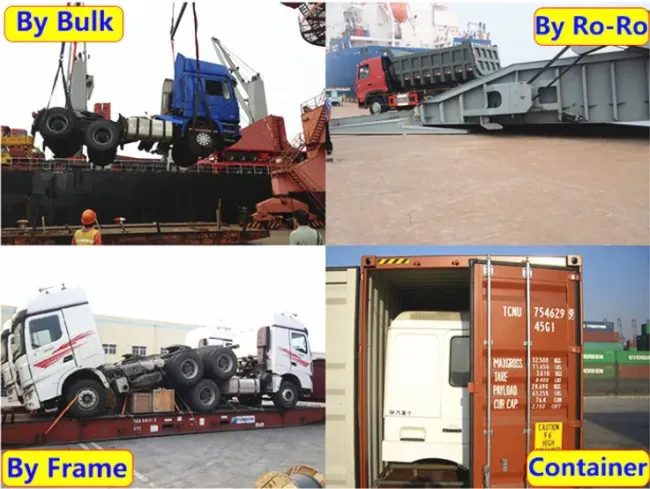

Packaging & Shipping
