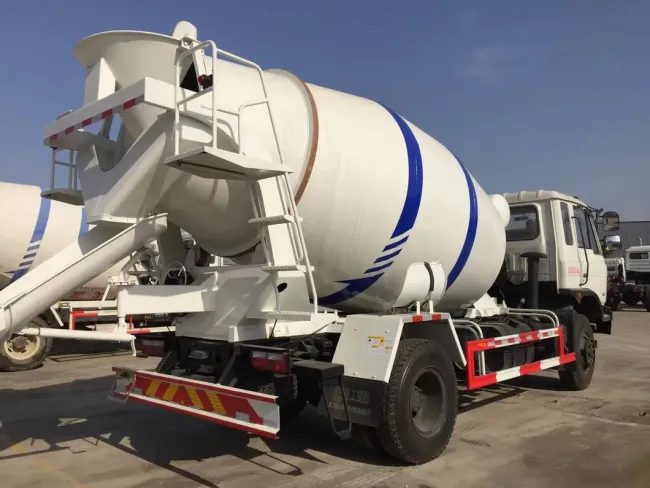

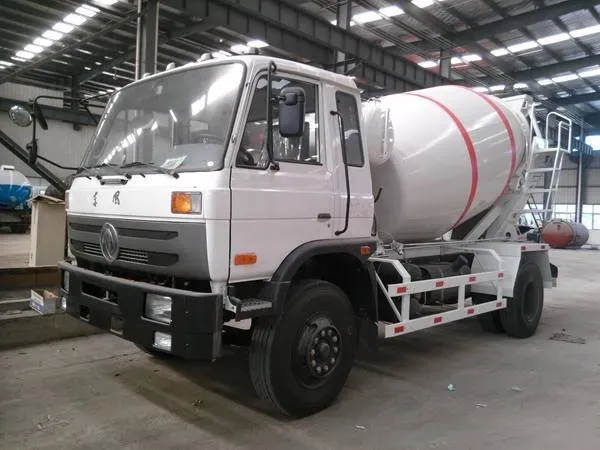

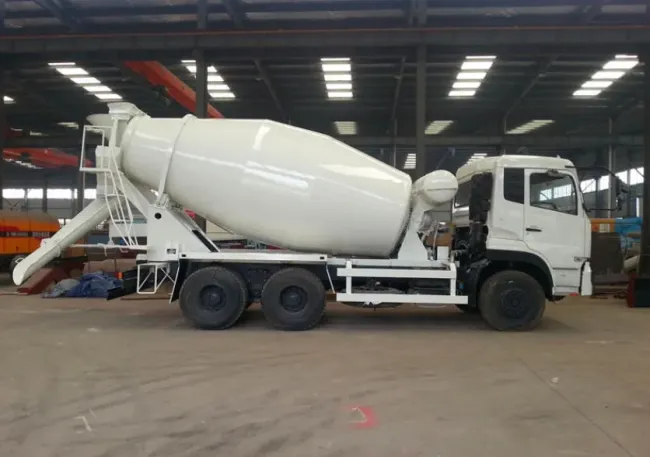

Dongfeng 10 Wheels 18tons Construction Machinery Cement Tranasport Concretre Mixer Truck 2024 M3000 Mixer
Price:
15000-35000 per unit
MOQ:
1
Delivery Time:
35days
Brand:
CLW
Product Description
Dongfeng 10 Wheels 18tons Construction Machinery Cement Tranasport Concretre Mixer Truck

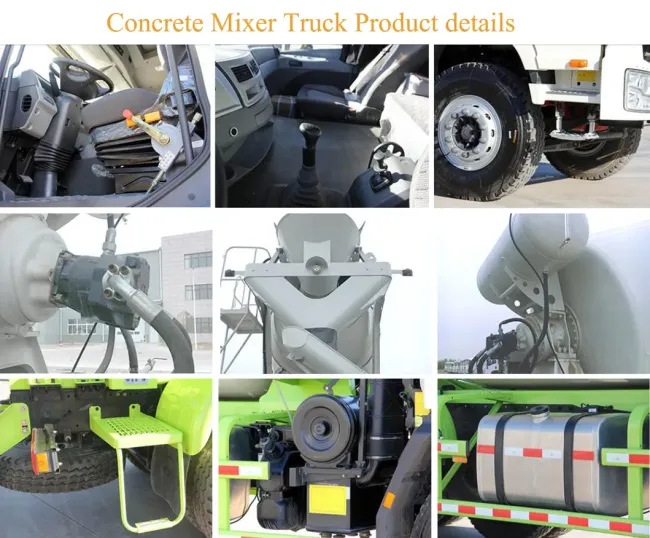

Product Description:
- Chassis: Dongfeng, Sinotruk, FOTON/ Forland, Faw, Shacaman, etc.
- High Tension Steel Q345 Tank Material in 5mm.
- International Brand Motor, Pump, Reductor & Radiator.
- 400Liter Water Tank with Pressure Water Filling
- Water Filling System to Keep the cement moisture.
- Tank and hand Washing Device.
Specifications:
| Cabin | Driving type 6x4, LHD | |
|
Vehicle Main Dimensions |
Overall dimensions (L x W x H)mm | 8100*2500*3030 |
| Wheel base (mm) | 4350+1350 | |
| Wheel track (front/rear) (mm) | 1500/3150 | |
| Approach/Departure angle(°) | 32/14 | |
|
Weight in KGS |
Tare Weight | 14100 |
| payload | 10770 | |
| Front axles loading capacity | 4500 | |
| Rear axles loading capacity | 11500 | |
| Max. driving speed(km/h) | 90 | |
|
Engine |
Brand | Yuchai |
| Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| Horse Power(HP) | 280 | |
| Emission standard | Euro II | |
| Gearbox | 8 forwards & 2 reverse | |
| Steering | Left hand drive | |
| Tire | 11.00R20 tubeless tires with one spare | |
| Upper frame | ||
|
Mixer Drum |
Mixer Capacity | 10 cubic meters |
| Drum thickness | 6mm | |
| Blade thickness | 4mm | |
| Tanker Material: | Q345 Carbon Steel | |
| Filling Rate(%) | 59 | |
| Input Speed (m3/min) | ≥2.8 | |
| Output Speed (m3/min) | ≥1.2 | |
| Surplus Ratio | ≤0.5 | |
| Tanker Rotate Speed(rpm) | 0~17 | |
|
|
Hydraulic Pump | Italy Brand: PMP |
| Hydraulic Motor | Italy Brand: PMP | |
| Speed Reducer | Germany Brand: ZF | |
| Radiator | KAITONG | |
| Water Tank Volume(L) | 400 | |
