4X2 DONGFENG Vacuum Sewage Suction Truck 3tons-5tons RHD LHD 3000 Litres 5cbm

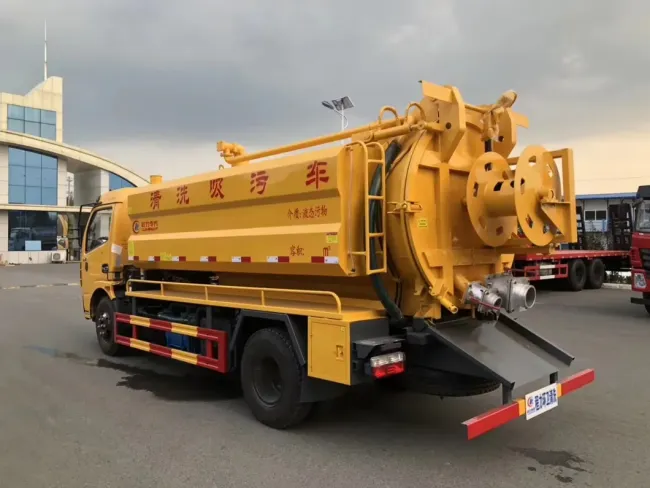

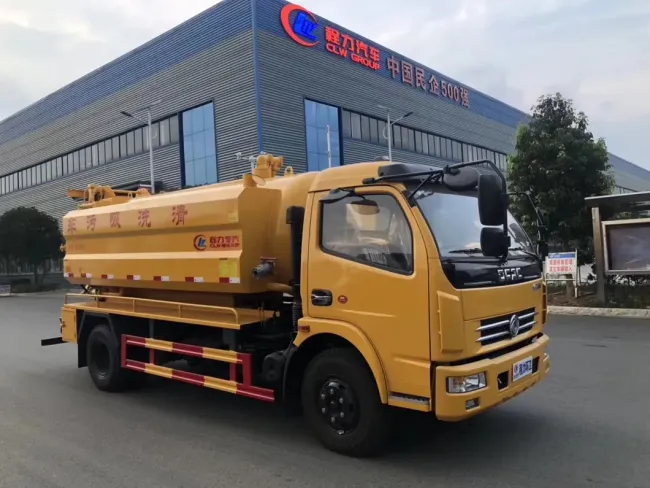

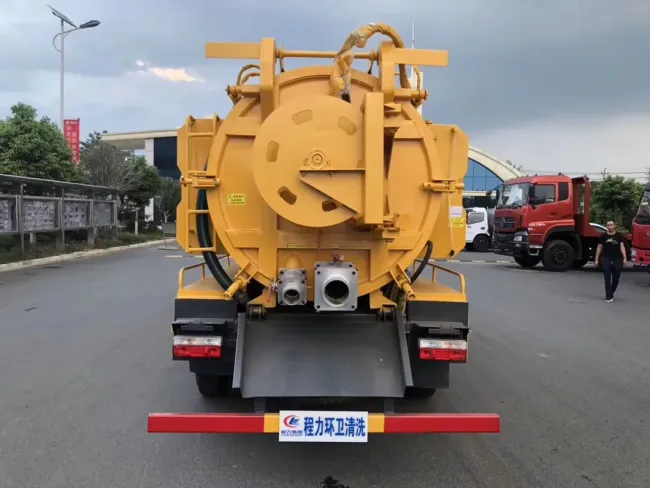

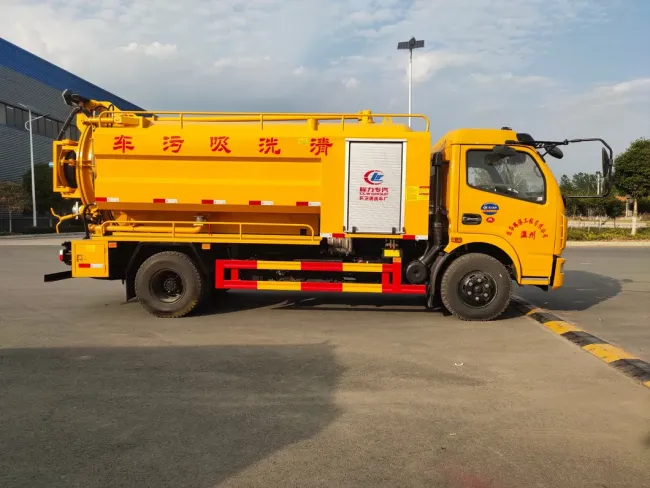

DONGFENG 6m3-8m3 High Pressure Jetting Sewage Suction Truck Sewer Cleaning
Description:
- Chassis:
- Drive type: 4x2, 4x4, 6x4, 8x4 etc.
- Our factory has good business relationship with DONGFENG, FOTON, FAW, SINOTRUCK, SHACMAN, JAC, JMC, etc.
- Tanker body:From 2m3 to 25 m3 capacity.

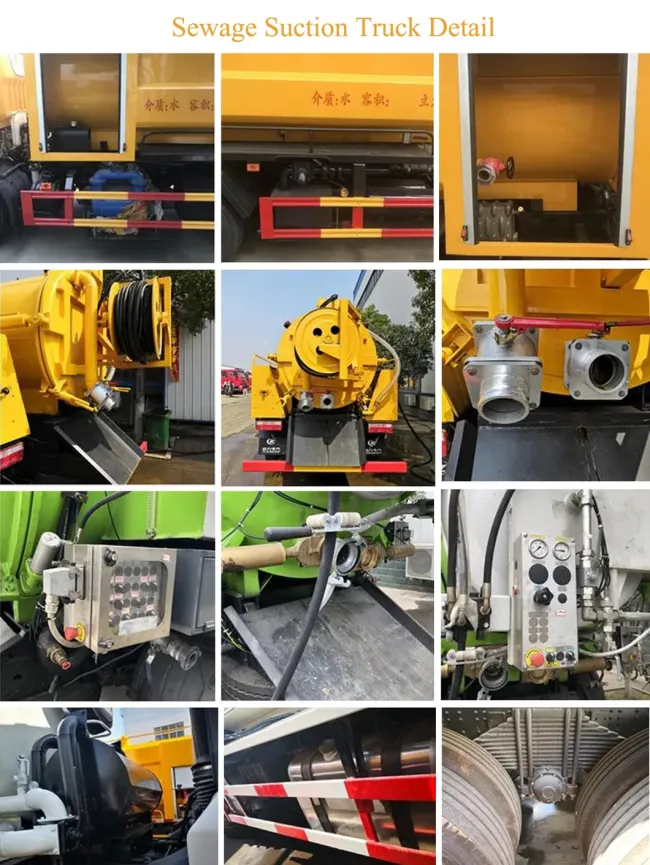

- Accessory of sewage suction factions: Equipped with PTO, transmission shaft, vacuum suction sewage pump, high pressure molding tank, moisture separator, gas-oil separation, multiple directional control valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system.
|
Vehicle Main Dimensions |
Cab type | Single |
| Overall dimension(L*W*H)(mm) | 6800×2300×2850 | |
| Wheelbase (mm) | 3800 | |
| Axle number | 2 | |
| Drive type | 4*2 | |
| Steering type | LHD/RHD | |
| Max. Drive Speed (km/h) | 120 | |
| Curb weight (kg) | 5340 | |
|
Chassis parameter |
Chassis brand | Dongfeng |
| Transmission | Manual,5 forward and 1 reverse | |
| Brakes | air brake | |
| Tire | 8.25R20 | |
|
Engine parameter |
Engine Brand | Chaochai |
| Fuel type | Diesel | |
| Horse Power(hp) | 140hp | |
| Emission Standard | Euro III/IV/V | |
|
Superstructure Parameter and main performance |
Cleaning Tank volume(m3) | 2 |
| Cleaning Tank material | 4 mm good quality carbon steel; round shape | |
| Sewage tank volume(m3) | 5.5 | |
| Sewage tank material | 6 mm good quality carbon steel | |
| Pump | Imported Italy high quality vacuum pump or chinese vacuum pump | |
|
Standard configuration |
60m long high pressure pipe, 10 high pressure sprayers,inspect window, one gravity mouth, cleaning apparatus,8m long suction pipe, etc | |
| Main performance | Suction time ≤ 5min effective suction range ≥ 9m |
|

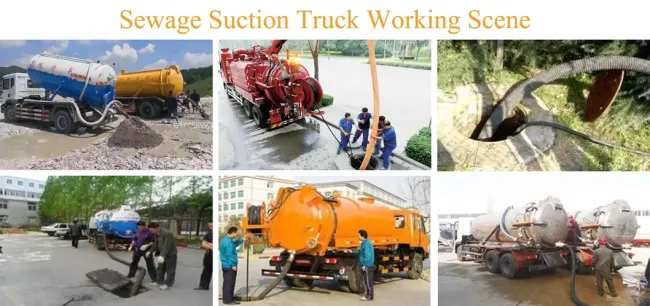

| Main function | Cleaning city sewer, pipeline dredge, suction sewage,etc | |
| Optional | watering |

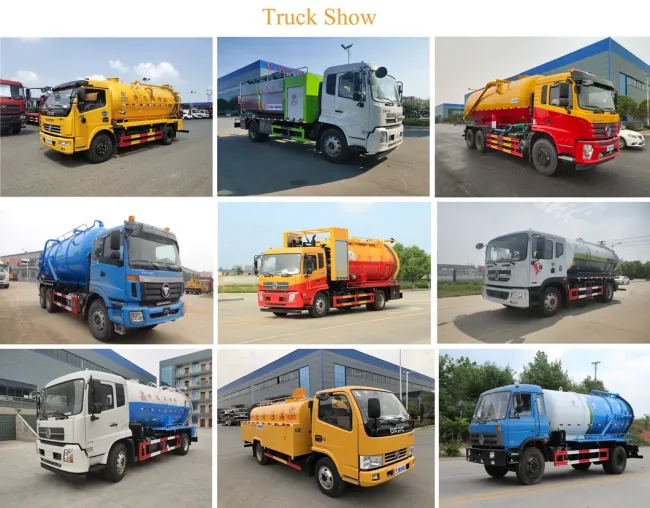

Products Catalog:
1. LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck /Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
