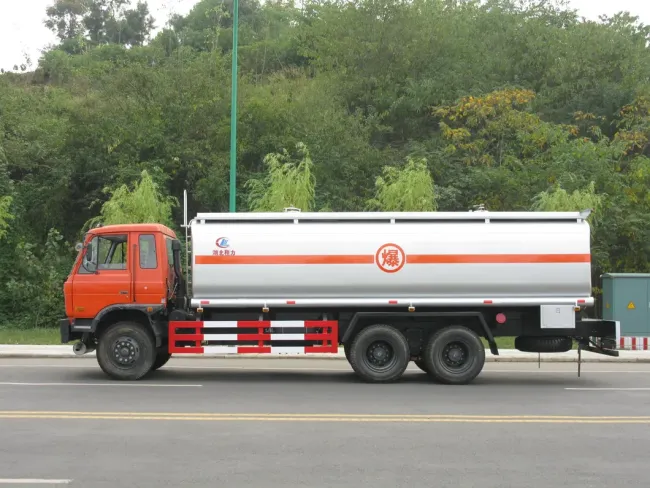

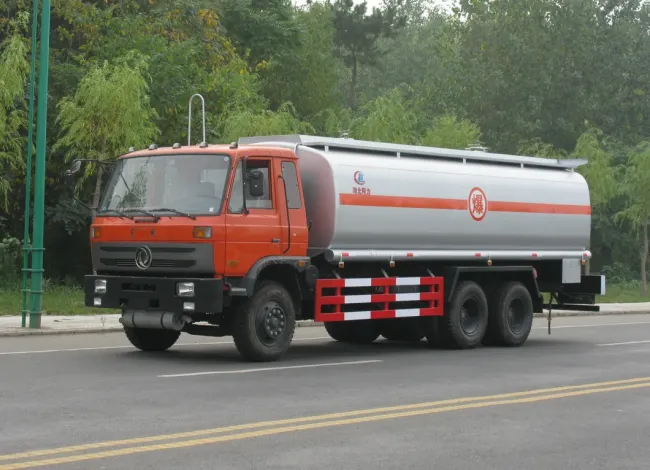

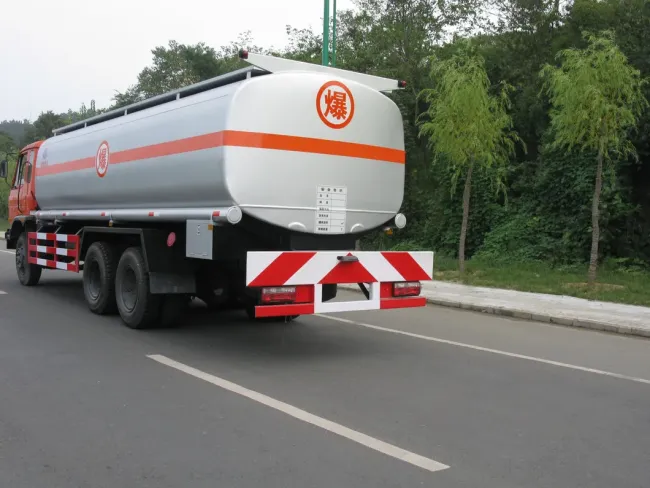

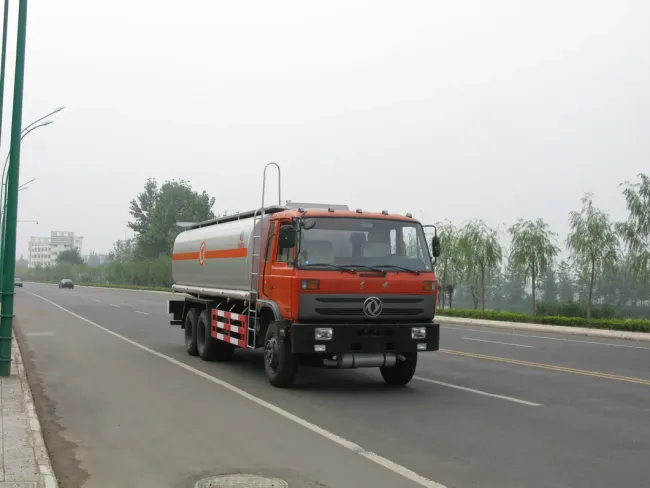

Dongfeng 6x6 Off Road 16-25m3 Fuel Tanker Truck Carbon Steel Chemical Liquid Tank
Price:
15000-35000 per unit
MOQ:
1
Delivery Time:
35 Days
Brand:
EHY
Product Description
China Fuel Delivery Tank Truck Chemical Liquid Fuel Truck Oil Tanker Truck with Good Quality and Best Service
Description:
- Tank material: Q235 (carbon steel) Q304 ( stainless steel) Q316 (stainless steel) 5454 Aluminum.
- Good welding: tank body is adopted an advanced automatic vertical welding techniques and head arc butt welding technology, as well as the whole- steel forming a composite.
- High safety: equip with active and passive emergency protection devices, to provide full closure remote manipulation of materials handing functions. Equip separators [Baffle] to prevent surging of liquid towards bulk head
- Function: The tank body is suit for loading light fuel oil, heavy oil, sulfuric acid, hydrochloric acid, nitric acid, caustic soda hydrogen peroxide, alcohol, benzene, cooking oil and so on.
- Oil punp: gear pump, self-absorption (centrifuge) pump, chemical pump, heavy, oil pump, stainless steel pump are optional.
- Tank shape: shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation.
- Refueling machine: the refueling machine we use are tax controled oiling machine with accurate figure of volume, sum of money,etc.
- Optional: reading meter for outlet and inlet,self-discharge valve at rail or side of tank body, compartment quantity according to the demand.
| Dongfeng 6x6 Off Road 16-25m3 Fuel Tanker Truck | |
| Chassis Brand | Dongfeng |
| Drive Type | 6×6 |
| Engine | EQ6BT5.9 |
| Cabin | Row and half |
| Transmission | 6 forwards & 1 reverse) |
| Axle Load | 3.7tons/2*4tons |
| Clutch | hydraulically operating with air assistance |
| Rim/ Tire | 12.50R20, Radial tyre |
| Wheel base | 3475+1250(mm) |
| Capacity of tank body | 16-25m3 |
| Thickness of tank body | 5mm |
| Overall dimension | 7760×2500×3150mm |
| The curb weight | 7120(Kg) |
| Gross weight | 10940 kg |
| Max. speed | 95km/h |
| Maximum climbing grade | 60% |
| Vertical obstacle height | 700mm |
| Maximum wading depth | 1m |
| Color | White, red, green, golden and so on. |
