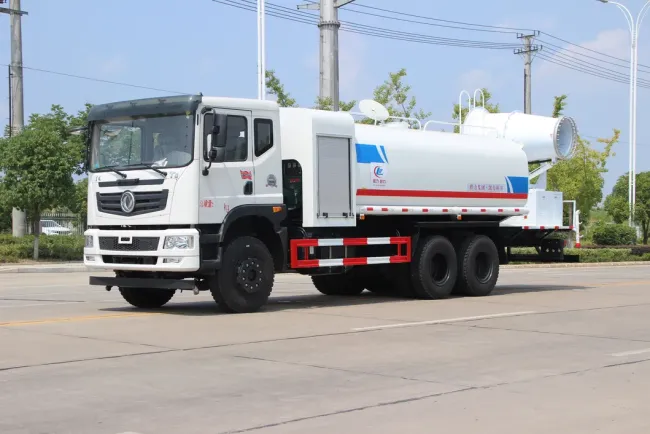

Dongfeng 12 Ton Water Tank Dust Suppression Sprayer Truck 80m Range Remote Control Disinfection
Price:
15000-35000 per unit
MOQ:
1
Delivery Time:
Negotiable
Brand:
EHY
Product Description
Dongfeng water tank dust suppression sprayer 20m 30m 40m 60m 80m 100m 120 150m disinfection truck with remote air-feed sprayer
Product Description
- Optional chassis brand of Water Cart: Dongfeng,, Sinotruk, FOTON/Forland, Faw, Shacaman, etc.
- Material of Water Cart: High Tension Steel Q235/Q345,stainless steel 304 for option.
- Sprinking Width of Water Cart: ≥14M
- Rear working platform with water cannon range of Water Cart: ≥28M
- Reliable and high quality water pump
Specifications of water tank truck with dust fighter
| Condition | New condition/Left hand drive/8x4 | ||
|
Chassis |
Brand | Dongfeng | |
| Curb weight(kg) | 6800 | ||
| Loading weight(kg) | 8505 | ||
| Gross weight(kg) | 6800 | ||
| Wheelbase(mm) | 4350+1300 mm | ||
| Dimensions(mm) | 8300x2500x3000mm | ||
| Front Loading Capacity (Ton) | 5 | ||
| Rear Loading Capacity (Ton) | 10 | ||
| Max. driving speed(km/h) | 90 km/h | ||
| Clutch | Reinforced diaphragm clutch | ||
|
Brakes |
Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels | ||
| Auxiliary brake: engine exhaust valve brake | |||
| Steering Gear | Power steering, hydraulic steering with power assistance | ||
|
Tire |
Quantity | 10 pcs with one spare tire | |
| Specifications | 11.00-20 | ||
| Transmission | Manual type,8 Forwards and 1 reverse | ||
| Cabin | Single row seat, Tiltable. It can accommodate three people. With air conditioner. | ||
|
Engine |
Brand | ||
| Fuel type | Diesel | ||
| Horsepower(HP) | 240HP | ||
| Cylinder number | 6 | ||
| Emission standard | Euro 2 | ||
| Upper | |||
|
Water tank |
Capacity(cbm/tons) | 12/12 | |
| Tank Dimension(mm) | 5000x2100x1400mm | ||
| Tank material | Q235 carbon steel | ||
| Thickness(mm) | 5 | ||
|
Water pump |
China local brand | ||
| Suction Height | 7M | ||
|
Function |
1, Front Side Rear Sprinkling width≥14m | ||
| 2, Water cannon range≥28m | |||
|
Spray |
Maximum range | 80 meters | |
| Spray flow | 50-150 | ||
| Generator power | 50KW | ||
| Rotation angle | 360 degree | ||
| Control system | automatic / manual | ||
|
Remarks |
1. AM/FM radio 2. 2pcs water hose. 3. Color is optional |
||
