Pedestrian Area Small Street Sweeper Mini 5ton 5cbm Compact Vacuum Sweeper Truck For Home
Price:
15000-35000 per unit
MOQ:
1
Delivery Time:
Negotiable
Brand:
CLW
Product Description
Product Description

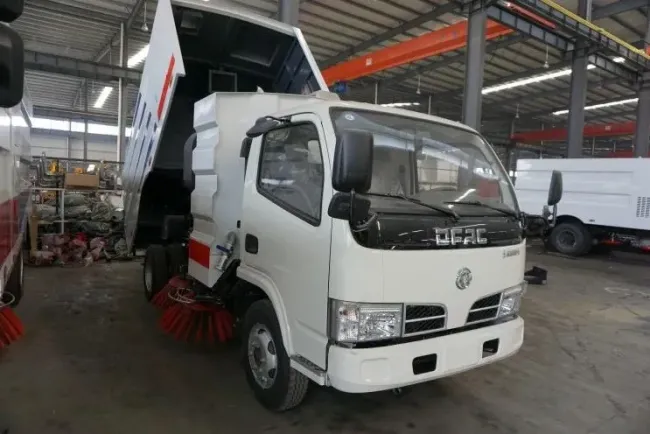

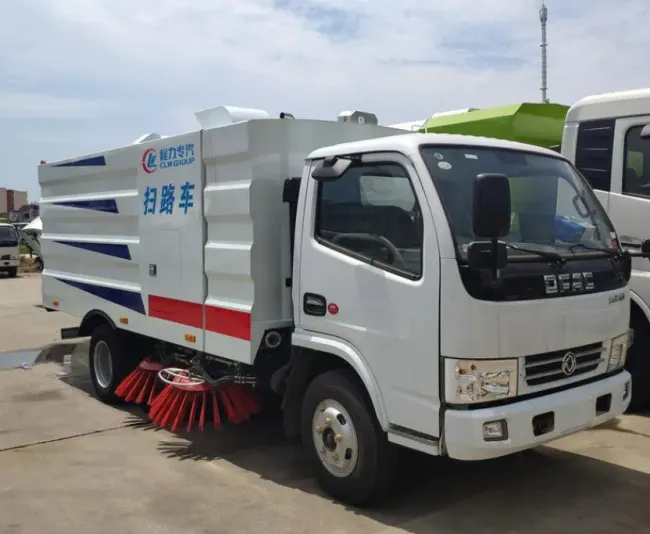

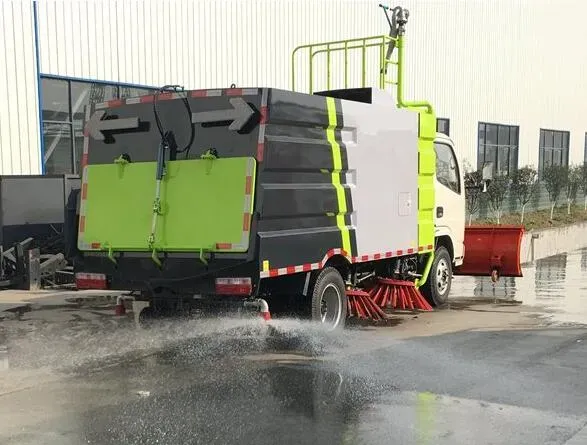

Pedestrian Area Small Street Mini 5ton/ 5cbm Compact Vacuum Sweeper Truck

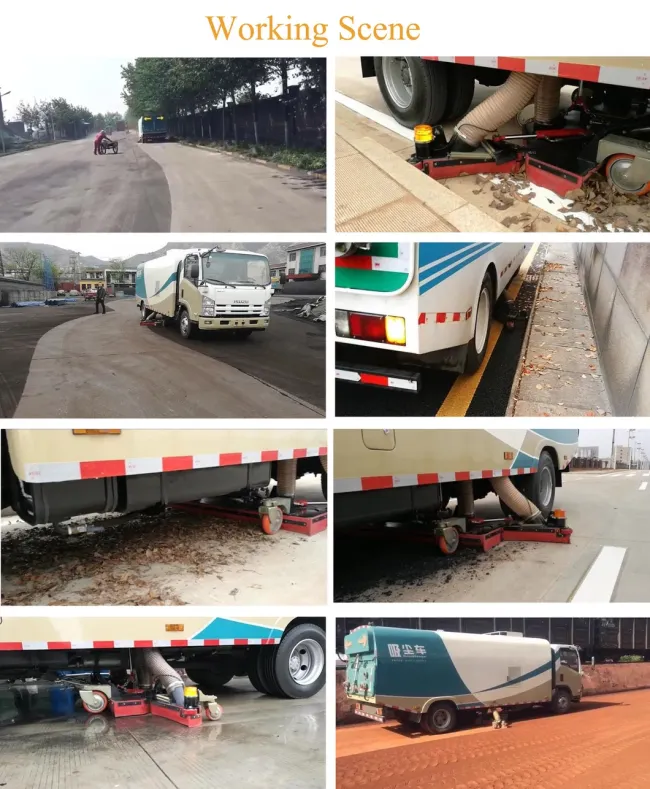

- Best choice for road, factory, residential area sweeping & Cleaning.

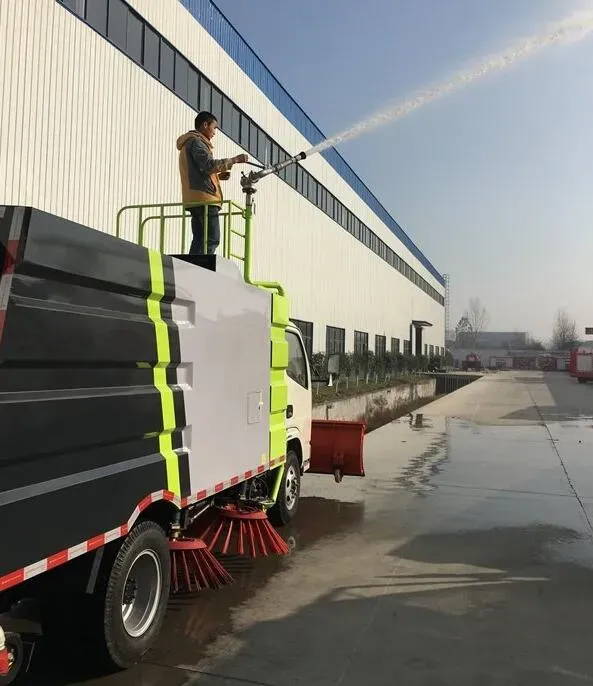

- optional high pressure water flushing & Spraying for dust control.
- All function contained in 1 control panel in cabin, Easily for 1 man contorl.
- Stainless Water Tank & Garbage Tank for long time use.

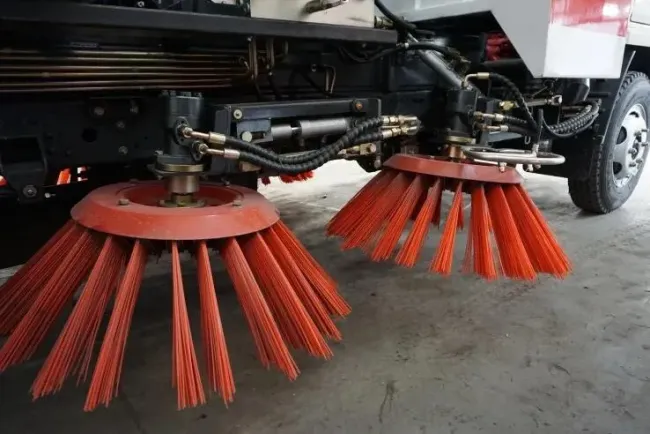

- Hydraulic Controlled Brush with automatic retreating system to avoid collosion.
- Floating Suction Pan to adjust as per road height.
- Optional water spraying for dust control.
- Optional Music Warning System & Reverse Alarm.
Specifications Detail of the Truck
| Dongfeng Truck Chassis | ||||||||
| Condition | New condition/Right hand drive/4x2 | |||||||
|
Chassis |
Brand | DONGFENG | ||||||
| Curb weight(kg) | 100kg | |||||||
| Wheelbase(mm) | 3300 mm | |||||||
| Dimensions(mm) | 6300 x 2000 x 2600 mm | |||||||
| Overhang (front/rear) (mm) | 1032 / 1868 | |||||||
| Wheel track (front/rear) (mm) | 1506 / 1404 | |||||||
| Approach/Departure angle(°) | 19/12 | |||||||
| Axle Load(kg) | 2000/4000 | |||||||
| Max. driving speed(km/h) | 90 km/h | |||||||
| Tire | Specifications | 6pcs with one spare tire | ||||||
| Number | 7.00-16 | |||||||
| Clutch | Reinforced diaphragm clutch | |||||||
| Gear box | Manual type, 6 Forwards & 1 Reverse | |||||||
| Cabin | Left Hand Driving, 2 Passenger Allowed, with A/C | |||||||
| Engine | Model | Chaochai Diesel Engine, 4 Cylinders | ||||||
| Displacement(ml) | 3856 ml / cc | |||||||
| Power(kw)/Horsepower(HP) | 73 kw/99 HP | |||||||
| Emission standard | Euro 4 | |||||||
|
Brakes |
Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake |
|||||||
| Steering Gear | Power steering, hydraulic steering with power assistance | |||||||
| Sweeping System | ||||||||
|
Tank |
Garbage tank |
Tank material | Stainless steel 304 | |||||
| Tank volume(cbm) | 1.5 CBM | |||||||
| Water tank | Tank material | Stainless steel 304 | ||||||
| Tank volume(cbm) | 3 CBM | |||||||
| Auxiliary engine | Model | JMC Engine 77HP | ||||||
| Power(kw) | 57 kw | |||||||
| Brush | Quantity(pc) | 4 pcs | ||||||
| Working area(m) | 2.7-2.8 m | |||||||
|
Remarks |

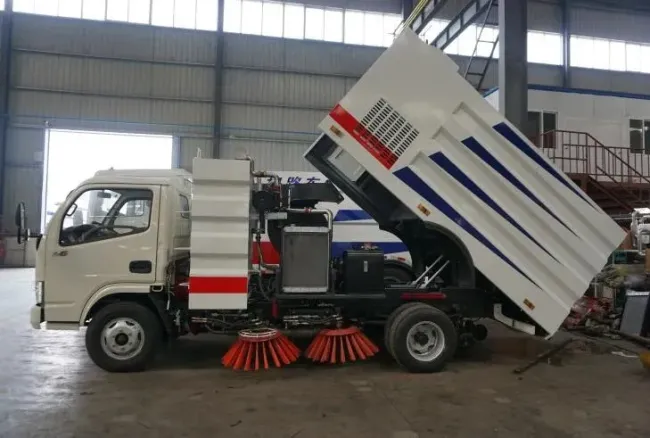

1, With water sprayer-bar 2, Rear vacuum cleaner 3, Blower 4, Rear LED pilot lamp 5, Self unloading box body 6, The color will be designed on basis of your requirements. |
|||||||
