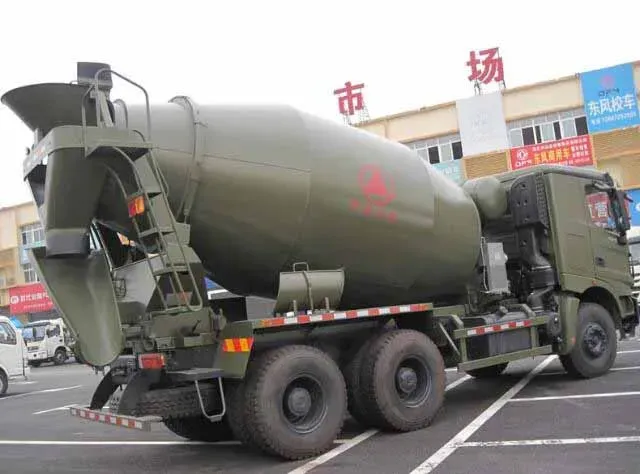

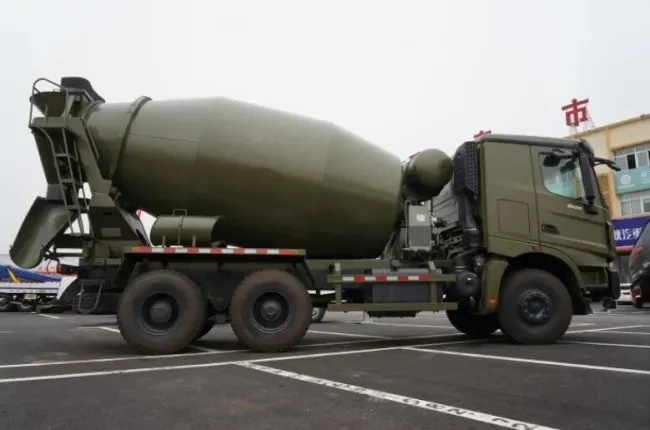

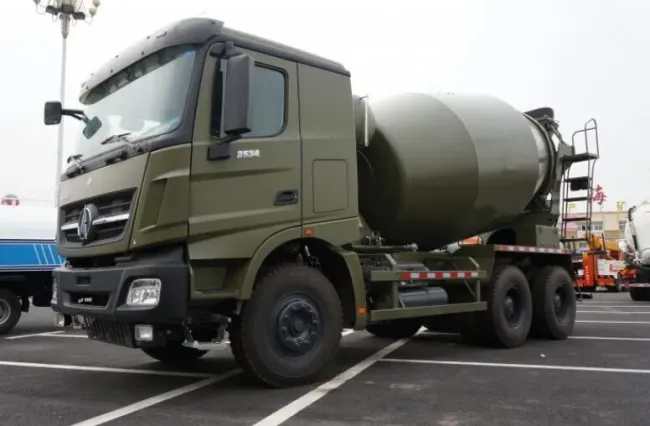

18tons Mini Concrete Mixer Truck 10cbm Cement Transportation Truck
Price:
15000-35000 per unit
MOQ:
1
Delivery Time:
Negotiable
Brand:
CLW
Product Description
10CBM 18Tons Concrete Mixer Truck Cement Transportation Truck Cement Mix Truck
Product Description
1. Purpose: For long distance or short distance transporting concrete in construction site.

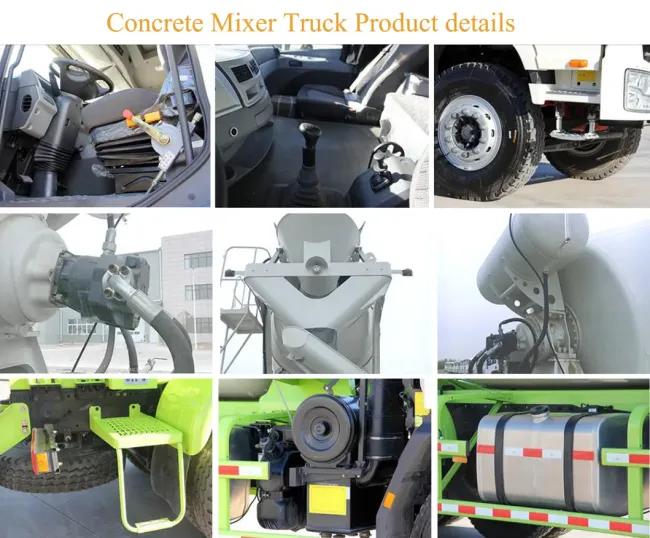

2. Main parts: Hydraulic pump, hydraulic motor, reducer and radiator etc.
3. Chassis: Foton, SHACMAN or SINOTRUK 6x4 chassis for optional.

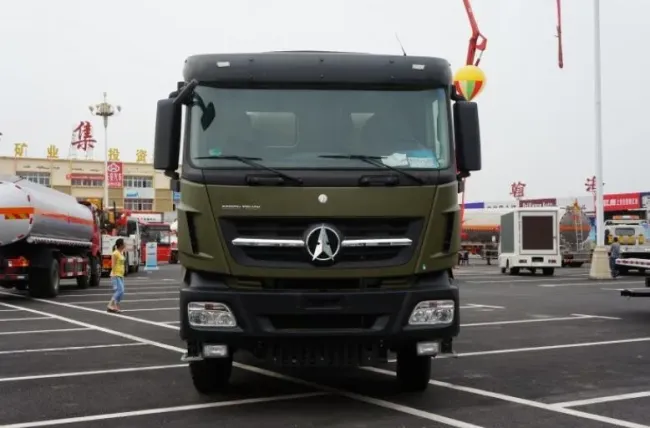

| Cabin | Driving type 6x4, LHD | |
|
Vehicle Main Dimensions |
Overall dimensions (L x W x H)mm | 8100×2500×3030 |
| Wheel base (mm) | 4350+1350 | |
| Wheel track (front/rear) (mm) | 1500/3150 | |
| Approach/Departure angle(°) | 32/14 | |
|
Weight in KGS |
Tare Weight | 14100 |
| payload | 10770 | |
| Front axles loading capacity | 4500 | |
| Rear axles loading capacity | 115000 | |
| Max. driving speed(km/h) | 90 | |
|
Engine |
Brand | Yuchai |
| Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| Horse Power(HP) | 280 | |
| Emission standard | Euro II | |
| Gearbox | 8 forwards & 2 reverse | |
| Steering | Left hand drive | |
| Tire | 11.00R20 tubeless tires with one spare | |
|
Mixer Drum |
Mixer Capacity | 10 cubic meters |
| Drum thickness | 6mm | |
| Blade thickness | 4mm | |
| Tanker Material: | Q345 Carbon Steel | |
| Filling Rate(%) | 59 | |
| Input Speed (m3/min) | ≥2.8 | |
| Output Speed (m3/min) | ≥1.2 | |
| Surplus Ratio | ≤0.5 | |
| Tanker Rotate Speed(rpm) | 0~17 | |
| Hydraulic Pump | Italy Brand: PMP | |
|
Drum Drive System |
Hydraulic Motor | Italy Brand: PMP |
| Speed Reducer | Germany Brand: ZF | |
| Radiator | KAITONG | |
| Water Tank Volume(L) | 400 | |
