3ton 5ton 4X2 JAC Road Rescue Flatbed Tow Recovery Car Carrier Truck Wrecker Towing Truck for Towing Broken Cars or Equipments
4X2 JAC Road Rescue/ Recovery/ Wrecker/Tow Truck for Sale
Product Description
1) 5Tons Wrecker Truck for Towing Broken Cars or Equipments.
2) JAC Brand Chassis for Euro 2 or Euro 3 Emission
3) Spare parts of 5tons wrecker tow truck:
- Italy brand multi-way valve and balance valve;
- Gernamy Roxroth technology hydraulic cylinder and joint;
- International Brand Sealing elements;
- Strengthed Checked platform.
| General Technical Specification | |||||
| Overall Dimension | 7500x2300x2460(mm) | ||||
| Gross Vehicle Weight | 7300 (Kg) | ||||
| Curb Weight | 3800 (Kg) | ||||
| Chassis Specification | |||||
| Chassis Brand | JAC | ||||
| Drive model | 4*2 | ||||
| Cabin | Single, Left Hand Drive | ||||
|
Engine |
Model | 4-stroke direct injection, 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | |||
| Power | 72KW/98HP | ||||
| Emission standard | EURO 2 | ||||
| Displacement | 2771(ml) | ||||
| Fuel type | Diesel | ||||
| Gearbox | 5 Forwards & 1 Reverse, Power steering, hydraulic steering with power assistance | ||||
| Brake System | Pneumatic(Air break/exhaust brake) | ||||
| Wheel Base | 3815(mm) | ||||
| Front/Rear Axle Loading | 2500/4800(Kg) | ||||
| Approach/Departure Angle | 24/12(°) | ||||
| Tire | 7.00R16, 6pcs + 1 spare tire | ||||
| Max Driving Speed | 98(km/h) | ||||
| Superstructure Specification | |||||
|
Platform Organ |
Dimension | 5500*2300(mm) | |||
| Rear manual flip board length | 800(mm) | ||||
| Material | Q235 carbon steel | ||||
| Max Loading capacity | 4000(kg) | ||||
|
Winch |
Quantity | 1 | |||
| Winch rating towing capacity | 4000(kg) | ||||
| Length of steel rope | 25(m) | ||||
| Speed of winch | 3.23~8 (m/min) | ||||
|
Hoisting Organ |
Rating Under-Pulling Capacity | 5000(kg) | |||
| Rating Under-Hoisting Capacity | 2000(kg) | ||||

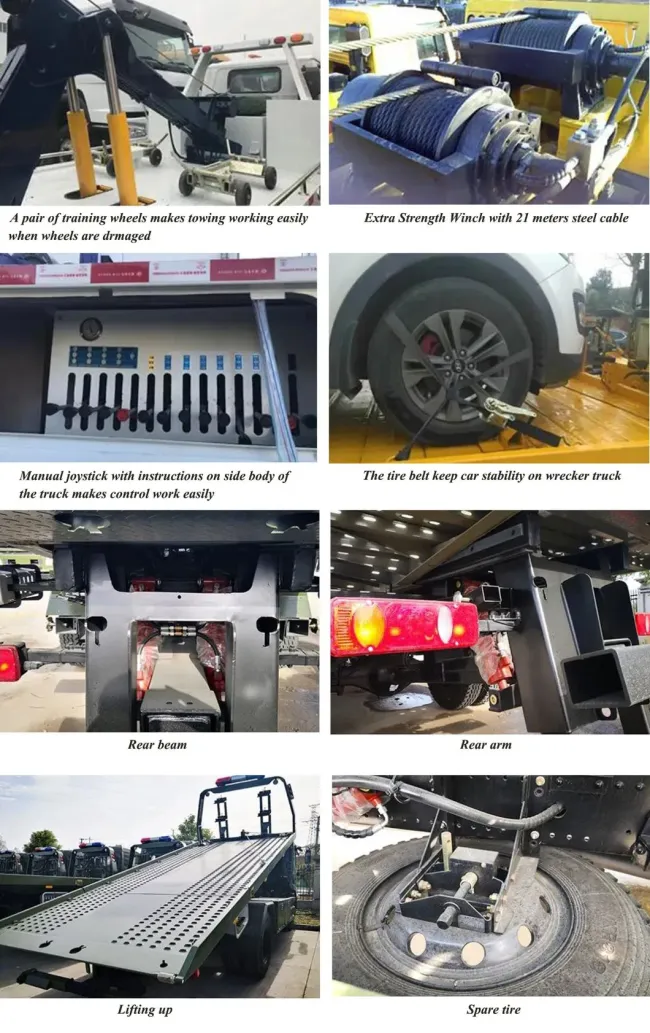

| Other parts | Auxiliary wheels, alarm light, hooks, 4 bundling belt, automatic sliding plate, etc. | ||||
| Options | Caution light, air condition,inlet valve. | ||||

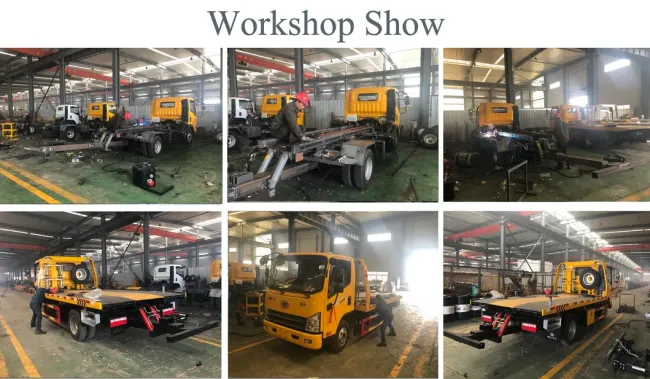

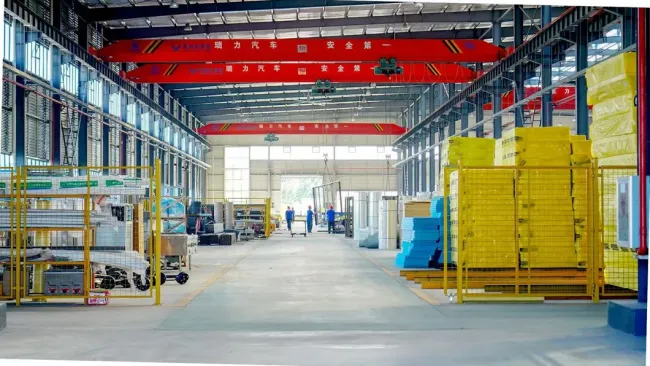

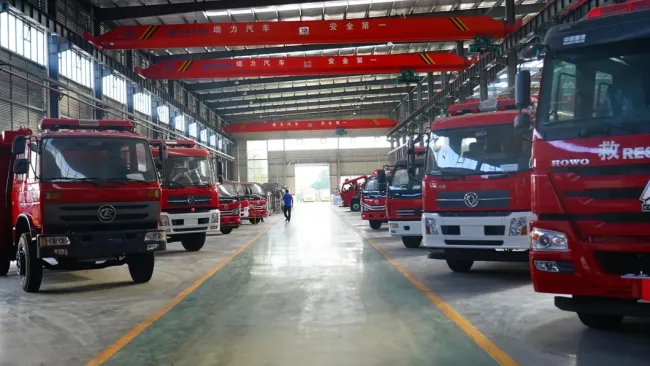

is a large-scale factory with diverse product lines including dump trucks, sewage suction trucks, aerial work platforms, crane trucks, wreckers, refrigerated trucks, road sweepers, fire trucks, and garbage trucks. The company possesses fully functional and well-equipped manufacturing workshops, spraying and electrophoresis facilities, powder coating workshops, and testing centers. With advanced production equipment, mature manufacturing processes, and an excellent technical team, we are a diversified automotive company integrating automotive technology research and development, vehicle manufacturing and modification, parts production, and sales. CHENGLI has obtained 14 utility model patents, 1 design patent, and 2 invention patents. We have perfect order processing flow and after-sales service. We provide both online and offline technical guidance and training. We can customize bodywork and develop new products according to customer needs.
CHENGLI have more than 200 products, the main products are three series: The fire fighting truck, power van truck, wrecking truck, personnel carrier, flood control vehicle, repair vehicle, crane truck, aerial work vehicle, ladder vehicle, etc.; Refrigerated vehicle, mobile stage truck, mobile dining truck, medical waste transfer vehicle, medical testing vehicle ambulance car, explosion-proof vehicle, livestock and poultry truck; Water sprinkler truck, dust suppression truck, garbage truck, sewage suction truck, food kitchen garbage truck, road sweeper truck, mobile compression station and so on.

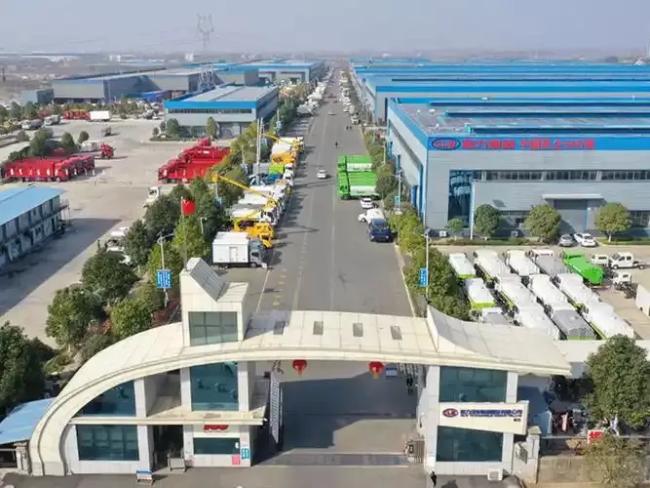

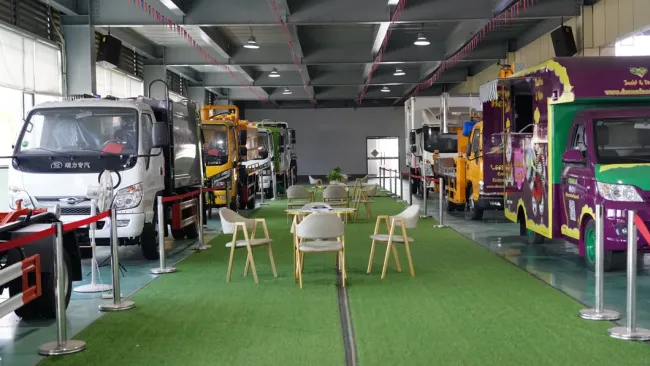

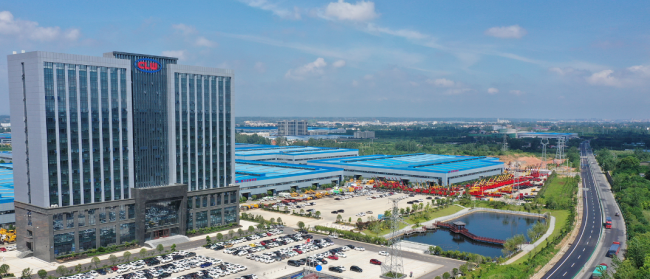

The first phase of the Emergency Industrial Park has a built floor area of more than 26, 000 square meters, of which the office area reaches more than 5, 000 square meters. Has more than 1000 employees, including more than 360 engineering and technical personnel, more than 200 sales team, with finished vehicle display area, fully functional supporting production workshop, E-coating workshop, testing center high-end production equipment, mature manufacturing process, excellent technical team, modern enterprise management system, which is a set of automotive technology research and development, automotive manufacturing modification parts production and sales in one of the diversified automobile company.
