Shacman L3000 4X2 10000L Water Tank Fire Truck , Carbon Steel Foam Fire Truck

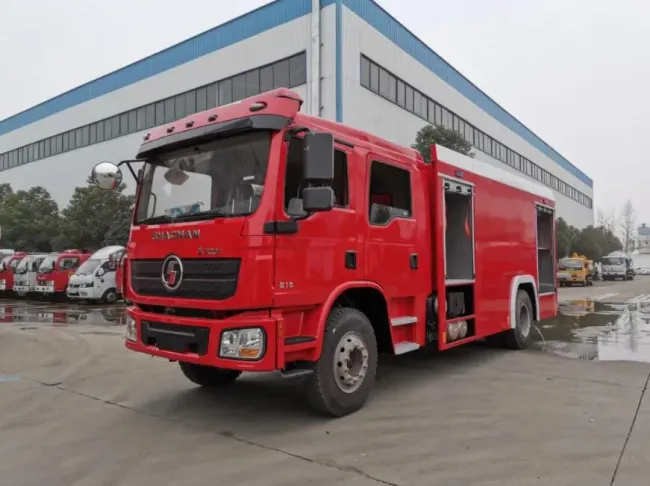

Shacman L3000 4X2 10000L Water Tank with Foam Fire Fighting Truck

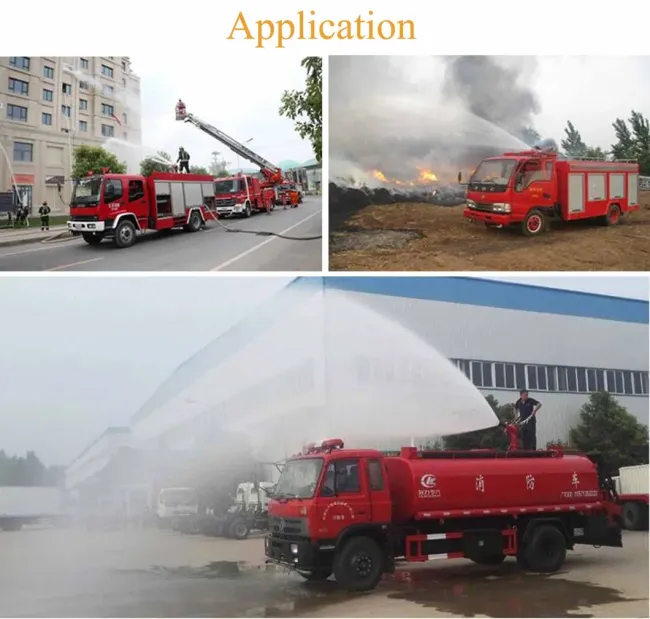

A firefighting apparatus is vehicle that has been customized for use during firefighting operations. Our vehicles are highly customized depending on their needs and the duty they will be performing. These duties can include firefighting, vehicle extrication, dangerous goods investigations, urban search and rescue, medical emergency, swift water rescue and plane crashes.
Chassis Specification | |||
Truck model | CLW5234GXFQ2 | ||

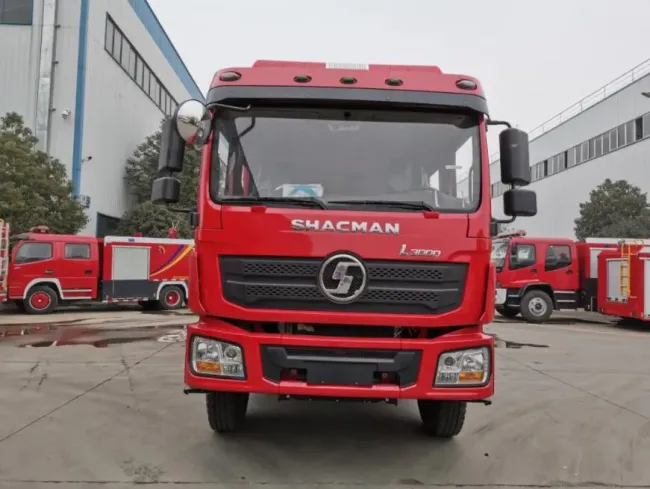

Cab | SHACMAN L3000 | ||
Driving Type | 4*2 Left hand driving | ||
Max Speed (km/h) | 85 | ||
Overall dimension(mm) | 8650*2480*3480 | ||
GVW( kg) | 14800 | ||
Mass in working order( kg) | 6700 | ||
Wheelbase(mm) | 5000 | ||
Tire | 10.00R20 | ||
Gear box | FAST 7-speed | ||
| Front axle | 4.8T | |
Rear axle | 10T | ||
| Model | WD | |
Fuel Type | Diesel fuel | ||
Exhaust(ml) | 6700 | ||
Max output power(hp) | 210 | ||
| Material | Water Tank | High quality carbon steel plate, anti-rust treatment |
| Total | 10000L | |
| Water Tank | 8000L | ||
| Foam Tank | 2000L | ||

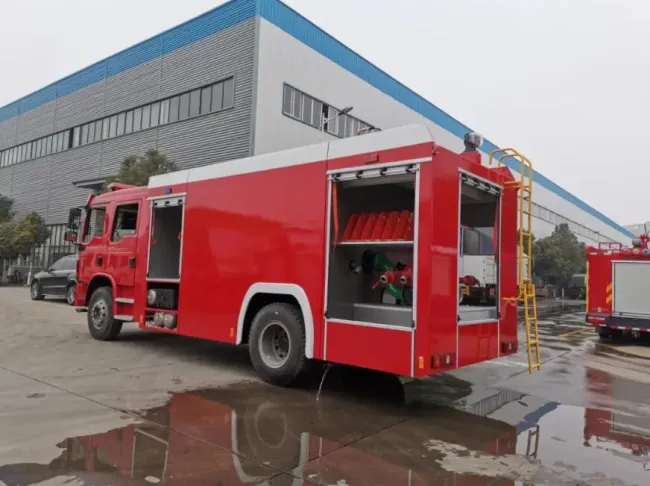

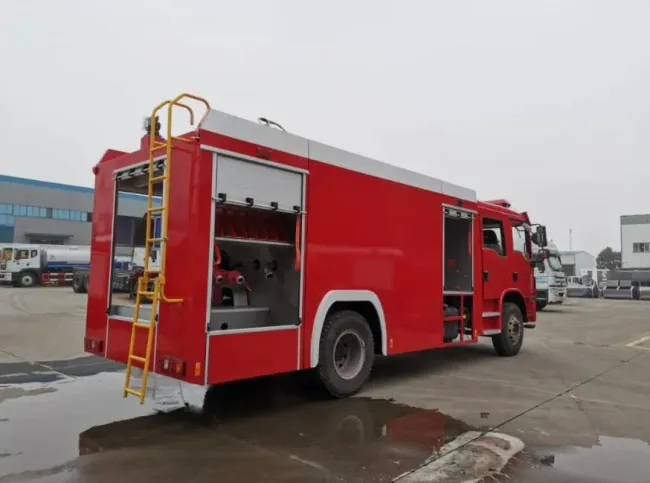

| Equipment box: at the back of carriage, there are two-layer clapboard, can store equipment. There is safe ladder to up and down on the back of equipment box. | ||

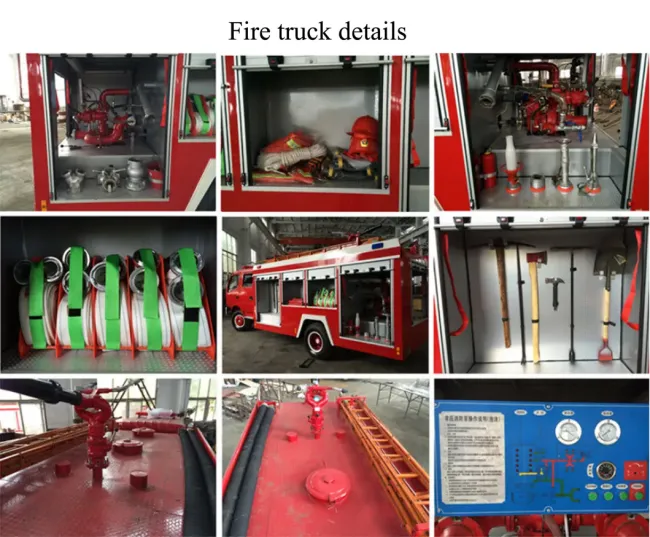

pump room | on the rear or central of truck, there are pump system and pipeline, reasonable structure. Easily operate all meters and operate-switch. | ||
Additional drive system | Use sandwich PTO, splashing-type lubricate, can put out fire when driving. | ||
Additional operation system | PTP operation lever, fire pump valve operation lever, electronic control button, Hand accelerator operation lever and son on | ||
Additional cooling system | The additional cooling system uses a mandatory water cooling for PTO. Can effectively control the fire truck equipment to extend the service life of equipment because of long hours of continuous work related to the heating | ||
| warning light ,warning sirens | ||
Pump pneumatic control valve switch,Pump speedometer,Electronic level gauge | |||
Fire lights, pump room lights, equipment box lights | |||
| pressure gauge | ||
speedometer | |||
level gauge | |||
vacuum gauge | |||
