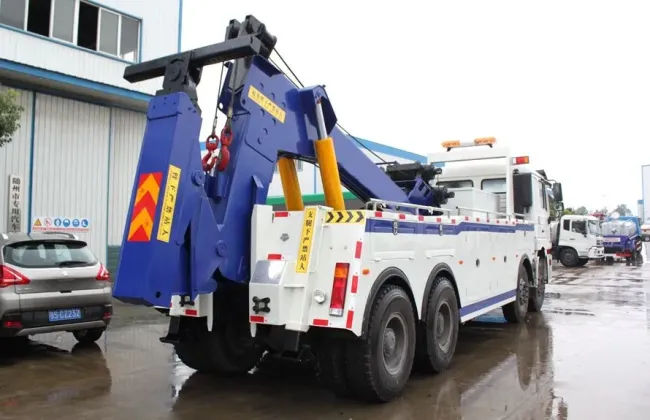

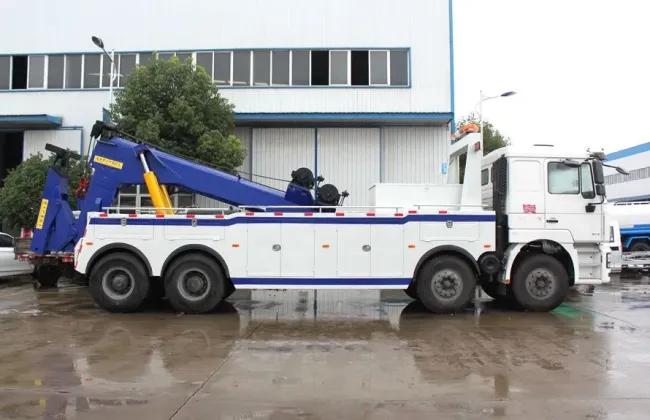

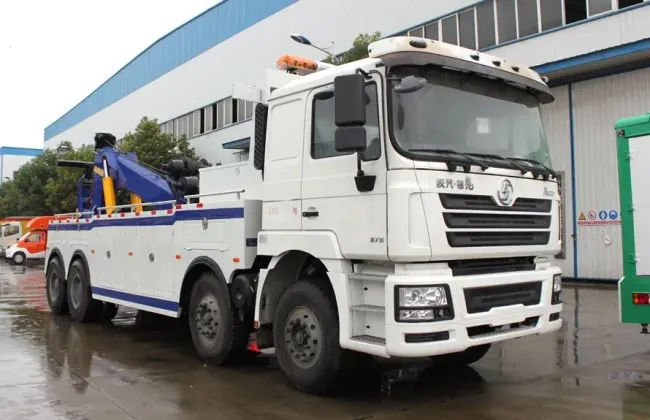

Shacman RC Heavy Tow Truck 360 Degree Rotation Rotator Tow Truck 50tons 80tons
Shacman Heavy Duty 360 Degree Rotation Rotator Tow Truck Price 50tons 80tons RC Truck
Product Description:
- Purpose of Recovery Truck: wrecker/recovery truck/towing truck is used for towing break-down cars or vehicle or bus or trailers on road.With increasing ownership of private cars,wreckers are now widly used by government organization or towing company.
- Optional brand of Recovery Truck :howo,Dongfeng,JAC,JMC,Foton,Shacman...
- Spare parts of Recovery Truck : Italy brand multi-way valve and balance valve; Gernamy Roxroth technology hydraulic cylinder and joint; imported sealing element; strengthed checked plate
- Capacity range of Recovery Truck:3ton, 4ton, 5ton, 6ton, 8ton, 12ton, 16ton, 20ton, 25ton, 31ton, 40ton, 50ton
Specification of Shancman 50tons Recovery Truck
|
CHASSIS |
|||||
|
Cabin |
Shacman standard cabin,Right hand drive,with air conditioner,allowed for 2~3 persons |
||||
|
No load(kg) |
Curb Weight |
13070 |
|||
|
Front axle |
7000*2 |
||||
|
Rear axle |
18000*2 |
||||
|
Full load |
Max. Overall Weight |
31000 |
|||
|
Overall Dimensions(mm) |
Length |
11430 |
|||
|
Width |
2500 |
||||
|
Height |
3270 |
||||
|
Wheel base(mm) |
1800+4600+1350 |
||||
|
Track(mm) |
2022/1830 |
||||
|
F/R Suspension(mm) |
1500/2200 |
||||
|
A/D Angle(°) |
16/18 |
||||
|
Driving Model |
8*4 |
||||
|
Tyre |
315/80R22.5 |
||||
|
Max. Speed(km/h) |
105 |
||||
|
Max. Grade-ability(%) |
30 |
||||
|
Min. Turning Diameter(m) |
22.6 |
||||
|
Min. Ground clearance(mm) |
310 |
||||
|
Engine |
Model |
WD615.47 |
|||
|
Horsepower(HP) |
371 |
||||
|
Displacement(mL) |
9726 |
||||
|
Transmission |
HW19710,10 forwards&2 reverses |
||||
|
WRECKER EQUIPMENT |
|||||
|
Max. Towing Weight(kg) |
43000 |
||||
|
Lifting System |
Max. Lifting Weight(kg) |
25000 |
|||
|
Max. Lifting Weight under all extension(kg) |
8300 |
||||
|
Effective Length of Corbeling Arm(mm) |
3650 |
||||
|
Extend-retract of Corbeling Arm(mm) |
1750 |
||||
|
Slope Angle of Corbeling Arm(°) |
7 |
||||
|
Folding angle under no load(°) |
-7~92 |
||||
|
Folding angle under load(°) |
-7~16 |
||||
|
Max. Ground Distance(mm) |
900 |
||||
|
Landing Strength(KN) |
80*2 |
||||
|
Hydraulic Hose |
Tianhe,Guangdong Province |
||||
|
Hydraulic Joint |
Germany technology and exported Sealing rings |
||||
|
Hydraulic Lock |
Jiangyin Mingcheng Hydraulic and Mechanical Co.,Ltd. |
||||
|
Swivel Joint |
Yangzhou Zhongmei Pressure Parts Co.,Ltd. |
||||
|
Compartment plate |
One-step Modeling by Germany 3P2A 1000T punching machine |
||||
