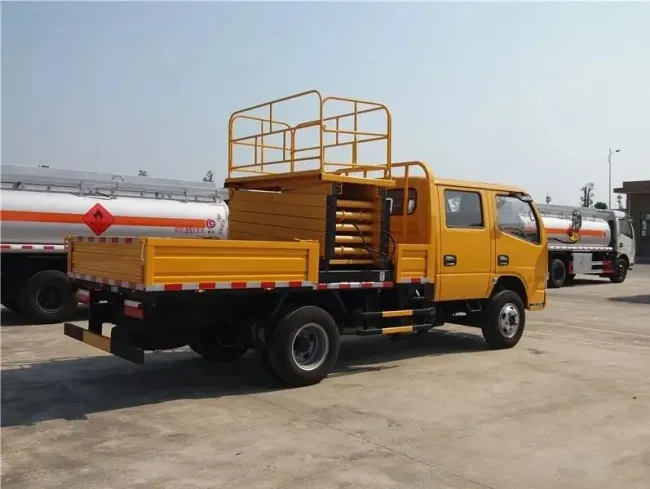

Dongfeng 6 Wheeler Scissor Hydraulic Truck Mounted Ladder 8m 10m 12m
Price:
15000-35000 per unit
MOQ:
1
Delivery Time:
30 Days
Brand:
CLW
Product Description

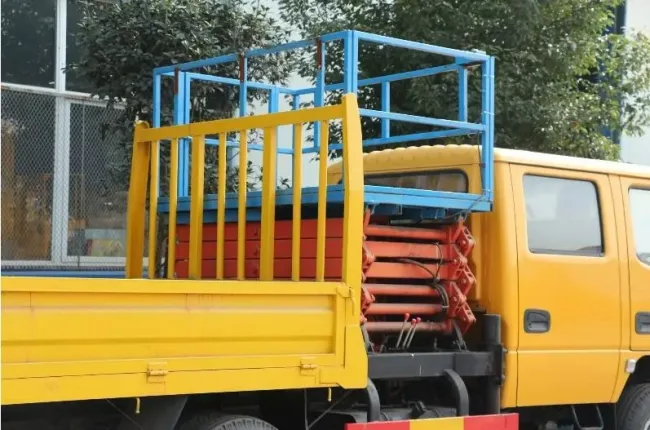

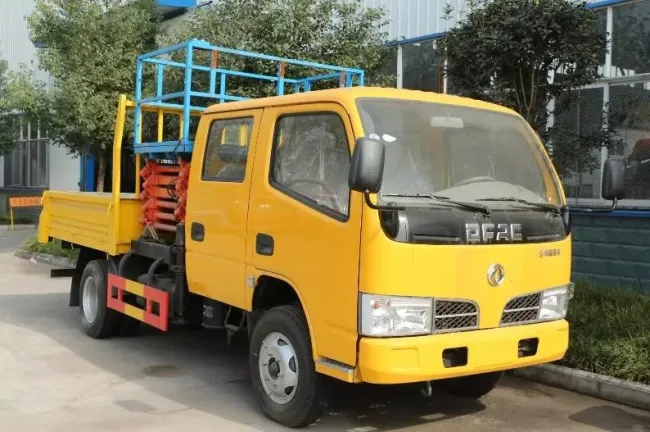

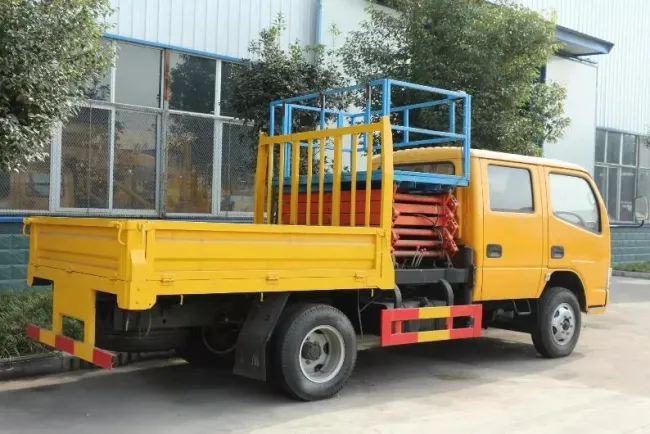

Dongfeng 6 Wheeler 8m 10m 12m Scissor Hydraulic Truck Mounted Lifting Ladder
Description:
- Electronical controlled Lifting Arm with Doulbe Side Balance Vavle.
- Four Hydraulic Cylinders Control Leg to ensure the Truck Balance.
- 360 degree Rotation Arms.
- Arm and H leg Automatic Locking System to secure safety handling
| GVW 4150kg Driving Type 4x2 | |||
| Model | CLW | ||
| Cab | Single row cab, allowable 3 passengers. | ||
| Engine(Hp) | 95 | ||
| Power(Kw) | 70 | ||
| Wheelbase | 3300 | ||
| Front/Rear Suspension | 1040/1647 | ||
| Steering | Power steering | ||
| Approach/departure angle | 20/13 | ||
| Wheels & tire | 7.0-16 | ||
| Tire number | 6+1 | ||
| Working height(m) | 10 | ||
| RHD or LHD | optional | ||
| Overall Dimensions(mm) | 5995×2000×2700 | ||
| Curb weight (Kg) | 3825 | ||
|
Engine |
Model | CY4102-E3C | |
| Horsepower | 95 | ||
| Maximum output Kw | 70 | ||
| Type | 4cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling, diesel engine | ||
| Displacement | 3856ml | ||
| Chaoyang brand, Euro 3 | |||
| Driving passenger | 2,3 | ||
| Transmission | 5 speed forward and one reverse, manual | ||
| Front Axle | 1.5T | ||
| Rear Axle | 3.5T | ||
| Brake System | air brake | ||
| exhaust brake | |||
| Color and LOGO | customized | ||
| Electric system | 24V | ||
| Standard configuration | working platform, "H" legs(Each leg is controlled individually), van body | ||
|
Equipment |
Platform Dimension | 1585X1805X955 mm | |
| Max Working Height | 10m | ||
| Max Working Radius | straight | ||
| Platform Loading | 500kg | ||
| Platform Passenger | 2 | ||
| Working pressure | 14MPa | ||
