- Automatic Bucket Balance System, Bucket will be Stayed in Balance Level in All Working Time.
- The Stretching Angle Up to 80°, which will be Easier to Handle in All Time.
- Full Computer Control System with Danger Waring System.
- LCD Screen in Both the Bucket and Truck to Display the Working Status.
- Rectangular Shape Arms to Increase the Arm Strength.
- V Shape Leg, H Shape Leg can Adapted to Different Road Condition Increasing the Stability.
JMC Aerial Work Vehicle Electric Power Repair Vehicle Aerial Platform Truck Aerial Work Vehicle
Price:
15000-35000 per unit
MOQ:
1
Delivery Time:
Negotiable
Brand:
CLW
Product Description
JMC Aerial Work Vehicle Electric power repair vehicle
Product Description
Product Specification
| Telescopic Skylift Bucket Truck 18m ~24Meter | |||
| Overall dimensions | 7410x2210x3550 mm | ||
| Gross vehicle weight | 8950kg | ||
| Wheel base | 3800 mm | ||
| F/R track base | 1110/1990mm | ||
| Approach/departure angle | 21/12° | ||
| Cabin | Dongfeng Single Row Cabin, 2 Passenger Allowed, | ||
| Engine | Diesel Engine B140 33, 4 Stroke, 4 Cylinder in line, Turbocharged, Inter cooling | ||
| Displacement/ HP | 3760CC / 141HP | ||
| Max speed | 90 km/h | ||
| Tire specification | 7.60 - 16, 6 Pieces with 1 Spare | ||
| Number of axles | 2 | ||
|
Bucket |
Max. work height: 23 meters | ||
| Max. bucket floor height: 22meters | |||
| Max. work radius: 10 meters | |||
| Rated load: 200kg | |||
| Dimension (L×W×H) 1000×650×1200 (mm) | |||
|
Boom |
Type Four-section telescopic synchronously | ||
| Rotation angle 360° | |||
| Elevation angle -12°~80° | |||
| Outriggers | Type: H | ||
| 4000x4000mm | |||
|
Major Feature |
Outrigger | computer controlled system, one key to stretch out & balance the level of the truck | |
| Balancing | Automatically Balancing system with Tilting Angle Sensor & level detector | ||
| Getting on & off Lock | Computer control system, | ||
| Telescopic Arm Control | Controlling system in the bucket, with manual control. | ||
| Platform Control system | LED Screen Display with Button control | ||
| Range Control | Large Angle Sensor to Detect the Arm Length & Rotation Range | ||
| Walkie-Talkie | Included | ||

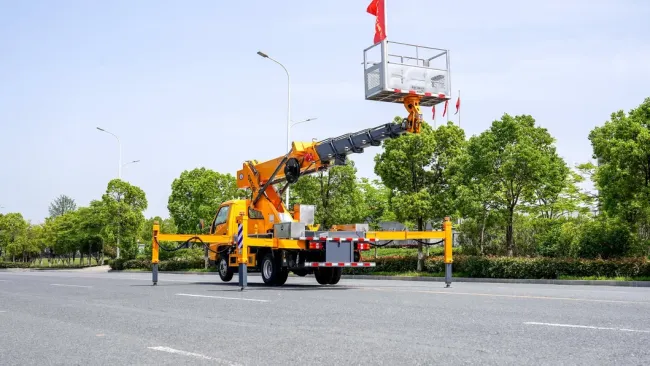

Reference Photos
Why choose us?

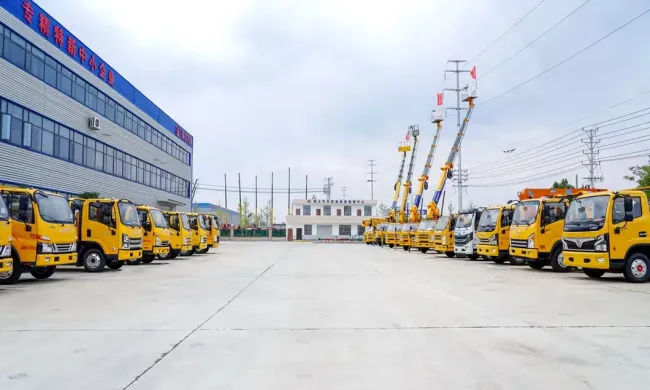

- Having a finished car display area and a fully functional manufacturing workshop.
- We have a spray electrophoresis workshop, testing center, and high-end and sophisticated equipment.
- A diversified high-tech manufacturing company that integrates automotive technology research and development, manufacturing and modification, and component production.
About us:
Notes
All specifications are based on standard configuration. Customization requires written approval.
Technical parameters may be updated to comply with regulations. Final product specifications prevail.
