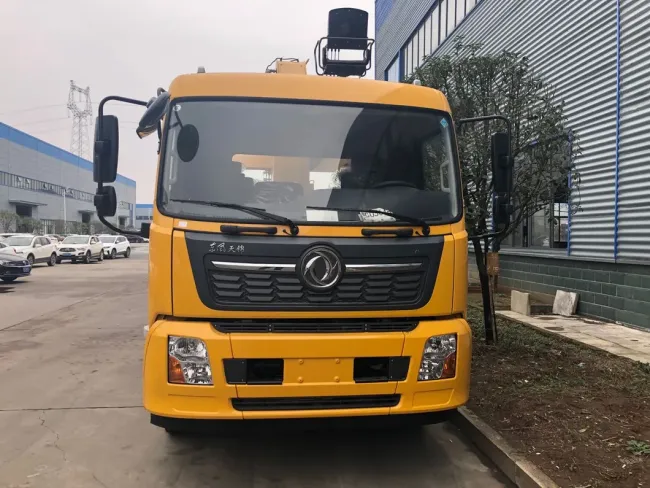

4*2 Dongfeng 8 Ton Truck Crane Knuckle Crane Truck For Construction Work
Price:
15000-35000 per unit
MOQ:
1
Delivery Time:
Negotiable
Brand:
CLW
Product Description

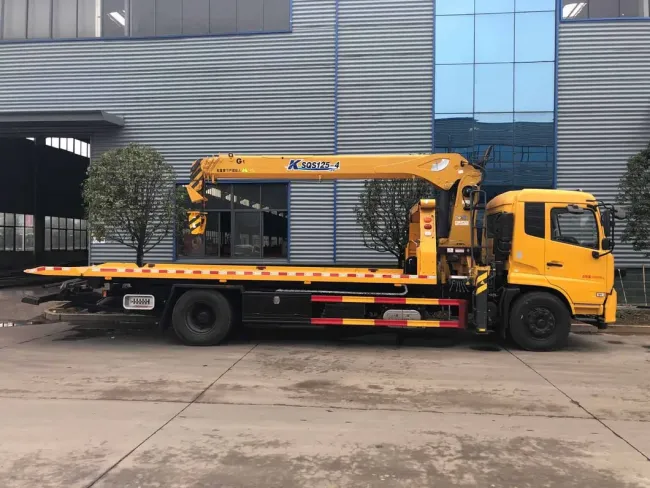

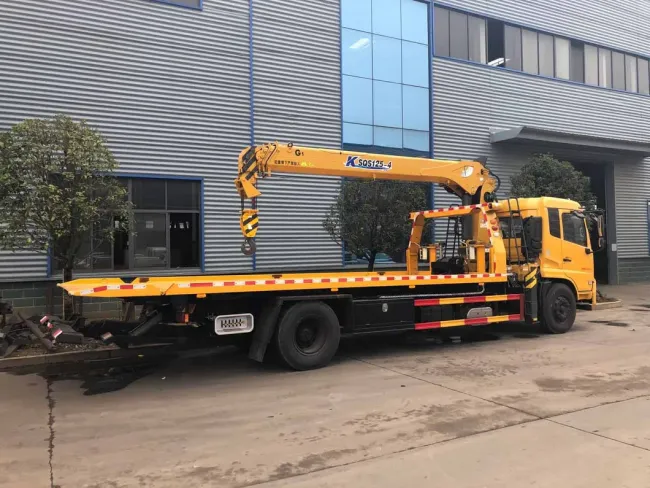

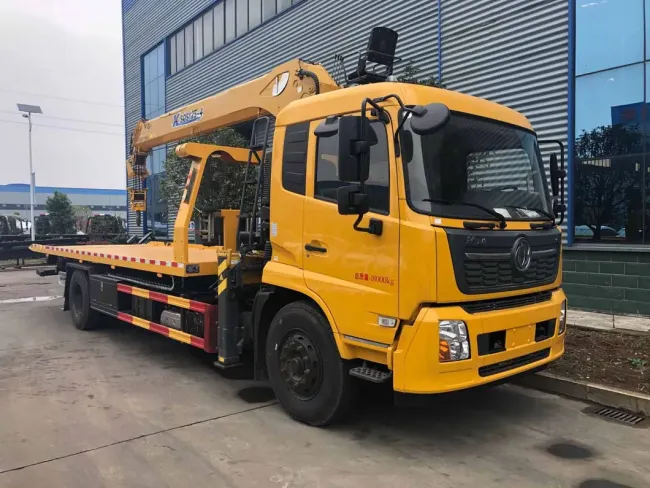

4*2 Dongfeng Truck with 8 Ton Knuckle Crane Truck
Product Description
Purpose: It's used for lifting and transporting all kinds of bulk cargo, and also applied in jetty and construction work.
Main parts: Crane. (Different lifting capacities match different chassis.)
Advantage: One truck combines the functions of crane and dump truck.
Product Specification
| General Technical Parameters | |||
| Overall Dimension | 9000×2500×3850 (mm) | ||
| Gross Vehicle Weight | 18500(Kg) | ||
| Curb Weight | 11380(Kg) | ||
| Chassis Specification | |||
| Chassis Brand | Dongfeng | ||
| Drive model | 4*2 | ||
| Cabin | Double, Left Hand Driving, with air conditional | ||
| Number of Passengers | 3 | ||
| Model | 4-stroke direct injection , 6-cylinder in-line with water cooling, inter-cooling, EGR | |
| Power | 132KW/180HP | ||
| Emission standard | EURO 3 | ||
| Displacement | 6500(ml) | ||
| Fuel type | Diesel | ||
| Gearbox | 8Forwards & 1Reverse | ||
| Brake System | Air break | ||
| Wheel Base | 5100mm | ||
| Front/Rear Axle Loading | 8000/11500(Kg) | ||
| Approach/Departure Angle | 23/12(°) | ||
| Overhang | 1250/3545(mm) | ||
| Tire | 11.00R20 | ||
| Max Driving Speed | 90(km/h) | ||

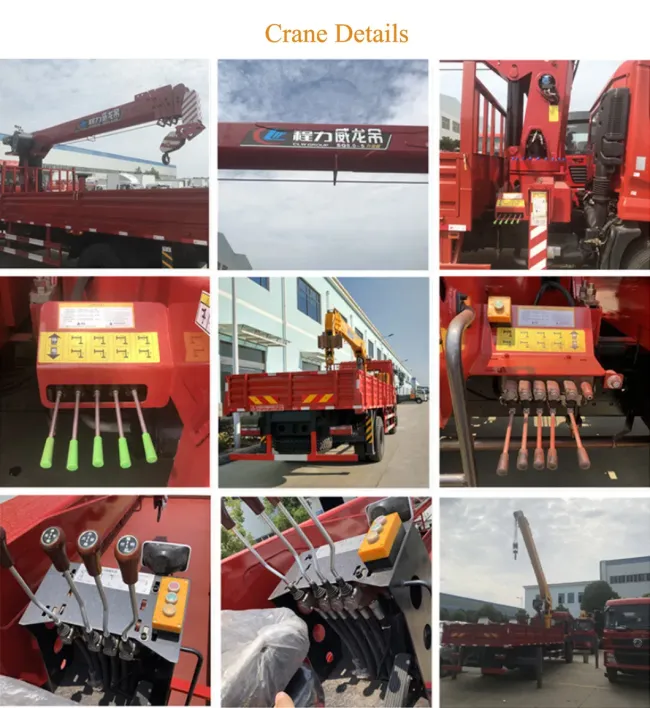

| Upperstructure Specification | |||
| Dimension | 6000×2300×550(mm) | |
| Material | Q235 carbon steel | ||
| Cargo Thickness | Side 1.5mm, Bottom 2.5mm | ||
| Boom Type | Straight 3-Arm telescopic boom | |
| Crane Brand | S-ANY or CLW | |
| Range of Sprayer | 30m | ||
| Max Lifting Moment | 25(T.M) | ||
| Max Lifting Capacity | 8000(kg) | ||
| Max lifting height | 12(m) | ||
| Rotation angle | 360(°) | ||
| Installation space | 1150(mm) | ||
| Recommented power | 30(kw) | ||
| Maximum working pressure | 26(Mpa) | ||
| Max Flow | 63(l/min) | ||
| Crane weight | 3800(kg) | ||
| Oil tank capacity | 160(L) | ||
| Leg | Leg type | H type | |
| Leg Span | 2.28-5.9(m) | ||
| Hydraulic system | Pressure | 18(M pa) | |
| Capacity | 70(l) | ||
| Other Configuration | Control system in 2 side; diamond palt, yellow warning fire; 2.5T arm, etc. | ||
| Options | Caution light, air condition, inlet valve, medicine tray, pneumatic valve, cylinder, etc. | ||
