China Hook Lift Garbage Truck 4X2 Mini Garbage Truck 4cbm for sale

Hook Lift Garbage Truck 4X2 Mini Garbage Truck 4cbm

Price Negotiable

Price: 15000-35000 per unit

MOQ: 1

Delivery Time: Negotiable

Brand: CLW

Product Description

1. Hook Lift Garbage Truck is also called garbage collecting truck, garbage transport truck, mainly used in transporting kinds of garbage for municipal sanitatio ,large factories and mines ,etc, especially apply to transport household waste in residential area.

2. According to loading and unloading type, it is divided into the following categories: dump garbage truck, hook lift garbage truck, compactor garbage truck, swing arm garbage truck, self-loading garbage truck, sealed type garbage truck.

Specification

Condition	New condition/Left hand drive/Right hand drive/4x2
Main details	Wheelbase(mm)		2600;2800;2850
	Front/Rear Axle loading(kg)		2000/4000
	Rear axle ratio		5.375(6.142)
	Wheel track (front/rear) (mm)		1440/1425
	Front/Rear overhang(mm)		1110/1488
	Min. Ground Clearance		190
	Approach/Departure angle(°)		20.5/17 °
	Max. driving speed(km/h)		100
	Battery		12V2 ; 100Ah2
	Alternator		14V 60A
	Starter		12V 2.8kw
	Clutch		Dry single plate
	Brakes		Hydraulic brake
	Steering Gear		Power steering, hydraulic steering with power assistance
	Tire	Quantity	6 pcs with one spare tire
		Specifications	6.50-16
	Oil tank	Fuel tank material	Steel
		Fuel tank capacity (L)	100
Transmission	Manual type, 5 Forwards and 1 reverse
Cab	It can accommodate three people. With Air Conditioner
Engine	Brand		Optional
	Model		Optional
	Fuel type		Diesel
	Emission standard		Euro 1/Euro 2/Euro 3/Euro 4/Euro 5
Upper & Control System
Garbage box	Capacity(cbm)		3.0cbm/4.0cbm
	Tank material		Q235 carbon steel
	Side plate thickness(mm)		3.0 mm
	Bottom thickness(mm)		4.0 mm
	pulley wheel quantity(pcs)		4 pcs
Control System	Control model		Hydraulic control
	Control panel		Close to Cabin

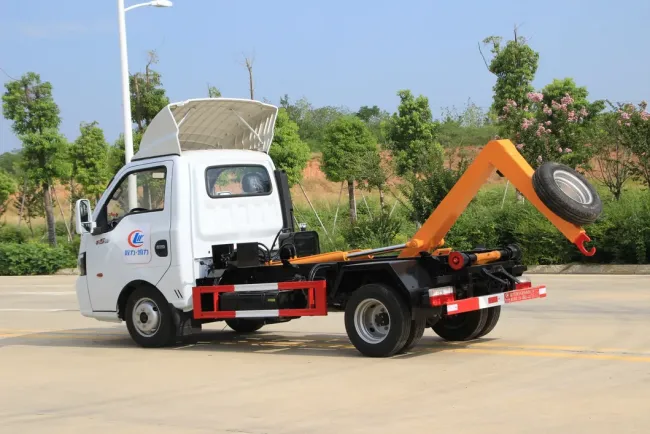

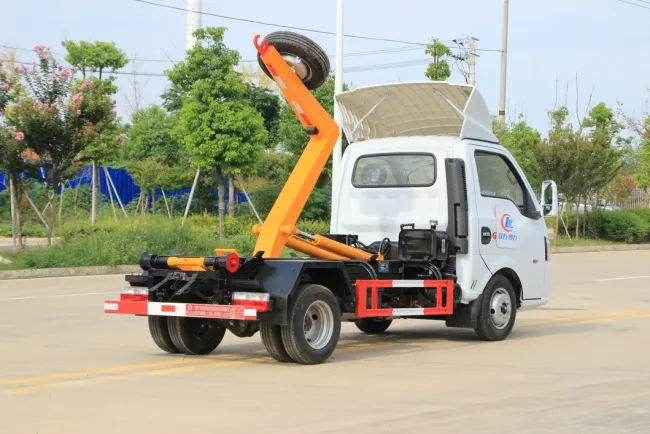

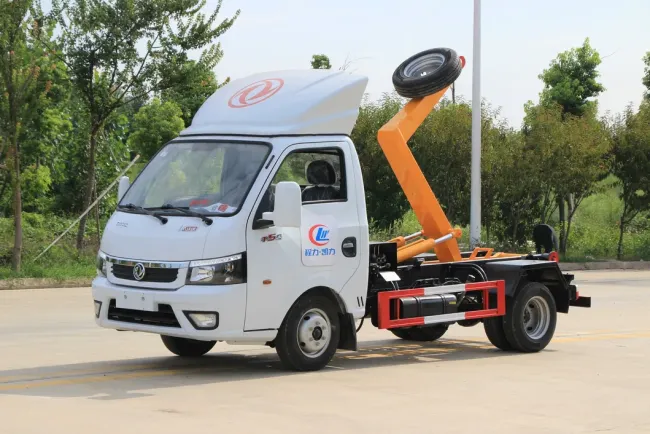

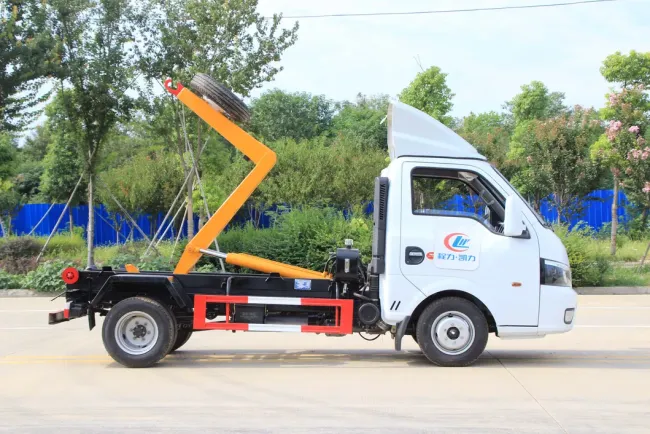

4X2 Mini Garbage Truck 4cbm Hook Lift Garbage Truck
