Diesel Fuel Type Mini Rear Loader Garbage Truck 5cbm Mini Refuse Collector Truck

Price Negotiable

Price: 15000-35000 per unit

MOQ: 1

Delivery Time: Negotiable

Brand: CLW

Product Description

Diesel Fuel Type Rear Loader Garbage Compactor Truck 5CBM Mini Refuse Collector

Easy to Collect Garbage All over the City with Garbage Compactor Truck
Full Garbage Barrel or Container Lifting System with Automatic Compressing & Discharging System
High Compression Ratio with Large Loading Capacity, Max Crushing Pressure 12Tons.
2 Times Larger in the loading Capacity with Self Discharging System
One Man Work Required with Internatioanl Brand PLC Control System.
Doubel Insurance: Computer Control with Backup Manual Control.
Lifting System: Plastic Bin or Steel Container lifting.

Specifications Detail of the Truck

Item No.	Parameters
Overall Dimension	6450 x 2050 x 2570mm
Gross Vehicle Weight	730 kg
Loading Weight	2000 kg
Curb Weight	5170 kg
Wheel Base	3360 mm
Axles Quantity	2 Axles
Front / Rear Axle	2500 kg / 4800kg
Cabin	Left Hand Driving, 3 Passengers Allowed, with Air Conditioner, Radio, with ABS
Engine	Four Stroke, 4 Cylinder in line, Mechanical Engine Pump.
Engine horsepower	98HP, EURO 4
Displacement	2771 ml
Max Driving Speed	90 km/h
Gear Box	5 Forward Gear, 1 Reverse Gear,
Fuel Tank	100 Liter
Tire	7.00-15 (6 pieces with one spare)
Garbage Bin: Capacity	5 CBM
Garbage Bin: Material	4mm Carbon Steel for Garbage Bin Body
Garbage Bin: Design	Whole unit with Leakage Proof Design
Ways of Loading	Rear Loading with optional Bucket Lifting System
Plat Form	2 side for 2 worker for foot transport
Garbage Compact Ratio	1/3 - 1/4
Control System	One control Panel on the back, One Control system in back of Cabin

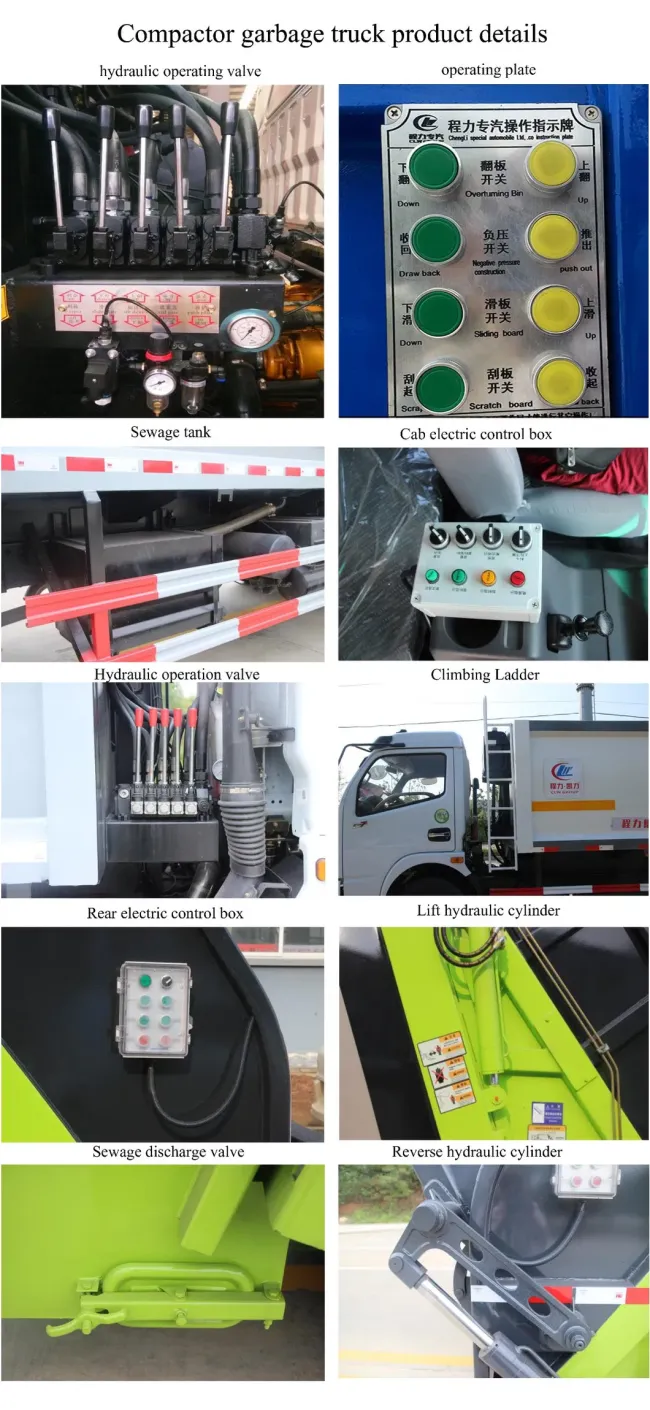

Dispensing System	1. Equipped with air-tight dustbin, hydraulic system and operating system. 2.Automatic loading, compressing and discharging, all handled by 1 person 3. Sewage water collection tank to avoid any pollution during handling. 4. Large Pressure, Good Leakage Proof, Convenient Operation Dependable Security 5. Electrical Control Panel for compacting system. 6. Cycling time<14~18s
