Factory Price China Dongfeng/HOWO/Foton/Lsuzu/FAW 6.3ton Truck with Crane
Price:
15000-35000 per unit
MOQ:
1
Delivery Time:
Negotiable
Brand:
CLW
Product Description
Factory Price China Dongfeng/HOWO/Foton/lsuzu/FAW 6.3ton 8ton 6X2 Truck with Crane
Product Description
- Purpose: It's used for lifting and transporting all kinds of bulk cargo, and also applied in jetty and construction work.
- Main parts: Crane. (Different lifting capacities match different chassis.)
- Advantage: One truck combines the functions of crane and dump truck.
Product Parameters
| Vehicle information Items | Technical parameters |
|---|---|
| Brand of chassis | DONGFENG |
| Overall dimensions ( L * W * H) | 11550x2500x3850 mm |
| Cargo dimension ( L * W * H) | 7800 x 2300 x 500 |
| Wheel base | 4500+1350 mm |
| Axle load (kgs) | 5/10+10 |
| Tire | 11.00R20 (6+1 spare) |
| Engine | B210 |
| Emission Standard | Euro 3 |
| Engine horsepower | 210 HP |
| Front overhang and rear overhang | 1415/1975 mm |
| Approach angle /Departure angle | 24/13 |
| Cabin seat | 2+3 |
| Max.speed | 85 km/h |
| Operation control system | Steering wheel |
| Model | SQ10SA3 | Unit |
|---|---|---|
| Max Lifting Capacity | 10000 | kg |
| Max Lifting Moment | 25 | T.M |
| Rotation Angle | All Rotation, hydraulic | |
| Crane Weight | 1050 | kg |
| Oversize (H x W x Thickness) | 2118 x 2000 x 556 | mm |

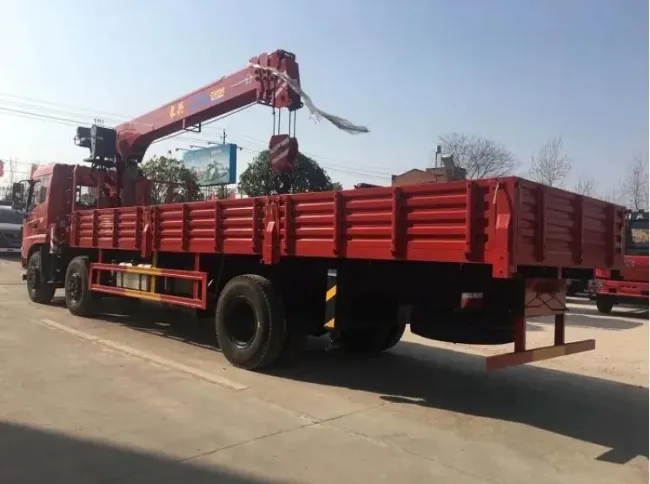

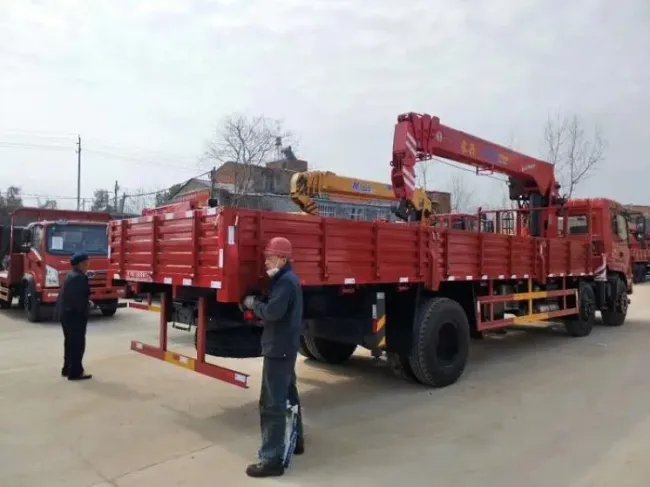

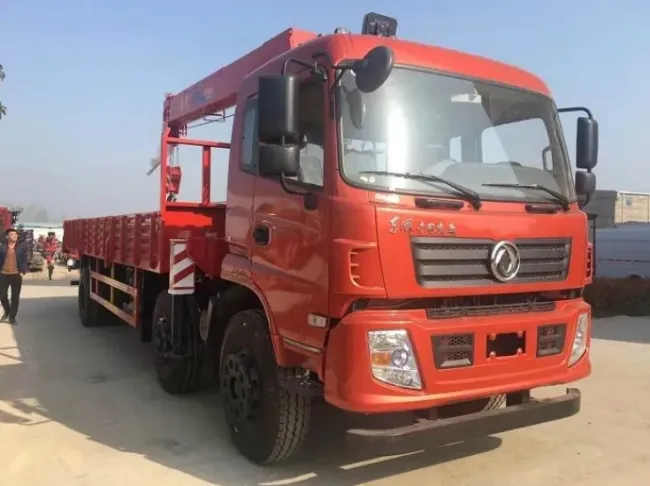

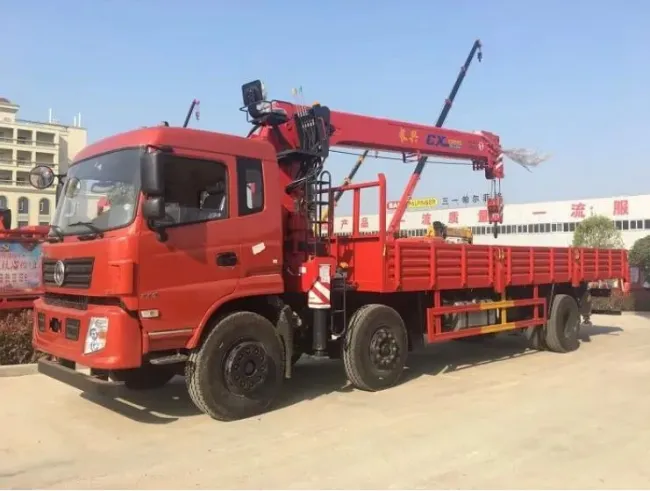

Detailed Photos
