Mobile LED Screen Truck P6 Outdoor Display Panel 5995x2040x2990mm Advertising Vehicle

Name: Mobile LED Screen Truck P6 Outdoor Display Panel 5995x2040x2990mm Advertising Vehicle
Brand: HUBEI HUAYI SPECIAL AUTOMOBILE CO.,LTD

Price Negotiable

Price: 15000-35000 per unit

MOQ: 1

Delivery Time: 25 Days

Brand: EHY

Product Description

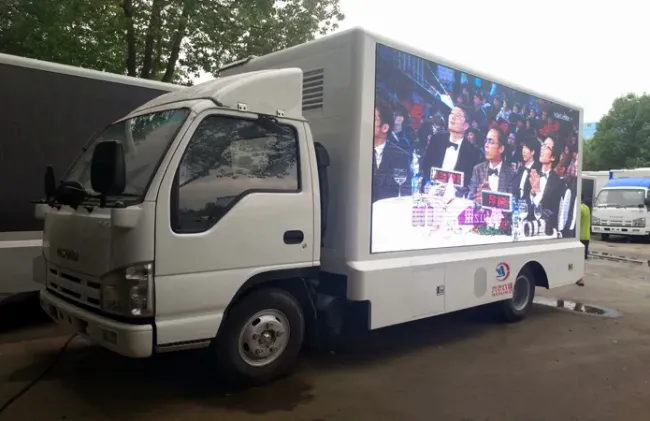

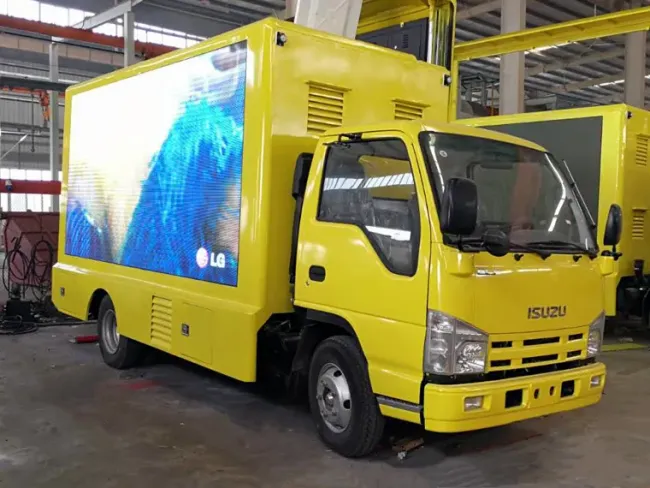

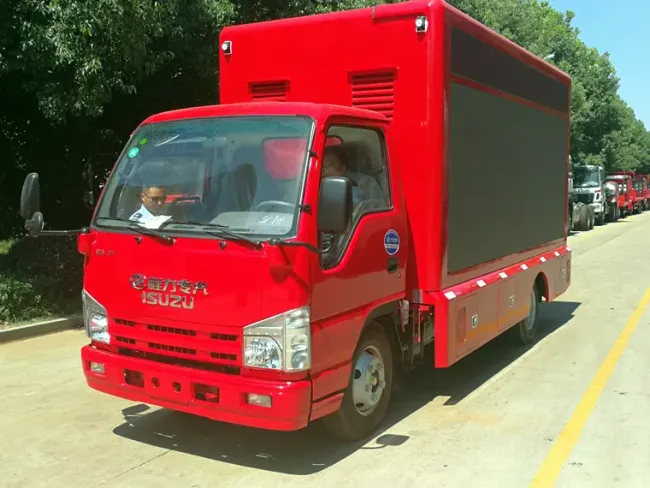

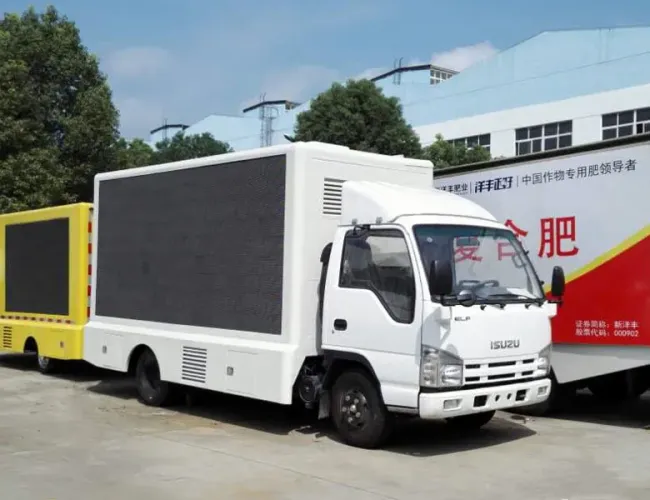

Advertising LED Screen LED Wall Panel Mobile Truck

Description:

Purpose of LED screen billboard truck: For advertising, product promotion, brand promotion, draft activities, live shows sales, sporting events, vocal concerts, concerts, etc.
Main parts of LED screen billboard truck: LED screen, Generator set, Computer, Control system etc.
Optional items of LED screen billboard truck: Mobile stage, Scrolling light box.
LED screen of LED screen billboard truck: SMD P4 P5 P6 P8 for optional.
Generator brand of LED screen billboard truck: China famous brand and Internation brand for optional.

General Technical Parameters
Overall Dimension			5995×2040×2990(mm)
Gross Vehicle Weight			4495(Kg)
Curb Weight			4365(Kg)
Chassis Specification
Chassis parameters	Chassis Brand		ISU ZU
	Cabin		Single, Left Hand Driving, with A/C
	Engine	Model	4 Cylinders
		Power	72KW/98HP
		Emission standard	EURO 3
		Displacement	2.771L
		Fuel type	Diesel
	Gearbox		5 Forward & 1 Reverse Gear
	Front and Rear Axle load		2.5T/4.8T
	Wheel base		3360(mm)
	Overhang( Front/Rear)		1015/1620(mm)
	Angle(Approach/departure)		24/12 (°)
	Brake System		Oil brake
	Steering Gear		Power Assistant
	Tire		700-15, 6 Pieces with 1 Spare Tire
	Maximum speed		98(km/h)
Superstructure
LED Screen	Pixel		Outdoor full colour display screen P6
	Dimension(LxW)(mm)		Both side: 38401792 Rear:12801440
	Description		Screen lift on both sides Waterproof, shake-proof, high brightness, long life
General configuration	1. OUMA brand,Silent diesel generator, 15KW 2. One set industrial computer with control system 3. Sound system: Loudspeaker 4pcs, amplifier 1pc 4. Internal and external electrical distribution box. 5. Circulating ventilation and cooling systems. 6. 5CM composite steel frame body 7. Aluminum patterned floor

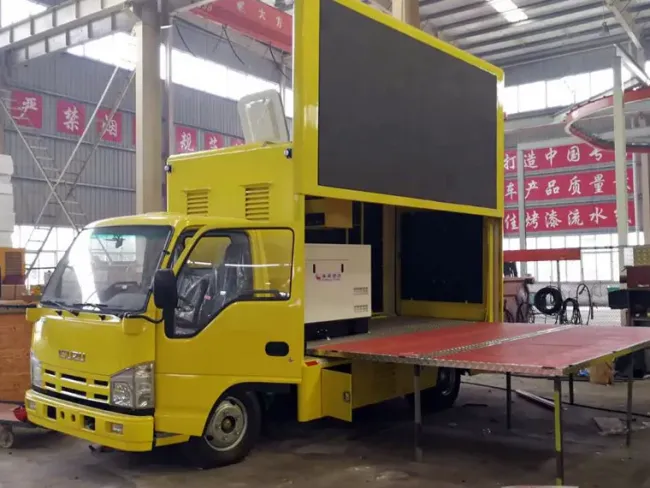

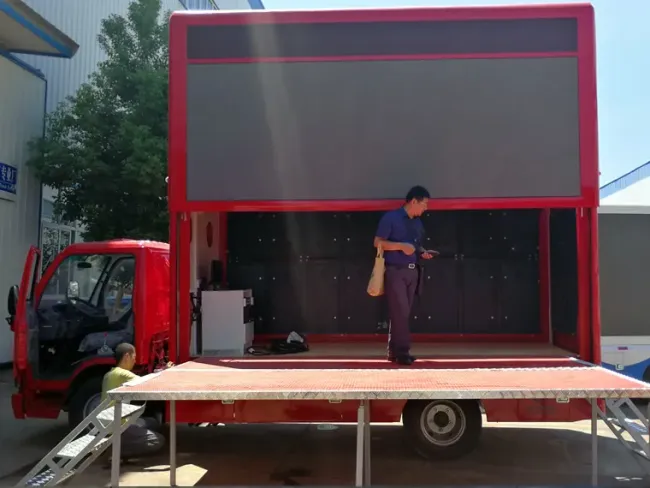

Remarks	Equipped with Hydraulic stage The color of the superstructure is oprional.
