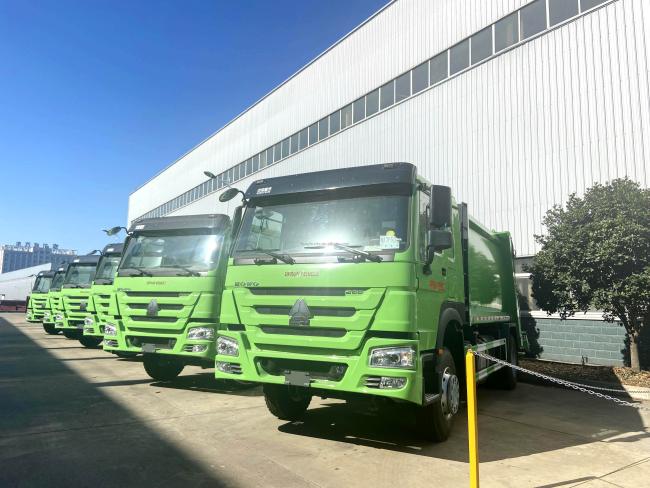

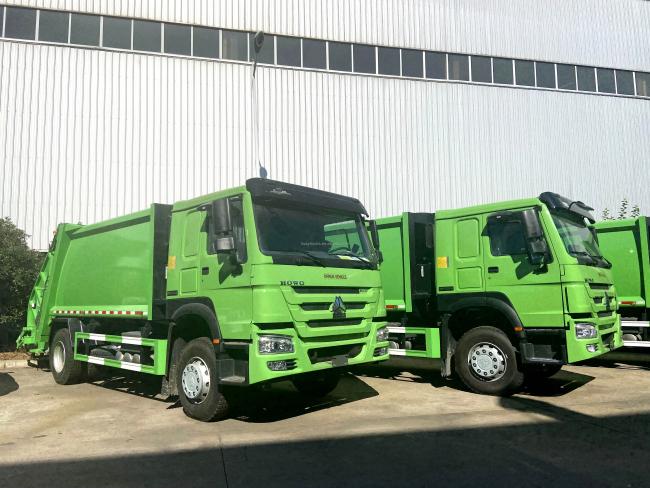

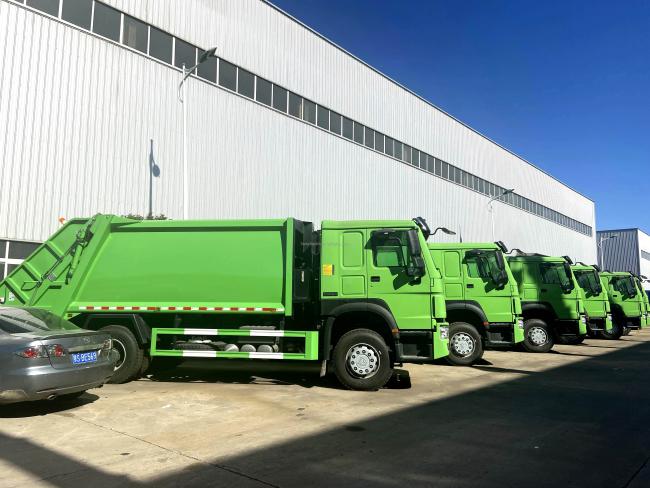

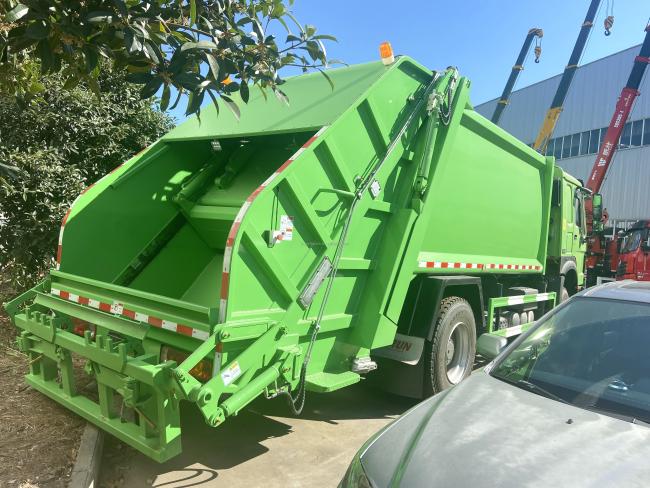

Heavy Garbage Refuse Compactor Truck HOWO 6x4 Refuse Compressor Truck 15m3 20m3
Heavy Garbage Refuse Compactor Truck HOWO 6x4 Refuse Compressor Truck 15m3 20m3
SINOTRUK HOWO 4X2
SHORT DELIVERY TIME
ONE YEAR WARRANTY
FACTORY DIRECTLY SELLING
Right elevation
Left elevation
Rear elevation
|
Vehicle Parameters |
|||
|
Vehicle model |
CLW5160ZYS |
Vehicle brand |
CLW |
|
Vehicle dimension |
8660X2480X3250mm |
Curb weight |
9600kg |
|
Loading Capacity |
10m3 12m3 |
|
|
|
Chassis Parameters |
|||
|
Chassis model |
ZZ1167M4611W |
Chassis brand |
SINOTRUK |
|
Overall dimensions |
7990x2496x2958mm |
Wheel base |
4600mm |
|
Cab |
HW76 a row and a half deluxe cab(with sleeping berth), allowable 3 passengers |
||
|
Engine |
WD615.62 |
||
|
Horse power |
266hp |
||
|
Emission |
Euro 2 |
||
|
Displacement |
9726ml |
||
|
Tire |
12R22.5 |
Transmission |
10 speed forward 2 reverse |
|
Steering device |
Power assisted steering |
Steering wheel |
Left hand drive |
|
Remark: Other types of chassis as optional |
FOTON, Howo, Shacman, JAC |
||
|

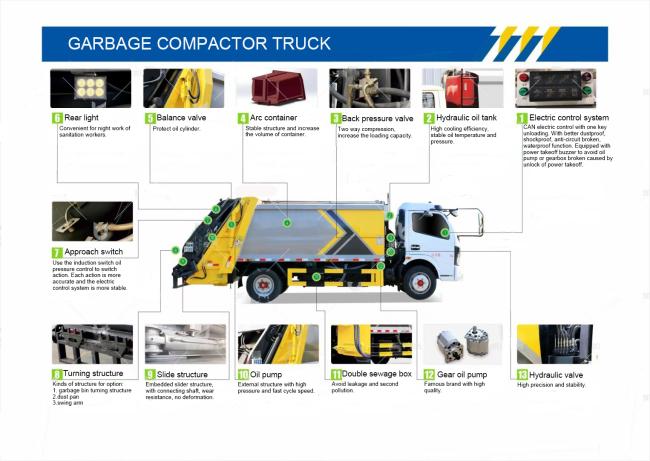

Standard Configuration |
|||
|
Body, sub frame, lifting rear part, the loading device, the pushing-out plate, hydraulic and electric systems |
|||
|
Working pressure |
18MPa |
Flow rate |
63mL/r+20mL/r |
|
Lifting cylinder |
Φ90 x2 |
Scraper cylinder |
Φ100 x2 |
|
Slide plate cylinder |
Φ110 x2 |
Push plate cylinder |
Φ150 x2 |
|
Tilt device cylinder |
Φ63 x1 |
|
|
|
Body |
|||
|
Version |
All-metal |
||
|
Shape |
arc-shaped |
||
|
Sidewalls |
T420 steel (thickness: 4 mm) |
||
|
Bottom |
Q355 steel (thickness: 4 mm) |
||
|
Roof |
Q355 steel (thickness: 4 mm) |
||
|
Front frame |
Q355 steel (thickness: 5 mm) |
||
|
Rear frame |
Q355 steel (thickness:5 mm) |
||
|
Basis |
120х120mm (thickness: 5 mm) |
||
|
Loading bunker |
|||
|
Loading bunker |
All-metal with sidewalls and a loading ladle |
||
|
Volume |
2 m3 |
||
|
Arc plate |
T420 steel (thickness: 4 mm) |
||
|
Slideway |
T420 steel (thickness: 4 mm) |
||
|
Liquid drain |
Drainage channel ,sewage tank |
||
|
Working zone Lighting |
2 lamps |
||
|
Mechanism of raising |
Two hydraulic cylinders |
||
|
Ensuring tightness |
Between the body and lifting back part in the lower part profile acid-proof rubber is used |
||

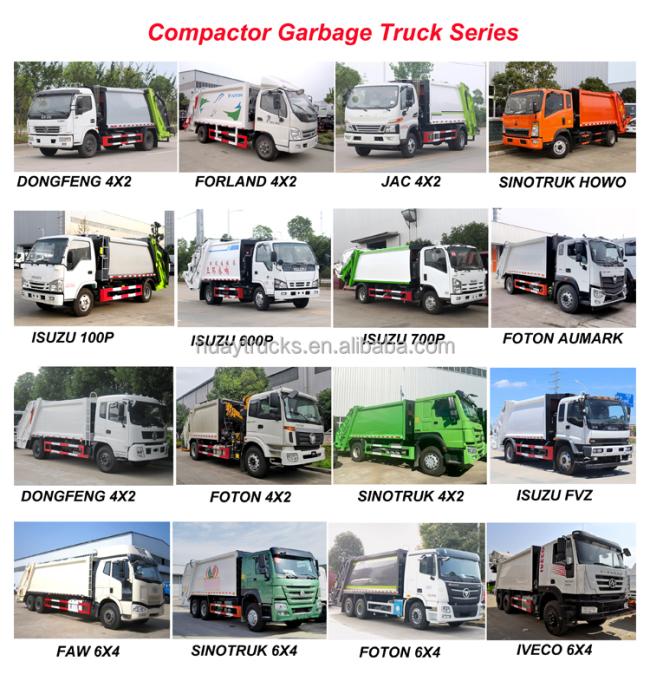

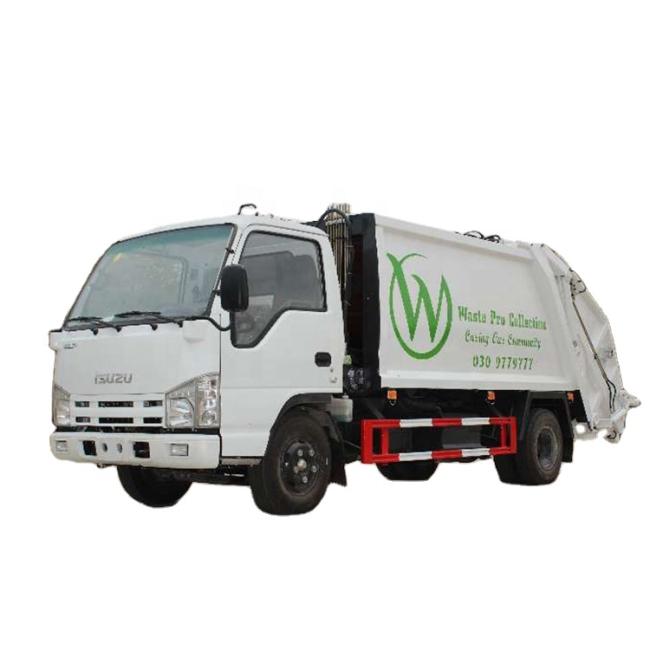

Compressor Garbage Truck

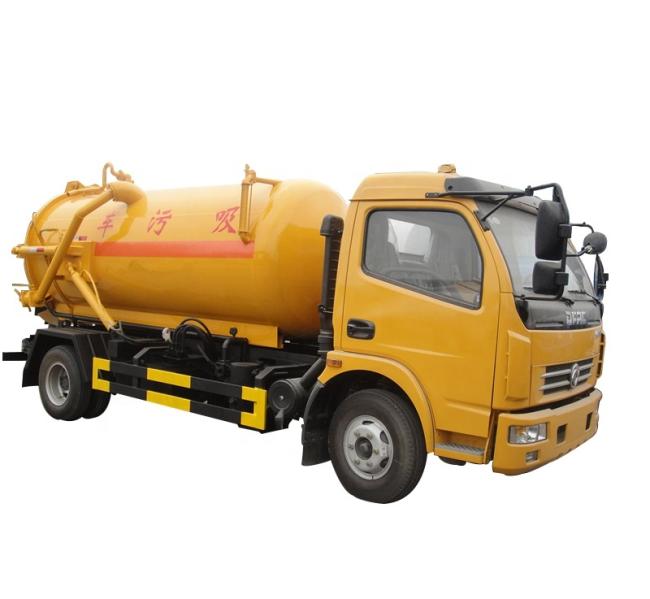

Sewage Suction Truck

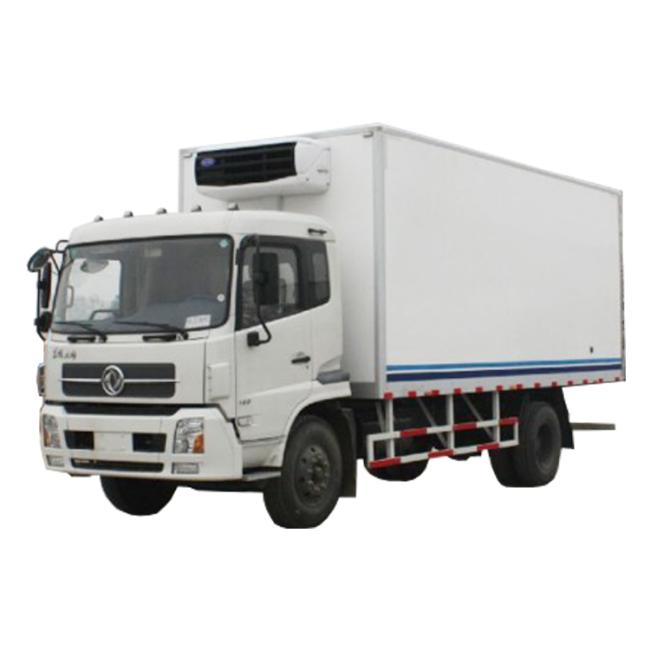

Refrigerator Truck

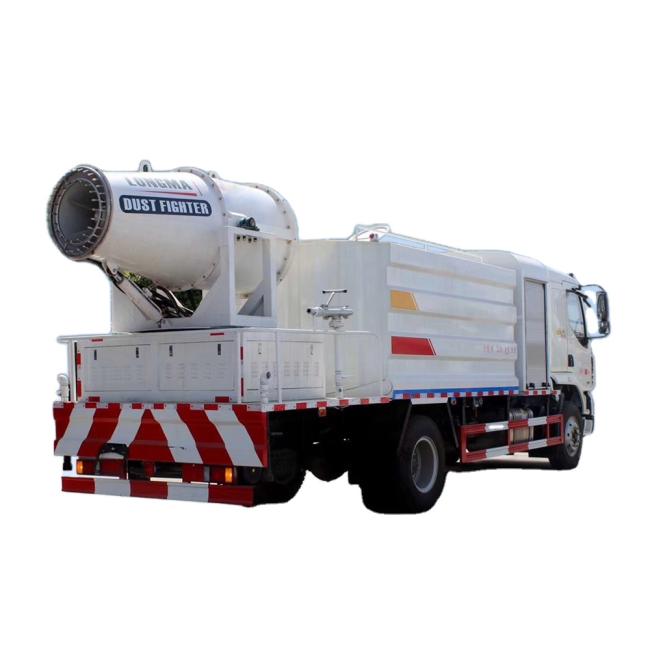

Dust Suspression Truck

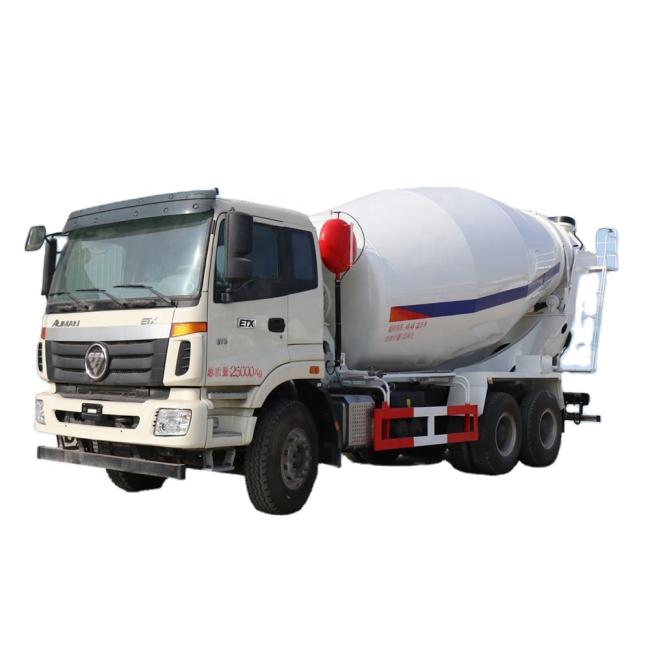

Concrete Mixer Truck

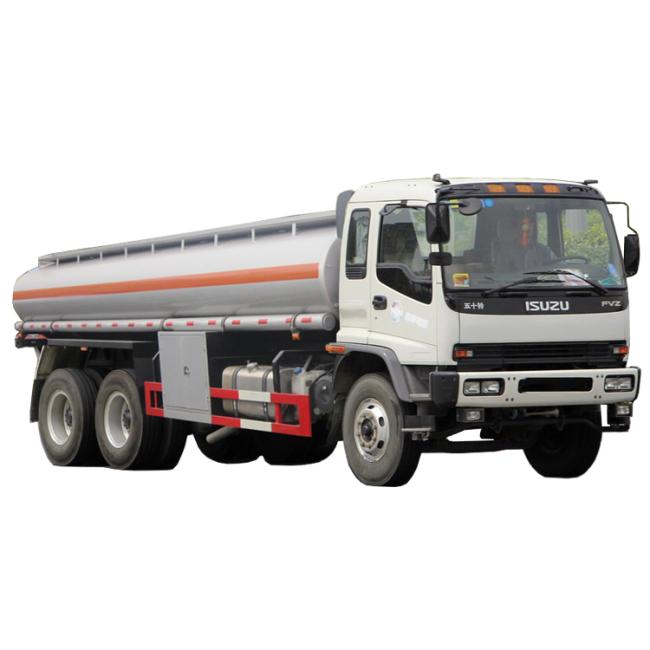

Oil Tanker Truck

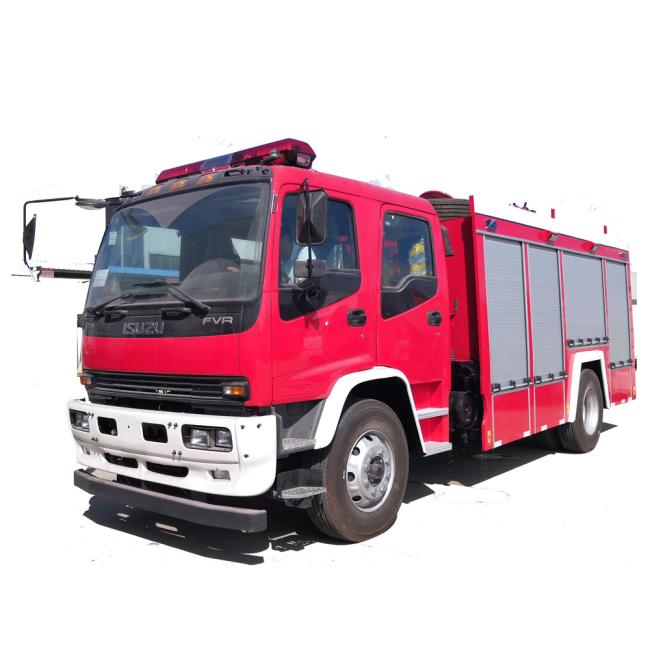

Fire Fight Truck

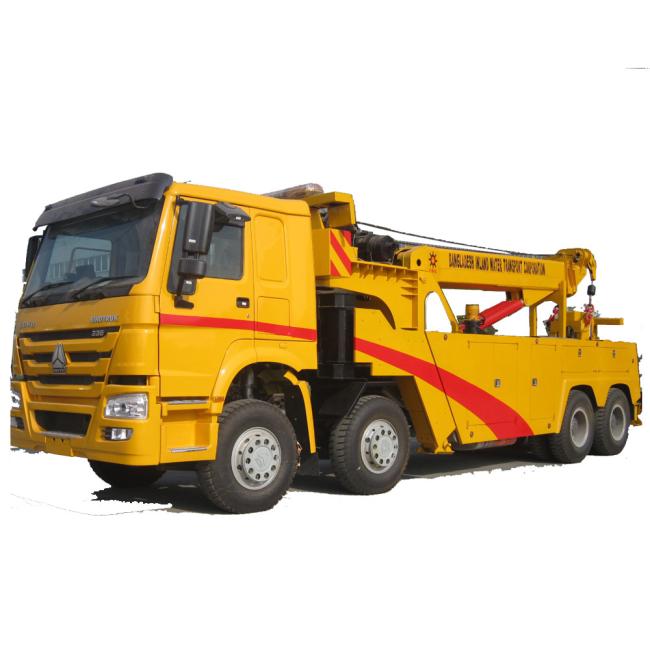

Wrecker Truck

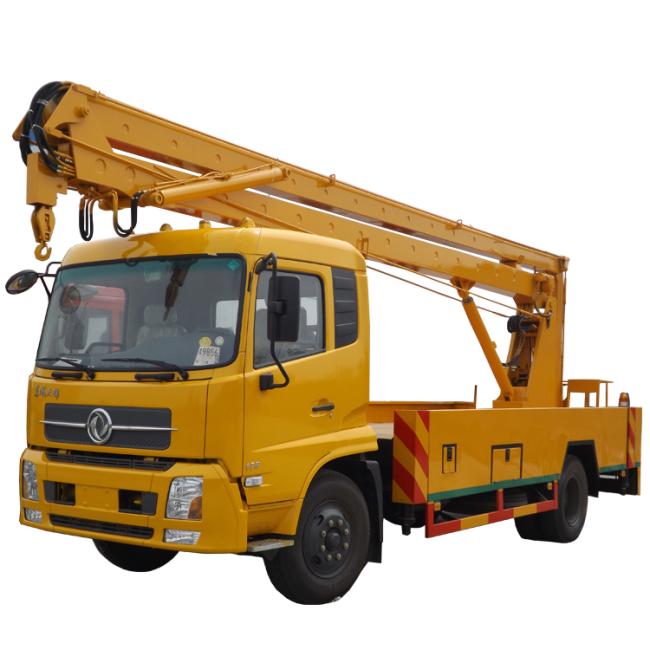

Aerial Work Truck

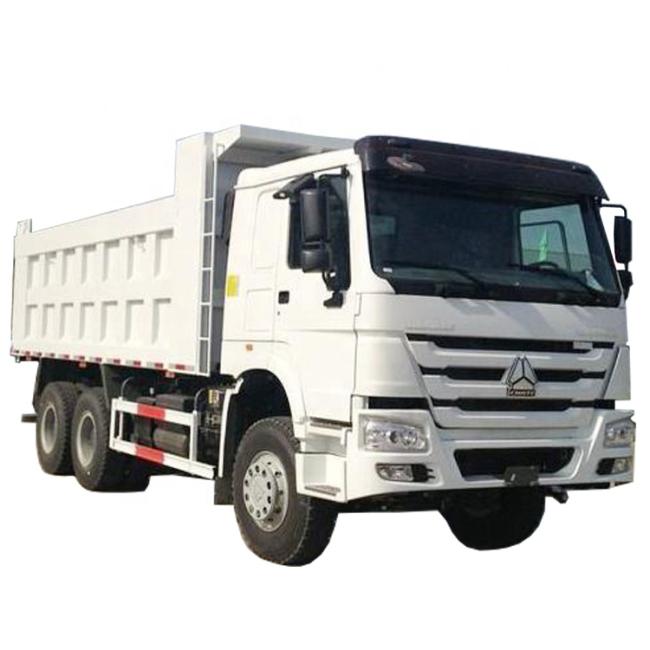

Dump Truck

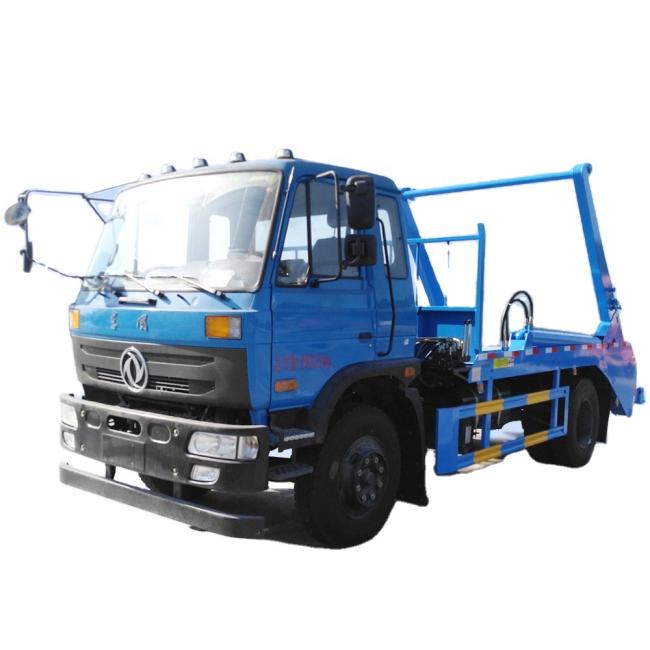

Swing Arm Garbage Truck

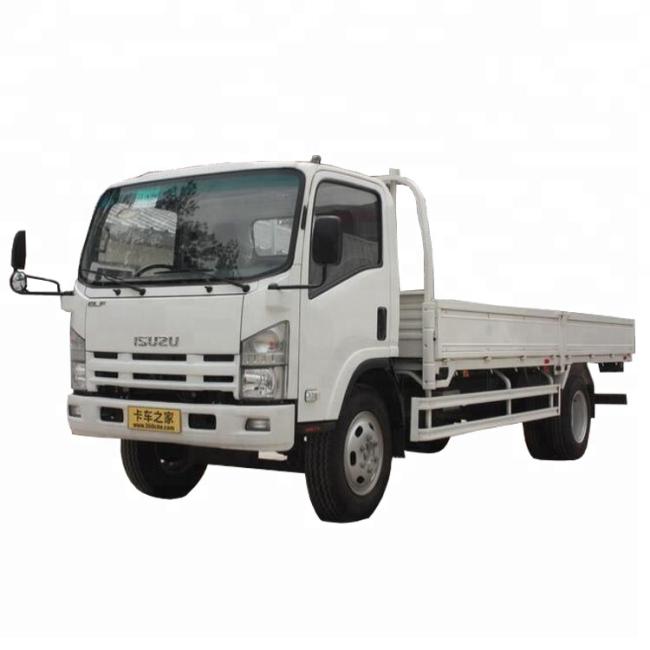

Cargo Truck

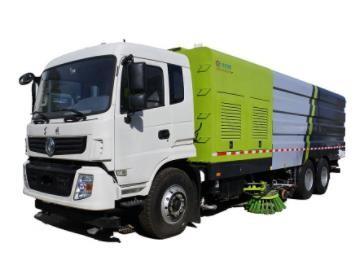

Road Sweeper Truck

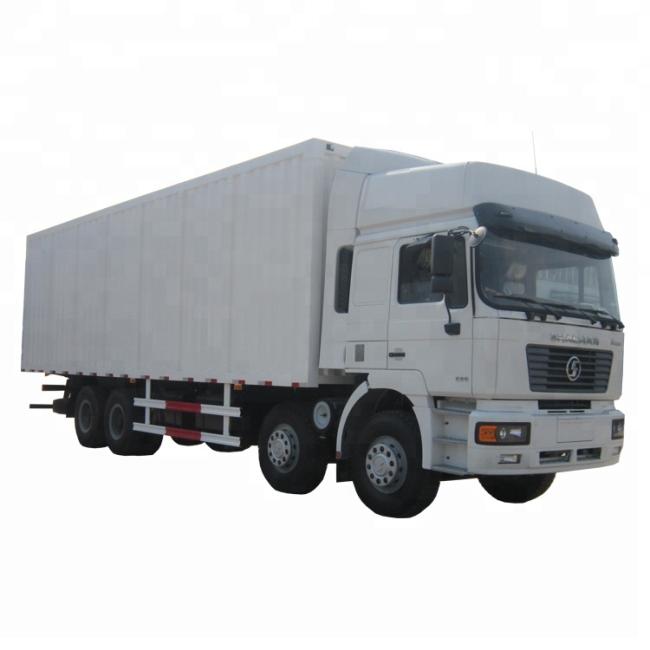

Van Truck

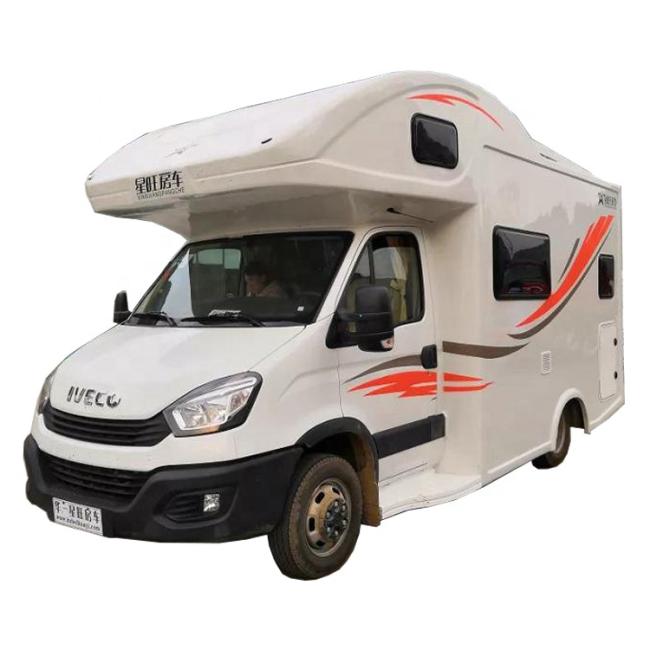

Motor home Truck

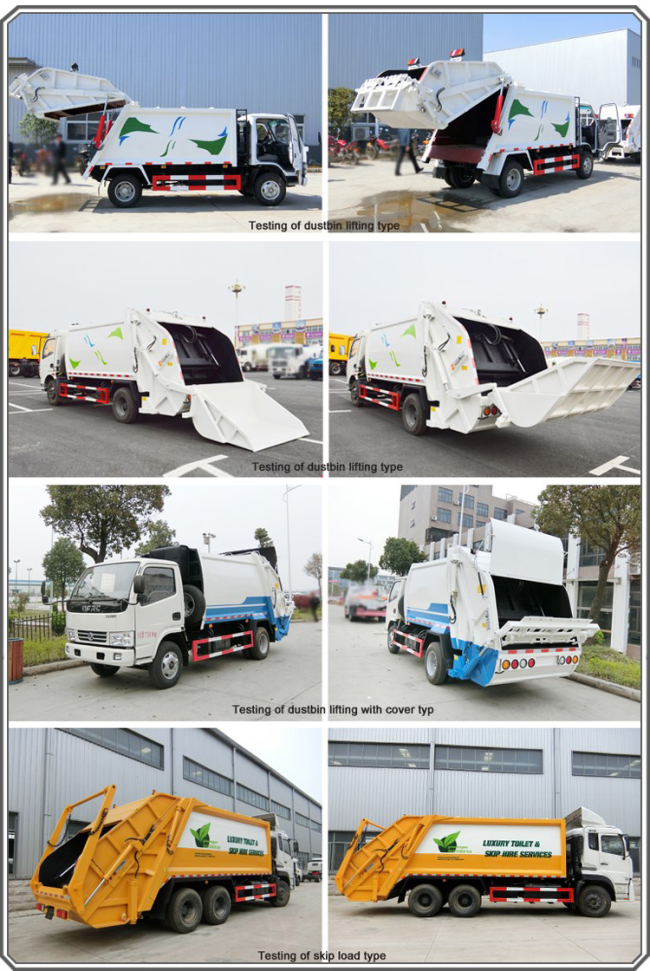

Product Test and Training for Customer
We will test each product before shipment, and also provide online or face to face operation training for customer.
Design & Technical & Quality Meeting Each Week
We will discuss with R&D about the questions and feedback from customer to ensure all the quality of products and after-sales service.
1. What is your terms of payment?
T/T with 30% deposit, and 70% balance will be paid before delivery. We will show you photos of the products and packages before you paying the balance.
2. What's your MOQ?
1 set.
3. What is your packing?
We transport our trucks by bulk cargo carrier, ro-ro or 40/45 HQ or land transportation.
4. How about delivery time?
25 workdays after we received 30% of contract value T/T down payment. customized types depends on configuration and order quantity.
5.How could you ensure the quality of products?
We have ISO certificate to control the quality system. And we will also show you the photos and videos during producing. You are welcome to visit our factory at any time.
6. Do you have advantage on price?
We offer all the trucks with factory directly selling price.
7. How about the afer-sales service?
Our engineer will be ready to offer online-supporting for any technical questions for you.
