8m3 Compression Garbage Truck 4X2 JAPAN 700P For Hotels / Garment Shops
Price:
15000-35000 per unit
MOQ:
1
Delivery Time:
Negotiable
Brand:
CLW
Product Description
Manufacture Garbage Truck Capacity 8m3 Garbage Compression Garbage Truck For Sale JAPAN 700P
Product Description
- Compression box volume 8000 L; made by carbon steel plate; side plate is 4mm thickness, base plate is 5mm thickness;
- The hydraulic control operation system can be controlled by electric and manual, one operation system button installed in the cab, the other operation system button installed at the back of the box;
- Truck equipped with one key loading operation cycle.
- The compression ratio can achieve above 1:2.5, living garbage after compression can reach more than 600~800Kg/m3;
- The time of the load operation is less than 30 seconds, unloading operation time is less than 40 seconds;
- Equipped with imported PLC integrated control. Vehicle electrical, hydraulic system of pipe fittings is imported components.
Chassis parameters
| Chassis parameters | |||||
|---|---|---|---|---|---|
| Chassis model | CLW11009MARY | Chassis brand | CLW | ||
| Overall dimensions | 7930*2170*2330mm | Wheel base | 4475mm | ||
| Front/rear wheel track | 1680/1650mm | Front/rear suspension | 1110/2345mm | ||
| Approach/departure angle | 21/11° | Maximum speed | 110km/h | ||
| Chassis Manufacturer | QingLing Motors (Group) Co., Ltd. | ||||
| Cab | Configuration | 700P,single row cab,allowable 3 passengers,air conditioner, USB radio interface,cab can be flipped. | |||
| Color | White,other color is optional | ||||
| Model | 4HK1-TCG40 | |||
| Emission | Euro 4 | ||||
| Type | 4 cylinders,4 valve,4-stroke,in-line,common rail,precision electronic control,multistage injection,optimal combustion,exhaust gas recirculation, diesel engine. | ||||
| Rated power | 190hp | ||||
| Displacement | 5193ml | ||||
| Tire | Size | 8.25-20-14PR nylon tire | |||
| Number | 6+1 nos | ||||
| Frame | 216*70(6+3)mm | ||||
| Front axle | 4.0tons | ||||
| Rear axle | 7.0 tons | ||||
| Drive form | 4*2 | ||||
| Suspension | Multi leaf springs | ||||
| Rated voltage | 24V,DC | ||||
| Transmissions | Isuzu MLD six speed transmission,6 speed forward 1 reverse. | ||||
Refuse compactor structure parameters
| Refuse compactor structure parameters | |
|---|---|
| Equipment | |

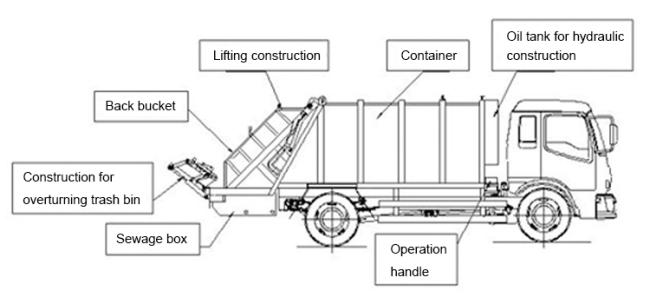

| Structure | Body, sub frame, lifting rear part, the loading device, the pushing-out plate, hydraulic and electric systems |
| Loading capacity | 4.5m3 |
| System of loading | Mechanized, rear loading |
| Modes of the pressing | Manual,semi-automatic,automatic,lifting rear part operation manual,loading,pushing,pressing, pushing out automatic |
| Body | |
| Version | All-metal |
| Shape | arc-shaped |
| Sidewalls | Sheet carbon steel (thickness: 3 mm) |
| Bottom | Sheet carbon steel (thickness: 4 mm) |
| Roof | Sheet carbon steel (thickness: 4 mm) |
| Front frame | Sheet carbonaceous steel (thickness: 5 mm) |
| Rear frame | n-shaped profile from sheet carbon steel (thickness:5 mm) |
| Basis | 120*120mm (thickness: 5 mm) |
| Loading bunker | |
| Loading bunker | All-metal with sidewalls and a loading ladle |
| Volume | 0.7m3 |
| Sidewalls | Sheet carbon steel (thickness: 3 mm) |
| Ladle floor material | Sheet carbon steel (thickness: 4 mm) |
| Liquid drain | Drainage channel,sewage tank |
| Working zone Lighting | 2 lamps |
| Mechanism of raising | Two hydraulic cylinders |
| Ensuring tightness | Between the body and lifting back part in the lower part profile acid-proof rubber is used. |
| Pressing system | |
| Features | Control mode diversification,bidirectional compression |
| Pressure | 16Mpa |
| Compaction ratio | 3.0:1 |
| Loading cycle | 25-30 second |
| Unloading cycle | 15-20 second |
| pressing mechanism | The giving plate and hinge related pressing plate moving on two directing bars |
| Pressing mode | Automatic pressing (1 full cycle and continuous pressing) and controlling of each cycle of pressing separately |
| Control of pressing | Control from the external panel on the bunker |
| Lifting rear part | |
| Mechanism of lifting | Two hydraulic cylinders |
| Function description | Suitable for various rubbish bins |

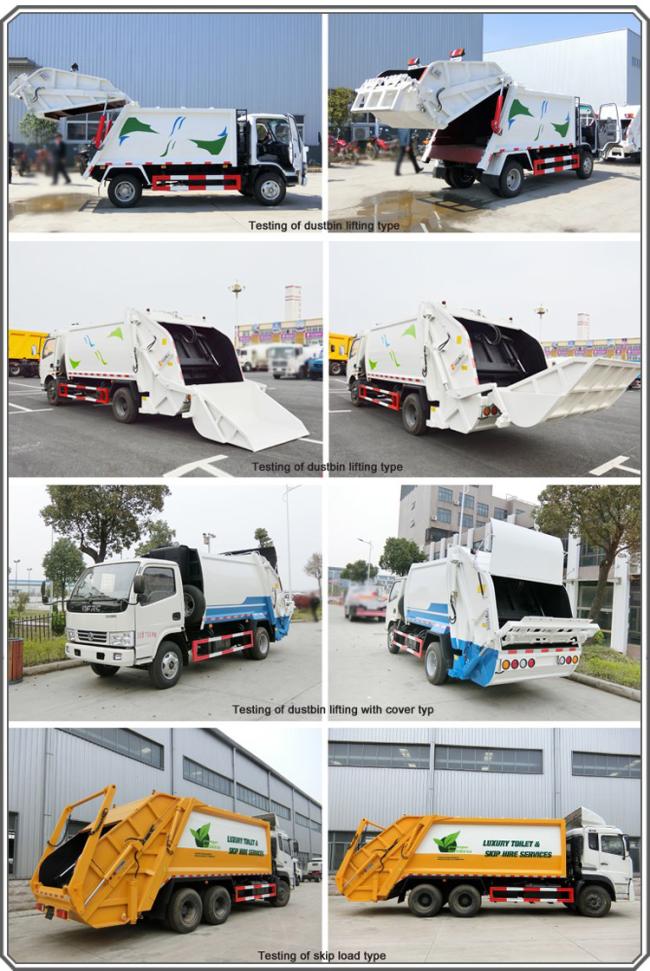

Product Images
Rear flipping

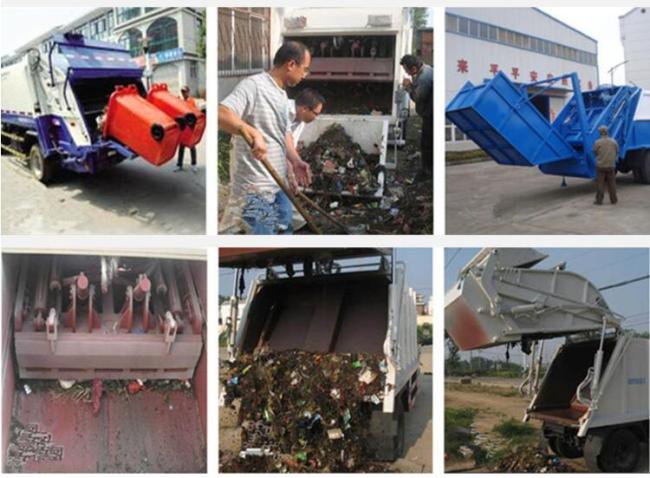

Application Scene

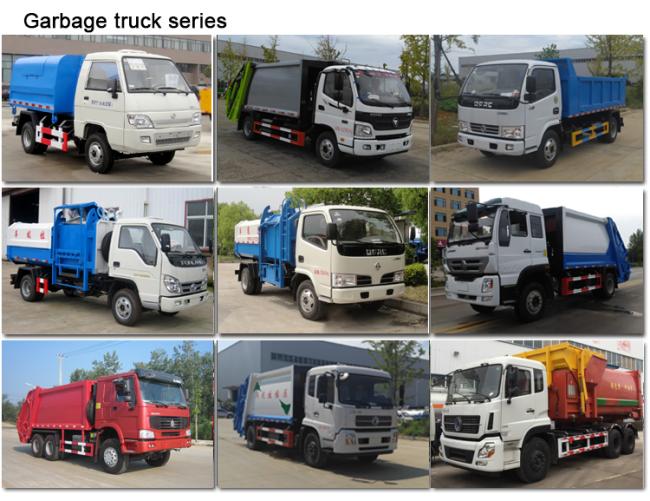

Main Product
