FOTON 4X2 Cement Concrete Mixer Truck 10m3 Loading Capacity
|
Vehicle Parameters |
|||
| Vehicle Model | CLW5250GJBA | Vehicle Brand | CLW |
| Overall dimensions | 8100X2500X3750mm | Curb weight | 12300kg |
| Loading capacity | 10m3 | Color | optional |
|
Chassis Parameters |
|||
| Chassis model | DFL5250GJBA | Chassis brand | DONGFENG |
| Overall dimensions | 8090x2500x3030mm | Wheel base | 3800+1350mm |
| Cab | D310 Sleeper cab, forward control type, low roof, new face, all welded steel cab of tilt type, mechanical cab tilting, rear mechanical cab suspension , adjustable driver’s seat, air conditioning system | ||
|
Engine |
Dongfeng L375 30 | ||
| Horse power | 375hp | ||
| Emission | Euro 3 | ||
| Displacement | 8900ml | ||
| Tire | 315/80R22.5 | Transmission | 9JS150T-B DD 9 forward & 1 reverse |
| Steering device | Power assisted steering | Steering wheel | Left hand drive |
|
Concrete Mixer Structure Parameters |
|||
| Mixing capacity(m³) | 10 | Color and Logo | Optional |
| Feeding speed (m³/min) | ≥5 | Discharge speed(m³/min) | ≥3 |
| Discharge residual rate | ≤0.5% | Slump scope(mm) | 50-210 |
| Water tank capacity(L) | 300 | Water pressure(Mpa) | 0.35-0.38 |
| Tank material | 5mm alloy steel | Tank front head | 8mm alloy steel |

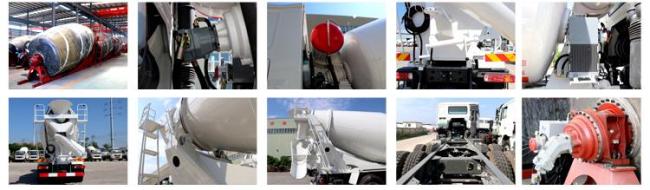

| Standard Configuration | chassis, sub frame, mixer tank, reducer, hydraulic pump, hydraulic motor, radiator, water tank, cleaning hose, feed port, discharge port, climbing ladder, air pressure water supply device. | ||

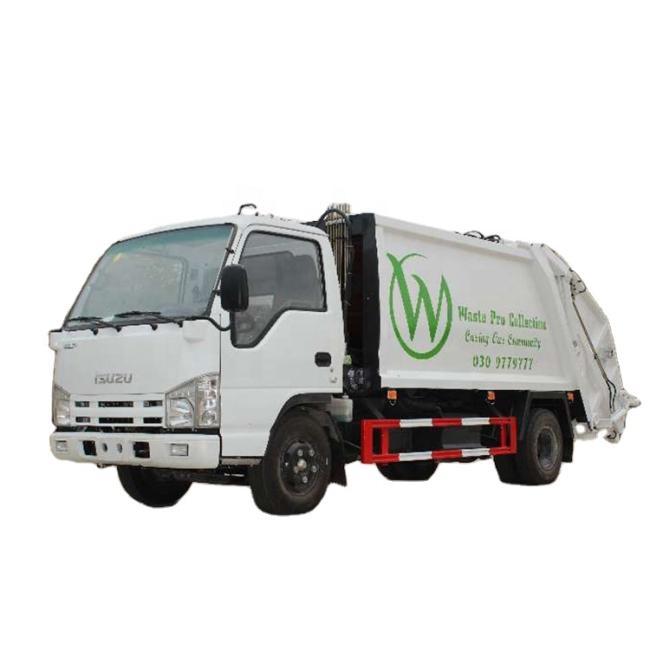

Compressor Garbage Truck

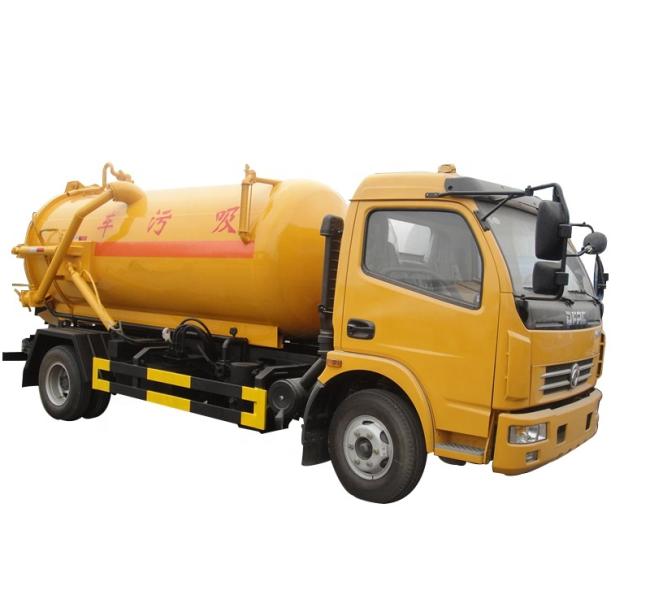

Sewage Suction Truck

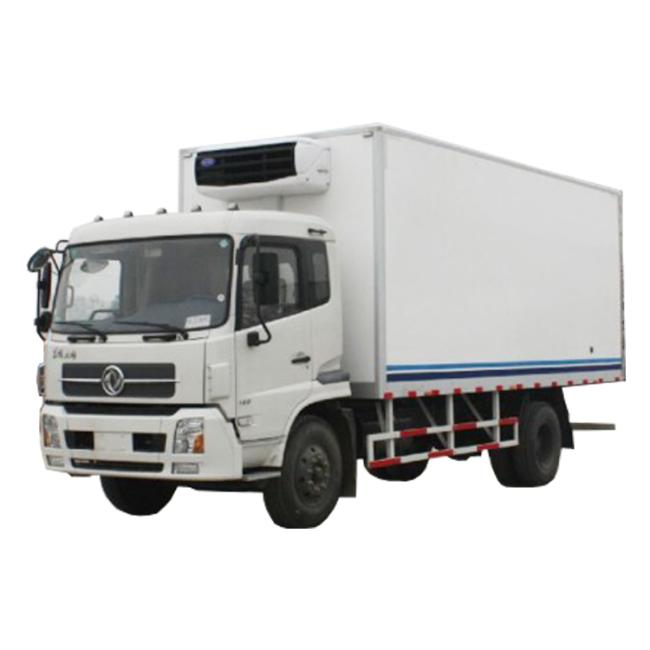

Refrigerator Trcuk

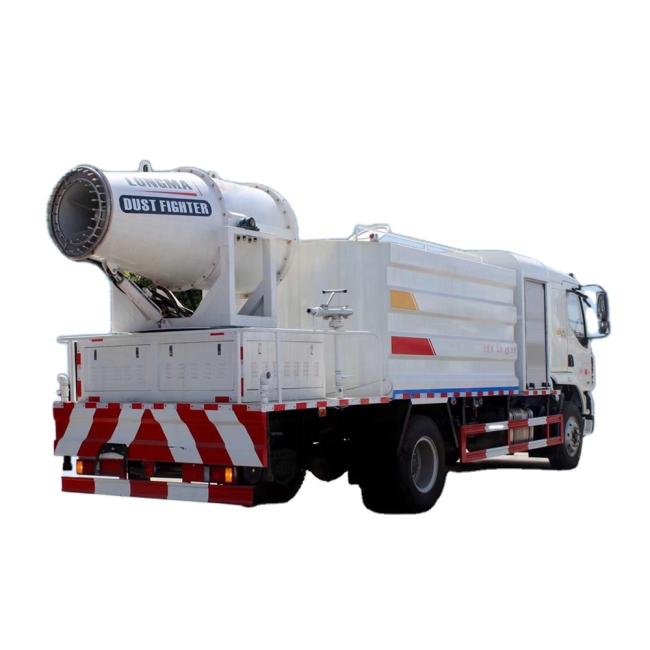

Dust Suspression Truck
Concrete Mixer Truck

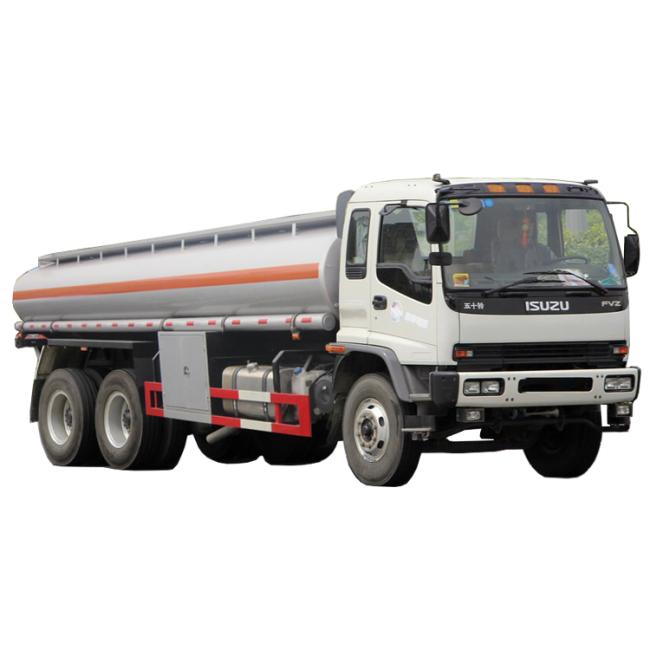

Oil Tanker Truck

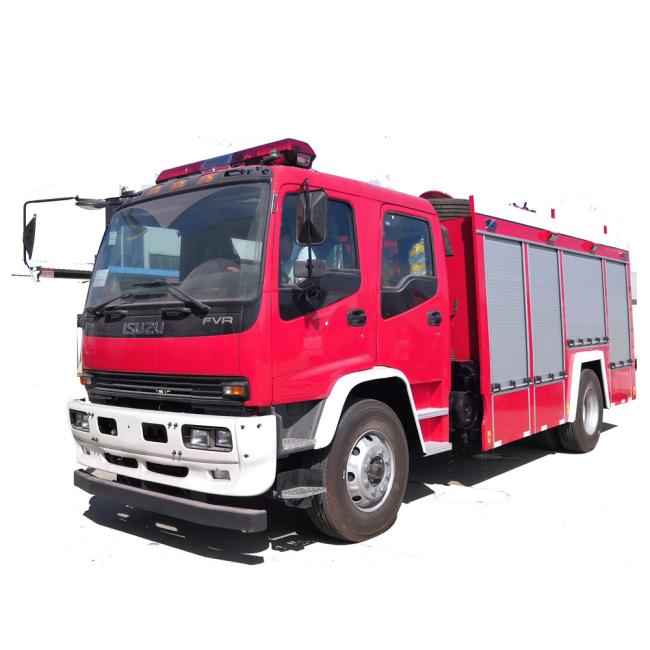

Fire Fight Truck

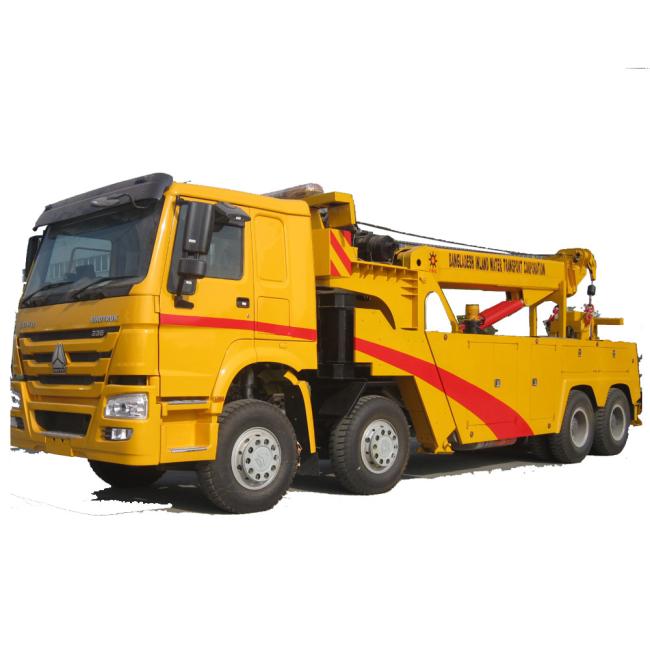

Wrecker Truck

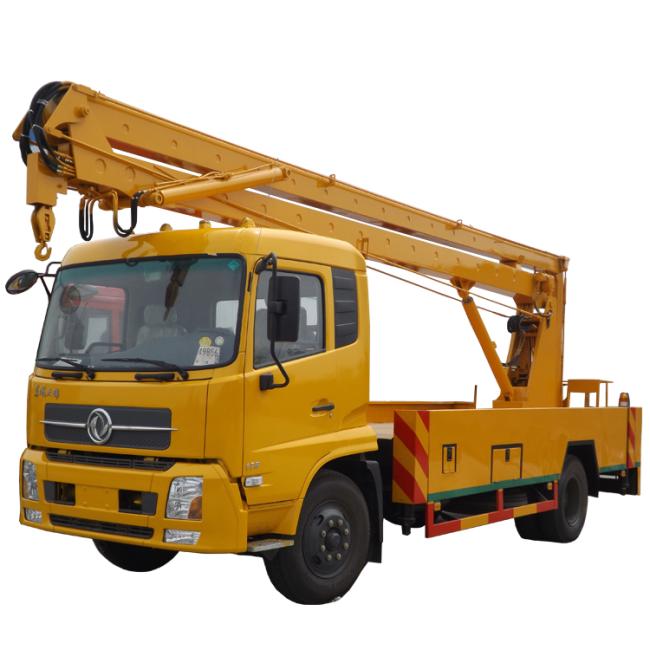

Aerial Work Truck

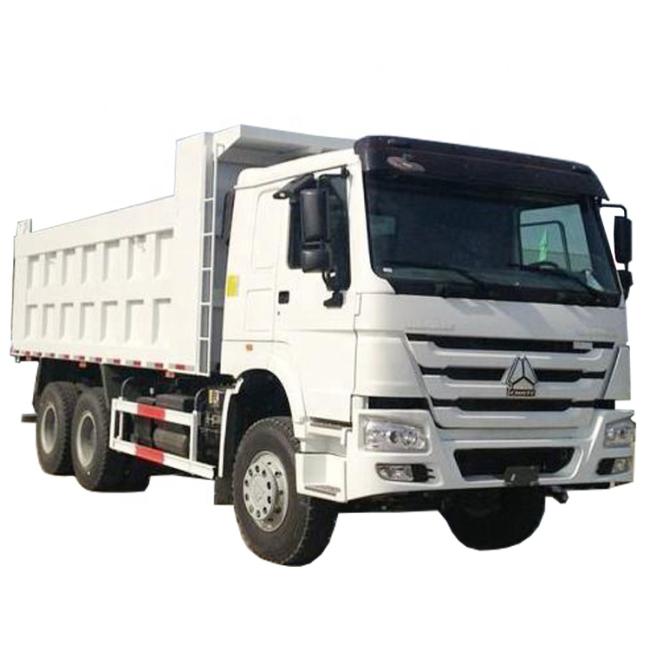

Dump Truck
Tractor Truck

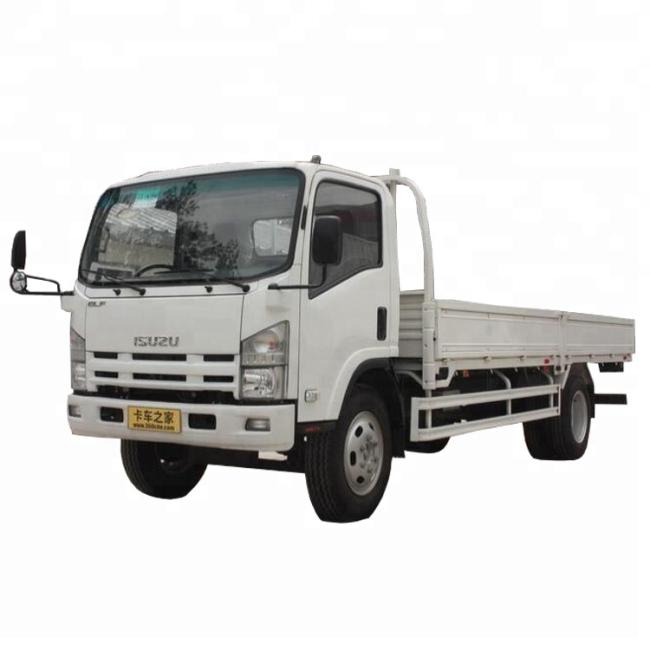

Cargo Truck

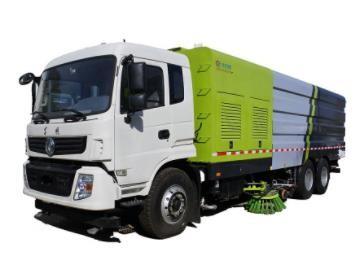

Road Sweeper Truck

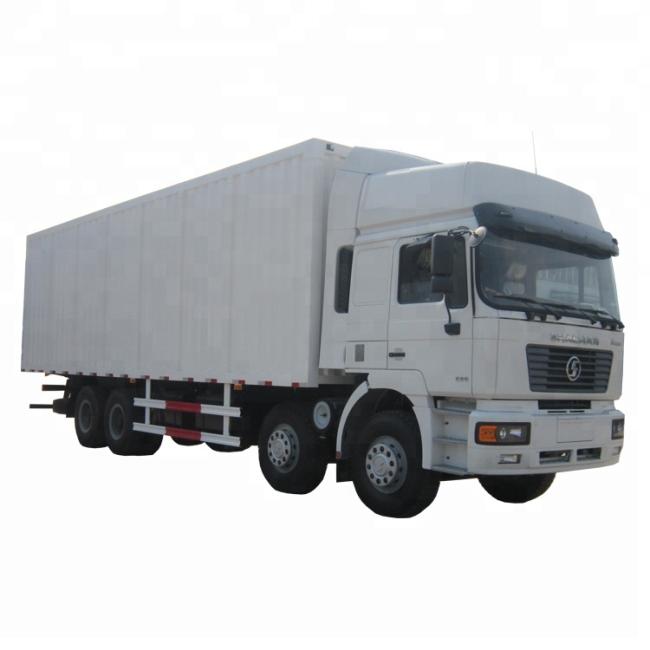

Van Truck

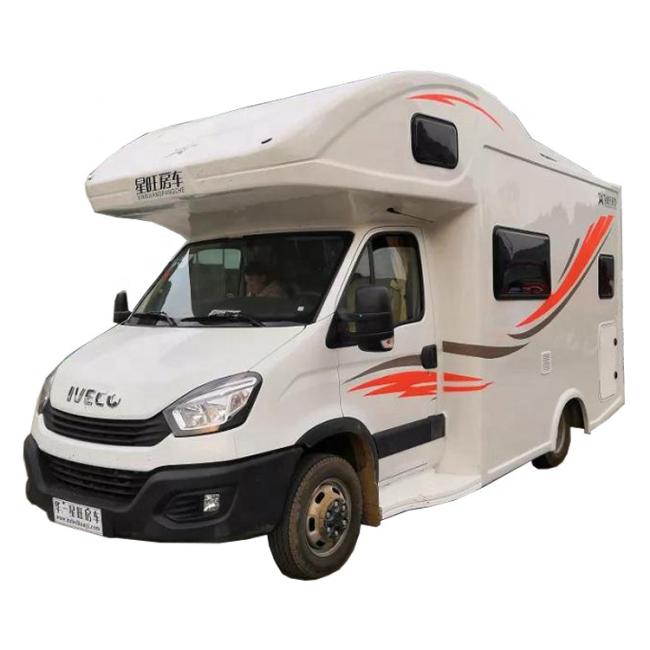

Motor home Truck

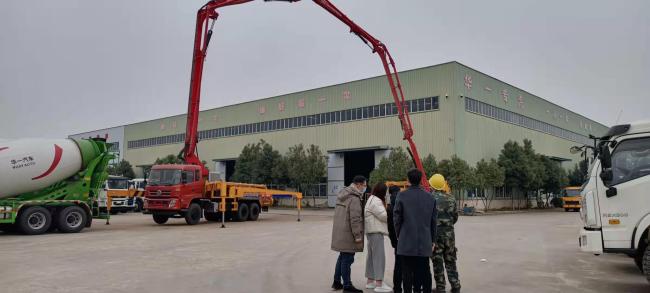

Product Test and Training for Customer
We will test each product before shipment, and also provide online or face to face operation training for customer
Design & Technical & Quality meeting each week
We will discuss with R&D about the questions and feedback from customer to ensure all the quality of products and after-sales service.
1. What is your terms of payment?
T/T with 30% deposit, and 70% balance will be paid before delivery. We will show you photos of the products and packages before you paying the balance.
2. What's your MOQ?
1 set.
3. How about delivery time?
25 workdays after we received 30% of contract value T/T down payment. customized types depends on configuration and order quantity.
4. Do you have advantage on price?
We offer all the trucks with factory directly selling price.
5. How about the afer-sales service?
Our engineer will be ready to offer online-supporting for any technical questions for you.
