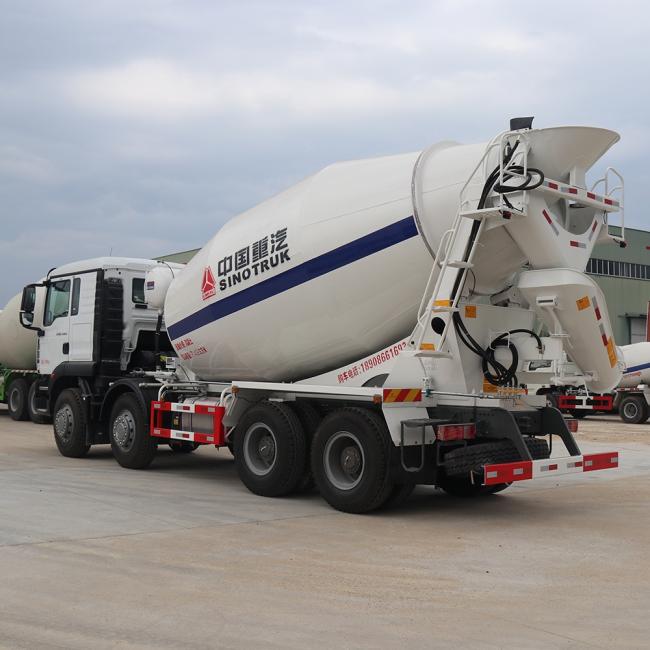

Direct Factory HOWO TX 8X4 12m³ Concrete Mixing tank cement pump truck truck concrete mixer concrete mixer for sale
Price:
Negotiable
MOQ:
1
Delivery Time:
Negotiable
Brand:
CLW
Product Description
Products Description
Economical & Efficient & Valuable
- Famous HOWO chassis
- High quality HOWO engine
- Famous motor
- High efficiency gearbox
- Excellent hydraulic system
PRODUCT SPECIFICATIONS
|
Vehicle Parameters
|
|||
|
Vehicle Model
|
EHY5316GJBN
|
Vehicle Brand
|
HUAYI
|
|
Overall dimensions
|
9950×2496×3740mm
|
Curb weight
|
13420kg
|
|
Loading capacity
|
10m3
|
Color
|
optional
|
|
Chassis Parameters
|
|||
|
Chassis model
|
ZZ1316N306GE1
|
Chassis brand
|
HOWO
|
|
Overall dimensions
|
8955×2496×3035mm
|
Wheel base
|
1800+3025+1400mm
|
|
Front/rear wheel track
|
2035/2035,1850/1850mm
|
Front/rear suspension
|
1430/2295mm
|
|
Approach/departure angle
|
16/17°
|
Maximum speed
|
82km/h
|
|
Cab
|
Configuration
|
SITRAK C5H a row and a half deluxe cab(with sleeping berth), allowable 3 passengers,air conditioner, ABS.
|
|
|
Color
|
White, other color is optional
|
||
|
Engine
|
Model
|
MC07.34-50
|
|
|
Emission
|
Euro 5
|
||
|
Type
|
6 cylinders, in-line, 4-stroke, water-cooled, turbo inter-cooling, direct injection, exhaust valve brake,diesel engine
|
||
|
Rated power
|
340hp,rated power speed 2300rpm
|
||
|
Displacement
|
6870ml
|
||
|
Max.torque
|
1250N.m
|
||
|
Bore x stroke
|
108x125mm
|
||
|
Manufacturer
|
China National Heavy Duty Truck Group Co.,Ltd
|
||
|
Tire
|
295/80R22.5
12+1 nos
|
Transmission
|
gearbox HW16709XST, 9 speed forward 1 reverse
|
|
Steering device
|
Power assisted steering ZF8198
|
Steering wheel
|
Left hand drive
|
|
Concrete Mixer Structure Parameters
|
|||
|
Mixing capacity(m³)
|
10
|
Color and Logo
|
Optional
|
|
Feeding speed (m³/min)
|
≥5
|
Discharge speed(m³/min)
|
≥3
|
|
Discharge residual rate
|
≤0.5%
|
Slump scope(mm)
|
50-210
|
|
Water tank capacity(L)
|
300
|
Water pressure(Mpa)
|
0.35-0.38
|
|
Tank material
|
5mm alloy steel
|
Tank front head
|
8mm alloy steel
|
|
Reducer
|
Italy Bonfiglioli
|
Hydraulic motor
|
Germany REXROTH
|
|
Hydraulic pump
|
Germany REXROTH
|
Radiator
|
KAIPENG
|
|
Standard Configuration
|
chassis,sub frame,mixer tank,reducer, hydraulic pump,hydraulic motor, radiator,water tank,cleaning hose,feed port, discharge port,climbing ladder,air pressure water supply device.
Italy Bonfiglioli reducer,Germany REXROTH hydraulic pump,Germany REXROTH hydraulic motor,KAIPENG radiator,mixer tank(main tank 5mm alloy steel wear resistant material,front tank head 8mm alloy steel wear resistant material)
|
||
Working Overview

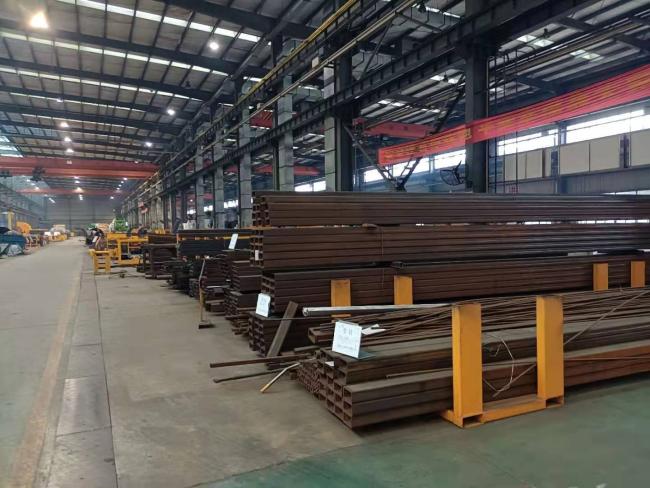

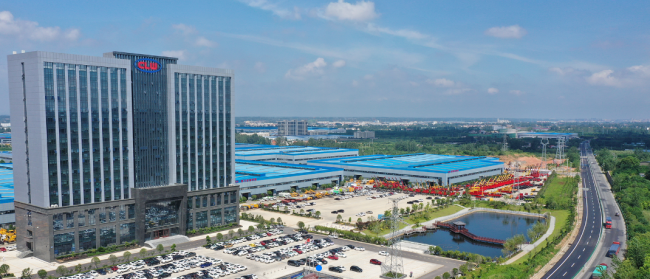

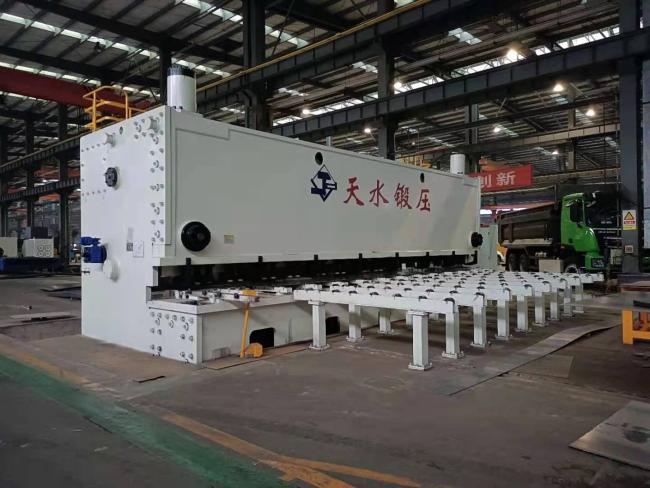

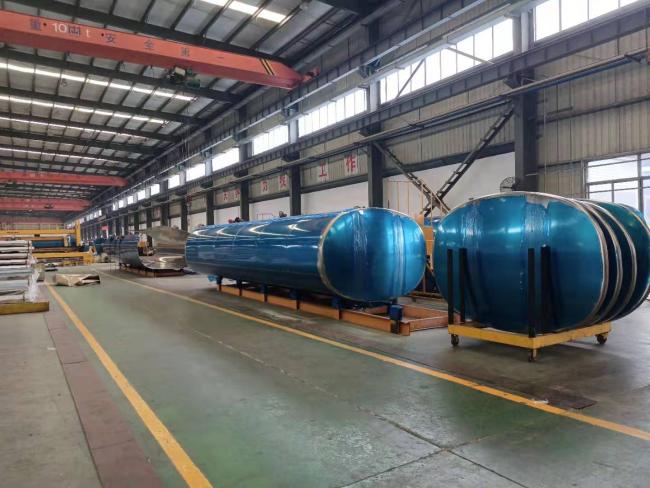

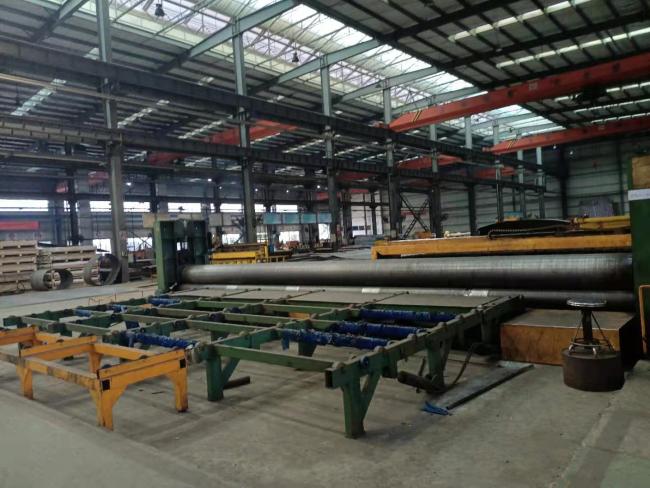

Company Profile

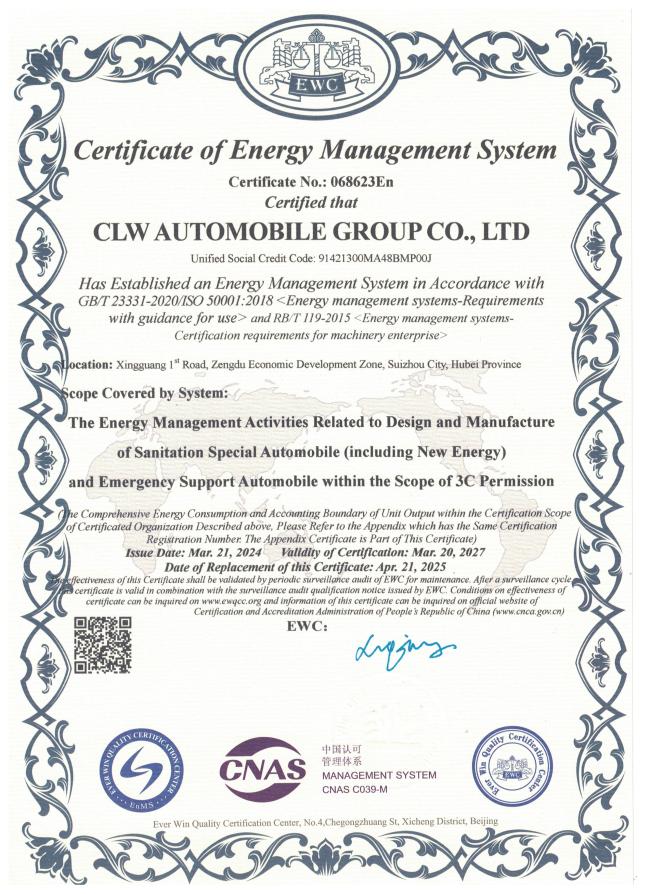

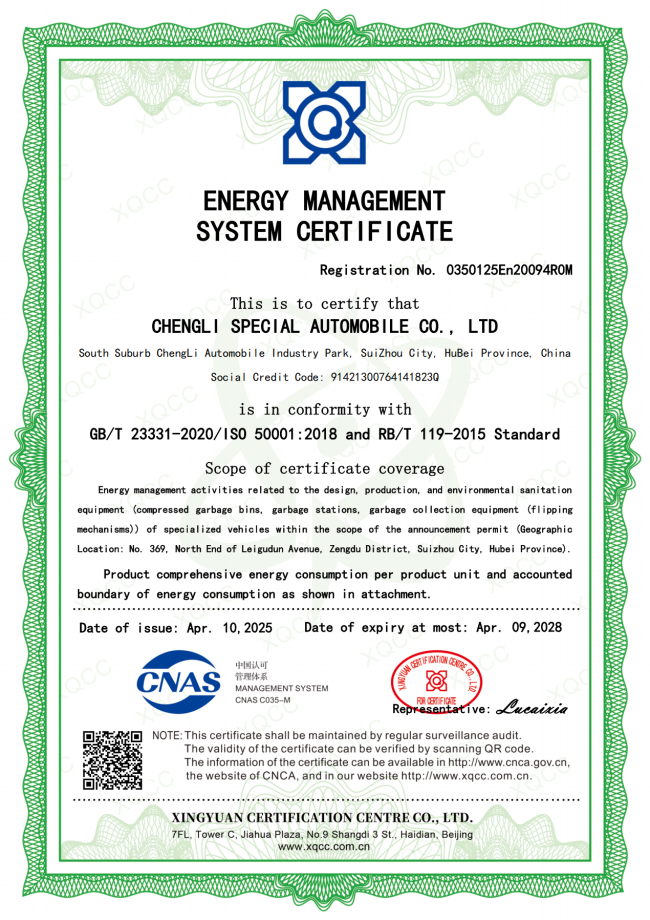

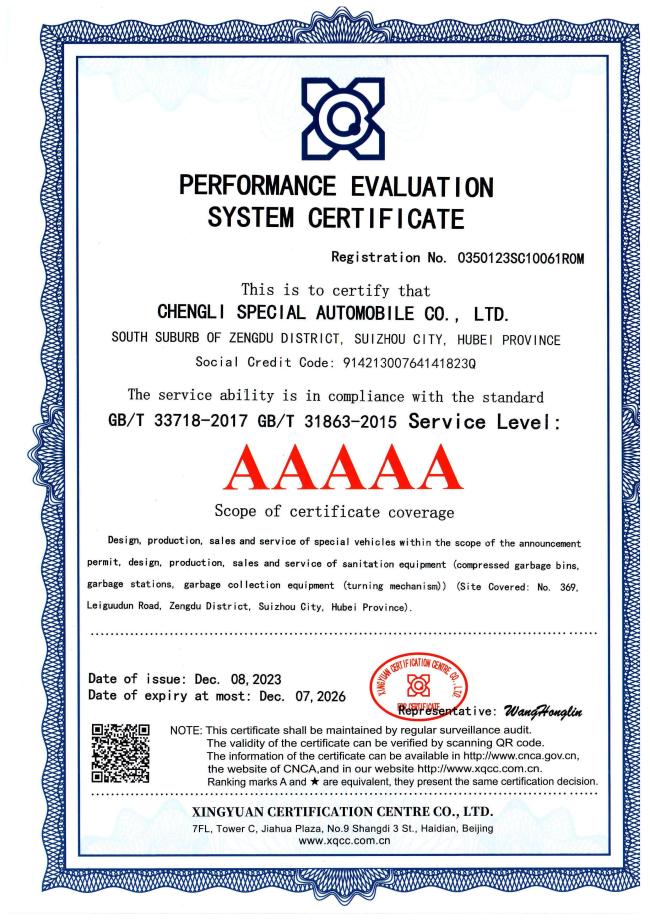

Certifications
Our Advantages

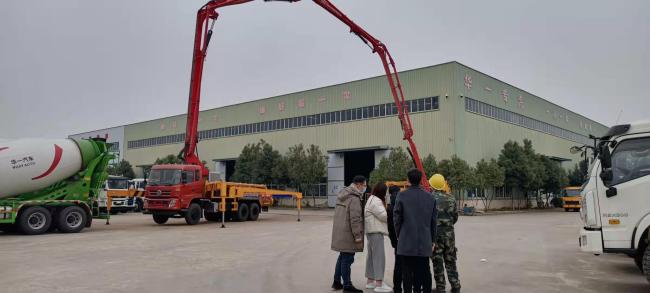

Product Test and Training for Customer
We will test each product before shipment, and also provide online or face to face operation training for customer
Design & Technical & Quality meeting each week
We will discuss with R&D about the questions and feedback from customer to ensure all the quality of products and after-sales service.
FAQ
-
What is your terms of payment?
T/T with 30% deposit, and 70% balance will be paid before delivery.
We will show you photos of the products and packages before you paying the balance. -
What's your MOQ?
1 set. -
How about delivery time?
25 workdays after we received 30% of contract value T/T down payment. customized types depends on configuration and order quantity. -
Do you have advantage on price?
We offer all the trucks with factory directly selling price. -
How about the afer-sales service?
Our engineer will be ready to offer online-supporting for any technical questions for you.

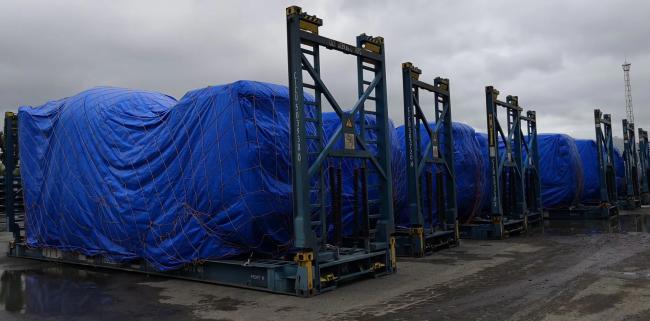

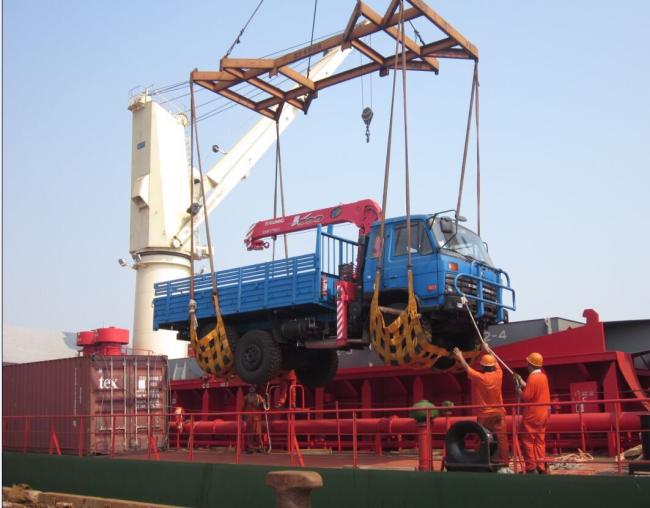

Packing and Shipping

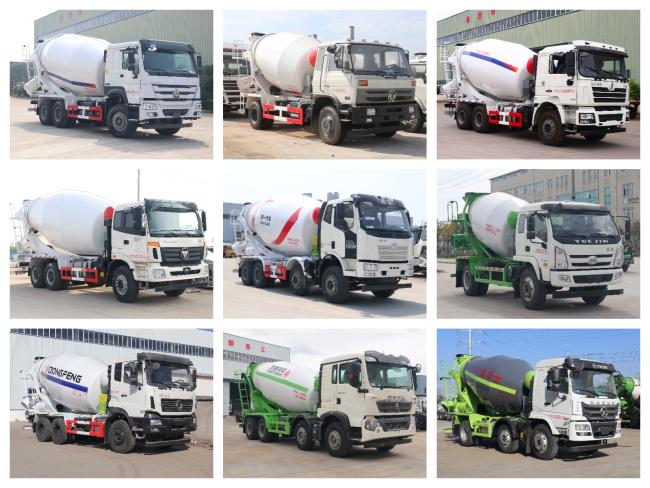

Similar Products
