Heavy Duty Asphalt Distribution Truck With Large Storage Capacity / Advanced Temperature Regulation
Price:
15000-35000 per unit
MOQ:
1
Delivery Time:
30 Days
Brand:
CLW
Product Description

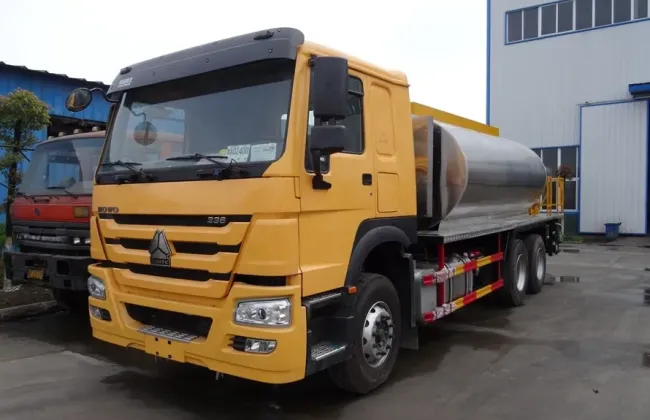

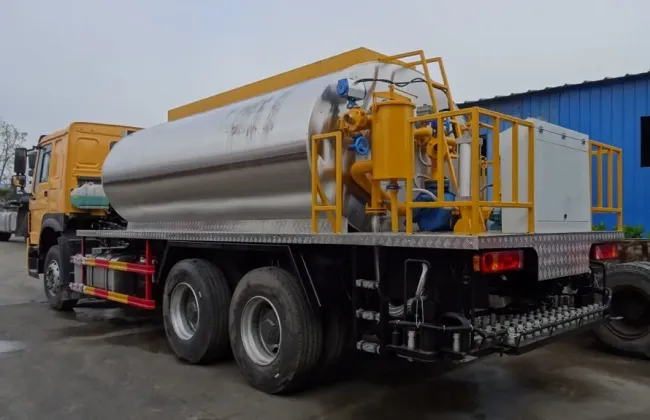

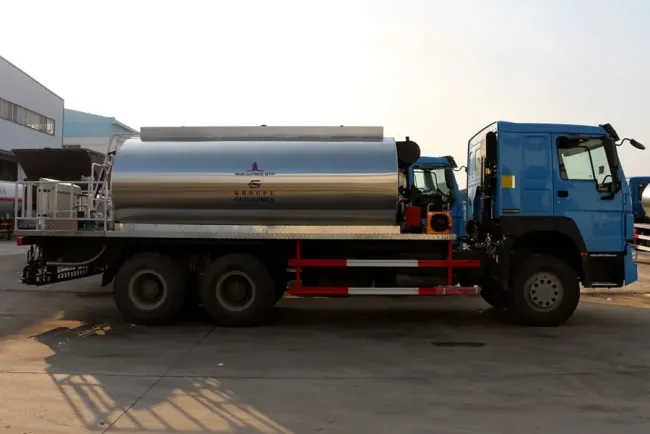

HOWO 16Ton Bitumen Asphalt Distribution Tank Truck Road Construction Vehicle Asphalt Spraying Truck
Description:
1) Spraying asphalt and bitument:heated asphalt,hot modified asphalt,cutback asphalt,emulsified asphalt
2) System of bitumen distributor truck
- manual/automatic control of spraying volume and working width,control of single spraying nozzle
- control in cabin or rear working platform
- automatic controling system of measuring driving speed and adjust pump rotation number after input asphalt kind and spraying width.
- Heating system(10~15ºC/h) to improve heating efficiency
3) Imported brand of key parts such as hudraulic pump,hudraulic motor,asphalt pump,Proportional Valve,automatic control system
4) Italy burner for automatic fire and temperature control
Specification:
| Chassis | |
| Overall Dimension | 9625x2500x3450mm |
| Gross Vehicle Weight | 39000 kg |
| Curb Weight | 11000 kg |
| Loading Weight | 20000 Kg |
| Wheel Base | 4025+1350 mm |
| Front/rear Tread | 1210/2320mm |
| Approach/Departure Angle | 24/10 degree |
| Front Axle | 7000kg |
| Rear Axle | 16000/16000kg |
| Engine | Diesel Engine, watering cooling, four stroke, 6 cylinder in line |
| Engine horsepower | 336 HP EURO III |
| Max Driving Speed | 90 km/h |
| Carbin | 3 Passenger allowed, Left Hand Driving, with Air Conditioner |
| Tire | 11.00R20 (10 pieces+1piece spare tire) |
| Upper part | |
| Asphalt Tank | 16 cbm, 16000liters |
| Outside Material | Stainless plate |
| Insulation layer | ≤20ºC/8h |
| Bitumen pump | QGB950; 950L/min |
| Hydraulic System | |
| Hydraulic pump | CQB550-L |
| Driving Motor | 05-110-BD31 |
| Proportional Valve | EFBG-03-160-HF/Taiwan brand |
| Shuttle Valve | Shanxi Yuci brand |
| Overflow Valve | Shanxi Yuci brand |
| Control System | |
| Control System | CLW-30-01/Germany Siemens |
| Control Method | Manual and computer control |

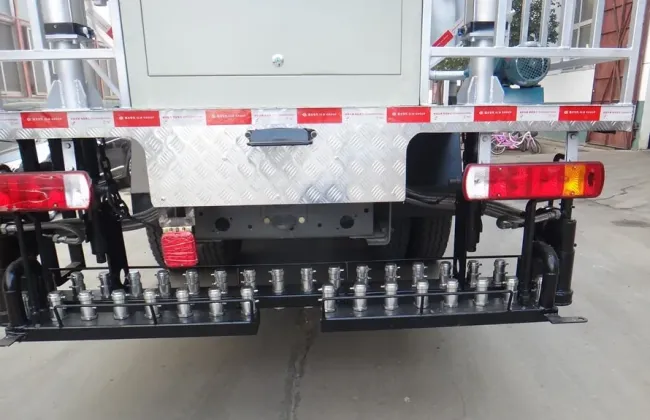

| Smart asphalt nozzle | 36 pcs |
| Heating System | |
| Heating method | Automatic heating by oil |
| Burner | Italy brand |
| Radiator | Risheng brand |
| Heat transfer oil pump | 40-25-160 |
| Gasoline Engine | 6 kw |
| Spreading Width | 6m |
| Spreading Speed | 0.2~3L/min |
| Spreading Precision | ±2% |
Reference Photos:
