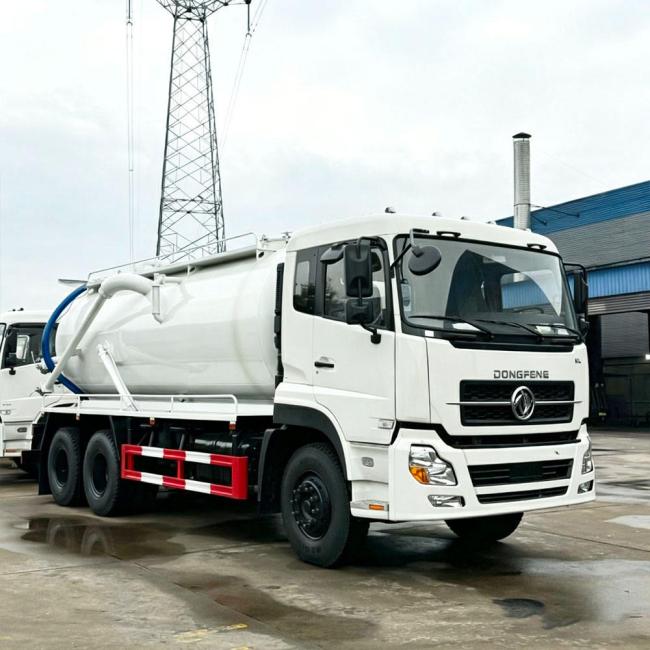

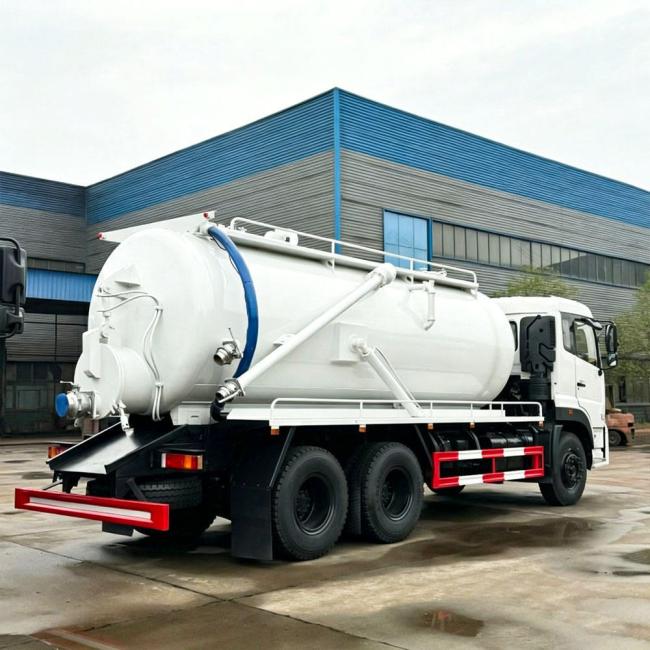

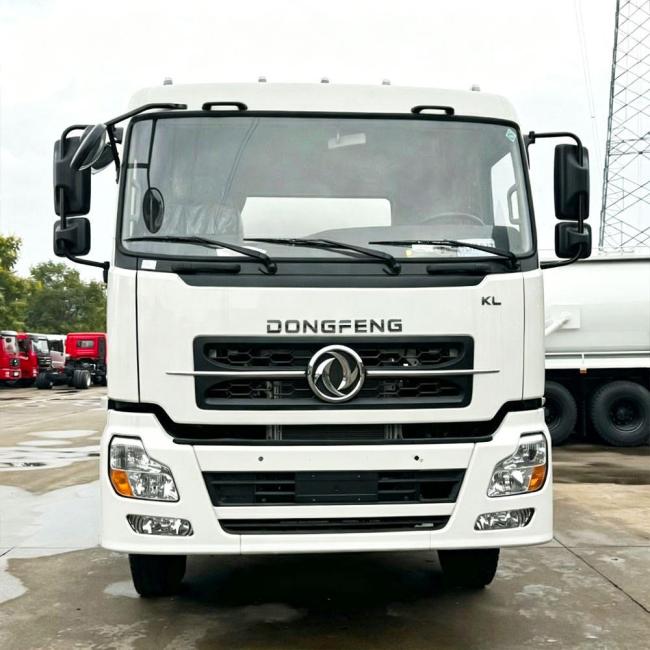

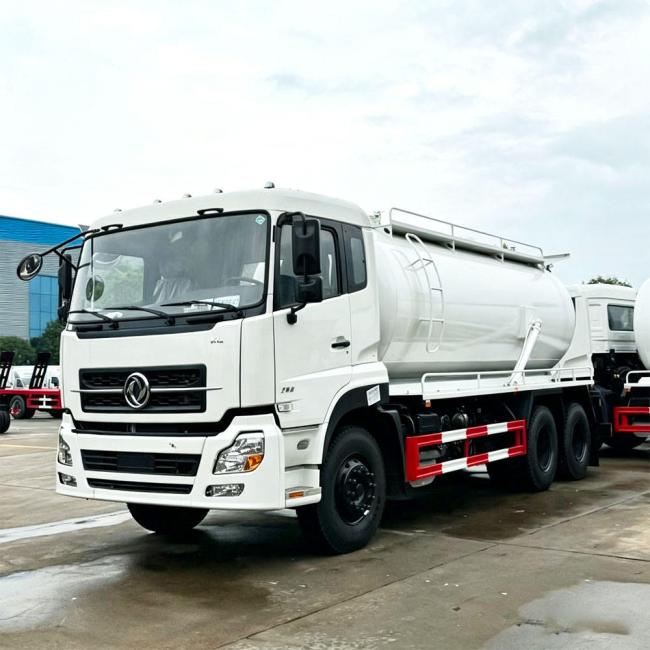

Dongfeng 6X4 18cbm 18tons Vacuum Sewage Suction Tanker Truck with Water Ring Vacuum Sewage Suction Truck
Price:
15000-35000 per unit
MOQ:
1
Delivery Time:
30 Days
Brand:
EHY
Product Description
Dongfeng 6X4 18cbm 18tons Vacuum Sewage Suction Tanker Truck with Water Ring Vacuum Sewage Suction Truck
Description:
- Chassis of Vacuum sewage truck:Dongfeng,FAW,Sinotruk Howo,FOTON,SHACMAN,JMC,JAC,CAMC
- Drive type of Vacuum sewage truck: 4x2, 4x4, 6x4, 8x4 etc.
- Tanker body of Vacuum sewage truck:From 2cbm to 25 cbm capacity.
- Accessory of sewage suction factions: Equipped with PTO, transmission shaft, vacuum suction sewage pump, high pressure molding tank, moisture separator, gas-oil separation, multiple directional control valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system.
| VEHICLE MAIN TECHNICAL INFORMATION | |
|---|---|
| ITEM | DESCRIPTION |
| Overall Size(mm) | 9400×2500×3700(mm) |
| Sewage suction tanker | 18CBM |
| Gross Weight(kg) | 25000 |
| Curb Weight(kg) | 12700 |
| Approaching/Departure Angle(°) | 23/13(°) |
| Front/Rear suspension(mm) | 1250/2500 |
| Max.speed(km/h) | 90 |
|
Standard Configuration |
1.Sewage suction tank volume 18m3,6mm carbon steel; 2.equipped with looking sewage window,self fow exit,cleaning device,Oil water separator, overflow valve, Hydraulic lifting sewage tank. 3.8m sewage suction pipe. 4. Vertical suction range: 9m,pumping full tank time: 10 min, discharging full tank time: 8min. |
| Chassis Parameters | |
| Chassis Brand | Dongfeng |
| Chassis Model | EQ1258VFJ2 |
| Drive Type | 6*4, 3 axles |
| Transmission | 10-speed, manual |
| Cab | One and a half cabin,3 passengers. |
| Tire Specification | 10.00-20 |
| Tire No. | 10 |
| Wheelbase(mm) | 4350+1300 |
| Leaf Spring No. | 9/10,9/13 |
| Front Trend/Rear Trend(mm) | 1960/1860 |
| Axle Loading(kg) | 6700/18000 |
| Engine Parameters | |
| Engine Brand | |
| Engine Model | C260 33 |
| Engine Type | Diesel, 6 cylinder, turbocharged, inter-cooled. |
| Horse Power(hp) | 260 |
| Displacement/Power | 8300ml/191kw |
| Emission Standard | Euro 3 |
