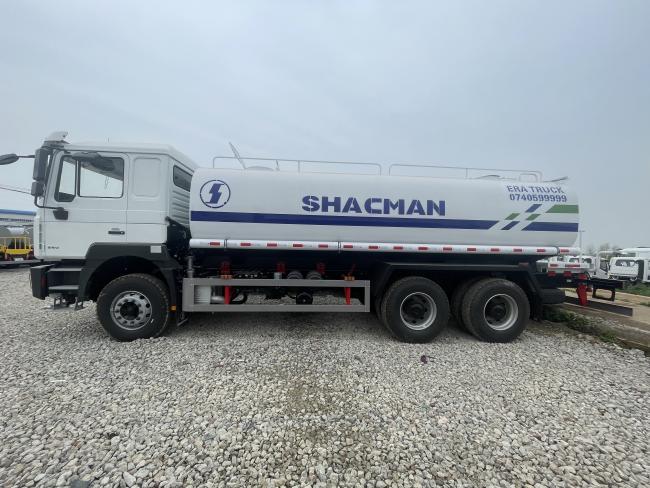

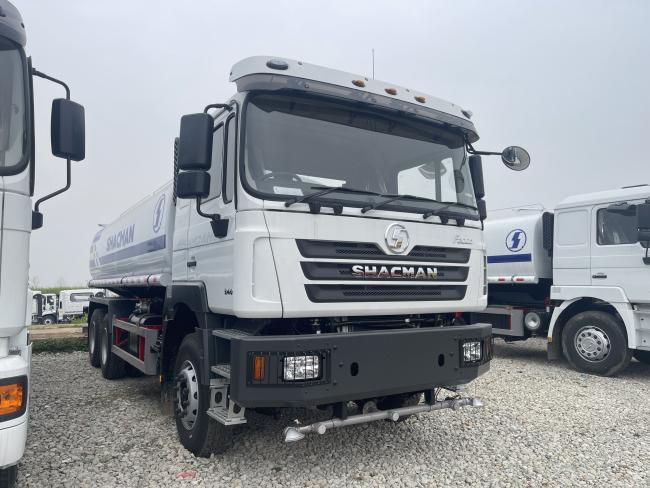

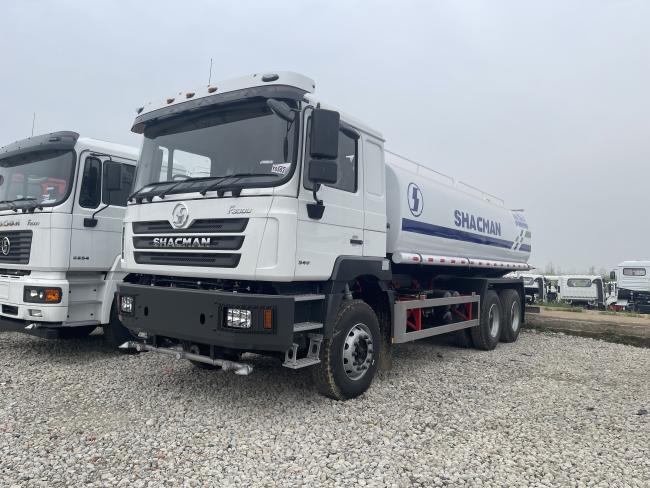

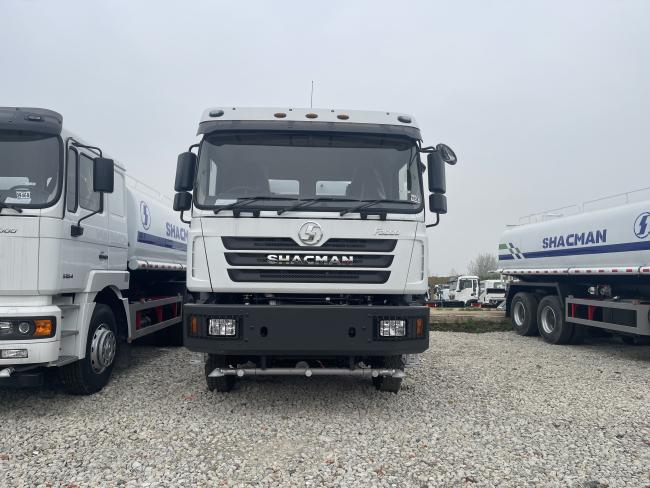

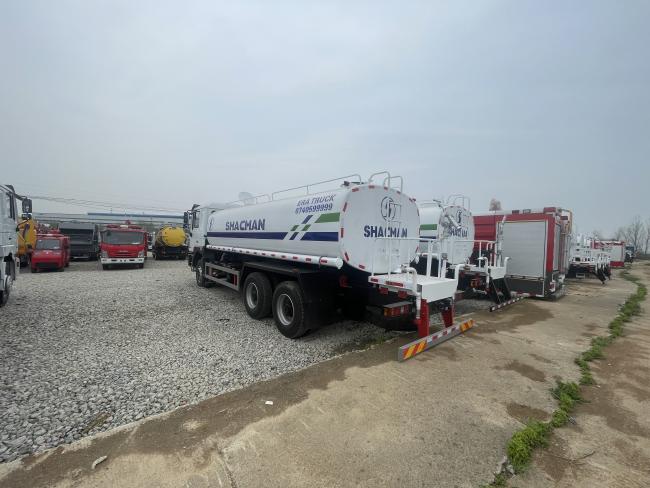

Shacman F3000 8x4 20–25 m³ Multifunctional Water Sprinkler/Transport Truck (Suitable for municipal landscaping)
Price:
15000-35000 per unit
MOQ:
1
Delivery Time:
35 Days
Brand:
EHY
Product Description
Shacman F3000 8x4 20–25 m³ Multifunctional Water Sprinkler/Transport Truck (Suitable for municipal landscaping)
Product Description
1. Optional chassis brand of portable water truck : Dongfeng, Sinotruk, FOTON/Forland, Faw, Shacaman
2. Material of portable water truck :High Tension Steel Q235/Q345,stainless steel 304 for option.
3. Sprinking Width of portable water truck :>14M
4. Rear working platform with water cannon range of portable water truck :28M
5. Reliable and high quality water pump
Specifications of 20CBM water tank truck
| Condition | New/Left hand drive/6x4 | ||
|
Chassis |
Brand | Shacman | |
| Curb weight(kg) | 10605kg | ||
| Cabin | Row and half, left hand driving | ||
| Gross weight(kg) | 25000kg | ||
| Wheelbase(mm) | 1800+4575+1400 mm | ||
| Dimensions(mm) | 9900*2500*3400 mm | ||
| Front Loading Capacity (Ton) | 5 | ||
| Rear Loading Capacity (Ton) | 10/10 | ||
| F/R overhang(mm) | 1525/2400 | ||
| Approach/Departure angle | 16/22(°) | ||
| Max. driving speed(km/h) | 90 km/h | ||
| Clutch | Reinforced diaphragm clutch | ||
| Steering Gear | Power assistant | ||
|
Tire |
Quantity | 12 pcs with one spare tire | |
| Specifications | 12.00R20 | ||
| Transmission | Manual type, 12 speed forwarder with 1 reverse | ||
| Cabin | One and half row. Left hand drive | ||
|
Engine |
Brand | WEICHAI | |
| Fuel type | Diesel | ||
| Power(kw) | 287kw | ||
| Horsepower(HP) | 390HP | ||
| Cylinder number | 6 | ||
| Emission standard | Euro 3 | ||
| Upper | |||
|
Water tank |
Capacity | 25CBM | |
| Tank material | Q235 carbon steel | ||
| Thickness(mm) | 5 | ||
| Water pump | China local brand | ||
| Suction Height | 7M | ||
|
Function |
1. Front Side Rear Sprinkling width≥14m | ||
| 2. Water cannon range≥35m | |||
| 3. Full tank suction time: <15 minutes | |||
|
Remarks |
1. 1pc self-flow valve | ||
| 2. 2pcs water hose. | |||
| 3. 1pc fire joint | |||
| 4. Color is optional as customer's request | |||
