DS Series Free Stop Cam Indexer with Shaft Output and High Repeat Positioning Accuracy for Intermittent Transmission
Price:
200 $/SET~4500 $/SET
MOQ:
≥1000 $
Delivery Time:
4 DAYS-20 DAYS
Brand:
HONEPAN
Product Description
Introduction to Cam Indexer Series
DS Series: Spindle Type
Output: Shaft-driven
Application: Ideal for intermittent conveyor systems using gears, couplings, or coupling discs.
Key Features: Designed for belt-driven transmission with precise start-stop control.
According to the distance between the input shaft and the output shaft, the size of the cabinet, and the size of the load that can be withstood, it can be divided into: 32DS/38DS/45DS/60DS/63DS/70DS/80DS/83DS/100DS/110DS/125DS/140DS/150DS/170DS/180DS/200DS
32DS
| 32DS | |||
| Item | Symbol | Unit | Value |
| Allowable Radial Load of Output Shaft | C1 | kgf | 19 |
| Allowable Axial Load of Output Shaft | C2 | kgf | 29 |
| Allowable Torque of Output Shaft | Ts | kgf-m | Refer to Torque Table |
| Allowable Radial Load of Input Shaft | C3 | kgf | 17 |
| Maximum Bending Moment of Input Shaft | C4 | kgf | 19 |
| Maximum Torque of Input Shaft | C5 | kgf-m | 2.5 |
| Moment of Inertia of Input Shaft (Note 1) | C6 | kgf-m2 | 3×10-5 |
| Positioning Indexing Accuracy | sec. | ±30 | |
| Weight | kg | 1.5 | |

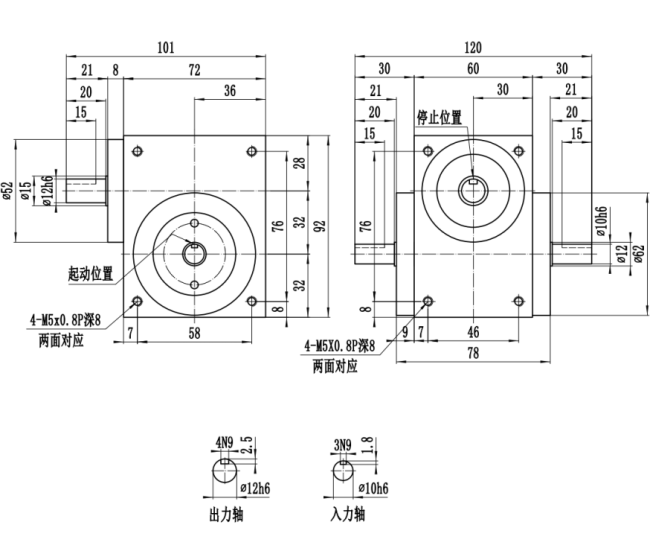

38DS
| 38DS | |||
| Item | Symbol | Unit | Value |
| Allowable Radial Load of Output Shaft | C1 | kgf | 39 |
| Allowable Axial Load of Output Shaft | C2 | kgf | 44 |
| Allowable Torque of Output Shaft | Ts | kgf-m | Refer to Torque Table |
| Allowable Radial Load of Input Shaft | C3 | kgf | 34 |
| Maximum Bending Moment of Input Shaft | C4 | kgf | 34 |
| Maximum Torque of Input Shaft | C5 | kgf-m | 2.4 |
| Moment of Inertia of Input Shaft (Note 1) | C6 | kgf-m2 | 6.6×10-4 |
| Positioning Indexing Accuracy | sec. | ±30 | |
| Weight | kg | 5 | |

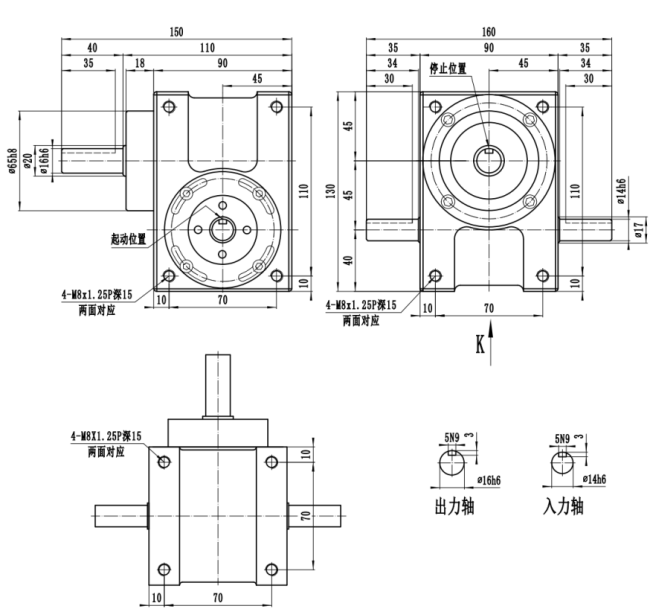

45DS
| 45DS | |||
| Item | Symbol | Unit | Value |
| Allowable Radial Load of Output Shaft | C1 | kgf | 78 |
| Allowable Axial Load of Output Shaft | C2 | kgf | 70.5 |
| Allowable Torque of Output Shaft | Ts | kgf-m | Refer to Torque Table |
| Allowable Radial Load of Input Shaft | C3 | kgf | 83 |
| Maximum Bending Moment of Input Shaft | C4 | kgf | 73 |
| Maximum Torque of Input Shaft | C5 | kgf-m | 3.8 |
| Moment of Inertia of Input Shaft (Note 1) | C6 | kgf-m2 | 3.2×10-4 |
| Positioning Indexing Accuracy | sec. | ±30 | |
| Weight | kg | 9 | |

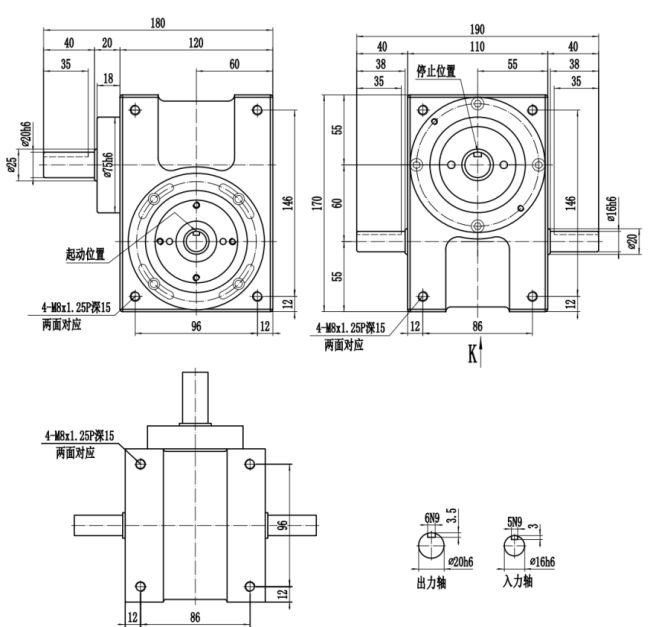

60DS
| 60DS | |||
| Item | Symbol | Unit | Value |
| Allowable Radial Load of Output Shaft | C1 | kgf | 78 |
| Allowable Axial Load of Output Shaft | C2 | kgf | 70.5 |
| Allowable Torque of Output Shaft | Ts | kgf-m | Refer to Torque Table |
| Allowable Radial Load of Input Shaft | C3 | kgf | 83 |
| Maximum Bending Moment of Input Shaft | C4 | kgf | 73 |
| Maximum Torque of Input Shaft | C5 | kgf-m | 3.8 |
| Moment of Inertia of Input Shaft (Note 1) | C6 | kgf-m2 | 3.2×10-4 |
| Positioning Indexing Accuracy | sec. | ±30 | |
| Weight | kg | 9 | |

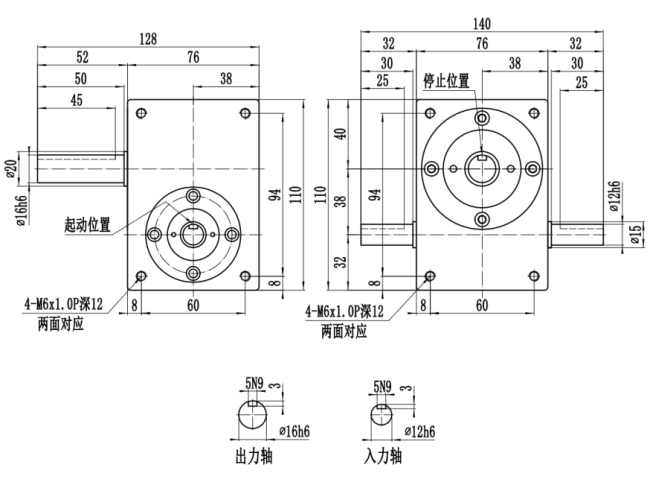

63DS
| 63DS | |||
| Item | Symbol | Unit | Value |
| Allowable Radial Load of Output Shaft | C1 | kgf | 178 |
| Allowable Axial Load of Output Shaft | C2 | kgf | 148 |
| Allowable Torque of Output Shaft | Ts | kgf-m | Refer to Torque Table |
| Allowable Radial Load of Input Shaft | C3 | kgf | 97 |
| Maximum Bending Moment of Input Shaft | C4 | kgf | 93 |
| Maximum Torque of Input Shaft | C5 | kgf-m | 6 |
| Moment of Inertia of Input Shaft (Note 1) | C6 | kgf-m2 | 1.9×10-3 |
| Positioning Indexing Accuracy | sec. | ±30 | |
| Weight | kg | 17 | |
70DS
| 70DS | |||
| Item | Symbol | Unit | Value |
| Allowable Radial Load of Output Shaft | C1 | kgf | 215 |
| Allowable Axial Load of Output Shaft | C2 | kgf | 217 |
| Allowable Torque of Output Shaft | Ts | kgf-m | Refer to Torque Table |
| Allowable Radial Load of Input Shaft | C3 | kgf | 146 |
| Maximum Bending Moment of Input Shaft | C4 | kgf | 106 |
| Maximum Torque of Input Shaft | C5 | kgf-m | 9 |
| Moment of Inertia of Input Shaft (Note 1) | C6 | kgf-m2 | 6×10-3 |
| Positioning Indexing Accuracy | sec. | ±30 | |
| Weight | kg | 20 | |

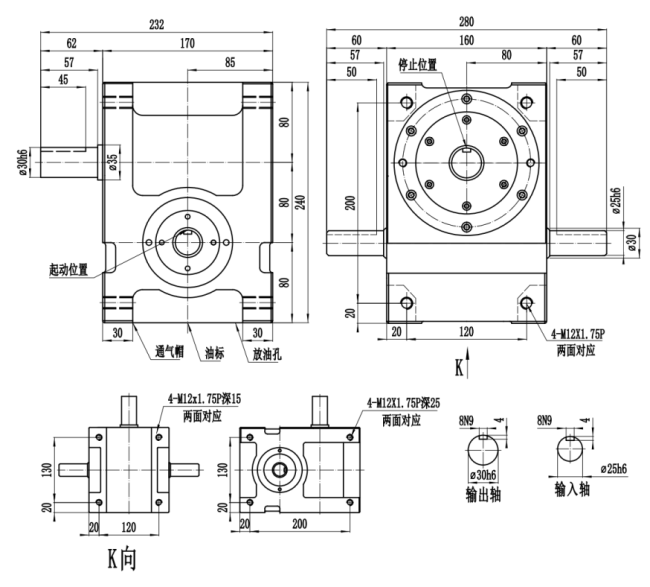

80DS
| 80DS | |||
| Item | Symbol | Unit | Value |
| Allowable Radial Load of Output Shaft | C1 | kgf | 327 |
| Allowable Axial Load of Output Shaft | C2 | kgf | 417 |
| Allowable Torque of Output Shaft | Ts | kgf-m | Refer to Torque Table |
| Allowable Radial Load of Input Shaft | C3 | kgf | 345 |
| Maximum Bending Moment of Input Shaft | C4 | kgf | 255 |
| Maximum Torque of Input Shaft | C5 | kgf-m | 24 |
| Moment of Inertia of Input Shaft (Note 1) | C6 | kgf-m2 | 9×10-3 |
| Positioning Indexing Accuracy | sec. | ±30 | |
| Weight | kg | 35 | |

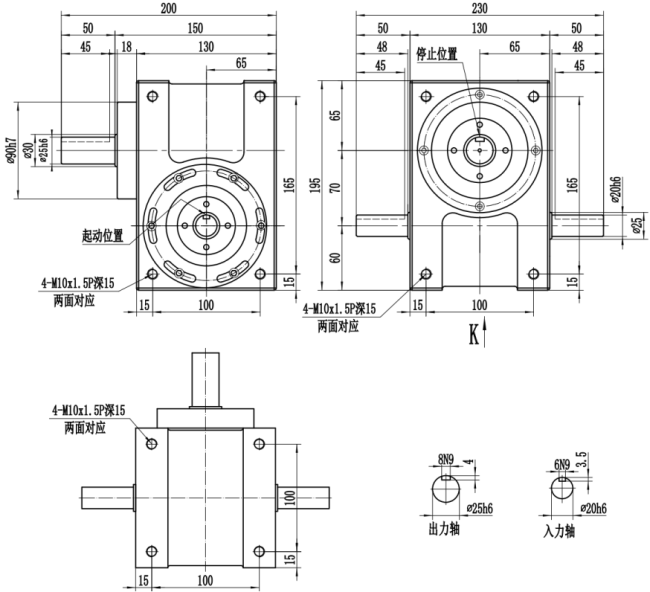

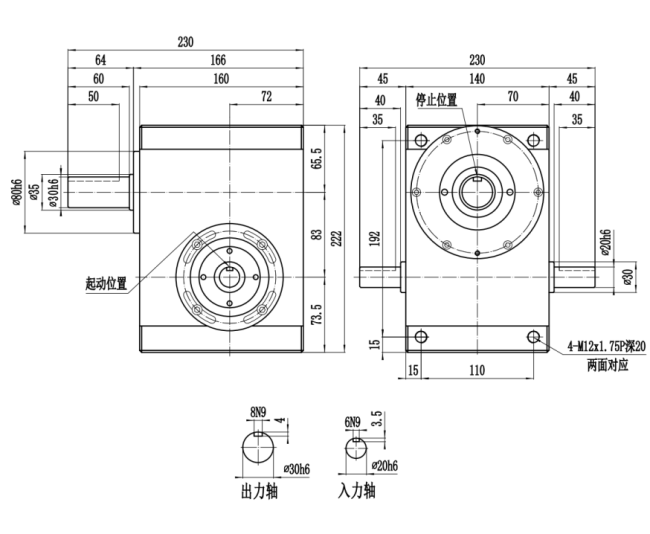

83DS
| 83DS | |||
| Item | Symbol | Unit | Value |
| Allowable Radial Load of Output Shaft | C1 | kgf | 325 |
| Allowable Axial Load of Output Shaft | C2 | kgf | 415 |
| Allowable Torque of Output Shaft | Ts | kgf-m | Refer to Torque Table |
| Allowable Radial Load of Input Shaft | C3 | kgf | 345 |
| Maximum Bending Moment of Input Shaft | C4 | kgf | 255 |
| Maximum Torque of Input Shaft | C5 | kgf-m | 24 |
| Moment of Inertia of Input Shaft (Note 1) | C6 | kgf-m2 | 9×10-3 |
| Positioning Indexing Accuracy | sec. | ±30 | |
| Weight | kg | 28 | |

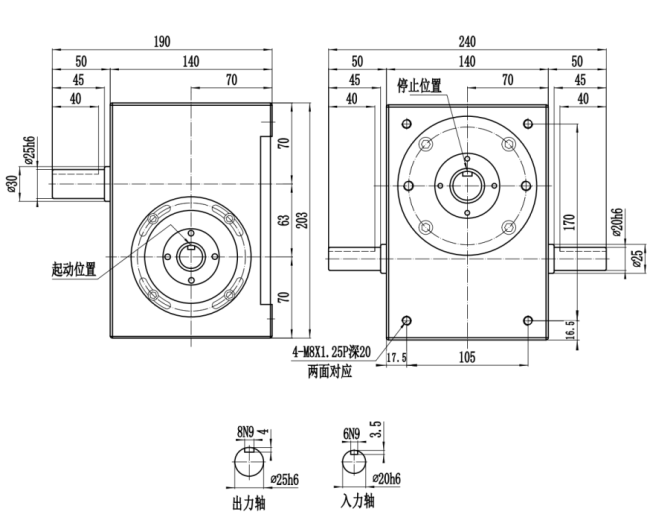

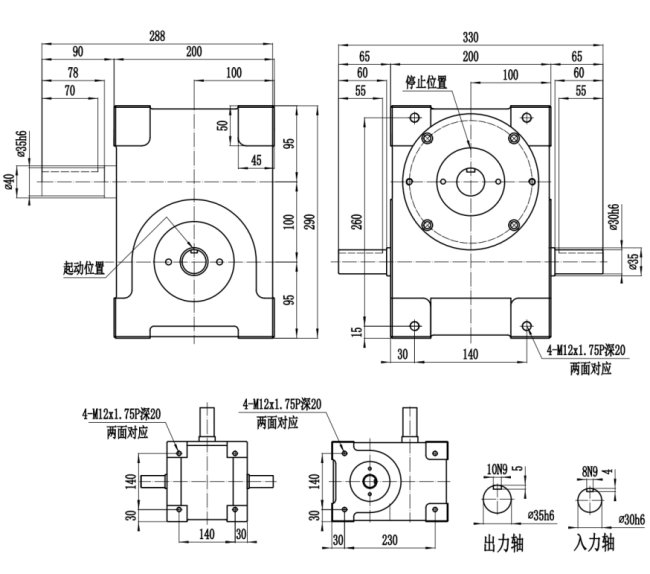

100DS
| 100DS | |||
| Item | Symbol | Unit | Value |
| Allowable Radial Load of Output Shaft | C1 | kgf | 395 |
| Allowable Axial Load of Output Shaft | C2 | kgf | 445 |
| Allowable Torque of Output Shaft | Ts | kgf-m | Refer to Torque Table |
| Allowable Radial Load of Input Shaft | C3 | kgf | 295 |
| Maximum Bending Moment of Input Shaft | C4 | kgf | 215 |
| Maximum Torque of Input Shaft | C5 | kgf-m | 25 |
| Moment of Inertia of Input Shaft (Note 1) | C6 | kgf-m2 | 4×10-3 |
| Positioning Indexing Accuracy | sec. | ±30 | |
| Weight | kg | 54 | |
110DS
| 110DS | |||
| Item | Symbol | Unit | Value |
| Allowable Radial Load of Output Shaft | C1 | kgf | 494 |
| Allowable Axial Load of Output Shaft | C2 | kgf | 544 |
| Allowable Torque of Output Shaft | Ts | kgf-m | Refer to Torque Table |
| Allowable Radial Load of Input Shaft | C3 | kgf | 355 |
| Maximum Bending Moment of Input Shaft | C4 | kgf | 285 |
| Maximum Torque of Input Shaft | C5 | kgf-m | 31 |
| Moment of Inertia of Input Shaft (Note 1) | C6 | kgf-m2 | 2.8×10-2 |
| Positioning Indexing Accuracy | sec. | ±30 | |
| Weight | kg | 67 | |

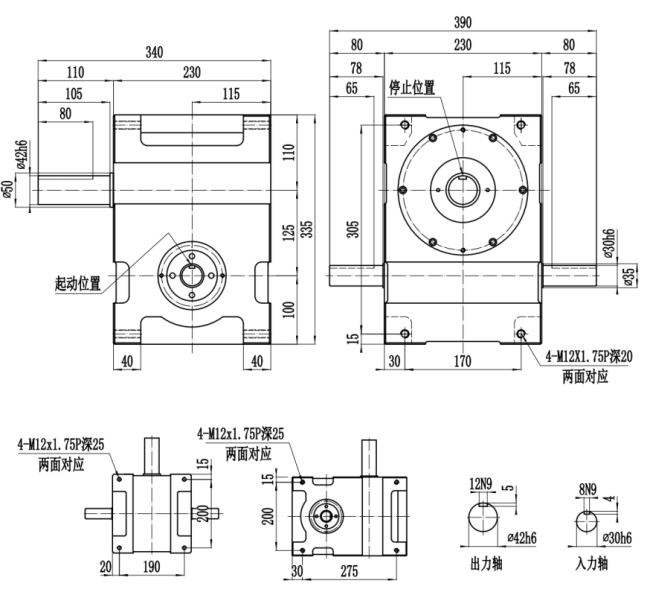

125DS
| 125DS | |||
| Item | Symbol | Unit | Value |
| Allowable Radial Load of Output Shaft | C1 | kgf | 600 |
| Allowable Axial Load of Output Shaft | C2 | kgf | 690 |
| Allowable Torque of Output Shaft | Ts | kgf-m | Refer to Torque Table |
| Allowable Radial Load of Input Shaft | C3 | kgf | 390 |
| Maximum Bending Moment of Input Shaft | C4 | kgf | 410 |
| Maximum Torque of Input Shaft | C5 | kgf-m | 50 |
| Moment of Inertia of Input Shaft (Note 1) | C6 | kgf-m2 | 0.092 |
| Positioning Indexing Accuracy | sec. | ±30 | |
| Weight | kg | 78 | |

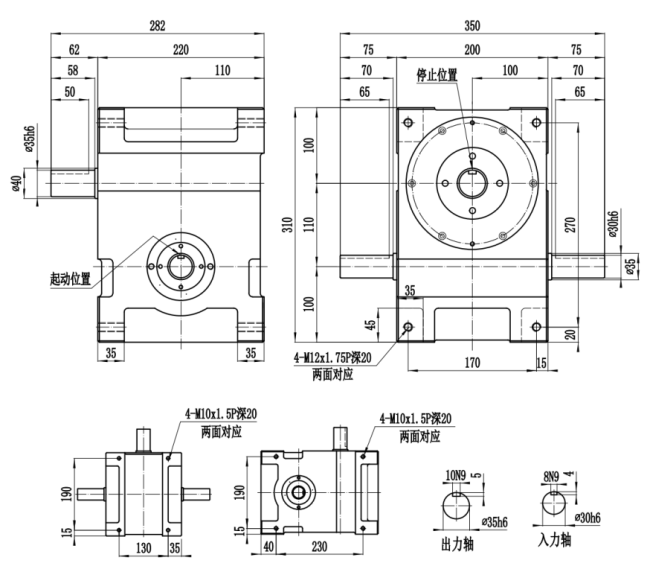

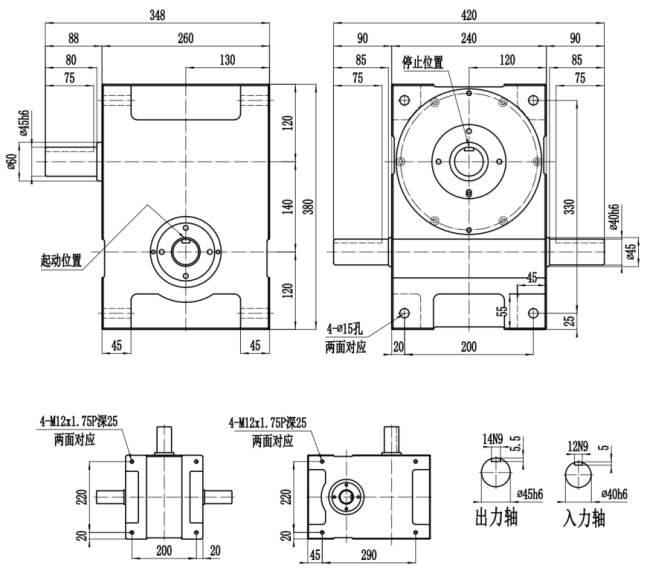

140DS
| 140DS | |||
| Item | Symbol | Unit | Value |
| Allowable Radial Load of Output Shaft | C1 | kgf | 720 |
| Allowable Axial Load of Output Shaft | C2 | kgf | 850 |
| Allowable Torque of Output Shaft | Ts | kgf-m | Refer to Torque Table |
| Allowable Radial Load of Input Shaft | C3 | kgf | 430 |
| Maximum Bending Moment of Input Shaft | C4 | kgf | 550 |
| Maximum Torque of Input Shaft | C5 | kgf-m | 74 |
| Moment of Inertia of Input Shaft (Note 1) | C6 | kgf-m2 | 0.11 |
| Positioning Indexing Accuracy | sec. | ±30 | |
| Weight | kg | 92 | |
150DS
| 150DS | |||
| Item | Symbol | Unit | Value |
| Allowable Radial Load of Output Shaft | C1 | kgf | 730 |
| Allowable Axial Load of Output Shaft | C2 | kgf | 860 |
| Allowable Torque of Output Shaft | Ts | kgf-m | Refer to Torque Table |
| Allowable Radial Load of Input Shaft | C3 | kgf | 440 |
| Maximum Bending Moment of Input Shaft | C4 | kgf | 560 |
| Maximum Torque of Input Shaft | C5 | kgf-m | 75 |
| Moment of Inertia of Input Shaft (Note 1) | C6 | kgf-m2 | 0.11 |
| Positioning Indexing Accuracy | sec. | ±30 | |
| Weight | kg | 96 | |

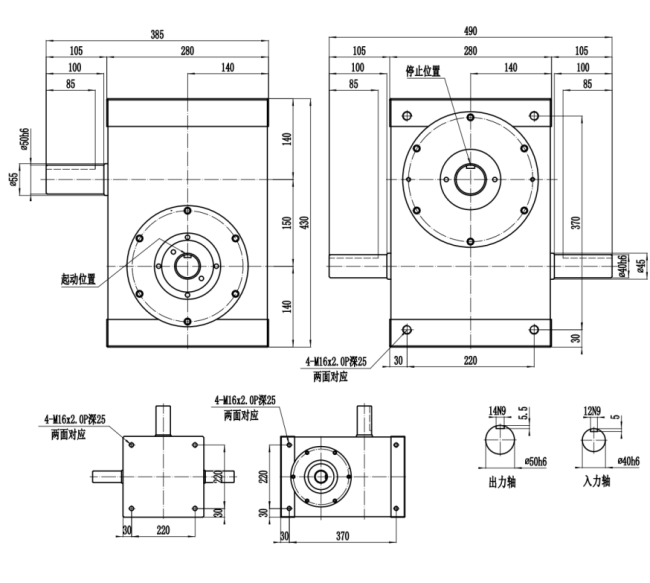

170DS
| 170DS | |||
| Item | Symbol | Unit | Value |
| Allowable Radial Load of Output Shaft | C1 | kgf | 990 |
| Allowable Axial Load of Output Shaft | C2 | kgf | 1290 |
| Allowable Torque of Output Shaft | Ts | kgf-m | Refer to Torque Table |
| Allowable Radial Load of Input Shaft | C3 | kgf | 480 |
| Maximum Bending Moment of Input Shaft | C4 | kgf | 940 |
| Maximum Torque of Input Shaft | C5 | kgf-m | 130 |
| Moment of Inertia of Input Shaft (Note 1) | C6 | kgf-m2 | 0.39 |
| Positioning Indexing Accuracy | sec. | ±30 | |
| Weight | kg | 200 | |

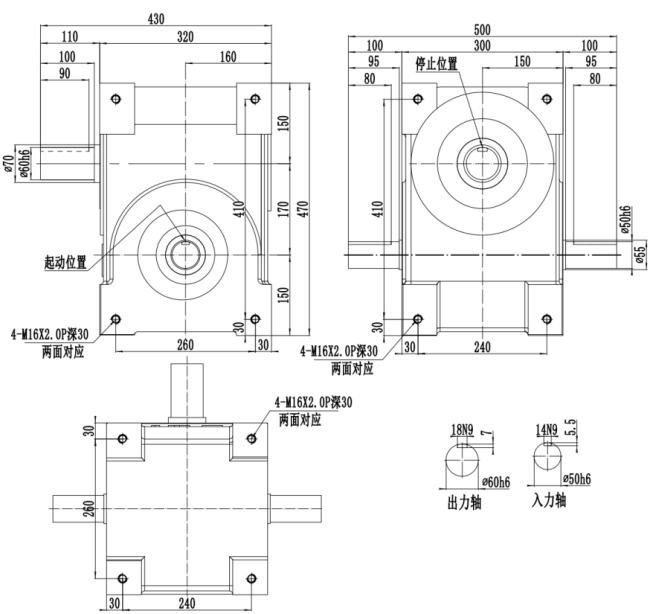

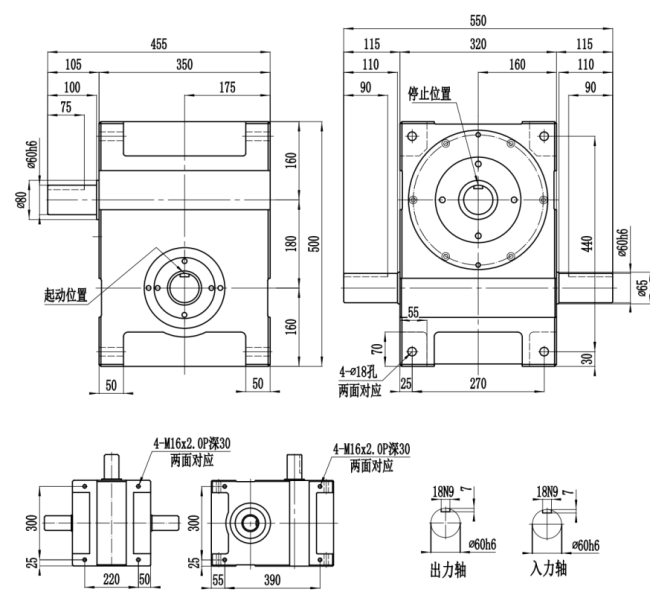

180DS
| 180DS | |||
| Item | Symbol | Unit | Value |
| Allowable Radial Load of Output Shaft | C1 | kgf | 1190 |
| Allowable Axial Load of Output Shaft | C2 | kgf | 1490 |
| Allowable Torque of Output Shaft | Ts | kgf-m | Refer to Torque Table |
| Allowable Radial Load of Input Shaft | C3 | kgf | 580 |
| Maximum Bending Moment of Input Shaft | C4 | kgf | 1040 |
| Maximum Torque of Input Shaft | C5 | kgf-m | 145 |
| Moment of Inertia of Input Shaft (Note 1) | C6 | kgf-m2 | 0.39 |
| Positioning Indexing Accuracy | sec. | ±30 | |
| Weight | kg | 230 | |

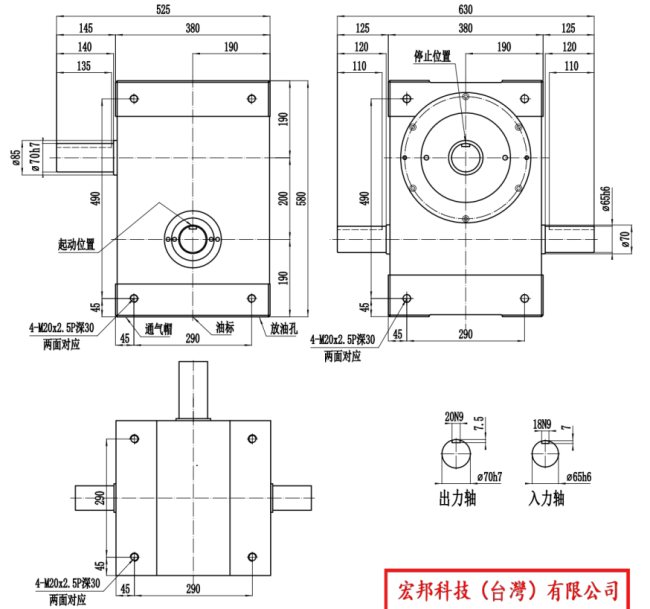

200DS
| 200DS | |||
| Item | Symbol | Unit | Value |
| Allowable Radial Load of Output Shaft | C1 | kgf | 1200 |
| Allowable Axial Load of Output Shaft | C2 | kgf | 1500 |
| Allowable Torque of Output Shaft | Ts | kgf-m | Refer to Torque Table |
| Allowable Radial Load of Input Shaft | C3 | kgf | 590 |
| Maximum Bending Moment of Input Shaft | C4 | kgf | 1045 |
| Maximum Torque of Input Shaft | C5 | kgf-m | 147 |
| Moment of Inertia of Input Shaft (Note 1) | C6 | kgf-m2 | 0.39 |
| Positioning Indexing Accuracy | sec. | ±30 | |
| Weight | kg | 240 | |
