DT Series Cam Indexer with Hollow Shaft for Heavy-Load Automation and Platen Table Type Design
Price:
200 $/SET~4500 $/SET
MOQ:
≥1000 $
Delivery Time:
4 DAYS-20 DAYS
Brand:
HONEPAN
Product Description
DT Series Free Stop Cam Indexer / Arbitrary Stop Cam Indexing Gearbox
The DT Series represents advanced platen table type indexing technology designed for heavy-duty industrial automation applications.
Key Specifications
Type: Platen Table Type
Output: Raised static flange for dynamic/static automation interfaces
Primary Application: Heavy-load automation equipment including vertical radial pressure systems
Product Features
- Hollow shaft design for efficient routing of power lines (electrical, hydraulic, pneumatic)
- Robust construction for heavy-load automation applications
- Versatile interface compatibility for dynamic and static automation systems
- Precision indexing capabilities for industrial automation processes
According to the distance between the input shaft and the output shaft, the size of the cabinet, and the size of the load that can be withstood, it can be divided into: 80DT/110DT/140DT/180DT/200DT/210DT/250DT/350DT

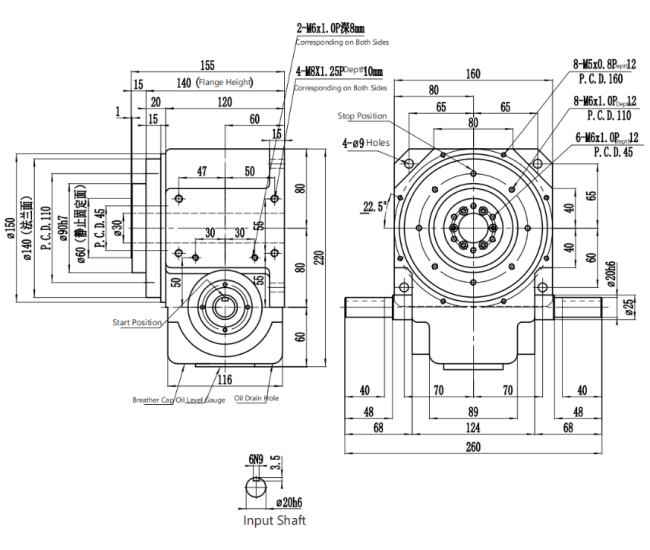

80DT
| Item | Symbol | Unit | Value |
|---|---|---|---|
| Allowable Radial Load of Output Shaft | C1 | kgf | 510 |
| Allowable Axial Load of Output Shaft | C2 | kgf | 210 |
| Allowable Torque of Output Shaft | Ts | kgf-m | Refer to Torque Table |
| Allowable Radial Load of Input Shaft | C3 | kgf | 215 |
| Maximum Bending Moment of Input Shaft | C4 | kgf | 155 |
| Maximum Torque of Input Shaft | C5 | kgf-m | 9.3 |
| Moment of Inertia of Input Shaft (Note 1) | C6 | kgf-m2 | 0.03 |
| Positioning Indexing Accuracy | sec. | ±30 | |
| Weight | kg | 22 |

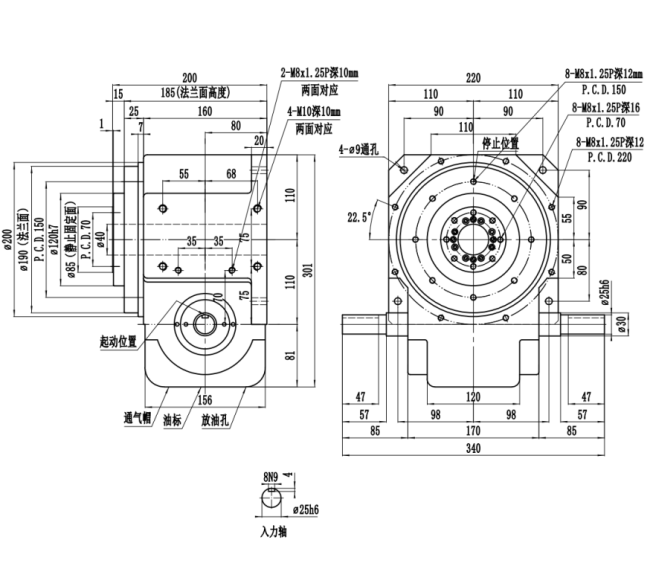

110DT
| Item | Symbol | Unit | Value |
|---|---|---|---|
| Allowable Radial Load of Output Shaft | C1 | kgf | 850 |
| Allowable Axial Load of Output Shaft | C2 | kgf | 410 |
| Allowable Torque of Output Shaft | Ts | kgf-m | Refer to Torque Table |
| Allowable Radial Load of Input Shaft | C3 | kgf | 295 |
| Maximum Bending Moment of Input Shaft | C4 | kgf | 245 |
| Maximum Torque of Input Shaft | C5 | kgf-m | 24 |
| Moment of Inertia of Input Shaft (Note 1) | C6 | kgf-m2 | 0.01 |
| Positioning Indexing Accuracy | sec. | ±30 | |
| Weight | kg | 52 |

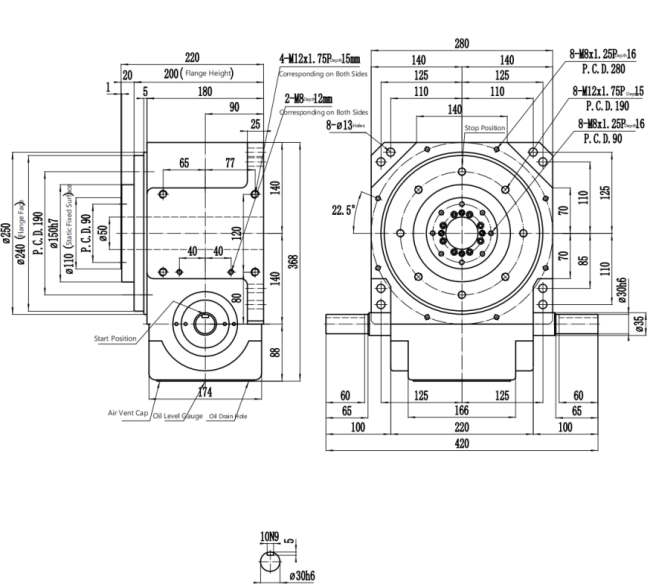

140DT
| Item | Symbol | Unit | Value |
|---|---|---|---|
| Allowable Radial Load of Output Shaft | C1 | kgf | 1030 |
| Allowable Axial Load of Output Shaft | C2 | kgf | 705 |
| Allowable Torque of Output Shaft | Ts | kgf-m | Refer to Torque Table |
| Allowable Radial Load of Input Shaft | C3 | kgf | 495 |
| Maximum Bending Moment of Input Shaft | C4 | kgf | 340 |
| Maximum Torque of Input Shaft | C5 | kgf-m | 51 |
| Moment of Inertia of Input Shaft (Note 1) | C6 | kgf-m2 | 0.07 |
| Positioning Indexing Accuracy | sec. | ±30 | |
| Weight | kg | 87 |

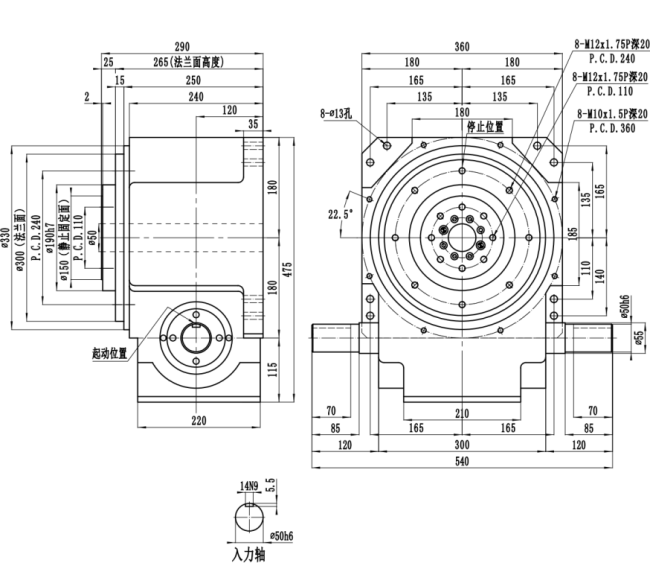

180DT
| Item | Symbol | Unit | Value |
|---|---|---|---|
| Allowable Radial Load of Output Shaft | C1 | kgf | 1480 |
| Allowable Axial Load of Output Shaft | C2 | kgf | 1080 |
| Allowable Torque of Output Shaft | Ts | kgf-m | Refer to Torque Table |
| Allowable Radial Load of Input Shaft | C3 | kgf | 1190 |
| Maximum Bending Moment of Input Shaft | C4 | kgf | 950 |
| Maximum Torque of Input Shaft | C5 | kgf-m | 216 |
| Moment of Inertia of Input Shaft (Note 1) | C6 | kgf-m2 | 0.23 |
| Positioning Indexing Accuracy | sec. | ±30 | |
| Weight | kg | 190 |

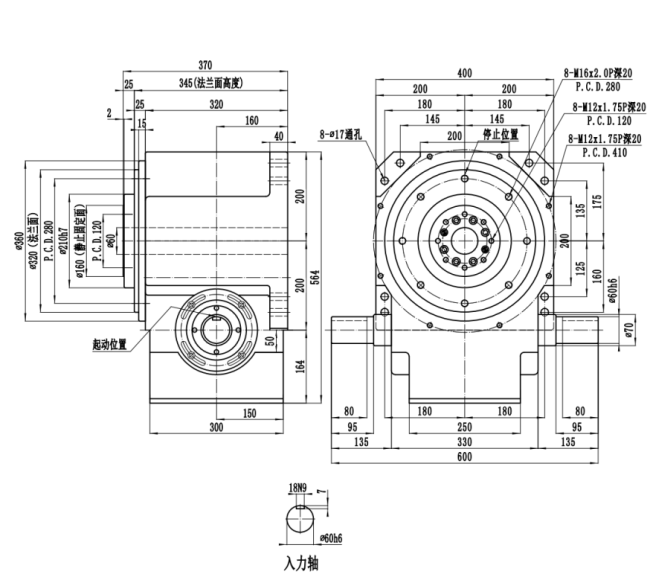

200DT
| Item | Symbol | Unit | Value |
|---|---|---|---|
| Allowable Radial Load of Output Shaft | C1 | kgf | 1800 |
| Allowable Axial Load of Output Shaft | C2 | kgf | 1300 |
| Allowable Torque of Output Shaft | Ts | kgf-m | Refer to Torque Table |
| Allowable Radial Load of Input Shaft | C3 | kgf | 1400 |
| Maximum Bending Moment of Input Shaft | C4 | kgf | 1050 |
| Maximum Torque of Input Shaft | C5 | kgf-m | 440 |
| Moment of Inertia of Input Shaft (Note 1) | C6 | kgf-m2 | 0.62 |
| Positioning Indexing Accuracy | sec. | ±30 | |
| Weight | kg | 450 |

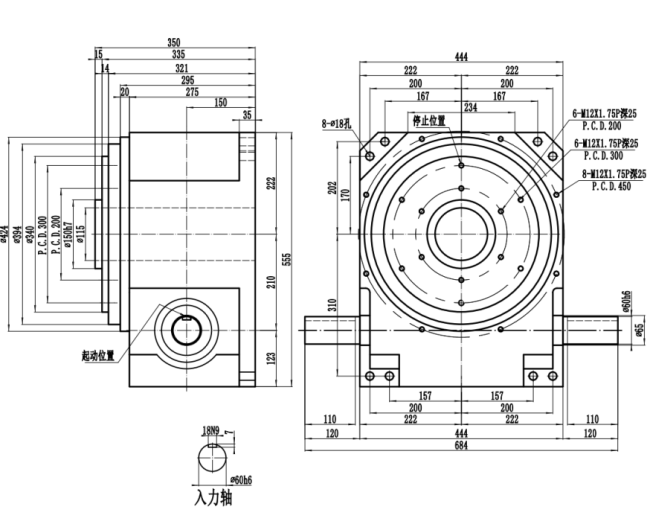

210DT
| Item | Symbol | Unit | Value |
|---|---|---|---|
| Allowable Radial Load of Output Shaft | C1 | kgf | 1950 |
| Allowable Axial Load of Output Shaft | C2 | kgf | 1520 |
| Allowable Torque of Output Shaft | Ts | kgf-m | Refer to Torque Table |
| Allowable Radial Load of Input Shaft | C3 | kgf | 1570 |
| Maximum Bending Moment of Input Shaft | C4 | kgf | 1130 |
| Maximum Torque of Input Shaft | C5 | kgf-m | 460 |
| Moment of Inertia of Input Shaft (Note 1) | C6 | kgf-m2 | 0.62 |
| Positioning Indexing Accuracy | sec. | ±30 | |
| Weight | kg | 450 |

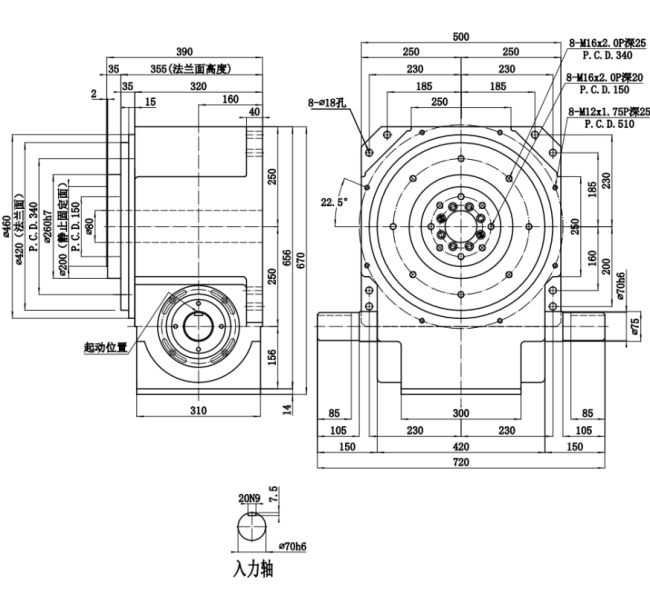

250DT
| Item | Symbol | Unit | Value |
|---|---|---|---|
| Allowable Radial Load of Output Shaft | C1 | kgf | 2400 |
| Allowable Axial Load of Output Shaft | C2 | kgf | 1700 |
| Allowable Torque of Output Shaft | Ts | kgf-m | Refer to Torque Table |
| Allowable Radial Load of Input Shaft | C3 | kgf | 1800 |
| Maximum Bending Moment of Input Shaft | C4 | kgf | 2200 |
| Maximum Torque of Input Shaft | C5 | kgf-m | 665 |
| Moment of Inertia of Input Shaft (Note 1) | C6 | kgf-m2 | 0.86 |
| Positioning Indexing Accuracy | sec. | ±30 | |
| Weight | kg | 500 |

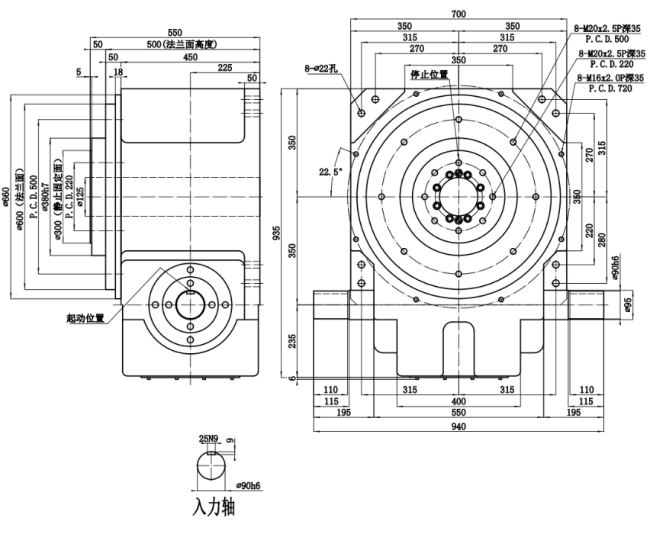

350DT
| Item | Symbol | Unit | Value |
|---|---|---|---|
| Allowable Radial Load of Output Shaft | C1 | kgf | 4300 |
| Allowable Axial Load of Output Shaft | C2 | kgf | 3100 |
| Allowable Torque of Output Shaft | Ts | kgf-m | Refer to Torque Table |
| Allowable Radial Load of Input Shaft | C3 | kgf | 2700 |
| Maximum Bending Moment of Input Shaft | C4 | kgf | 3700 |
| Maximum Torque of Input Shaft | C5 | kgf-m | 990 |
| Moment of Inertia of Input Shaft (Note 1) | C6 | kgf-m2 | 2.7 |
| Positioning Indexing Accuracy | sec. | ±30 | |
| Weight | kg | 1200 |
