DA Series Ultra-Slim Platen Type Free Stop Cam Indexer with Compact Size and High Precision for Space-Constrained Environments
Price:
200 $/SET~4500 $/SET
MOQ:
≥1000 $
Delivery Time:
4 DAYS-20 DAYS
Brand:
HONEPAN
Product Description
DA Series Free Stop Cam Indexer / Arbitrary Stop Cam Indexing Gearboxes
Ultra-Slim Platen Type Design
Featuring a compact size and slimmer profile compared to the DT Series, the DA Series is engineered for space-constrained environments requiring precision and durability.
Available Models
- 70DA
- 90DA
- 110DA
- 150DA
- 190DA
- 230DA
- 330DA
- 450DA
Technical Specifications

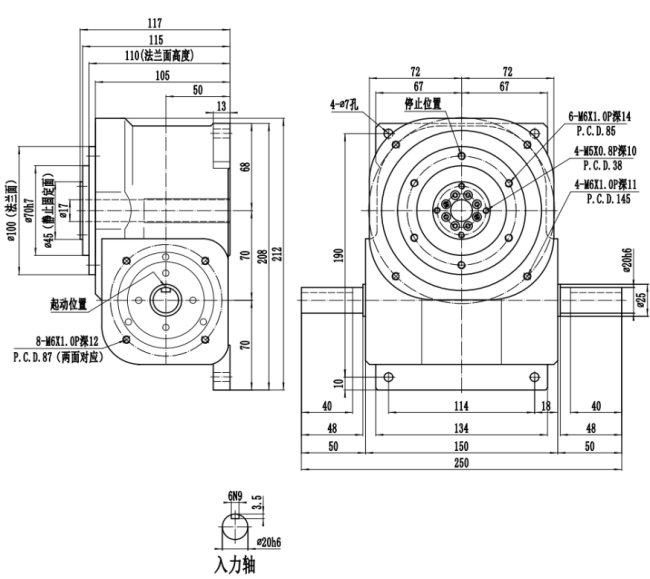

70DA Model
| Item | Symbol | Unit | Value |
|---|---|---|---|
| Allowable Radial Load of Output Shaft | C1 | kgf | 316 |
| Allowable Axial Load of Output Shaft | C2 | kgf | 142 |
| Allowable Torque of Output Shaft | Ts | kgf-m | Refer to Torque Table |
| Allowable Radial Load of Input Shaft | C3 | kgf | 190 |
| Maximum Bending Moment of Input Shaft | C4 | kgf | 163 |
| Maximum Torque of Input Shaft | C5 | kgf-m | 9.5 |
| Moment of Inertia of Input Shaft | C6 | kgf-m² | 1.9×10⁻⁵ |
| Positioning Indexing Accuracy | sec. | ±30 | |
| Weight | kg | 15 |
Note 1: Moment of Inertia values

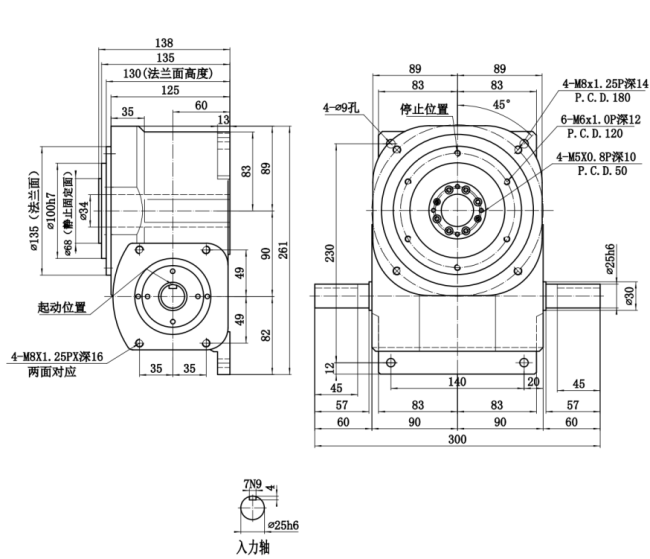

90DA Model
| Item | Symbol | Unit | Value |
|---|---|---|---|
| Allowable Radial Load of Output Shaft | C1 | kgf | 480 |
| Allowable Axial Load of Output Shaft | C2 | kgf | 195 |
| Allowable Torque of Output Shaft | Ts | kgf-m | Refer to Torque Table |
| Allowable Radial Load of Input Shaft | C3 | kgf | 250 |
| Maximum Bending Moment of Input Shaft | C4 | kgf | 250 |
| Maximum Torque of Input Shaft | C5 | kgf-m | 22 |
| Moment of Inertia of Input Shaft | C6 | kgf-m² | 2.5×10⁻⁵ |
| Positioning Indexing Accuracy | sec. | ±30 | |
| Weight | kg | 30 |
Note 1: Moment of Inertia values
110DA Model
| Item | Symbol | Unit | Value |
|---|---|---|---|
| Allowable Radial Load of Output Shaft | C1 | kgf | 680 |
| Allowable Axial Load of Output Shaft | C2 | kgf | 330 |
| Allowable Torque of Output Shaft | Ts | kgf-m | Refer to Torque Table |
| Allowable Radial Load of Input Shaft | C3 | kgf | 300 |
| Maximum Bending Moment of Input Shaft | C4 | kgf | 350 |
| Maximum Torque of Input Shaft | C5 | kgf-m | 27 |
| Moment of Inertia of Input Shaft | C6 | kgf-m² | 6×10⁻⁵ |
| Positioning Indexing Accuracy | sec. | ±30 | |
| Weight | kg | 44 |
Note 1: Moment of Inertia values

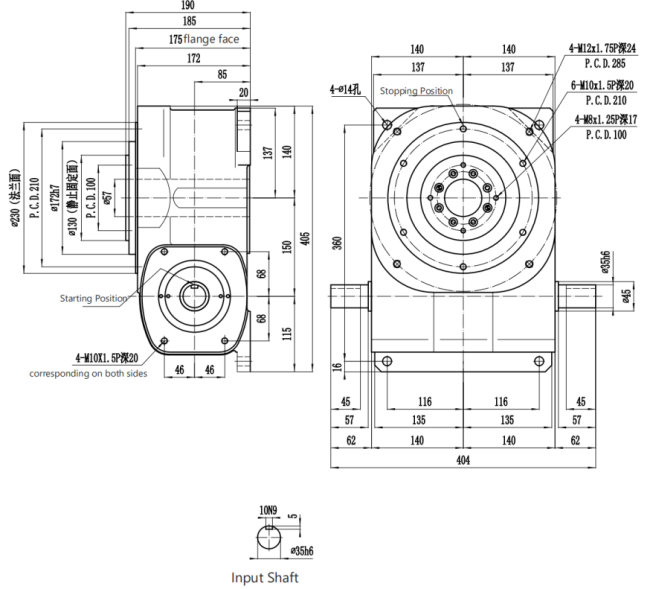

150DA Model
| Item | Symbol | Unit | Value |
|---|---|---|---|
| Allowable Radial Load of Output Shaft | C1 | kgf | 1000 |
| Allowable Axial Load of Output Shaft | C2 | kgf | 650 |
| Allowable Torque of Output Shaft | Ts | kgf-m | Refer to Torque Table |
| Allowable Radial Load of Input Shaft | C3 | kgf | 400 |
| Maximum Bending Moment of Input Shaft | C4 | kgf | 400 |
| Maximum Torque of Input Shaft | C5 | kgf-m | 36 |
| Moment of Inertia of Input Shaft | C6 | kgf-m² | 2×10⁻⁵ |
| Positioning Indexing Accuracy | sec. | ±30 | |
| Weight | kg | 90 |
Note 1: Moment of Inertia values

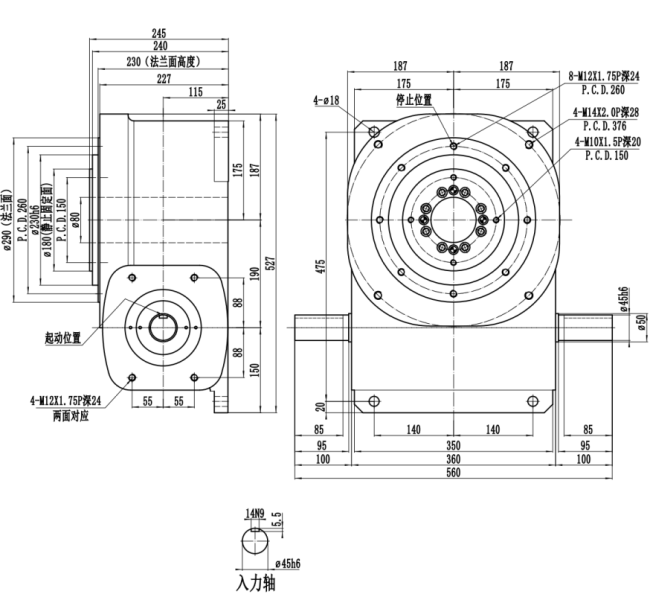

190DA Model
| Item | Symbol | Unit | Value |
|---|---|---|---|
| Allowable Radial Load of Output Shaft | C1 | kgf | 1838 |
| Allowable Axial Load of Output Shaft | C2 | kgf | 918 |
| Allowable Torque of Output Shaft | Ts | kgf-m | Refer to Torque Table |
| Allowable Radial Load of Input Shaft | C3 | kgf | 510 |
| Maximum Bending Moment of Input Shaft | C4 | kgf | 510 |
| Maximum Torque of Input Shaft | C5 | kgf-m | 61 |
| Moment of Inertia of Input Shaft | C6 | kgf-m² | 0.105 |
| Positioning Indexing Accuracy | sec. | ±30 | |
| Weight | kg | 180 |
Note 1: Moment of Inertia values
230DA Model
| Item | Symbol | Unit | Value |
|---|---|---|---|
| Allowable Radial Load of Output Shaft | C1 | kgf | 2800 |
| Allowable Axial Load of Output Shaft | C2 | kgf | 1300 |
| Allowable Torque of Output Shaft | Ts | kgf-m | Refer to Torque Table |
| Allowable Radial Load of Input Shaft | C3 | kgf | 650 |
| Maximum Bending Moment of Input Shaft | C4 | kgf | 650 |
| Maximum Torque of Input Shaft | C5 | kgf-m | 80 |
| Moment of Inertia of Input Shaft | C6 | kgf-m² | 0.136 |
| Positioning Indexing Accuracy | sec. | ±30 | |
| Weight | kg | 285 |
Note 1: Moment of Inertia values
330DA Model
| Item | Symbol | Unit | Value |
|---|---|---|---|
| Allowable Radial Load of Output Shaft | C1 | kgf | 3560 |
| Allowable Axial Load of Output Shaft | C2 | kgf | 3430 |
| Allowable Torque of Output Shaft | Ts | kgf-m | Refer to Torque Table |
| Allowable Radial Load of Input Shaft | C3 | kgf | 1880 |
| Maximum Bending Moment of Input Shaft | C4 | kgf | 2150 |
| Maximum Torque of Input Shaft | C5 | kgf-m | 650 |
| Moment of Inertia of Input Shaft | C6 | kgf-m² | 1.71 |
| Positioning Indexing Accuracy | sec. | ±30 | |
| Weight | kg | 1000 |
Note 1: Moment of Inertia values
450DA Model
| Item | Symbol | Unit | Value |
|---|---|---|---|
| Allowable Radial Load of Output Shaft | C1 | kgf | 4850 |
| Allowable Axial Load of Output Shaft | C2 | kgf | 4160 |
| Allowable Torque of Output Shaft | Ts | kgf-m | Refer to Torque Table |
| Allowable Radial Load of Input Shaft | C3 | kgf | 2460 |
| Maximum Bending Moment of Input Shaft | C4 | kgf | 2760 |
| Maximum Torque of Input Shaft | C5 | kgf-m | 860 |
| Moment of Inertia of Input Shaft | C6 | kgf-m² | 7.9 |
| Positioning Indexing Accuracy | sec. | ±30 | |
| Weight | kg | 1600 |
Note 1: Moment of Inertia values
