Standard Cam Indexers In Automation Fixed With Shaft Flange Type Design For Enhanced Rigidity And High Precision
Price:
200 $/SET~4500 $/SET
MOQ:
≥1000 $
Delivery Time:
4 DAYS-20 DAYS
Brand:
HONEPAN
Product Description
DE Series Fixed Index Cam Indexer / Standard Indexing Drives
DFS Series Shaft Flange-Type Indexer
Building upon the proven DF Series platform, the DFS Series integrates an extended shaft with the flange, creating a unified output design that offers greater flexibility for diverse mounting and drive requirements.
With enhanced rigidity and precision, the DFS Series is widely used in medium-to-large precision equipment demanding high reliability, including medical devices and automated filling systems.
Key Features
- Unified shaft-flange output design
- Enhanced rigidity and precision
- Flexible mounting and drive configurations
- Ideal for medium-to-large precision equipment
- High reliability for demanding applications
Typical Applications
- Medical devices and equipment
- Automated filling systems
- Precision manufacturing machinery
- Industrial automation systems

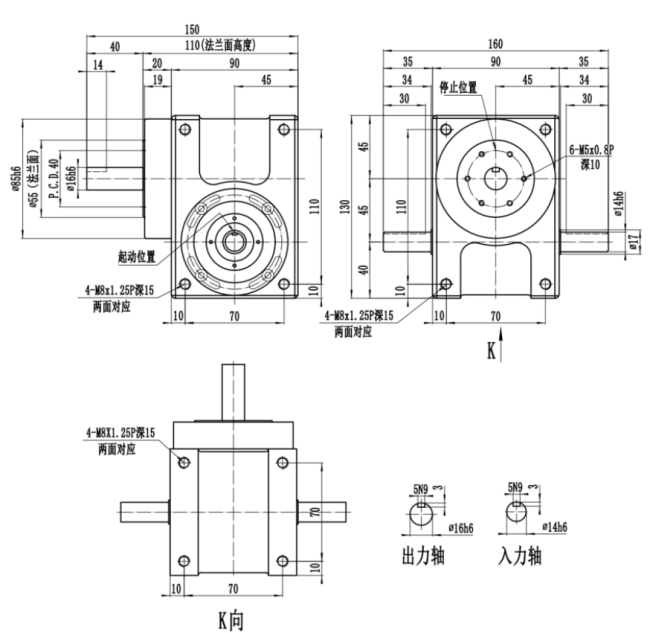

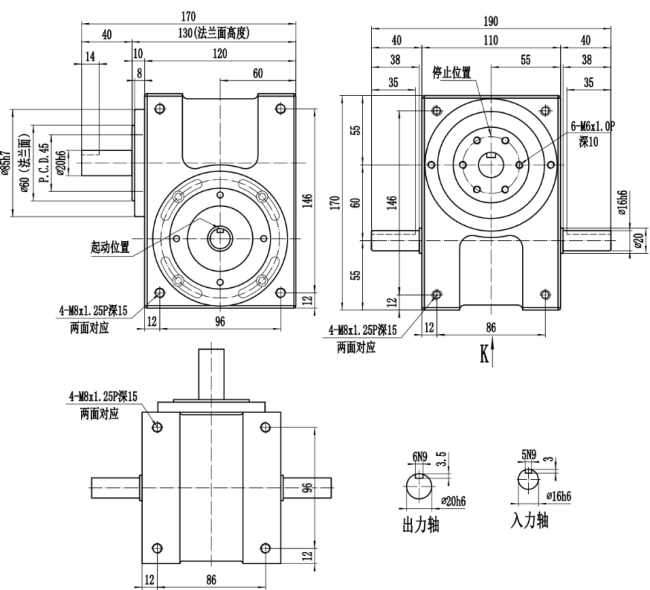

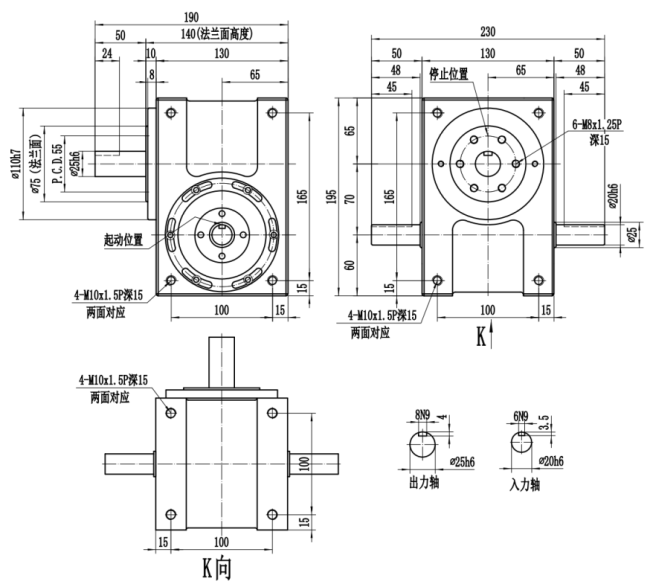

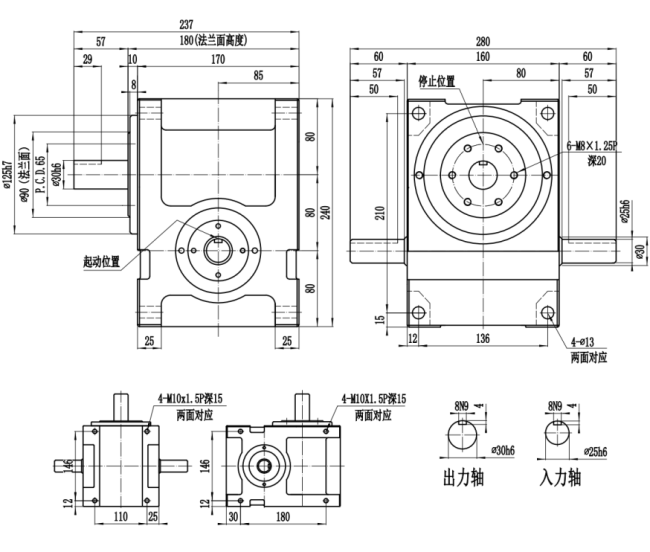

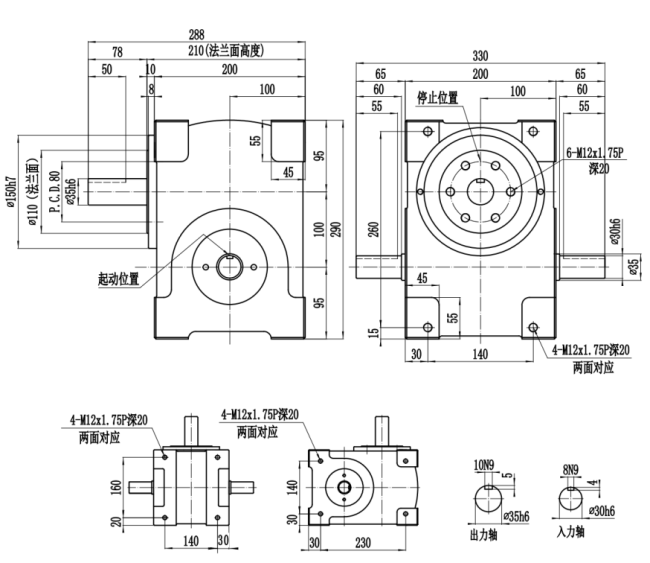

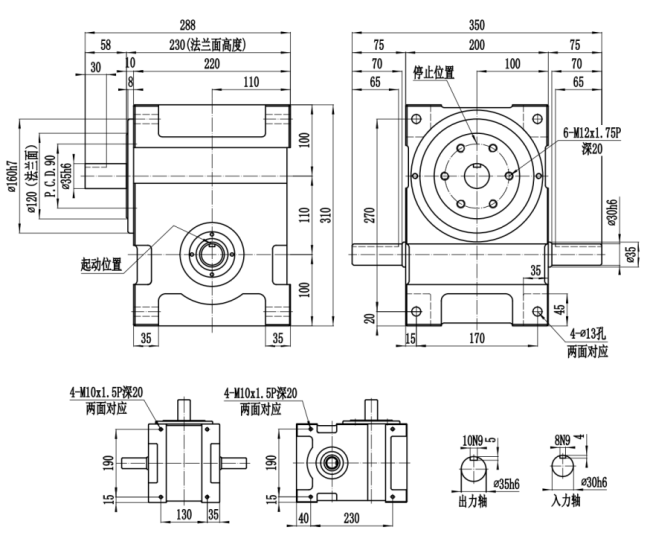

| 45DE | |||
| Item | Symbol | Unit | Value |
|---|---|---|---|
| Allowable Radial Load of Output Shaft | C1 | kgf | 128 |
| Allowable Axial Load of Output Shaft | C2 | kgf | 138 |
| Allowable Torque of Output Shaft | Ts | kgf-m | Refer to Torque Table |
| Allowable Radial Load of Input Shaft | C3 | kgf | 83 |
| Maximum Bending Moment of Input Shaft | C4 | kgf | 108 |
| Maximum Torque of Input Shaft | C5 | kgf-m | 3.8 |
| Moment of Inertia of Input Shaft (Note 1) | C6 | kgf-m2 | 3.2×10-4 |
| Positioning Indexing Accuracy | sec. | ±30 | |
| Weight | kg | 9 | |
| 60DE | |||
| Item | Symbol | Unit | Value |
|---|---|---|---|
| Allowable Radial Load of Output Shaft | C1 | kgf | 138 |
| Allowable Axial Load of Output Shaft | C2 | kgf | 140 |
| Allowable Torque of Output Shaft | Ts | kgf-m | Refer to Torque Table |
| Allowable Radial Load of Input Shaft | C3 | kgf | 97 |
| Maximum Bending Moment of Input Shaft | C4 | kgf | 148 |
| Maximum Torque of Input Shaft | C5 | kgf-m | 5.8 |
| Moment of Inertia of Input Shaft (Note 1) | C6 | kgf-m2 | 1.9×10-3 |
| Positioning Indexing Accuracy | sec. | ±30 | |
| Weight | kg | 15 | |
| 70DE | |||
| Item | Symbol | Unit | Value |
|---|---|---|---|
| Allowable Radial Load of Output Shaft | C1 | kgf | 218 |
| Allowable Axial Load of Output Shaft | C2 | kgf | 298 |
| Allowable Torque of Output Shaft | Ts | kgf-m | Refer to Torque Table |
| Allowable Radial Load of Input Shaft | C3 | kgf | 146 |
| Maximum Bending Moment of Input Shaft | C4 | kgf | 105 |
| Maximum Torque of Input Shaft | C5 | kgf-m | 9 |
| Moment of Inertia of Input Shaft (Note 1) | C6 | kgf-m2 | 6×10-3 |
| Positioning Indexing Accuracy | sec. | ±30 | |
| Weight | kg | 20 | |
| 80DE | |||
| Item | Symbol | Unit | Value |
|---|---|---|---|
| Allowable Radial Load of Output Shaft | C1 | kgf | 327 |
| Allowable Axial Load of Output Shaft | C2 | kgf | 417 |
| Allowable Torque of Output Shaft | Ts | kgf-m | Refer to Torque Table |
| Allowable Radial Load of Input Shaft | C3 | kgf | 345 |
| Maximum Bending Moment of Input Shaft | C4 | kgf | 255 |
| Maximum Torque of Input Shaft | C5 | kgf-m | 24 |
| Moment of Inertia of Input Shaft (Note 1) | C6 | kgf-m2 | 9×10-3 |
| Positioning Indexing Accuracy | sec. | ±30 | |
| Weight | kg | 35 | |
| 100DE | |||
| Item | Symbol | Unit | Value |
|---|---|---|---|
| Allowable Radial Load of Output Shaft | C1 | kgf | 500 |
| Allowable Axial Load of Output Shaft | C2 | kgf | 650 |
| Allowable Torque of Output Shaft | Ts | kgf-m | Refer to Torque Table |
| Allowable Radial Load of Input Shaft | C3 | kgf | 400 |
| Maximum Bending Moment of Input Shaft | C4 | kgf | 395 |
| Maximum Torque of Input Shaft | C5 | kgf-m | 34 |
| Moment of Inertia of Input Shaft (Note 1) | C6 | kgf-m2 | 4×10-3 |
| Positioning Indexing Accuracy | sec. | ±30 | |
| Weight | kg | 55 | |
| 110DE | |||
| Item | Symbol | Unit | Value |
|---|---|---|---|
| Allowable Radial Load of Output Shaft | C1 | kgf | 555 |
| Allowable Axial Load of Output Shaft | C2 | kgf | 695 |
| Allowable Torque of Output Shaft | Ts | kgf-m | Refer to Torque Table |
| Allowable Radial Load of Input Shaft | C3 | kgf | 475 |
| Maximum Bending Moment of Input Shaft | C4 | kgf | 410 |
| Maximum Torque of Input Shaft | C5 | kgf-m | 39 |
| Moment of Inertia of Input Shaft (Note 1) | C6 | kgf-m2 | 2.8×10-2 |
| Positioning Indexing Accuracy | sec. | ±30 | |
| Weight | kg | 68 | |

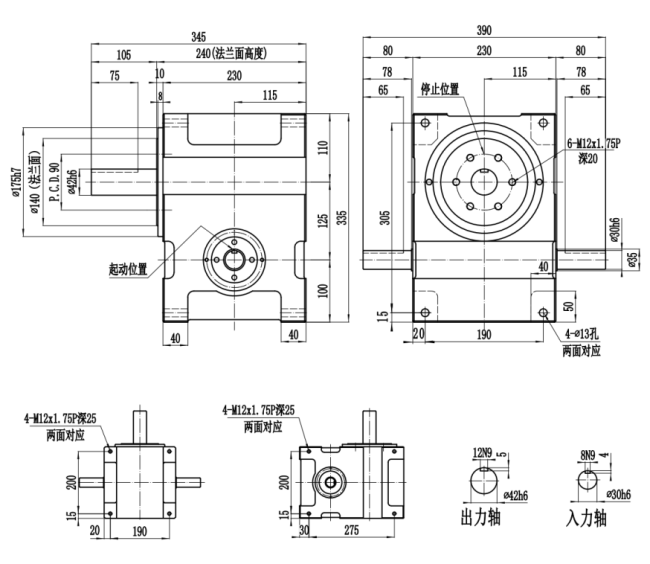

| 125DE | |||
| Item | Symbol | Unit | Value |
|---|---|---|---|
| Allowable Radial Load of Output Shaft | C1 | kgf | 630 |
| Allowable Axial Load of Output Shaft | C2 | kgf | 850 |
| Allowable Torque of Output Shaft | Ts | kgf-m | Refer to Torque Table |
| Allowable Radial Load of Input Shaft | C3 | kgf | 520 |
| Maximum Bending Moment of Input Shaft | C4 | kgf | 560 |
| Maximum Torque of Input Shaft | C5 | kgf-m | 65 |
| Moment of Inertia of Input Shaft (Note 1) | C6 | kgf-m2 | 0.28 |
| Positioning Indexing Accuracy | sec. | ±30 | |
| Weight | kg | 78 | |

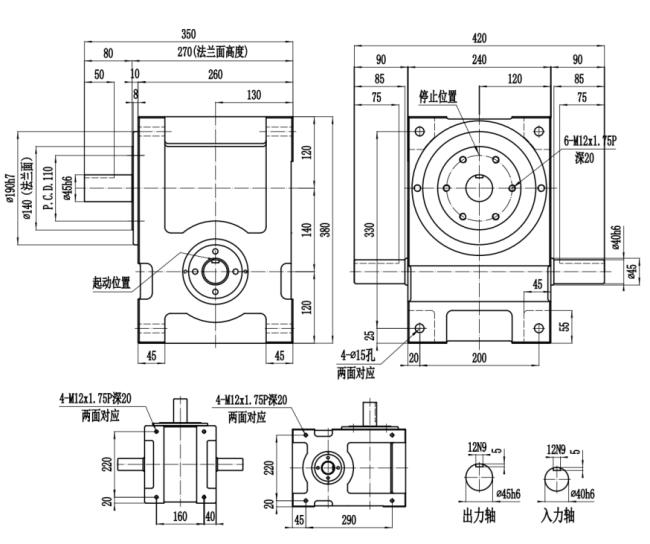

| 140DE | |||
| Item | Symbol | Unit | Value |
|---|---|---|---|
| Allowable Radial Load of Output Shaft | C1 | kgf | 755 |
| Allowable Axial Load of Output Shaft | C2 | kgf | 995 |
| Allowable Torque of Output Shaft | Ts | kgf-m | Refer to Torque Table |
| Allowable Radial Load of Input Shaft | C3 | kgf | 545 |
| Maximum Bending Moment of Input Shaft | C4 | kgf | 705 |
| Maximum Torque of Input Shaft | C5 | kgf-m | 98 |
| Moment of Inertia of Input Shaft (Note 1) | C6 | kgf-m2 | 0.11 |
| Positioning Indexing Accuracy | sec. | ±30 | |
| Weight | kg | 92 | |

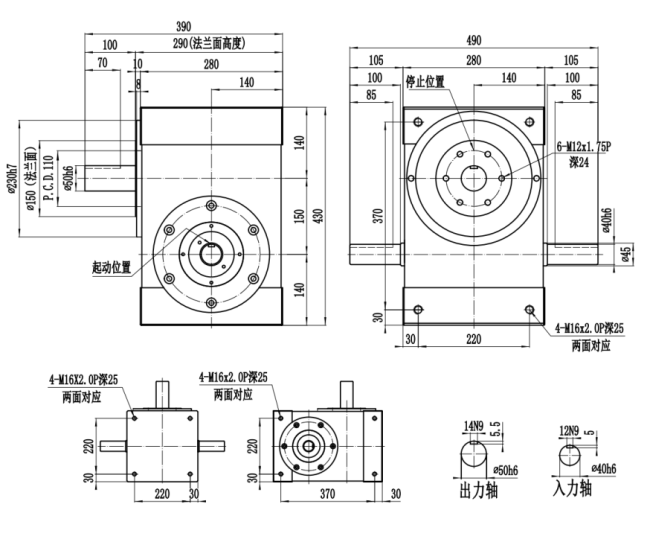

| 150DE | |||
| Item | Symbol | Unit | Value |
|---|---|---|---|
| Allowable Radial Load of Output Shaft | C1 | kgf | 760 |
| Allowable Axial Load of Output Shaft | C2 | kgf | 1000 |
| Allowable Torque of Output Shaft | Ts | kgf-m | Refer to Torque Table |
| Allowable Radial Load of Input Shaft | C3 | kgf | 550 |
| Maximum Bending Moment of Input Shaft | C4 | kgf | 710 |
| Maximum Torque of Input Shaft | C5 | kgf-m | 100 |
| Moment of Inertia of Input Shaft (Note 1) | C6 | kgf-m2 | 0.11 |
| Positioning Indexing Accuracy | sec. | ±30 | |
| Weight | kg | 94 | |

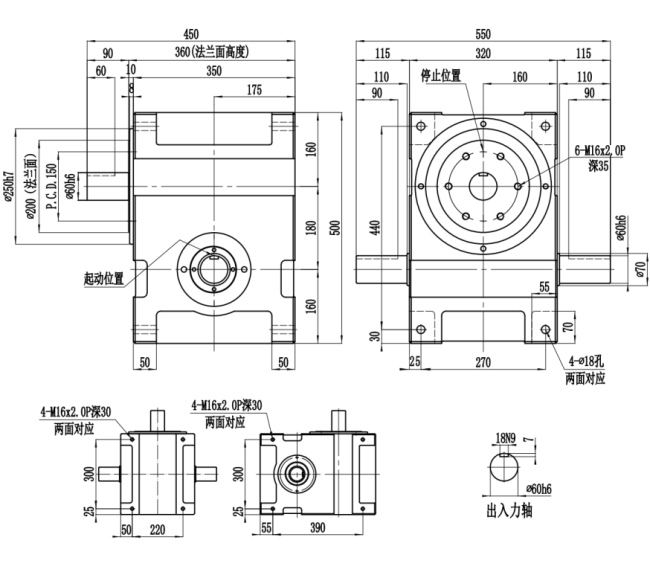

| 180DE | |||
| Item | Symbol | Unit | Value |
|---|---|---|---|
| Allowable Radial Load of Output Shaft | C1 | kgf | 1195 |
| Allowable Axial Load of Output Shaft | C2 | kgf | 1495 |
| Allowable Torque of Output Shaft | Ts | kgf-m | Refer to Torque Table |
| Allowable Radial Load of Input Shaft | C3 | kgf | 1095 |
| Maximum Bending Moment of Input Shaft | C4 | kgf | 1955 |
| Maximum Torque of Input Shaft | C5 | kgf-m | 336 |
| Moment of Inertia of Input Shaft (Note 1) | C6 | kgf-m2 | 0.39 |
| Positioning Indexing Accuracy | sec. | ±30 | |
| Weight | kg | 225 | |

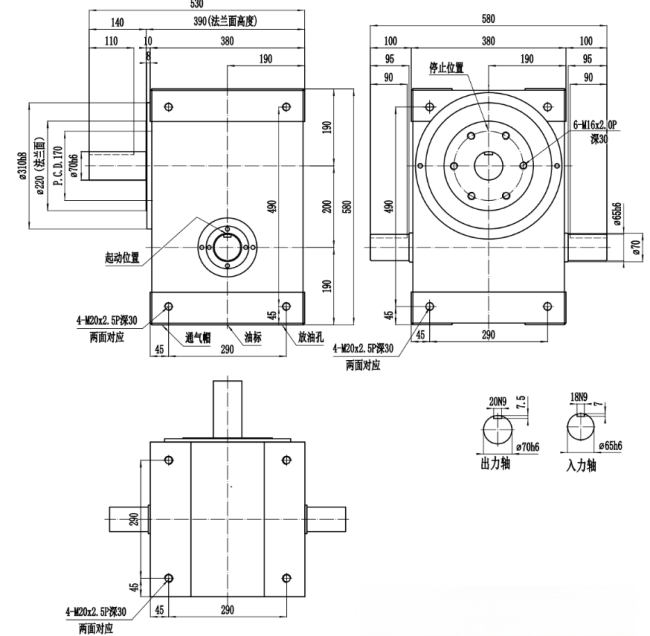

| 200DE | |||
| Item | Symbol | Unit | Value |
|---|---|---|---|
| Allowable Radial Load of Output Shaft | C1 | kgf | 1210 |
| Allowable Axial Load of Output Shaft | C2 | kgf | 1510 |
| Allowable Torque of Output Shaft | Ts | kgf-m | Refer to Torque Table |
| Allowable Radial Load of Input Shaft | C3 | kgf | 1105 |
| Maximum Bending Moment of Input Shaft | C4 | kgf | 1965 |
| Maximum Torque of Input Shaft | C5 | kgf-m | 341 |
| Moment of Inertia of Input Shaft (Note 1) | C6 | kgf-m2 | 0.39 |
| Positioning Indexing Accuracy | sec. | ±30 | |
| Weight | kg | 240 | |

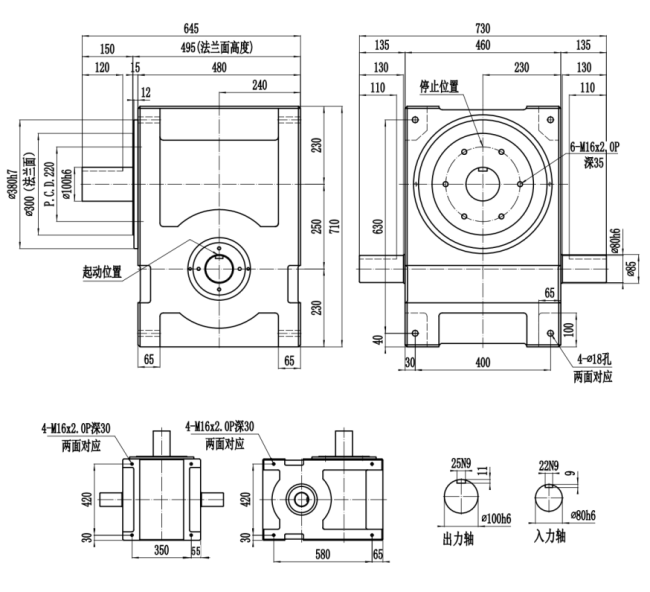

| 250DE | |||
| Item | Symbol | Unit | Value |
|---|---|---|---|
| Allowable Radial Load of Output Shaft | C1 | kgf | 3195 |
| Allowable Axial Load of Output Shaft | C2 | kgf | 4145 |
| Allowable Torque of Output Shaft | Ts | kgf-m | Refer to Torque Table |
| Allowable Radial Load of Input Shaft | C3 | kgf | 1545 |
| Maximum Bending Moment of Input Shaft | C4 | kgf | 3795 |
| Maximum Torque of Input Shaft | C5 | kgf-m | 775 |
| Moment of Inertia of Input Shaft (Note 1) | C6 | kgf-m2 | 1.98 |
| Positioning Indexing Accuracy | sec. | ±30 | |
| Weight | kg | 695 | |
