Hollow Flange Type Cam Indexers For Integrated Wiring In Disc Type Machining Tools

Price Negotiable

Price: 200 $/SET~4500 $/SET

MOQ: ≥1000 $

Delivery Time: 4 DAYS-20 DAYS

Brand: HONEPAN

Product Description

DFH Series Fixed Index Cam Indexer / Standard Indexing Drives

DFH Series Hollow Flange-Type Indexer

The DFH Series builds upon the proven DF Series design with the added benefit of a hollow center configuration. This innovative feature allows cables, pipes, or rods to pass directly through the unit, making it particularly suitable for disc-type machining tools that require integrated wiring or fluid line routing.

Key Features

Hollow center design for cable, pipe, and rod routing
Based on reliable DF Series indexing technology
Ideal for disc-type machining applications
Supports integrated wiring and fluid line systems
Robust construction for industrial environments

Available Models by Size Classification

The DFH Series is categorized based on the distance between input and output shafts, cabinet dimensions, and load capacity requirements. Available models include:

45DFH
60DFH
70DFH
80DFH
100DFH
110DFH
125DFH
140DFH
150DFH
180DFH
200DFH
250DFH

Item	Symbol	Unit	Value

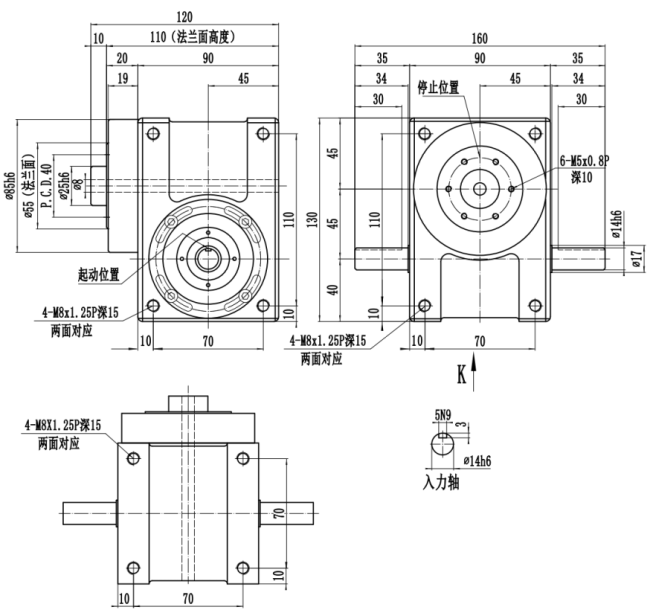

45DFH
Allowable Radial Load of Output Shaft	C1	kgf	128
Allowable Axial Load of Output Shaft	C2	kgf	138
Allowable Torque of Output Shaft	Ts	kgf-m	Refer to Torque Table
Allowable Radial Load of Input Shaft	C3	kgf	83
Maximum Bending Moment of Input Shaft	C4	kgf	108
Maximum Torque of Input Shaft	C5	kgf-m	3.8
Moment of Inertia of Input Shaft (Note 1)	C6	kgf-m2	3.2×10-4
Positioning Indexing Accuracy		sec.	±30
Weight		kg	9

Item	Symbol	Unit	Value

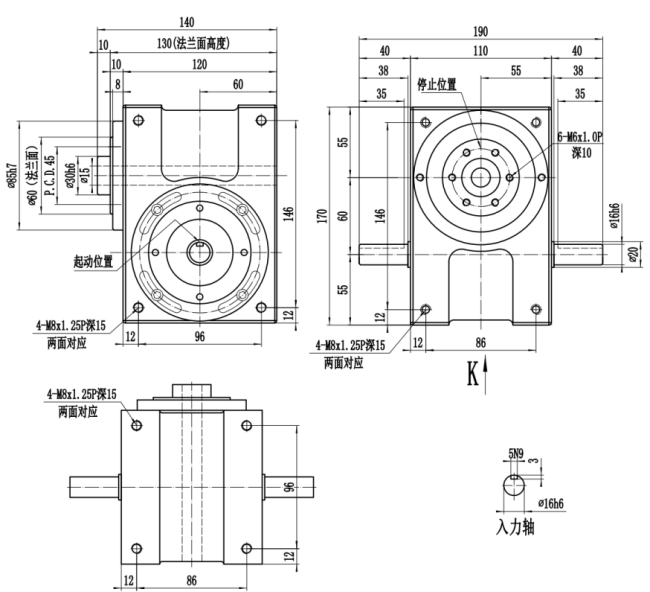

60DFH
Allowable Radial Load of Output Shaft	C1	kgf	138
Allowable Axial Load of Output Shaft	C2	kgf	140
Allowable Torque of Output Shaft	Ts	kgf-m	Refer to Torque Table
Allowable Radial Load of Input Shaft	C3	kgf	97
Maximum Bending Moment of Input Shaft	C4	kgf	148
Maximum Torque of Input Shaft	C5	kgf-m	5.8
Moment of Inertia of Input Shaft (Note 1)	C6	kgf-m2	1.9×10-3
Positioning Indexing Accuracy		sec.	±30
Weight		kg	15

Item	Symbol	Unit	Value
70DFH
Allowable Radial Load of Output Shaft	C1	kgf	218
Allowable Axial Load of Output Shaft	C2	kgf	298
Allowable Torque of Output Shaft	Ts	kgf-m	Refer to Torque Table
Allowable Radial Load of Input Shaft	C3	kgf	146
Maximum Bending Moment of Input Shaft	C4	kgf	105
Maximum Torque of Input Shaft	C5	kgf-m	9
Moment of Inertia of Input Shaft (Note 1)	C6	kgf-m2	6×10-3
Positioning Indexing Accuracy		sec.	±30
Weight		kg	20

Item	Symbol	Unit	Value

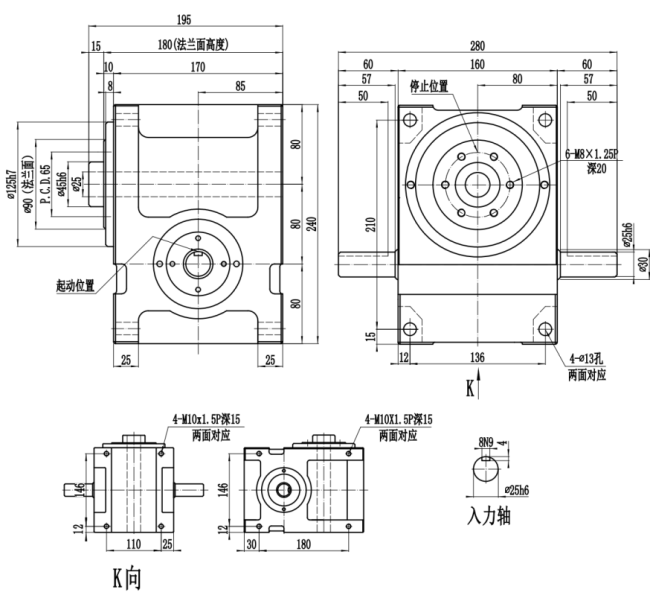

80DFH
Allowable Radial Load of Output Shaft	C1	kgf	327
Allowable Axial Load of Output Shaft	C2	kgf	417
Allowable Torque of Output Shaft	Ts	kgf-m	Refer to Torque Table
Allowable Radial Load of Input Shaft	C3	kgf	345
Maximum Bending Moment of Input Shaft	C4	kgf	255
Maximum Torque of Input Shaft	C5	kgf-m	24
Moment of Inertia of Input Shaft (Note 1)	C6	kgf-m2	9×10-3
Positioning Indexing Accuracy		sec.	±30
Weight		kg	35

Item	Symbol	Unit	Value
100DFH
Allowable Radial Load of Output Shaft	C1	kgf	500
Allowable Axial Load of Output Shaft	C2	kgf	650
Allowable Torque of Output Shaft	Ts	kgf-m	Refer to Torque Table
Allowable Radial Load of Input Shaft	C3	kgf	400
Maximum Bending Moment of Input Shaft	C4	kgf	395
Maximum Torque of Input Shaft	C5	kgf-m	34
Moment of Inertia of Input Shaft (Note 1)	C6	kgf-m2	4×10-3
Positioning Indexing Accuracy		sec.	±30
Weight		kg	55

Item	Symbol	Unit	Value
110DFH
Allowable Radial Load of Output Shaft	C1	kgf	555
Allowable Axial Load of Output Shaft	C2	kgf	695
Allowable Torque of Output Shaft	Ts	kgf-m	Refer to Torque Table
Allowable Radial Load of Input Shaft	C3	kgf	475
Maximum Bending Moment of Input Shaft	C4	kgf	410
Maximum Torque of Input Shaft	C5	kgf-m	39
Moment of Inertia of Input Shaft (Note 1)	C6	kgf-m2	2.8×10-2
Positioning Indexing Accuracy		sec.	±30
Weight		kg	68

Item	Symbol	Unit	Value
125DFH
Allowable Radial Load of Output Shaft	C1	kgf	630
Allowable Axial Load of Output Shaft	C2	kgf	850
Allowable Torque of Output Shaft	Ts	kgf-m	Refer to Torque Table
Allowable Radial Load of Input Shaft	C3	kgf	520
Maximum Bending Moment of Input Shaft	C4	kgf	560
Maximum Torque of Input Shaft	C5	kgf-m	65
Moment of Inertia of Input Shaft (Note 1)	C6	kgf-m2	0.28
Positioning Indexing Accuracy		sec.	±30
Weight		kg	78

Item	Symbol	Unit	Value
140DFH
Allowable Radial Load of Output Shaft	C1	kgf	755
Allowable Axial Load of Output Shaft	C2	kgf	995
Allowable Torque of Output Shaft	Ts	kgf-m	Refer to Torque Table
Allowable Radial Load of Input Shaft	C3	kgf	545
Maximum Bending Moment of Input Shaft	C4	kgf	705
Maximum Torque of Input Shaft	C5	kgf-m	98
Moment of Inertia of Input Shaft (Note 1)	C6	kgf-m2	0.11
Positioning Indexing Accuracy		sec.	±30
Weight		kg	92

Item	Symbol	Unit	Value

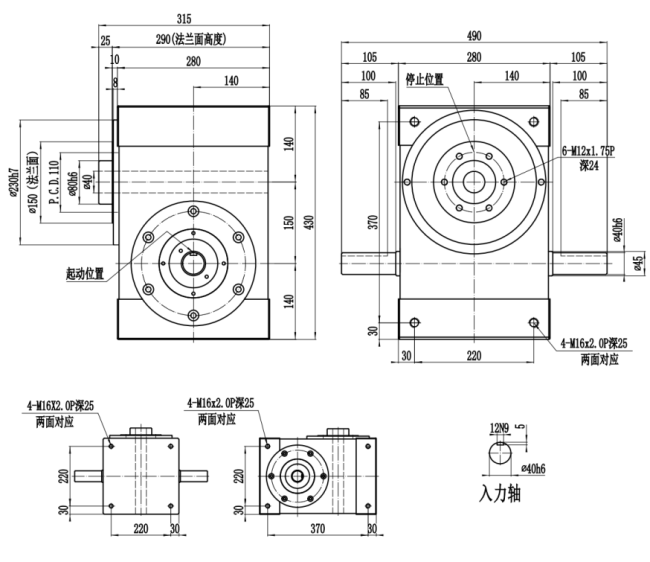

150DFH
Allowable Radial Load of Output Shaft	C1	kgf	760
Allowable Axial Load of Output Shaft	C2	kgf	1000
Allowable Torque of Output Shaft	Ts	kgf-m	Refer to Torque Table
Allowable Radial Load of Input Shaft	C3	kgf	550
Maximum Bending Moment of Input Shaft	C4	kgf	710
Maximum Torque of Input Shaft	C5	kgf-m	100
Moment of Inertia of Input Shaft (Note 1)	C6	kgf-m2	0.11
Positioning Indexing Accuracy		sec.	±30
Weight		kg	94

Item	Symbol	Unit	Value

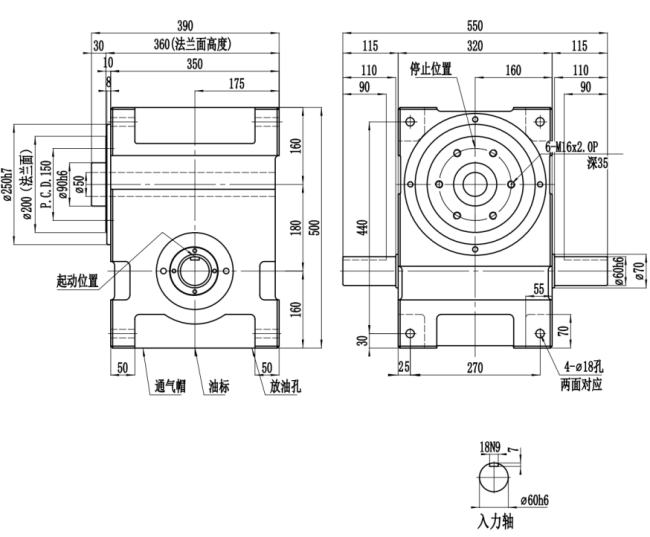

180DFH
Allowable Radial Load of Output Shaft	C1	kgf	1195
Allowable Axial Load of Output Shaft	C2	kgf	1495
Allowable Torque of Output Shaft	Ts	kgf-m	Refer to Torque Table
Allowable Radial Load of Input Shaft	C3	kgf	1095
Maximum Bending Moment of Input Shaft	C4	kgf	1955
Maximum Torque of Input Shaft	C5	kgf-m	336
Moment of Inertia of Input Shaft (Note 1)	C6	kgf-m2	0.39
Positioning Indexing Accuracy		sec.	±30
Weight		kg	225

Item	Symbol	Unit	Value
200DFH
Allowable Radial Load of Output Shaft	C1	kgf	1210
Allowable Axial Load of Output Shaft	C2	kgf	1510
Allowable Torque of Output Shaft	Ts	kgf-m	Refer to Torque Table
Allowable Radial Load of Input Shaft	C3	kgf	1105
Maximum Bending Moment of Input Shaft	C4	kgf	1965
Maximum Torque of Input Shaft	C5	kgf-m	341
Moment of Inertia of Input Shaft (Note 1)	C6	kgf-m2	0.39
Positioning Indexing Accuracy		sec.	±30
Weight		kg	240

Item	Symbol	Unit	Value
250DFH
Allowable Radial Load of Output Shaft	C1	kgf	3195
Allowable Axial Load of Output Shaft	C2	kgf	4145
Allowable Torque of Output Shaft	Ts	kgf-m	Refer to Torque Table
Allowable Radial Load of Input Shaft	C3	kgf	1545
Maximum Bending Moment of Input Shaft	C4	kgf	3795
Maximum Torque of Input Shaft	C5	kgf-m	775
Moment of Inertia of Input Shaft (Note 1)	C6	kgf-m2	1.98
Positioning Indexing Accuracy		sec.	±30
Weight		kg	695
