Ultra Thin Platen Type Fixed Cam Indexing Drive With 40% Slimmer Profile For Height Restricted Installations
Price:
200 $/SET~4500 $/SET
MOQ:
≥1000 $
Delivery Time:
4 DAYS-20 DAYS
Brand:
HONEPAN
Product Description
DA Series Fixed Index Cam Indexer / Standard Indexing Drives
Ultra-Thin Platen-Type Indexer
The DA Series maintains full platen-type functionality while featuring a 40% slimmer profile, specifically engineered for height-restricted installations such as vertical CNC machines and compact robotic cells.
Available Models by Configuration
Models are categorized according to the distance between input and output shafts, cabinet dimensions, and load capacity specifications:
70DA 90DA 110DA 150DA 190DA 230DA 330DA 450DA

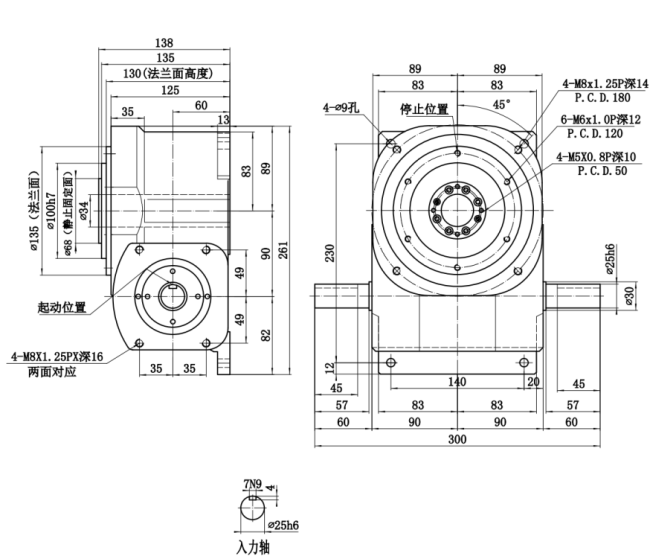

| 70DA | |||
| Item | Symbol | Unit | Value |
|---|---|---|---|
| Allowable Radial Load of Output Shaft | C1 | kgf | 316 |
| Allowable Axial Load of Output Shaft | C2 | kgf | 142 |
| Allowable Torque of Output Shaft | Ts | kgf-m | Refer to Torque Table |
| Allowable Radial Load of Input Shaft | C3 | kgf | 190 |
| Maximum Bending Moment of Input Shaft | C4 | kgf | 163 |
| Maximum Torque of Input Shaft | C5 | kgf-m | 9.5 |
| Moment of Inertia of Input Shaft (Note 1) | C6 | kgf-m2 | 1.9×10-5 |
| Positioning Indexing Accuracy | sec. | ±30 | |
| Weight | kg | 15 | |
| 90DA | |||
| Item | Symbol | Unit | Value |
|---|---|---|---|
| Allowable Radial Load of Output Shaft | C1 | kgf | 480 |
| Allowable Axial Load of Output Shaft | C2 | kgf | 195 |
| Allowable Torque of Output Shaft | Ts | kgf-m | Refer to Torque Table |
| Allowable Radial Load of Input Shaft | C3 | kgf | 250 |
| Maximum Bending Moment of Input Shaft | C4 | kgf | 250 |
| Maximum Torque of Input Shaft | C5 | kgf-m | 22 |
| Moment of Inertia of Input Shaft (Note 1) | C6 | kgf-m2 | 2.5×10-5 |
| Positioning Indexing Accuracy | sec. | ±30 | |
| Weight | kg | 30 | |
| 110DA | |||
| Item | Symbol | Unit | Value |
|---|---|---|---|
| Allowable Radial Load of Output Shaft | C1 | kgf | 680 |
| Allowable Axial Load of Output Shaft | C2 | kgf | 330 |
| Allowable Torque of Output Shaft | Ts | kgf-m | Refer to Torque Table |
| Allowable Radial Load of Input Shaft | C3 | kgf | 300 |
| Maximum Bending Moment of Input Shaft | C4 | kgf | 350 |
| Maximum Torque of Input Shaft | C5 | kgf-m | 27 |
| Moment of Inertia of Input Shaft (Note 1) | C6 | kgf-m2 | 6×10-5 |
| Positioning Indexing Accuracy | sec. | ±30 | |
| Weight | kg | 44 | |
| 150DA | |||
| Item | Symbol | Unit | Value |
|---|---|---|---|
| Allowable Radial Load of Output Shaft | C1 | kgf | 1000 |
| Allowable Axial Load of Output Shaft | C2 | kgf | 650 |
| Allowable Torque of Output Shaft | Ts | kgf-m | Refer to Torque Table |
| Allowable Radial Load of Input Shaft | C3 | kgf | 400 |
| Maximum Bending Moment of Input Shaft | C4 | kgf | 400 |
| Maximum Torque of Input Shaft | C5 | kgf-m | 36 |
| Moment of Inertia of Input Shaft (Note 1) | C6 | kgf-m2 | 2×10-5 |
| Positioning Indexing Accuracy | sec. | ±30 | |
| Weight | kg | 90 | |
| 190DA | |||
| Item | Symbol | Unit | Value |
|---|---|---|---|
| Allowable Radial Load of Output Shaft | C1 | kgf | 1838 |
| Allowable Axial Load of Output Shaft | C2 | kgf | 918 |
| Allowable Torque of Output Shaft | Ts | kgf-m | Refer to Torque Table |
| Allowable Radial Load of Input Shaft | C3 | kgf | 510 |
| Maximum Bending Moment of Input Shaft | C4 | kgf | 510 |
| Maximum Torque of Input Shaft | C5 | kgf-m | 61 |
| Moment of Inertia of Input Shaft (Note 1) | C6 | kgf-m2 | 0.105 |
| Positioning Indexing Accuracy | sec. | ±30 | |
| Weight | kg | 180 | |
| 230DA | |||
| Item | Symbol | Unit | Value |
|---|---|---|---|
| Allowable Radial Load of Output Shaft | C1 | kgf | 2800 |
| Allowable Axial Load of Output Shaft | C2 | kgf | 1300 |
| Allowable Torque of Output Shaft | Ts | kgf-m | Refer to Torque Table |
| Allowable Radial Load of Input Shaft | C3 | kgf | 650 |
| Maximum Bending Moment of Input Shaft | C4 | kgf | 650 |
| Maximum Torque of Input Shaft | C5 | kgf-m | 80 |
| Moment of Inertia of Input Shaft (Note 1) | C6 | kgf-m2 | 0.136 |
| Positioning Indexing Accuracy | sec. | ±30 | |
| Weight | kg | 285 | |
| 330DA | |||
| Item | Symbol | Unit | Value |
|---|---|---|---|
| Allowable Radial Load of Output Shaft | C1 | kgf | 3560 |
| Allowable Axial Load of Output Shaft | C2 | kgf | 3430 |
| Allowable Torque of Output Shaft | Ts | kgf-m | Refer to Torque Table |
| Allowable Radial Load of Input Shaft | C3 | kgf | 1880 |
| Maximum Bending Moment of Input Shaft | C4 | kgf | 2150 |
| Maximum Torque of Input Shaft | C5 | kgf-m | 650 |
| Moment of Inertia of Input Shaft (Note 1) | C6 | kgf-m2 | 1.71 |
| Positioning Indexing Accuracy | sec. | ±30 | |
| Weight | kg | 1000 | |
| 450DA | |||
| Item | Symbol | Unit | Value |
|---|---|---|---|
| Allowable Radial Load of Output Shaft | C1 | kgf | 4850 |
| Allowable Axial Load of Output Shaft | C2 | kgf | 4160 |
| Allowable Torque of Output Shaft | Ts | kgf-m | Refer to Torque Table |
| Allowable Radial Load of Input Shaft | C3 | kgf | 2460 |
| Maximum Bending Moment of Input Shaft | C4 | kgf | 2760 |
| Maximum Torque of Input Shaft | C5 | kgf-m | 860 |
| Moment of Inertia of Input Shaft (Note 1) | C6 | kgf-m2 | 7.9 |
| Positioning Indexing Accuracy | sec. | ±30 | |
| Weight | kg | 1600 | |
