Stainless Steel Disc Separator for Algae Harvest

Price Negotiable

Price: $59,000-60,000 / set

MOQ: 1 set

Delivery Time: Negotiable

Brand: Huading

Product Description

Industrial coconut milk extracting separator equipment with CE certificate

Product Description

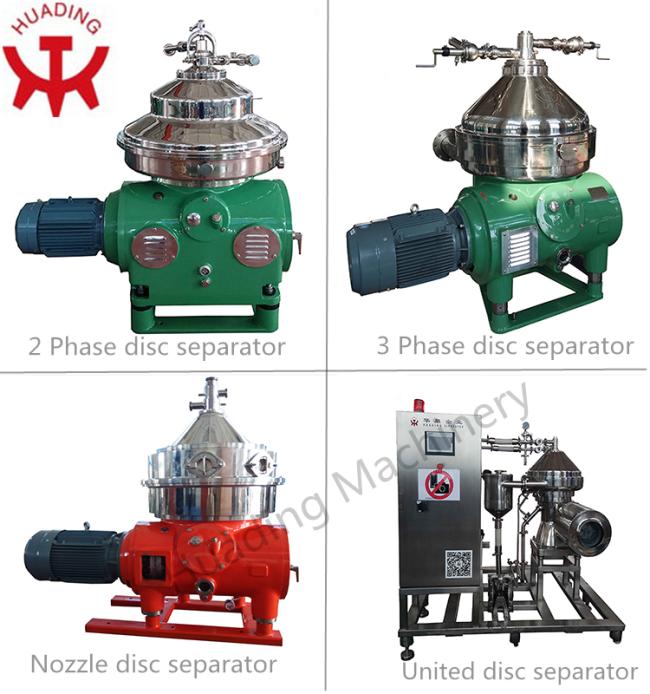

Disc separators from Huading Separator are designed especially for liquid-based applications. Using centrifugal force, they separate substances and solids from liquids. They are equally as effective at separating liquid mixtures at the same time as removing solids. Disc separator have become indispensable in all sectors; in fragmentation and enzyme treatment in the chemical and pharmaceutical industry, oils and fats recovery, the production of dairy products, beer, wine, fruit and vegetable juices. As stand-alone machines or integrated in complete process lines, Huading Separator’s extensive product line offers value adding solutions that point the way forward for the entire branch in terms of quality and customer benefit. The disc separator, or disc stack separator, comprises a rotating assembly bowl operating at high speed, a drive mechanism and a cast base frame.

Feature

1.All parts directly touch to material are made of stainless steel 2.Continuous and automatic operation can minimize labor costs, easy in installation and maintenance 3.High bowl rotation speed with high G-force via VFD adjustable 4.Automatic discharging with PLC control system and LED touch screen operation 5.Full-automatic vibration detector and alarm 6.Running in high speed, operating stability and low noise 7.Stability outlet pressure, large regulating sphere and operating easily

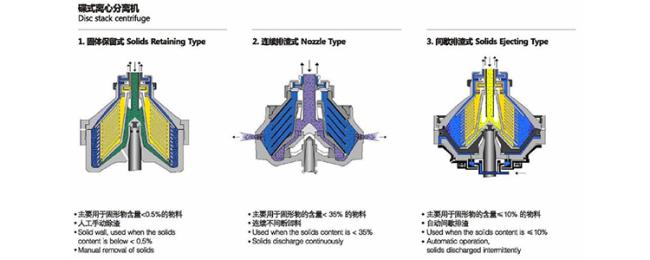

Working principle

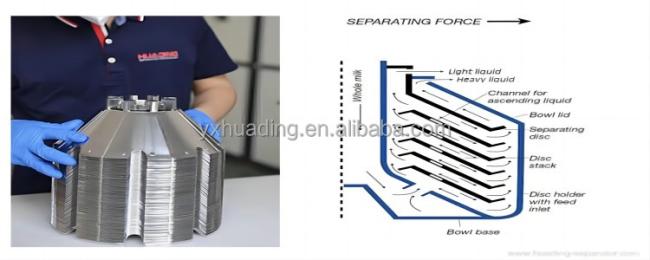

The disc stack centrifuge separates solids and one or two liquid phases from each other in one single continuous process, using extremely high centrifugal forces. When the denser solids are subjected to such forces, they are forced outwards against the rotating bowl wall, while the less dense liquid phases form concentric inner layers. The area where these two different liquid phases meet is called the interface position. This can be easily varied in order to ensure that the separation takes place with maximum efficiency.
The disc stack provides additional surface settling area, which contributes to speeding up the separation process dramatically. It is the particular configuration, shape and design of these plates that make it possible for a disc stack centrifuge to undertake the continuous separation of a wide range of different solids from either one or two liquids.
The concentrated solids phase formed by the particles can be removed continuously, intermittently or manually, depending on centrifuge type and the amount of solids involved in the specific application.

The need to separate different liquid phases and solids from each other is part of practically every industrial process. Huading Separator has more than half a century of experience in meeting this requirement using either separator or decanter technology. And our products perform this crucial function exceptionally well. The product range is based on centrifugal separation machines for separating liquids from each other or for removing solid particles from liquids. All these centrifugal separation machines are based on density difference

Typical applications

Vegetable oil refining

Soybean oil, sunflower seed oil, cottonseed oil, peanut oil, corn germ oil;

Rice bran oil, sesame oil, liseed oil;

Coconut oil, palm oil,...

Beverage clarification

Fruit juice: tomato juice, apple juice, lemo juice, grape juice...

Vegetable juice: Celery, cucumber, garlic,...

Beer, wine, coffee, tea

Animal oil and Fats

Fish oil

Kitchen waste oil

Hogwash oil

...

Biodiesel

Separation of , glycerin, catalyst, methanol

Washing of

Extraction of fatty acid

Dairy industry

Dairy clarification

Dairy skimming

Fermentation industry

Algae: spirulina chlorella, seaweed,...

Yeast: beer yeast, baker's yeast,...

Molasses, syrup,...

Plant extraction

Tea

Rutin

Loquat

Honeysuckle

...

Bio-Pharmaceutical

Microbia concentration: colon bacillus, lactobacillus, bacillus,...

Fementation broth clarification

Medical protein

Vaccine

Enzyme: proteolytic enzyme, hydrolase, lipase, protease,...

Mineral oil

Fuel oil, Lubricant

Treatment of drilling slurry

Water removal of crude oil

Waste oil treatment

...

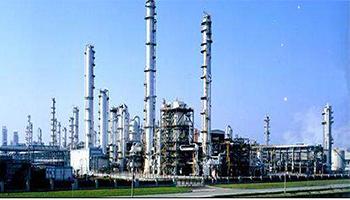

Chemical industry

Boiler ash

Phosphoric acid, lye

Fuel and paint

Industry salt

...

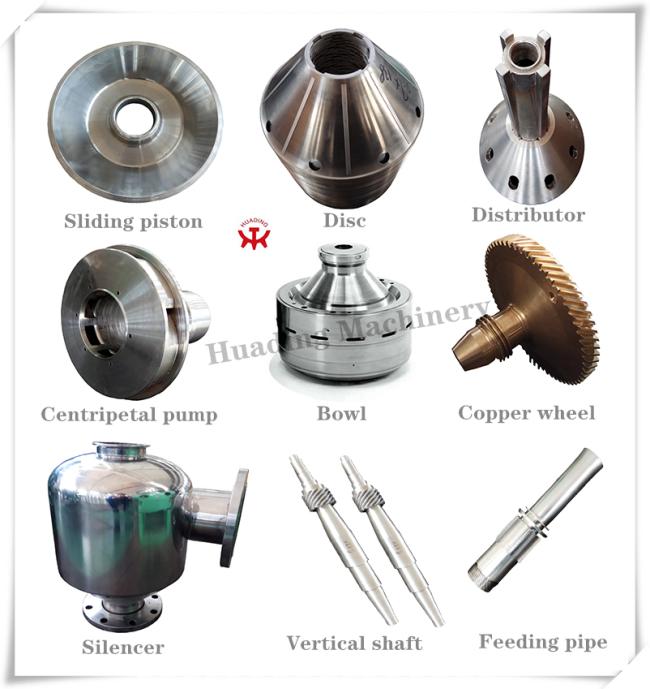

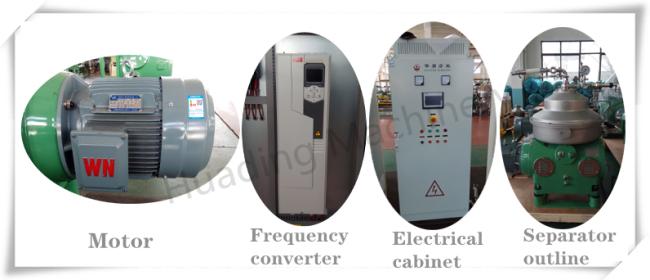

Main parts

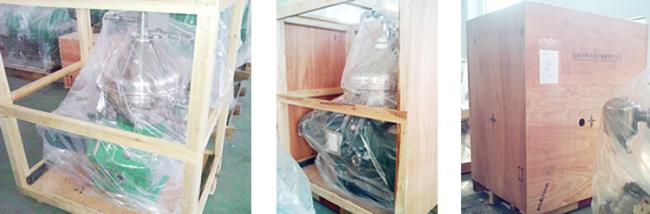

Packing&Shipping

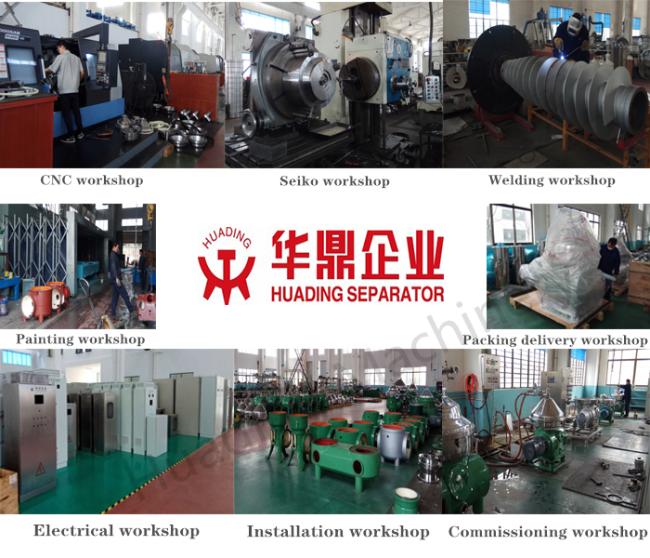

Company Introduction

Huading Separator has been at the forefront in the field of centrifugal separation technology for more than 50 years – which is why disc stack centrifuges from Huading Separator perform this crucial separation function exceptionally well.
Today, Huading Separator is the leader in mechanical separating technology in China. Huading developments are used in a wide range of areas – in the beverage and dairy industries, in recovering and processing oils and fats, as well as in chemicals, , biotechnology and starch technology. Other applications include marine engineering, energy, oil fields and industry.
