High Capacity Disc Oil Separator Suitable For Cellulose Sludge Dewatering Low Moisture Cake Anti-Fiber Tangling Continuous Operation
Price:
$24,000-25,000 / set
MOQ:
1 set
Delivery Time:
60 working days
Brand:
HUADING
Product Description
What are the benefits of using an oil water separator?
Separators help facilities meet those legal and environmental standards, avoiding large fines and legal risk. Reducing oil and sediment in wastewater prevents downstream pump clogs and reduces maintenance on equipment, pipelines, and treatment systems. Efficient separation often means lower treatment costs.
Separators help facilities meet those legal and environmental standards, avoiding large fines and legal risk. Reducing oil and sediment in wastewater prevents downstream pump clogs and reduces maintenance on equipment, pipelines, and treatment systems. Efficient separation often means lower treatment costs.
Technical Specifications
| Dimensions | 2000 × 1200 × 1800mm |
| Drive | gear / belt |
| Bowl speed | 4000 - 10000 rpm |
| Centrifugal force | > 10,000 g |
| Bowl volume | 8 - 300 L |
| Bowl weight | 50-15000 Kg |
| Solids holding space | 2 - 50 L |
| Inlet pressure | 0-0.1 Mpa |
| Liquid outlet pressure | 0.2-0.6 Mpa |
| Starting time | 5 - 30 mins |
| Stopping time (no brakes) | > 40 mins |

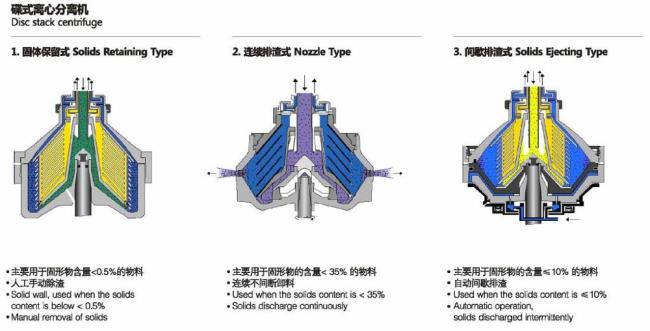

Centrifugal Separation Technology
The disc stack separator separates solids and one or two liquid phases from each other in one single continuous process, using extremely high centrifugal forces. When the denser solids are subjected to such forces, they are forced outwards against the rotating bowl wall, while the less dense liquid phases form concentric inner layers.
Company Advantages
60+Years Experience
40000+Installations
100+Centrifuge Models
Huading Separator is one of the market leaders in centrifugal separating technology, with over 60 years of experience developing and manufacturing disc stack centrifuges. Our equipment is trusted by well-known manufacturers worldwide in food, pharmaceutical, and industrial applications
Process Components
1 Inlet tube
2 Central bore
3 Distributor
4 Distributor bore
5 Rising channels
6 Light phase centripetal pump
7 Heavy phase centripetal pump

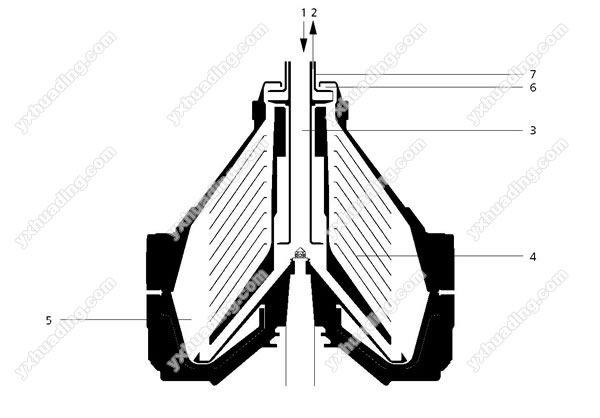

2-Phase Separation Process
Separation takes place inside a rotating bowl. The feed is introduced to the rotating centrifuge bowl from the top via a stationary inlet pipe, and is accelerated in the distributor before entering the disc stack. The separation of liquid-solids takes place between the discs, with the liquid phase moving through the disc stack to the centre and pumped out via built-in paring disc.

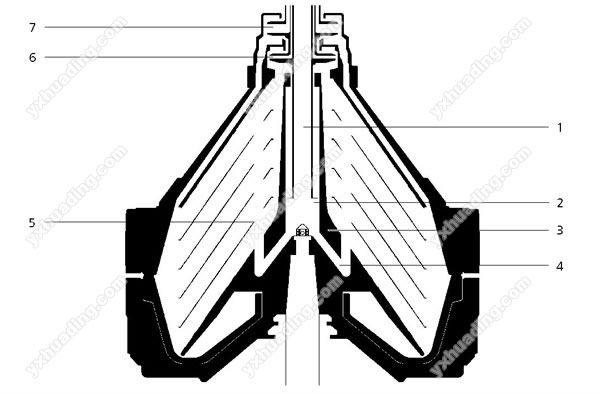

3-Phase Separation Process
The suspension to be separated is fed into the separator bowl from the top through a feeding pipe and enters the disc stack. The heavy phase and heavy sludge are forced towards the periphery of the bowl, while the light phase flows towards the centre. Solids collects in the sludge space and is discharged intermittently and automatically.
Manufacturing Excellence
Packaging & Shipping
Package: Standard export carton packing
Delivery Time: 30-90 days after confirming order (varies by production season and order quantity)
Delivery Time: 30-90 days after confirming order (varies by production season and order quantity)
