260ppm Horizontal Single Twist Chocolate Wrapping Machine Automatic High Speed
Price:
USD46000.0-USD60000.0
MOQ:
One Set
Delivery Time:
45-60 Days
Brand:
SHENGLI
Product Description
Automatic 260ppm High Speed PLC Control Food Grade Chocolate Top Twist Wrapping Machine
High-speed Full Automatic Chocolate Single Top Twist Wrapping Machine designed for efficient packaging of chocolates, pralines, and pressed candies.
Main Packing Machine Specifications
| Model No | SL-SBDN260 |
|---|---|
| Packing Speed | 260ppm |
| Products Size | Diameter (Round) 10-32mm; Height 17-30mm 6-22mm; 10-30mm |
| Total Power | 3KW |
| Power Supply | 380V/220V 50HZ 3P |
| Air Supply | 0.6Mpa |
| Qualification Rate of Packaging | >=97% |
| Air Displacement | 0.6 m³/min |
| Wrapper Width | 80-130mm |
| Wrapper Material | Foil/PET/Film and so on |
Arranging and Feeding Machine Technical Specifications
| Total Power | 1 KW |
|---|---|
| Compressed Air | 0.6Mpa |
| Frequency Converter | Taiwan (Delta) |
| Gross Weight - Packing Machine | 1600kg |
| Gross Weight - Feeding Conveyor | 1000kg |
| Dimensions - Packing Machine | 2960×1560×2150mm |
| Dimensions - Feeding Conveyor | 2360×860×1250mm 1560×860×1260mm |
Product Overview

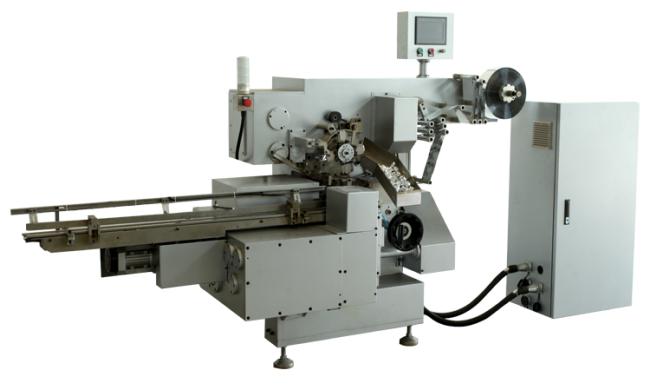

This complete machine is a fully automatic high-speed wrapping system that uses automatic control to convey and package foods such as chocolate, pressed candy, pralines, and other delicate or fragile food products.
The complete system consists of one SL-SBDN260 Top-twisting Packing Machine and one SL-SBZL500 Arranging and Feeding Machine.
Application Range
SL-SBDN260 series automatic packing machines are primarily used for single twist style wrapping of chocolates, pralines, and pressed candies. The model uses foil for twist packing and is suitable for various product shapes and sizes, delivering excellent packaging performance.
Product Details
Main Components
- Servo motor for feeding paper - Japan (Omron)
- Touchscreen - Japan (Omron)
- Frequency converter - Taiwan (Delta)
- Candy sensor - Germany (SICK)
- Color code sensor - Germany (SICK)
- Paper broken proximity switch - Germany (SICK)
- Oversize candy proximity switch - Germany (SICK)
- Origin proximity switch - Germany (SICK)
- Encoder - Japan (Omron)
- Solid relay - Japan (Omron)
- Switch power supply - Japan (Omron)
- Precision potentiometer - Japan (Omron)
- PLC - Japan (Omron)
Key Advantages
- PLC & program software for easy operation and setup with auto-human touch screen and three-color warning light
- Self-failure diagnosis with clear failure display
- Fully automatic program-controlled with servo motors for high stability and reliability
- Flexible color sensor settings with paper feeding self-tracking and correction
- Self-protection for abnormal products
- Online product feeding status monitoring for minimal paper consumption
- Removable truckle with adjustable height
- Large space switch power supply with optional device brands

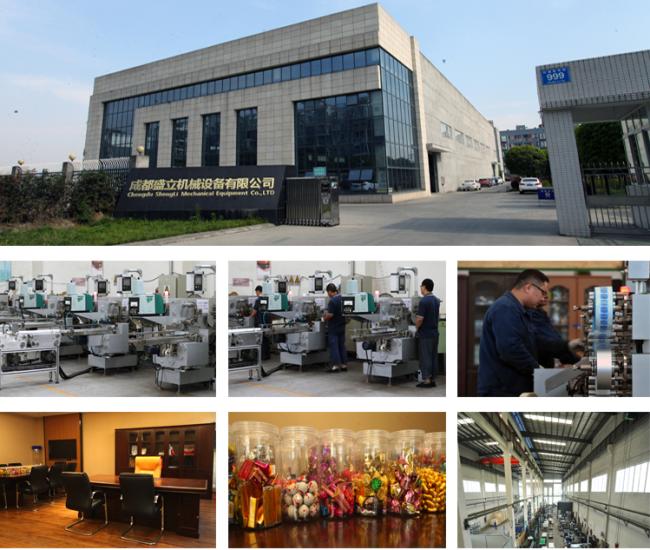

Company Introduction
Chengdu ShengLi Mechanical Equipment Co., LTD specializes in the design, development, production, and sales of food processing and packing machinery. With decades of experience, we provide automatic food processing solutions and customer services. Chengdu WealthRise Complete Mechanical Engineering Co., Ltd is a wholly foreign-owned enterprise founded in 2004.

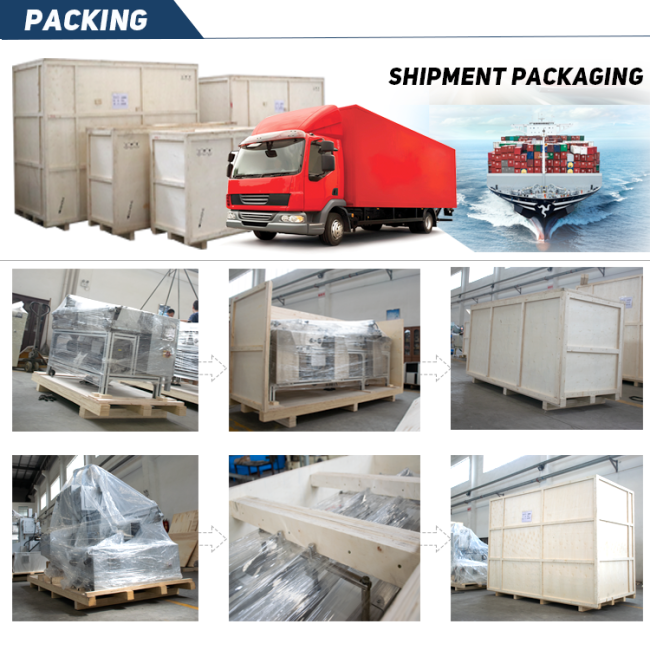

Packing & Shipping
Package Standard: Wooden case package as international trade standard
Package Supply and Recovery: Supplier provides packaging according to customer requirements
Package Size and Weight: Reference specifications available

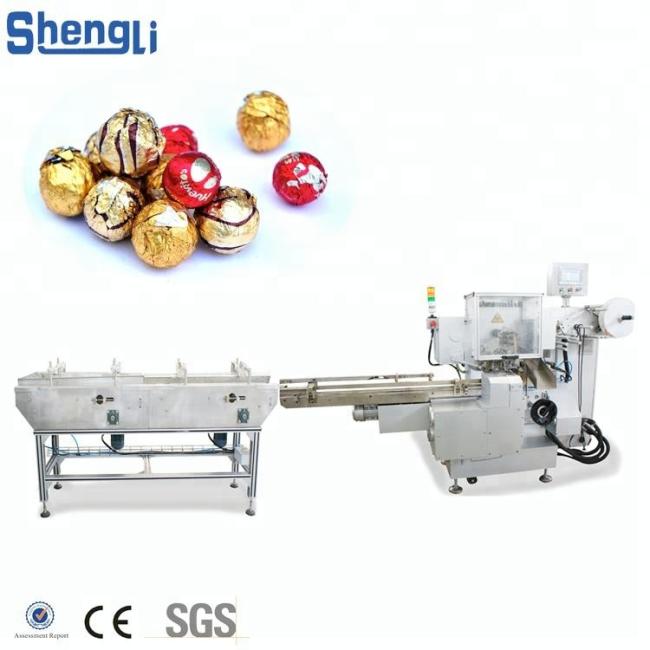

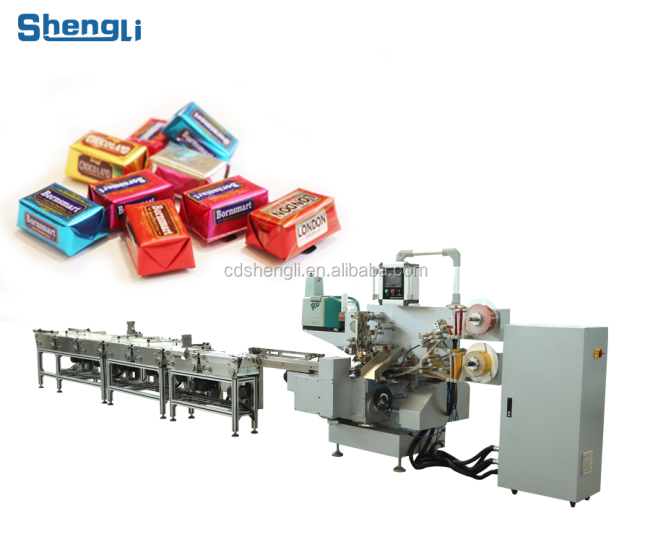

Related Products
