Permanent Magnet Fitness Equipment Actuators For Stationary Bikes / Fitness Gear
Price:
$90-100 / piece
MOQ:
2 pieces
Delivery Time:
Negotiable
Brand:
TOMUU
Product Description
Product Description:
The GS141‑D180 is a high‑performance permanent magnet linear actuator engineered for stable linear motion and power generation. Designed for stationary bikes, fitness gear, and light industrial automation, it delivers consistent output, low vibration, and reliable long‑term operation in compact spaces.
Specification:
| Parameter | Details |
|---|---|
| Speed(RPM) | 195 RPM |
| Efficiency | IE 1 |
| Type | Gear Motor |
| Construction | Permanent Magnet |
| Protect Feature | Waterproof |
| Usage | Electric Bicycle |
| Dimensions | 100*195*238mm |
| Fixing dimensions | 127*99(customize) |
| Flywheel Runout | ≤0.15mm |
| Magnet/Power leads | 620mm(customize) |
| Coil Resistance | 13.5Ω |
| Output Voltage | 15±2VAC(195 RPM) |
| Magnet: Resistance | 12Ω/180℃ |
| Voltage Withstand | 1250V/1mA/3s |
| Power Rate | 160W |

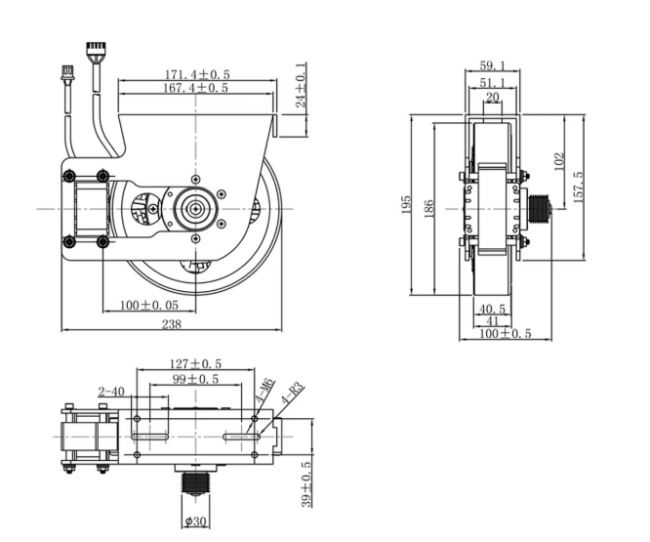

Dimension:
Advantages:
- This product adopts a high-efficiency permanent magnet structure, which can realize stable power generation and linear actuation. Its compact size enables effortless integration into fitness equipment and industrial devices. The ultra-low flywheel runout guarantees smooth and low-noise operation during working. Equipped with high-temperature resistant magnets, it maintains stable performance even in harsh working environments. With 1250V dielectric strength, it greatly improves electrical safety and operation reliability. The wiring and pulleys can be customized to satisfy diverse application requirements, and the two-way generation function further broadens its application scenarios.
