195 RPM Waterproof Construction Linear Actuator Brush Commutation For Gym Equipment
Price:
$90-100 / piece
MOQ:
2 pieces
Delivery Time:
Negotiable
Brand:
TOMUU
Product Description
Product Description:
The GS141‑D242 is a high‑performance permanent magnet linear actuator engineered for stable linear motion and power generation. Designed for stationary bikes, fitness gear, and light industrial automation, it delivers consistent output, low vibration, and reliable long‑term operation in compact spaces.
Specification:
| Parameter | Details |
|---|---|
| Speed(RPM) | 195 RPM |
| Efficiency | IE 1 |
| Type | Gear Motor |
| Construction | Permanent Magnet |
| Protect Feature | Waterproof |
| Usage | Electric Bicycle |
| Dimensions | 297*255*117mm |
| Fixing dimensions | 85.5*134(customize) |
| Flywheel Runout | ≤0.15mm |
| Magnet/Power leads | 620mm(customize) |
| Coil Resistance | 25Ω |
| Output Voltage | 24±3VAC(152 RPM) |
| Magnet: Resistance | 12Ω/180℃ |
| Voltage Withstand | 1250V/1mA/3s |
| Power Rate | 350W |

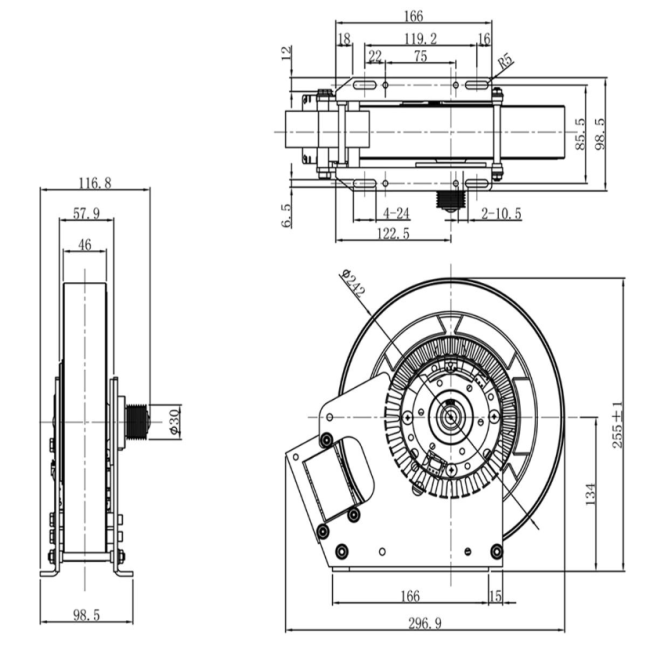

Dimension:
Advantage:
- This actuator features 350W high-power output, ideal for heavy-duty fitness gear and energy feedback systems. Its two-way generation function boosts application versatility. Ultra-low flywheel runout delivers smooth, quiet and low-wear operation. High-temperature resistant magnets guarantee stable performance in harsh environments. 1250V dielectric strength enhances electrical safety and reliability. Customizable belt wheels, mounting and wiring enable flexible installation, while its compact structure fits perfectly into integrated designs of stationary bikes and gym equipment.
