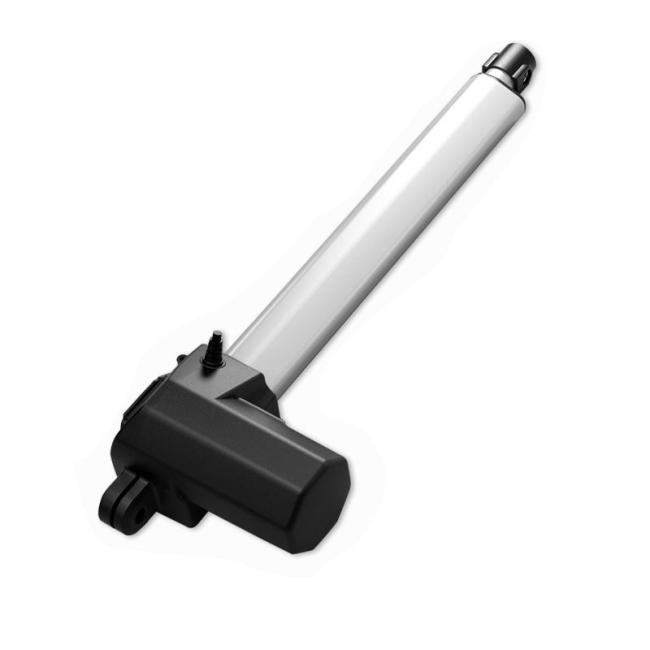

Heavy Duty Electric Linear Actuator 12V 24V 8000N IP65 Protection Industrial Grade
Description:
This high‑thrust linear actuator is engineered for heavy‑duty applications such as truck lifts, agricultural machinery, industrial automation, and medical equipment industrial application, like window open, auto-open stairs, etc. It provides strong pushing force, IP65 protection, and stable performance for demanding environments.
Parameter:
|
Code |
Ratio |
Rated Load (N) |
Rated Current(A) |
Rated Speed(mm/s) |
||
|
Push |
Pull |
No Load (24V) |
Full Load (24V) |
|||
|
Standard Motor(2600RPM) |
||||||
|
A |
39*2.6*1 |
8,000 |
4,000 |
4.5 |
2.9 |
2.3 |
|
B |
39*3.9*1 |
6,000 |
4,000 |
4.5 |
4.3 |
3.5 |
|
C |
39*2.6*2 |
5,000 |
4,000 |
4.5 |
5.8 |
5.2 |
|
D |
39*3.5*2 |
3,500 |
3,500 |
4.5 |
7.8 |
6.2 |
|
E |
38*2*2.6*2 |
2,500 |
2,500 |
4.5 |
11.9 |
9.5 |
|
F |
38*2*3.5*2 |
2,000 |
2,000 |
4.5 |
16.0 |
13.6 |
|
G |
38*2*3.5*3 |
1,000 |
1,000 |
4.5 |
23.9 |
19.2 |
Dimension:
Advantage:
This industrial-grade actuator delivers stable performance for continuous heavy-duty operation. With IP65 protection and a wide temperature range, it performs reliably in harsh outdoor environments. High thrust supports heavy lifting and pushing tasks, while built-in safety protection prevents motor burnout. Multiple stroke options ensure flexible design, and its rugged structure greatly lowers failure rates.
