Aluminum Body Low Noise Linear Actuator 8000N Medical Grade For Hospital Beds
Description:

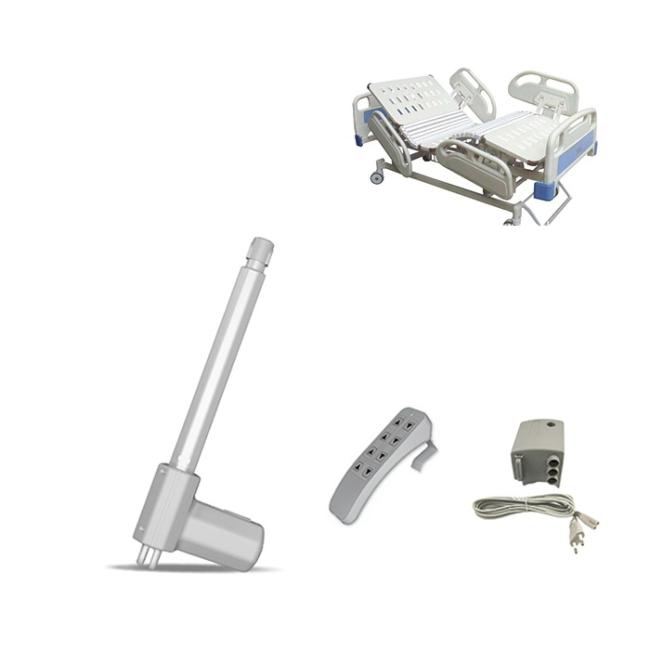

The U2 is a professional medical-grade linear actuator optimized for adjustable hospital beds, ICU beds, and rehabilitation equipment. It combines exceptional thrust, low noise, and durable construction to meet strict healthcare standards. Its compact design and reliable performance make it a preferred choice for medical device manufacturers.
Parameter:
|
Code |
Ratio |
Rated Load (N) |
Rated Current(A) |
Rated Speed(mm/s) |
||
|
Push |
Pull |
No Load (24V) |
Full Load (24V) |
|||
|
Standard Motor(2600RPM) |
||||||
|
A |
39*2.6*1 |
8,000 |
4,000 |
4.5 |
2.9 |
2.3 |
|
B |
39*3.9*1 |
6,000 |
4,000 |
4.5 |
4.3 |
3.5 |
|
C |
39*2.6*2 |
5,000 |
4,000 |
4.5 |
5.8 |
5.2 |
|
D |
39*3.5*2 |
3,500 |
3,500 |
4.5 |
7.8 |
6.2 |
|
E |
38*2*2.6*2 |
2,500 |
2,500 |
4.5 |
11.9 |
9.5 |
|
F |
38*2*3.5*2 |
2,000 |
2,000 |
4.5 |
16.0 |
13.6 |
|
G |
38*2*3.5*3 |
1,000 |
1,000 |
4.5 |
23.9 |
19.2 |
Dimension:
Advantage:
Adopting a medical-grade design, this product ensures safe and stable performance for healthcare scenarios.
It features 8000N high thrust to deliver smooth bed adjustment, while ultra-low noise operation enhances patient comfort and recovery.The rugged aluminum body with a protective cover ensures durability, and standard mounting enables simple installation.With optional position feedback for intelligent control, it is perfectly suited for multi-function medical and nursing beds.
