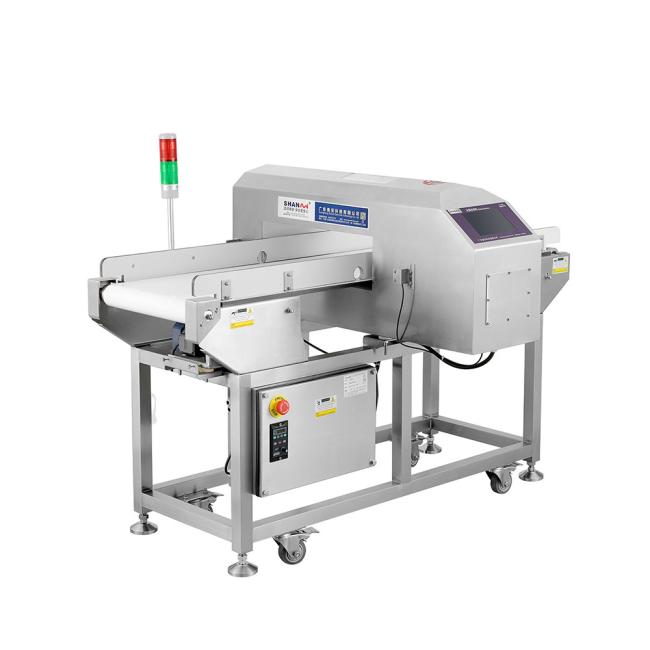

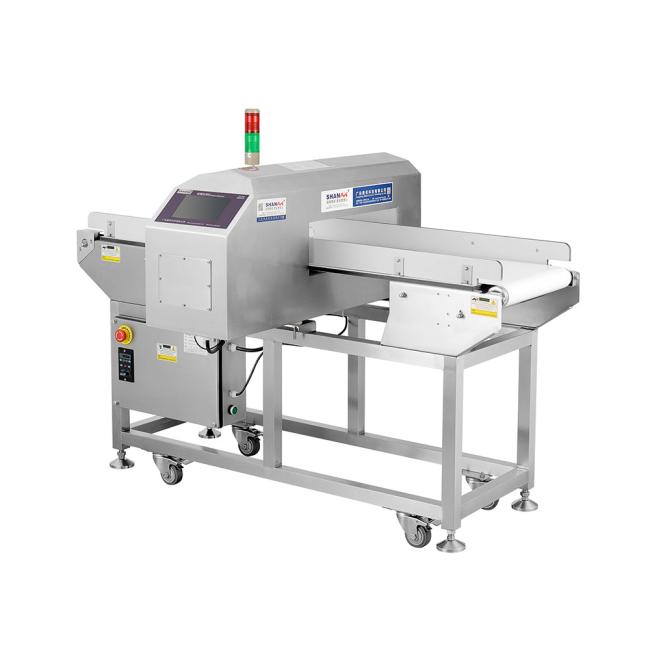

Hot Selling High Accuracy Conveyor Belt Food Metal Detector Machine Factory Price For Steamed Buns Dumplings
New Technology Industrial Tunnel Metal Detector For Foods Sugar / Food Metal Detector
| Machine specification |
|
||||||||
|
Detection Width (mm)
|
400 | 300 customized | |||||||
|
Detection Height
(mm)
|
100 | 120 | 150 | 200 | 250 | 300 | 350 | 400 | |
|
Detection
Sensitivity
|
Fe(Φmm) | ≥0.6 | ≥0.8 | ≥1.0 | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 |
| Non-Fe(Φmm) | ≥1.0 | ≥1.2 | ≥1.5 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | ≥4.5 | |
| 304Sus(Φmm) | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | ≥4.5 | |
| Alarm and rejector system | Automatic stop by alarm and sound or push rod or falling drop | ||||||||
| Machine structure | Full structure takes of stainless 304 | ||||||||
| Machine size (mm) |
L1520mm×W830mm×H1100mm
if customized it will according to customized size
|
||||||||
| Machine weight | Around 250KG if customized the weight will different | ||||||||
| Voltage and power | 220V 50Hz 90W | ||||||||
| Load ability of belt |
5-25KG
conveyor belt running speed:25-30m/min or customized various
|
||||||||
| Height of line | 750mm±50mm can customized | ||||||||
| Note :Normal size machine have stocks. Unnormal size machine have to customized | |||||||||
|
Our service:
| If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide operation video for machines. |
|
Onsite Service: 1. Device installation; 2. Equipment Operation Test Technology training; 3. Equipment Calibration; 4. Daily maintenance and maintenance of equipment |
|
Free technical training for visiting factories 24-hour Online contact Free software upgrades Free information: 1.Product Instruction;2.Product operation instruction/video;3.Experiment Test (test application, test report)
|
|
Device Problem Handling: 1. Social media 24 hours online communication; 2. Mail Seamless Docking; 3. Video Conferencing; |
